1983–1985 Yamaha XVZ1200 Venture Royale Service & Repair Manual with Supplements (P/N LIT-11616-03-35)

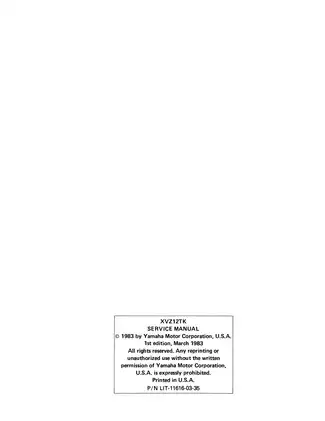

This 1983–1985 Yamaha XVZ1200 Venture Royale service and repair collection includes the XVZ12TK factory manual, P/N LIT-11616-03-35 (first edition, March 1983), the XVZ12TDK supplement, P/N LIT-11616-03-36, and the XVZ12L/KC2 and XVZ12DL/DKC2 supplement, P/N LIT-11616-04-06.

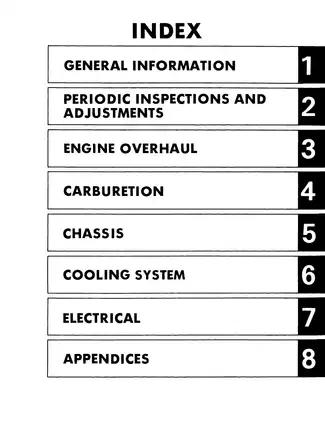

• Engine overhaul: Engine removal and reinstallation, cylinder-head and piston inspection, crankshaft bearing selection, cam timing, and clutch and transmission assembly procedures.

• Carburetion: Carburetor overhaul, float-level inspection, vacuum-piston and coasting-enrichment-valve checks, plus synchronization procedures and fuel-pump electrical testing.

• Chassis and hydraulics: Unified brake bleeding, caliper and master-cylinder service, hydraulic clutch repair, front-fork overhaul, and Monocross suspension inspection.

• Shaft drive: Middle-gear assembly and lash adjustment, final-drive inspection and shim selection, supported by exploded diagrams and component-specific torque tables.

• Cooling system: Water-pump disassembly and seal replacement, thermostatic-valve testing, radiator inspection, coolant-drain-valve operation, and coolant filling procedures.

• Electrical diagnosis: Transistor Control Ignition, charging and starter circuits, safety interlocks, lighting, and Computerized Monitor System tests with circuit diagrams.

• Touring equipment: XVZ12TDK CLASS and audio-system procedures, plus XVZ12DL cruise-control diagnosis, throttle-wire installation, and adjustment.

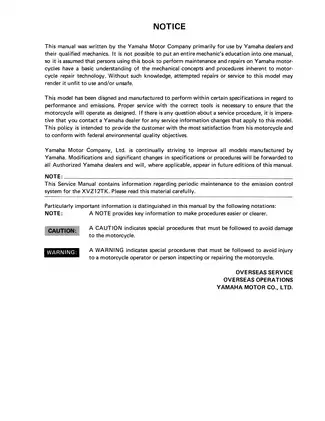

Written for Yamaha dealers and qualified mechanics, the manual assumes an understanding of mechanical repair and access to the appropriate workshop tools.

Engine, Carburetors and Shaft Drive

Maintenance schedules separate emissions-related work from general lubrication and inspection. Engine coverage includes YICS induction, valve adjustment using Yamaha pad-selection charts, internal wear checks, assembly torque tables, and lubrication diagrams.

The special-tool list identifies tappet adjusting tool YM-33296 and carburetor synchronization vacuum gauge YU-08030. The carburetor section view identifies the main, pilot, and bypass passages; overhaul text distinguishes routine component cleaning from separating the carburetor bank.

Middle-gear procedures warn that hammering the universal joint can distort the driven pinion's collapsible collar and change its starting torque. Final-drive instructions explain bearing inspection and shim selection alongside the gear assembly drawings.

Unified Brakes, Hydraulic Clutch and Suspension

The hydraulic clutch installation chart and brake-system installation diagram show hose and pipe routing. Service coverage includes the metering and proportioning valves, steering-head bearings, swingarm, and rear suspension linkage.

Follow the manual's brake-fluid handling, bleeding, and leakage-check precautions before returning the machine to service. Anti-dive instructions warn that mineral-oil contamination can damage the actuating-piston O-ring and cause brake-fluid leakage; a faulty anti-dive valve housing requires replacement as an assembly.

TCI, Monitor Diagnostics and Touring Controls

TCI testing covers the ignition coils, pickup coils, and pressure sensor. The Computerized Monitor System operation flowchart and test procedures cover the pictographic display, headlight circuits, and fluid-level sensors; testing the sensors and their wiring helps distinguish those faults from a failed monitor before replacement.

The XVZ12TDK supplement explains CLASS (Computer Leveling Air Suspension System), with error-code flowcharts, a controller block diagram, compressor and solenoid-valve tests, and air-dryer maintenance. Audio-system diagnosis covers missing sound, unwanted noise, connections, and component removal.

The XVZ12DL cruise-control block diagram accompanies vacuum-pump, solenoid, and indicator-light diagnostics. These supplementary procedures are used with the base manual, with specifications and routing drawings selected for the applicable model.

A Sample of Water-Pump and Thermostat Checks

These examples are a small selection from the XVZ12TK cooling-system specifications. The water-pump mechanical seal has an installed tilt limit of 0.15 mm (0.006 in), checked after fitting the seal to the impeller.

For the thermostat's water-bath inspection, opening should begin at 80–84°C (176–183°F). The same section describes replacement of the sealed thermostat and inspection of its O-rings.

Search, Bookmarks and Page Limitations

Navigation and readability: Text search is partial; the supplementary-manual blocks lack searchable text. Bookmarks provide main-manual section links and supplement entry points, while small wiring labels require zooming. Black areas obscure parts of PDF pp. 65, 112, 118, 157, 198, and 236, including a signal-system diagram. The original pagination omits TK page 8-42 and TDK pages 6 and 53–54.

One printable English PDF contains 445 pages: 295 from the XVZ12TK manual, 87 from the XVZ12TDK material including separately placed specifications and routing pages, and 61 from the XVZ12L/KC2 and XVZ12DL/DKC2 supplement. An additional outer cover and one external-reference page are also included in that total; section counts include their own covers and blank pages.
