Ford Edge 2007–2008 Service & Repair Manual Collection

5,828 Pages • ZIP Download: 73 Printable PDFs • 83.30 MB

4.6starstarstarstarstar_half(5)
$18.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Ford Models Covered & Key Technical Specifications

Model: Edge

Model Years: 2007–2009 (2007, 2008, 2009)

Sub-models / Variants: FWD and AWD (6F50 6-speed automatic transaxle; transmission code J)


  • Power outlet configuration: 12 VDC/180W

  • Autolock threshold speed: 12 mph (20 km/h)

  • Audio connector size: 3.5 mm

  • Standard CD size: 4.75 inches (12 cm)

Ford Manual Features & Selected Content Preview

Publication Pages

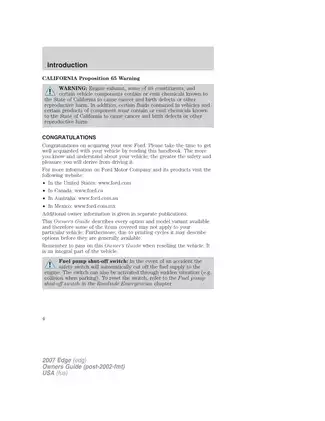

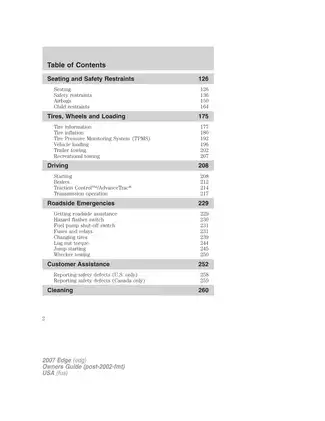

Ford Motor Company 2007 Edge Owner’s Guide — © 2006 312

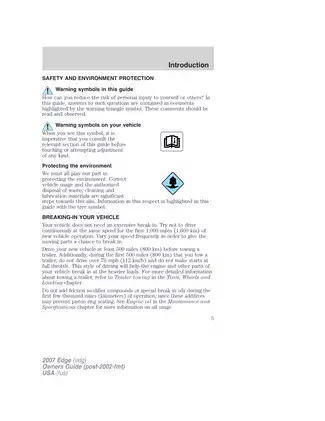

Ford Motor Company 2008 Edge Owner’s Guide — © 2007 336
Ford Motor Company 2008 Lincoln MKX Owner’s Guide — © 2007 328
2008 Edge & MKX service and diagnostic chapters — 70 PDFs, including Edge-specific system wiring diagrams 4,852

The Owner’s Guides explain vehicle operation and owner maintenance. The separate workshop chapters provide system diagnosis, repair procedures, specifications, and component illustrations.

Repair coverage: The workshop chapters are labeled for 2008 applications; the 2007 publication is an Owner’s Guide. The 6F50 material covers diagnosis, service, main-control and solenoid-body work, and transaxle removal and installation, rather than a complete internal transmission overhaul. PTU and rear-drive-axle internal components are treated as non-serviceable assemblies.

Search, Bookmarks, and Wiring Detail

Text search and diagram access: The guides and workshop text support PDF text search, but labels within wiring-diagram images are not searchable. The 2008 Owner’s Guides have chapter bookmarks; many bookmarks in the 2007 Edge guide return to the first page. Workshop chapter PDFs have no embedded bookmarks. Small labels on dense wiring sheets need zooming.

The ZIP contains 73 printable PDFs totaling 5,828 pages. That total includes five blank end pages in the MKX guide and 40 pages of repeated engine-control and starting-system chapters.


Engine, Driveline, and Vehicle-System Coverage

The following is a selection of included topics, rather than a complete contents list. Other chapters address cruise-control diagnosis, horn circuits, and cabin-air-filter replacement.

  • Engine repair: Step-by-step procedures for valve-clearance inspection, timing-drive and VCT service, cylinder-head repair, engine removal, complete disassembly, and reassembly.

  • Transmission service: 6F50 diagnostic flowcharts, road and stall testing, solenoid-body strategy programming, main-control service, cooler backflushing, and transaxle removal and installation.

  • AWD and driveline: AWD functional tests, PTU seal service, front and rear halfshaft work, CV-joint boot repair, driveshaft diagnosis, and rear-drive-axle service.

  • Brakes and chassis: ABS, Roll Stability Control, hydraulic bleeding, disc and parking-brake repair, steering service, wheel alignment, suspension repair, and TPMS training.

  • SRS, HVAC, and body systems: Airbag depowering, occupant-classification testing, climate-control diagnosis, refrigerant service, seat repair, roof and window initialization, and body-electrical troubleshooting.

  • Electrical diagnosis: Gasoline-engine pinpoint tests, system wiring diagrams, fuse and relay identification, connector references, and component-location graphics.

  • Owner operation: Vehicle controls, restraints, towing, roadside procedures, maintenance specifications, and equipment-dependent entertainment and convenience features.

The workshop chapters suit technicians and experienced repairers familiar with circuit testing and scan-tool diagnosis; programming and calibration procedures require compatible diagnostic equipment.

Engine Mechanical Repair

The engine material extends beyond routine maintenance into internal inspection and rebuilding. Intake and valve-cover service, front-cover work, crankshaft seals, the oil pump and pan, camshafts, tappets, valve springs, and cylinder heads have their own procedures and related specifications.

Exploded assembly views and part-identification tables support component identification during disassembly. The general engine section adds mechanical diagnosis, inspection limits, and guidance on whether a component can be refinished or needs replacement.

Camshaft Alignment Tool 303-1248 is specified for timing work. The VCT procedures warn that incorrectly seated housing dowels can cause severe engine damage.

Transmission and AWD Diagnosis

Shift and converter concerns: Diagnostic material addresses line pressure, solenoids, turbine and output speed sensors, transmission-range inputs, torque-converter operation, fluid condition, leaks, and electrical faults. DTC and PID information connects symptoms with the relevant tests.

Solenoid-body identification and strategy data are matched to the PCM, with a post-programming drive cycle described in the chapter. Incorrect matching can cause transaxle damage or driveability problems. Cooler-cleaning procedures specify the Turbo-Tank Heated Cooler Line Flusher 222-00004.

AWD fault tracing: The driveline chapters connect the 4X4 control module, Active Torque Control Coupling, wheel-speed inputs, and tire matching with system diagnosis. PTU procedures cover draining and filling, output-shaft and cover seals, and the intermediate-shaft seal and deflector. Rear-axle work concentrates on the serviceable seals and assembly replacement.

Driveshaft diagnosis includes operating-angle measurement, runout, balancing, and indexing. Front-halfshaft handling cautions explain how overplunging, excessive pulling, or dropping an assembly can damage a CV joint or cut a boot internally.

Brakes, Steering, and Suspension

Brake diagnosis: HCU and wheel-speed-sensor service, stability-control sensor calibration, master-cylinder and pedal work, and parking-brake shoe and cable procedures accompany the brake fault charts.

Chassis repair: Steering coverage includes flushing and purging, pump and gear service, and inner tie rods. Suspension procedures address front and rear hubs, control arms, knuckles, struts, springs, toe links, and shock absorbers. TPMS procedures specify Activation Tool 204-363.

Restraints, Climate Control, and Body Equipment

The SRS material includes Occupant Classification System reset and zero-seat-weight testing. Climate-control chapters distinguish manual and dual-zone systems and include refrigerant recovery and leak testing.

Equipment-specific sections address power and climate-controlled seats, Vista Roof repair and initialization, power-window initialization, lighting, locks, the liftgate, mirrors, parking aid, wipers, and entertainment-system diagnosis.

SRS, refrigerant, fuel-pressure, brake, and powertrain repair requires the depowering, recovery, pressure-release, lifting, and support procedures specified in the manuals. Work on these systems should be performed only with the correct equipment and training for the system being serviced.

Wiring, Pinpoint Tests, and Component Locations

The 3.5L Engine Performance Circuit, Anti-lock Brakes Circuit, A/T and AWD circuits, Supplemental Restraints Circuit, Power Top/Sunroof Circuit, and Premium Radio Circuit with SYNC illustrate the system-specific wiring coverage.

The separate component-location file supplies views for modules, motors, sensors, solenoids, connectors, grounds, and splices. Used alongside the wiring sheets, these views connect circuit references with physical components during fault tracing.

The gasoline-engine pinpoint tests address no-start conditions, PCM power, reference voltage, electronic throttle control, APP and MAF sensors, VCT, fuel delivery, coil-on-plug ignition, EVAP, oxygen sensors, cooling-fan control, network communication, and intermittent concerns. These tests include model-specific branches, so the applicable Edge or MKX entries matter.

Electrical and SRS tool references include the 73III Automotive Meter 105-R0057 and Flex Probe Kit 105-R025C.

Owner’s Guide Equipment and Operating Information

Both Edge guides explain warning lamps, gauges, message-center functions, manual and dual-zone climate controls, rear-window defrost, headlamps and bulb replacement, wipers, steering-wheel controls, windows, mirrors, speed control, locks, anti-theft features, seating, and restraints.

Entertainment information covers AM/FM and CD/MP3 systems, auxiliary inputs, satellite radio, and Family Entertainment System DVD menus, infrared headphones, and parental controls. The 2008 Edge guide adds USB and late-availability SYNC material.

Navigation, the Panoramic Vista Roof and power sunshades, HomeLink, and the power liftgate are covered where equipped. The separate MKX guide provides vehicle-specific control and convenience-system information rather than relying on Edge instructions for similar equipment.

Examples of Valve-Clearance and Oil-Pressure Data

For the covered 3.5L engine, the valve-clearance procedure specifies intake clearance of 0.15–0.25 mm and exhaust clearance of 0.300–0.400 mm, measured with the camshaft at base circle. The chapter also explains tappet selection when clearance is outside specification.

The engine specifications give a minimum oil pressure of 30 psi at 1,500 rpm with the engine at normal operating temperature, alongside component inspection and dimensional data.
