Lincoln Aviator 2004–2005 Repair Manual Set

The repair articles support mechanical work and fault isolation; the wiring sets support circuit tracing, and the guides cover operation and service scheduling. Ford published the owner and maintenance guides; many repair illustrations credit Ford Motor Company.

Year-specific coverage: Aviator mechanical repair chapters cover 2005 systems. For the Aviator, 2003 coverage is wiring only; 2004 provides owner information, scheduled maintenance, and wiring, without equivalent mechanical repair chapters. The general service-reminder reference covers other Lincoln models.

PDF Search, Bookmarks and File Contents

Search and diagram detail: PDF text search is available in 69 files. The wiring, Air Intake, Antenna, Brake Booster 2, Horns, Maintenance Light Reset, Speakers, and Video System PDFs have no text search. Only the Owner's Guide has embedded bookmarks. Small wiring labels require zooming.

The ZIP download contains 79 printable PDFs totaling 5,918 pages. This includes 16 blank or nearly blank pages: three in the Owner's Guide, one in Air Intake, two in Antenna, and five each in Horns and Maintenance Light Reset, plus the Scheduled Maintenance Guide's supplementary information page. The five-page generator/regulator article appears in two files.

Powertrain Overhaul, Chassis Tests and Wiring

Selected content is outlined below; further topics include cruise-control diagnosis and sunroof alignment.

• Engine repair: Engine removal, timing-drive and valve-train work, cylinder-head disassembly, lower-end inspection and assembly, and in-vehicle service of intake manifolds, seals, and lubrication components.

• Automatic transmission: 5R55S electronic and symptom diagnosis, road and pressure tests, valve-body and solenoid-body service, and complete internal disassembly and assembly.

• Driveline and axles: 4x2 and AWD driveshaft and halfshaft service, front and rear differential teardown, ring-and-pinion setup, backlash checks, and shim selection.

• Brakes and chassis: ABS/AdvanceTrac pinpoint tests and calibration, hydraulic brake bleeding, steering-pump flow and pressure tests, and front and rear suspension service.

• Electrical and restraints: Body-electrical fault tracing, charging and starting diagnosis, plus RCM, air bag, and pretensioner circuit tests and component replacement.

• Climate control: R-134a front and auxiliary rear HVAC testing, refrigerant identification and recovery, leak detection, heater-core checks, and actuator diagnosis.

• Wiring diagrams: Engine Performance, 4WD, Automatic A/C, Computer Data Lines, Supplemental Restraints, and HID/non-HID Headlights circuits, with wire colors, pin-level paths, splices, and grounds.

The repair sections suit professional technicians and experienced DIY owners who are already comfortable with scan equipment, holding fixtures, and precision measuring tools.

Engine Work, Cooling and Fuel Systems

The 4-valve DOHC V8 material provides step-by-step procedures, exploded views, inspection limits, clearances, torque specifications, and lubrication data. Detailed sections address camshaft followers, hydraulic lash adjusters, valve springs, the flexplate, crankshaft seals, oil pan, oil pump, and pickup tube.

Timing work calls out Camshaft Holding Tool 303-446 (T93P-6256-AHR) and Crankshaft Holding Tool 303-448 (T93P-6303-A). Its cautions explain that rotating the crankshaft or camshafts with the chains removed and cylinder heads installed can cause piston and valve damage.

Cooling and fuel: Cooling-system pressure tests, draining, filling, and bleeding accompany radiator, thermostat, and coolant-pump service. Fuel-system sections cover tank and pump removal, spring-lock coupling service, and EVAP smoke-leak testing.

Transmission and Differential Setup

DTC charts, symptom indexes, shift-point road tests, output-state control, solenoid functional checks, and line- and air-pressure tests support 5R55S fault isolation. These references help compare electrical and hydraulic findings before choosing an internal repair.

Internal procedures cover the fluid pump, clutch drums, planetary assemblies, one-way clutches, bands, and servos, with selective bearings, snap rings, end-play checks, and band adjustments. Tool references include TR Sensor Alignment Gauge 307-351 (T97L-70010-A), WDS/VCM ST2332-A, and the 73 III Automotive Meter 105-R0057 or equivalent.

The pump-removal caution identifies damage to both the pump and overdrive band if the band adjustment has not been released.

Differential chapters add noise and vibration diagnosis, axle/carrier removal, seal and bearing replacement, gear-contact inspection, pinion depth and preload, and shim-selection worksheets. Suspension material adds exploded views and shock-and-spring disassembly; brake sections address disc and parking brakes, boosters, and ABS hydraulic controls.

Body Electrics, HVAC and Owner Information

Pinpoint tests cover exterior and interior lighting, the instrument cluster and message center, power seats, windows, locks, mirrors, parking aid, navigation, entertainment, and wiper/washer functions. Restraint coverage includes system depowering and repowering; climate-control material adds DEATC operation and pressure testing.

Follow the included SRS depowering and repowering instructions and refrigerant-handling warnings before restraint or A/C repair.

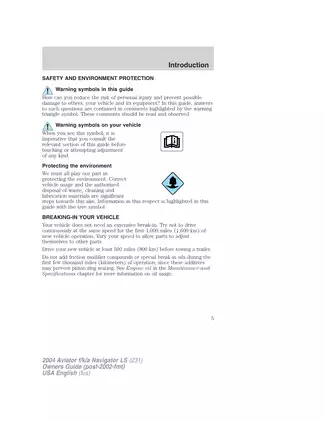

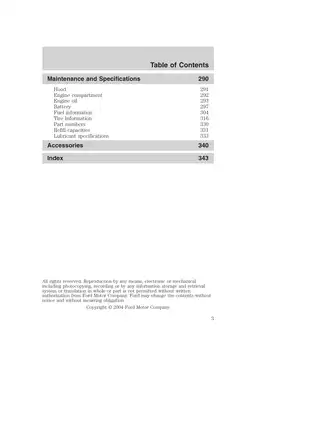

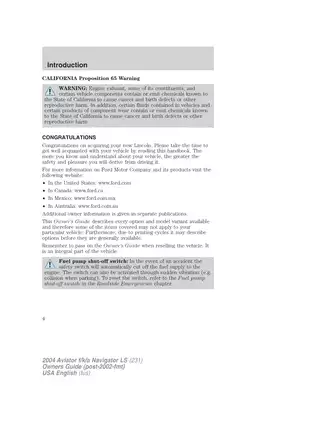

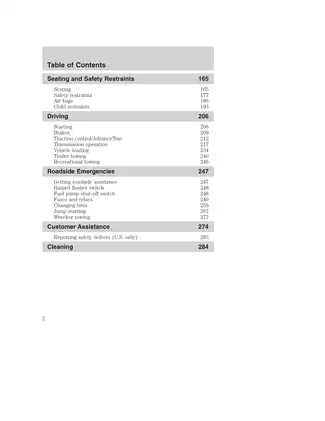

Owner guidance: Operating instructions explain the instrument cluster, DEATC and rear passenger controls, navigation maps, destination entry, voice commands, seats and safety restraints, AdvanceTrac/AWD, towing, and roadside procedures. Capacities, lubricants, and bulb replacement are covered, including H11 halogen low-beam bulbs and 3157 AK front park/turn lamps.

The maintenance guide covers normal and special operating conditions for Ford trucks, full-size vans, SUVs, cars, and minivans.

A Preview of Engine and Transmission Test Values

Engine specifications list hot oil pressure of 138–310 kPa at 1,500 rpm. The starting-system chart gives a normal engine cranking speed of 140–220 rpm.

For 5R55S electrical diagnosis, the solenoid-side resistance chart specifies 16–45 ohms for shift solenoids SSA, SSB, SSC, and SSD, with a separate 9–16 ohm range for the torque converter clutch (TCC) solenoid.
