Lincoln Mark LT & Ford F-150 2005–2008 Repair Manual Collection

The mechanical service articles work alongside separate wiring, connector and component-location references. Together, these support fault tracing from a diagnostic test to the corresponding harness connection or component.

Model-year and engine coverage: The core service articles are 2008 model-year material, not blanket 2005–2008 coverage. Internal engine repair is for the 5.4L (3V); references to 4.2L and 4.6L engines occur in shared system articles and do not establish complete internal repair coverage for those engines.

These are Mitchell Repair Information system articles with Ford-credited service illustrations, rather than one bound factory manual. Shared sections include different engines, cabs, axles and drivetrain configurations. Match the relevant configuration before selecting procedures; separate jacking-and-lifting and communications-network articles referenced in the text are not included.

PDF Search, Diagram Detail and File Contents

Search and diagram navigation: Service text, headings and figure captions are searchable, while many wiring labels and connector tables are embedded in images. The six-page trouble-code reference has no searchable text. None of the PDFs has embedded bookmarks. Small wiring and connector labels require zooming.

The ZIP contains 76 printable PDFs totaling 4,745 pages. This includes the 14-page cross-model reminder reference, six-page trouble-code reference and a second 28-page copy of the suspension general-information article. The table groups related system files; both suspension copies are included in its page totals.

Powertrain, Chassis and Circuit Diagnosis

The following selected coverage highlights summarize the repair material rather than reproduce its complete contents. Additional subjects include passive anti-theft diagnosis and cruise-control testing.

• Engine repair: Step-by-step procedures for engine removal, timing-drive service, cylinder-head work, short-block disassembly and final assembly.

• Transmission and driveline: Automatic-transmission diagnosis and overhaul, transfer-case service, IWE fault isolation, differential setup and driveshaft repair.

• Chassis and brakes: RWD/4WD suspension service, steering repairs, brake hydraulics, ABS diagnosis, parking-brake work and TPMS training.

• Electrical diagnosis: Gasoline-engine pinpoint tests, system wiring diagrams, connector illustrations, component locations and electrical test specifications.

• Supplemental restraints: Depowering and repowering, DTC/LFC diagnosis, air-bag and sensor replacement, occupant-classification resets and post-deployment inspection.

• Climate control: Automatic and manual HVAC diagnosis, refrigerant-system service, compressor repairs, heater-core replacement and evaporator work.

• Body and interior: Frame and body repair, seating, glass mechanisms, roof operation, lighting, locks, mirrors and pickup-bed components.

The diagnostic branches and internal overhaul procedures are suited to technicians and experienced repairers familiar with scan-tool testing, electrical measurements and the specified workshop equipment.

Engine Repair and Gasoline-Engine Diagnostics

The engine article extends to front-cover and crankshaft-seal work, camshafts, roller followers, valve springs and seals, oil pump and pan, pistons and crankshaft. Inspection limits, clearances, lubrication data and tightening sequences accompany the assembly procedures.

Timing-drive precautions: The timing-chain sections explain how incorrect timing can damage valves and pistons. Separate cautions address damage to the variable cam timing phaser and sprocket assembly from improper handling.

The shared gasoline-engine diagnostic material addresses no-start conditions, PCM power and reference-voltage faults, electronic throttle control, fuel delivery, ignition and misfire. Further tests cover variable cam timing, EVAP, oxygen-sensor and catalyst monitoring, and intermittent concerns; individual branches include applications beyond the Mark LT.

Automatic Transmission, Transfer Cases and Axles

The transmission articles provide road-test guidance, DTC/PID diagnosis, line- and clutch-pressure testing, cooler flushing and transmission-range sensor adjustment. Internal work includes solenoids, the main control valve body, torque converter, clutch components and complete disassembly and reassembly.

Shared transfer-case material describes the Borg-Warner 44-06 manual-shift unit, electronic-shift units and a one-speed torque-on-demand AWD configuration. The accompanying 4WD article includes vacuum and electrical diagnosis of the integrated wheel ends.

Ford 8.8-, 9.75- and 10.25-inch differential articles cover ring-and-pinion setup, bearing preload, backlash and tooth-contact patterns. Traction-Lok service, axle shafts, seals, wheel bearings and front and rear driveshaft work are also included.

Chassis procedures address alignment, hubs, control arms, steering gear and pump repairs. Brake material adds HCU service, bleeding procedures, disc-brake components and parking-brake adjustment.

Wiring References and Restraint-System Service

The electrical references contain 63 numbered wiring figures, 319 connector illustrations and 36 component-location figures. Examples include the six-sheet engine-performance circuit, supplemental-restraints wiring and electronic/mechanical 4WD circuits.

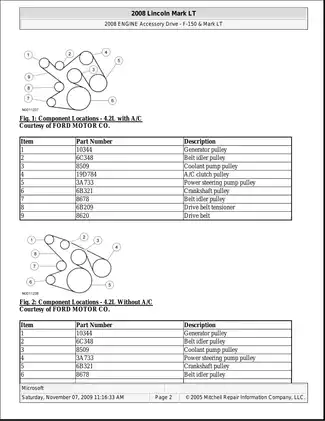

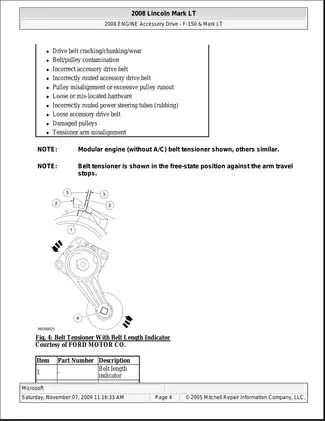

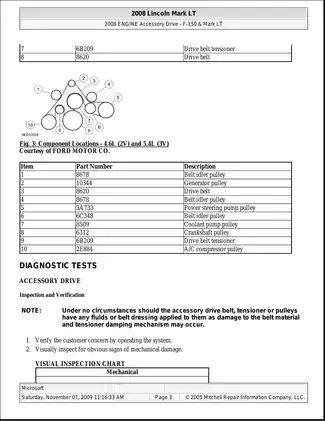

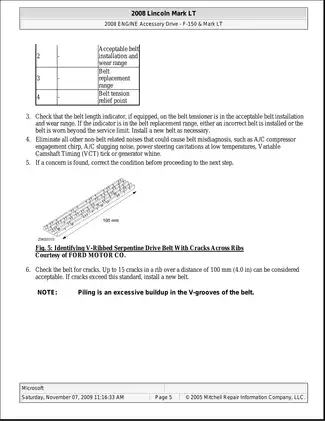

Mechanical illustrations include timing-drive exploded views, transmission geartrain and main-control views, and differential contact-pattern illustrations.

The SRS article identifies dual-stage air bags, the restraints control module, front impact severity sensor and clockspring. It also covers buckle pretensioners, seat-track position sensors, the passenger-air-bag indicator and pyrotechnic-device disposal.

Occupant-classification precautions: The passenger-seat foam, bladder/pressure sensor and module are calibrated together. The service information warns against separating these components or altering the glued service-kit connector because incorrect servicing can cause system or component failure.

Climate Control, Body and Interior Repairs

HVAC information includes code-based diagnosis, leak testing, flushing, recovery, evacuation, charging and oil balancing. Component procedures address the compressor and clutch, heater core, evaporator, blower controls and door actuators.

Body repair sections contain frame dimensions, sectioning, weld-bonding, corrosion protection and magnesium radiator-support precautions. Cab and body-mount work, front panels, bumpers and pickup-bed components have separate coverage.

Interior articles address glass repair and window mechanisms, roof initialization and water-leak diagnosis, seating and trim. Further electrical sections cover lamps, locks, mirrors, wipers, audio equipment and module configuration.

Workshop Data and Special Tools

Torque tables, capacities, wear limits, clearances and electrical test data accompany the relevant procedures. Programming and initialization requirements are addressed where applicable.

Tool references include timing-chain locking tool 303-1175, cam-phaser sprocket locking tool 303-1046, transmission-range sensor alignment gauge 307-351 and restraint-system diagnostic tool 418-F395.

Air-bag, refrigerant, fuel, brake, and rotating-engine repairs require the system-specific depowering, recovery, pressure-release, support, and protective procedures contained in the articles.

Selected Engine Lubrication Specifications

For the 5.4L (3V) engine, the lubrication specifications list an oil capacity of 6.6 L (7.0 qt) with the filter.

The engine specification table gives oil pressure as 275–517 kPa (40–75 psi) at 2,000 rpm with the engine at normal operating temperature.
