1988–2000 Lincoln Town Car, Continental, Mark VII & Mark VIII Chilton Repair Manual – Partial PDF (P/N 26500)
310 Pages • Printable PDF • 94.67 MB • Download
Ford Models Covered & Key Technical Specifications
Models: Continental, Mark VII, Mark VIII, Town Car
Sub-models / Variants: Continental: 3.8L (VIN engine code 4), 4.6L DOHC; Mark VII: 5.0L HO (VIN engine code E); Mark VIII: 4.6L DOHC (VIN engine code V); Town Car: 5.0L (VIN engine code F), 4.6L SOHC (VIN engine code W). Engine codes refer to the 8th VIN character.
Model Years: 1988–2000 (1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)
-
Engine displacement: 3.8L (3802 cc), 4.6L (4593 cc), 5.0L (4943 cc)
-
Engine types: 6-cylinder MFI, 8-cylinder OHV SFI, 8-cylinder SOHC SFI, 8-cylinder DOHC SFI
-
Fuel system: Gasoline Fuel Injection (MFI/SFI)
-
Drive system: Continental: Automatic Transaxle (AXOD, AXOD-E/AX4S); rear-wheel-drive models: Automatic Transmission (AOD/AODE, model dependent)
-
Spark plug gap: 0.044 in – 0.054 in (model dependent)
-
Ignition timing: 10° BTDC for distributor ignition; electronic ignition timing is PCM-controlled and not adjustable
-
Cooling system capacity: 11.1 – 16.0 quarts
Ford Manual Features & Content Preview

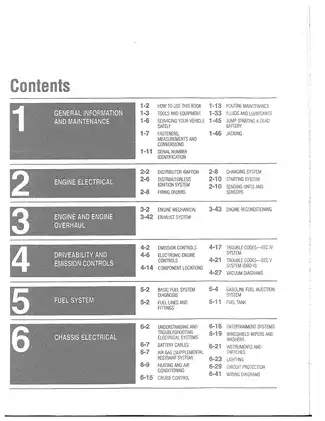

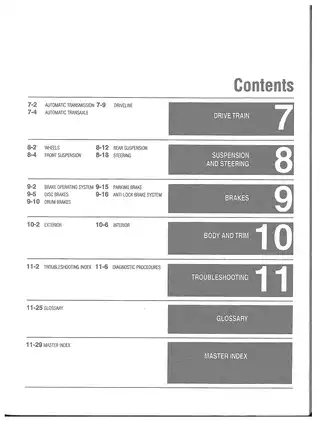

This 2000 Chilton Total Car Care repair manual, P/N 26500, covers U.S. and Canadian Lincoln Continental, Mark VII, Mark VIII, and Town Car models within the 1988–2000 range. This is a partial copy: Chapter 3, “Engine and Engine Overhaul,” is missing, including the engine-mechanical, exhaust-system, and engine-reconditioning procedures listed in the contents.
PDF Reading and Diagram Detail
Search, navigation, and wiring labels: PDF text search and embedded bookmarks are not available. The printed contents and master index provide section references. Small wire-color codes and terminal numbers in the wiring diagrams require zooming; several diagram pages are sideways.

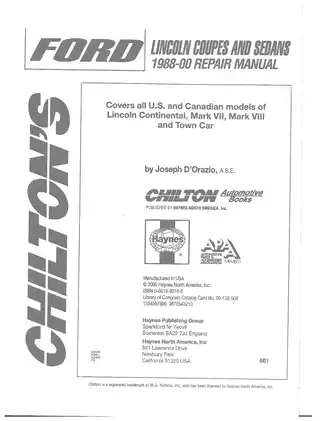

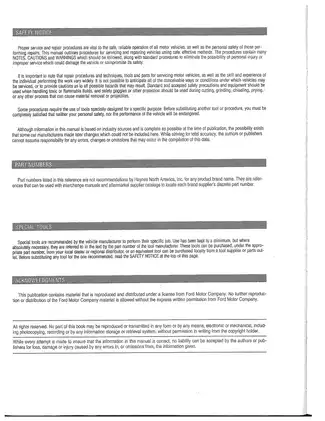

One printable, English-language PDF contains 310 pages, including the cover, title page, two contents pages, safety/publication page, and one repeated severe-maintenance schedule page.
Ignition, Fuel, Chassis, and Drivetrain Coverage
The following selected highlights outline the available repair content. Other topics include cruise-control troubleshooting and power-window motor replacement.
-
Ignition and starting: Distributor and EDIS diagnosis, ignition-coil testing, alternator load checks, starter voltage-drop tests, and component replacement.
-
Engine controls: EEC-IV and EEC-V/OBD-II code information, sensor tests, EGR diagnosis, component locations, and model-specific vacuum diagrams.
-
Fuel injection: Fuel-pump pressure testing, throttle-body and injector replacement, regulator service, and fuel-tank removal with fuel-line connection illustrations.
-
Transmission and driveline: Transmission removal, MLP/TR sensor adjustment, transaxle linkage service, halfshaft replacement, U-joint service, and axle bearing and seal replacement.
-
Suspension and steering: Air-spring replacement and scan-tool filling, control-arm bushing work, wheel-bearing service, steering-gear replacement, and power-steering bleeding.
-
Brakes and ABS: Pad and shoe replacement, rotor inspection, hydraulic bleeding, ABS self-test codes, HCU replacement, and wheel-speed sensor service.
-
Cabin and body: Step-by-step heater-core replacement, instrument-cluster removal, blower-motor service, door-trim removal, and window-regulator replacement.
Written for do-it-yourself owners undertaking maintenance and mechanical repairs, the book also identifies jobs that require special tools or professional service.
Engine Electrical and Fuel Diagnosis
The available sections cover both distributor and distributorless ignition, with firing-order drawings and coil-test illustrations. EEC-IV coverage includes KOEO/KOER testing, continuous-monitor testing for intermittent faults, and output-state checks. EEC-V diagnosis requires an OBD-II-compatible scan tool.
Fuel-system coverage distinguishes injector operation from the electrical driver circuit through noid-light and resistance tests. EGR sections address DPFE sensing and electronic vacuum regulation. These procedures, together with tune-up tables and component-location views, let you cross-reference the applicable test data and circuit layout during diagnosis and repair planning.
Illustrations include the Electronic EGR (EEGR) system schematic, Continental engine schematics, fuel-pump chassis circuits, and ABS on-board self-test service-code charts. Drive-belt routing drawings and vacuum layouts provide additional component-routing references.
Drivetrain Service and Air Suspension
The drivetrain section contains step-by-step transmission removal and installation procedures, plus separate AXODE/AX4S, AX4N, and AODE specification tables. The 1995–2000 Continental transaxle-removal entry refers to the engine-removal procedure in the missing chapter, so that referenced procedure is not included.
MLP/TR sensor work identifies alignment tool T93P-70010-A. Air-spring filling uses a SUPER STAR II tester or equivalent; the suspension section includes functional-test codes and a warning about compressor overheating during filling.
Air-suspension cautions explain that compressing the suspension before a replacement spring is inflated can damage the spring. Halfshaft procedures also warn that unsupported shafts can damage the outboard CV joint.
Heater, Brake, and Body Work
Heater-core procedures distinguish the model configurations and explain the associated dashboard and plenum work. Refrigerant-system component repair and service are expressly outside the manual’s scope.
The brake section separates conventional bleeding from ABS bleeding and identifies the special test equipment required for the latter. Body coverage extends to instrument-panel removal, door locks, glass, and trim.
Observe the manual’s SRS disarming precautions before work around airbag components; airbag terminals must never be probed.
A Preview of Coil and Injector Test Values
For the 4.6L coil-pack ignition system, the secondary-winding specification is 12.8–13.1 kilohms between the corresponding spark-plug wire towers.
The fuel-injector diagnostic section lists injector resistance at 11–18 ohms, alongside noid-light checks of the injector-driver circuit.
