Ford Series 10 & 30 Tractor Service Manual Set 1975–1995 (P/N 40001020-1)
2,543 Pages • Printable PDF • 270.92 MB • Download
New Holland Models Covered & Key Technical Specifications
Models: 2600, 2610, 3600, 3610, 4100, 4110, 4600, 4610, 5600, 5610, 6600, 6610, 6700, 6710, 7600, 7610, 7700, 7710, 7810, 8210
Sub-models / Variants: 3-cylinder, 4-cylinder, 6-cylinder (7810, 8210), Turbocharged, Normally Aspirated, Diesel, Gasoline
Transmission variants: 8-speed non-synchromesh and synchromesh (2610, 3610, 4110, 4610); 7-/8-speed non-synchromesh and 8-speed synchromesh (5610, 6610, 6710, 7610, 7710); H-pattern synchromesh (2910, 3910, 4110, 4610, 5610, 6610, 7610); Dual Power (5610, 6610, 6710, 7610, 7710, 8210); 16 × 8 and 8 × 8 fully synchronized transmissions (3230, 3430, 3930, 4130, 4630).
Wiring variants (serial-number first character): A/B versus C identifies assembly-plant wiring variants for 2600, 3600, 4100, 4600, 5600, 6600, 6700, 7600 and 7700; B versus C wiring diagrams are also provided for 2610, 3610, 4110 and 4610.
Trade Names: Ford Series 10, Ford Series 30
Model Years: 1975–1995 (1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995)
-
Hydraulic system relief valve, full-opening pressure: 2550–2650 psi for 2610, 3610, 4110, 4610, 5610, 6610, 6710, 7610 and 7710.
-
Valve clearance: 3-/4-cylinder engine specifications — intake: 0.014–0.018 inches (0.36–0.46 mm); exhaust, cold: 0.017–0.021 inches (0.43–0.53 mm). 7810/8210 specifications — intake: 0.014–0.016 inches (0.36–0.41 mm); exhaust: 0.017–0.019 inches (0.43–0.48 mm).
-
Coolant capacity: With heater — 2610/3610/4110/4610: 11.4 L; 5610/6610: 13.8 L; 6710: 15.2 L; 7610: 18 L; 7710: 19.4 L. 7810/8210: 20.4 L with cab or 18.9 L without cab.
-
Cylinder head bolt torque (final stage, engine cold): 3-/4-cylinder engine specifications: 110 lbf-ft (150 Nm); 7810/8210 engine specifications: 160 lbf-ft (220 Nm).
New Holland Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

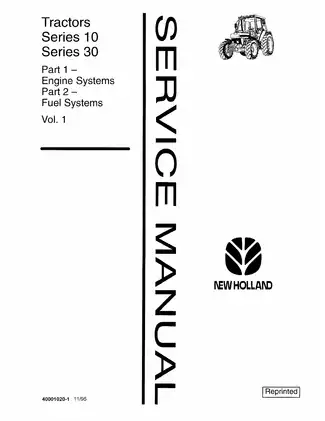

| Ford Series 10/30, Vol. 1: Engine Systems and Fuel Systems — P/N 40001020-1, November 1995 reprint | 386 |
| Ford Series 10/30, Vol. 2A: Electrical Systems, Chapters 1–8 — P/N 40001020-2A, November 1995 reprint | 326 |
| Ford Series 10/30, Vol. 2B: Electrical Systems, Chapters 9–14 — P/N 40001020-2B, November 1995 reprint | 234 |
| Ford Series 10/30, Vol. 3: Clutches, Transmission Systems and Power Take-Off — P/N 40001020-3, November 1995 reprint | 430 |
| Ford Series 10/30, Vol. 4: Rear Axle and Brakes, Hydraulic Systems and Steering Systems — P/N 40001020-4, November 1995 reprint | 426 |
| Ford Series 10/30, Vol. 5: Front Axle, Safety Cabs and Platforms — P/N 40001020-5, November 1995 reprint | 438 |
| Ford Series 10/30, Vol. 6: Separating the Tractor, Accessories and General, Model Derivatives — P/N 40001020-6, November 1995 reprint | 302 |
These volumes work together as a tractor service reference, with cross-references connecting earlier model designations to their Series 10 and Series 30 counterparts. Model-specific chapters take priority over shared procedures.
The 1994 NASO upgrade chapter covers changes to the 3430, 3930, 4630 and 5030. For 5030 DPS injection-pump service, it directs the reader to the separate PowerStar Service Manual 40564060, which is not included in this set.
PDF Search, Volume Bookmarks and Wiring Detail
Text search and navigation: PDF text search is not available. Embedded bookmarks lead to the volume starts and contents pages. Small wire-color codes and connector labels require zooming, and several wiring diagrams continue across consecutive pages.
Supplied as one printable PDF containing 2,543 pages, including the listed volumes and one additional page at the front. The individual volume counts include their original covers, front matter and blank pages.
Engine, Drivetrain and Tractor-System Repair
This selection of workshop content highlights the principal repair areas. Further topics include oil-bath air-cleaner service and conversion of remote valves from detented to non-detented operation.
-
Engine and fuel systems: Step-by-step engine overhaul, cooling-system service, carburetor repair, injection-pump overhaul and testing, injector service, and turbocharger diagnosis.
-
Electrical diagnosis: Starting and charging tests, ignition service, model-specific wiring diagrams, electronic instrument calibration, performance-monitor diagnosis, and electronic draft control.
-
Clutches, transmissions and PTO: Single- and double-clutch overhaul, gearbox disassembly and inspection, Dual Power pressure testing, and transmission, live, and independent PTO service.
-
Hydraulics and steering: Pump flow and pressure checks, lift-cover and priority-valve repair, Load Monitor adjustments, steering diagnosis, and hydraulic fault-finding charts.
-
Axles and brakes: Rear-axle, differential-lock and brake overhaul, plus front-drive transfer boxes, planetary hubs, axle bearings, and steering swivels.
-
Cabs and climate control: Cab removal and tilt procedures, glazing replacement, heater diagnosis, air-conditioning system tests, and compressor overhaul.
-
Tractor separation and derivatives: Model-specific splitting procedures and dedicated information for highway, vineyard, narrow, narrow-orchard, rice, and upgraded tractor configurations.
Written for service personnel carrying out tractor maintenance and overhaul, this set uses workshop test equipment, measuring tools and model-specific service fixtures.
Engine Overhaul and Fuel-System Differences
Internal-engine coverage includes the crankshaft, connecting rods, pistons, cylinder head, camshaft, timing gears and valve train. Construction descriptions, lubrication paths, bearing grades and inspection limits support component evaluation during a rebuild.
The 7810 and 8210 use separate six-cylinder engine material. The model cross-reference directs chassis work to the 7610 and 7710 respectively, while identifying the 7810 oil-pump arrangement as an important exception.
Fuel-system chapters distinguish rotary, in-line and DPS distributor injection pumps, with test plans and overhaul information. The manual specifies authorized injection-service repair or adjustment for the 7810/8210 pumps.
Electrical Testing and Electronic Controls
Wiring information distinguishes assembly-plant serial prefixes, cab arrangements and production changes. The diagrams and connector views help match a circuit to the tractor before electrical tests are selected.
The 8210 electronic draft-control material includes fault-code test tables, an Electronic Draft Control Wiring Diagram and Electronic Draft Control Harness Connectors. Instrument-panel and performance-monitor chapters add programming and calibration information.
Transmission, Clutch and PTO Service
Transmission chapters separate non-synchromesh, synchromesh, H-pattern and Dual Power arrangements. Dedicated Series 30 sections cover fully synchronized gearboxes, including internal component overhaul and model-specific specifications.
Clutch service includes pressure-plate inspection, release components and setting fixtures. The overhaul notes identify uneven pressure-plate bolt release as a cause of clutch-cover distortion.
Hydraulic Diagnosis, Axles and Steering
Hydraulic coverage distinguishes single- and dual-pump circuits and systems with or without Load Monitor. Failure to Lift and Slow Lift fault-finding charts connect symptoms with checks of pumps, valves, internal linkage and lift-cylinder components.
Pressure Testing Main Hydraulic Pump illustrations show the specified test-equipment arrangements. The accompanying warnings explain that excessive test pressure can damage the pump.
Front-drive chapters distinguish AE, APL and Carraro axle assemblies. Their procedures cover planetary reductions, differential and pinion assemblies, bearing settings, transfer boxes and integral steering cylinders.
Cab Access, Climate Control and Derivative Models
Cab-removal and tractor-separation chapters explain the access required for major repairs, including the use of splitting equipment. Air-conditioning material distinguishes earlier systems, De-Luxe cab installations and later compressor designs.
Derivative chapters identify changes that affect parts and procedure selection. For example, the 3910 Rice tractor combines different base-model assemblies with waterproofing components, while narrow and orchard versions use modified axles and control linkages.
Engine and drivetrain repairs involve heavy cast components and stored hydraulic pressure. Follow the publication’s safety information and use correctly rated lifting and shop equipment. Repairs beyond the operator’s training or available equipment should be handled by a qualified heavy-equipment technician.
Examples of Engine Clearances and Clutch Adjustment Data
For the three- and four-cylinder engine sections, crankshaft end play is specified at 0.004–0.008 inches (0.10–0.20 mm), while camshaft bearing clearance is 0.001–0.003 inches (0.025–0.076 mm). These figures accompany the internal-engine inspection tables.
The Part 4 clutch specifications list pedal free play at 1.25–1.50 inches (32–38 mm), alongside separate pedal-stop adjustment data for the applicable clutch and cab arrangements.
