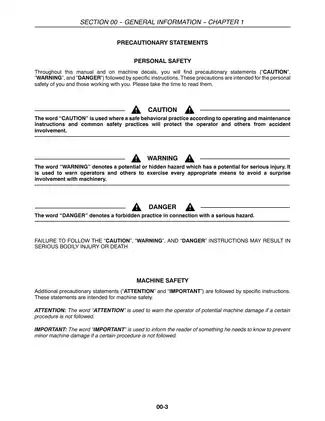

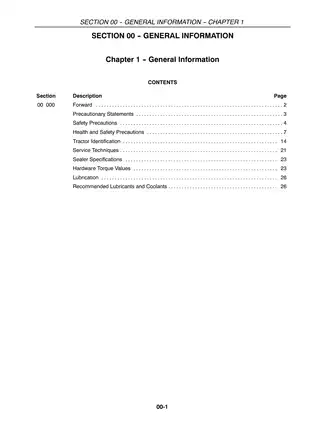

1994–2000 New Holland 8670, 8770, 8870, 8970 Tractor Service Manual

This New Holland service manual covers the 1994–2000 8670, 8770, 8870, and 8970 tractors, with 70 and 70A Series coverage, including the 8670A, 8770A, 8870A, and 8970A.

• Engine repair: Engine removal, cylinder-head and cylinder-block overhaul, lubrication-system inspection, turbocharger service, intercooler leak testing, and cooling-system repair.

• Bosch fuel systems: Injection-pump timing, low-pressure supply tests, injector bench testing, fuel shutoff solenoid diagnosis, and low-idle/antisurge adjustment.

• Powershift transmission: Tractor splitting, speed and directional clutch overhaul, pressure testing, clutch calibration, and optional creeper-unit service.

• Axles and PTO: Dana and Carraro front axle repair, SuperSteer linkage adjustment, rear final-drive service, and independent PTO clutch and brake overhaul.

• Hydraulic systems: CCLS pump repair, standard-flow and MegaFlow circuit testing, remote-valve overhaul, three-point hitch diagnosis, and 70A electrohydraulic remote calibration.

• Electrical diagnosis: EIC, ETC, and CCM troubleshooting, fault-code charts, connector pin views, and NASO/ISO wiring diagrams.

• Brake systems: Power-brake valve and wet-disc brake overhaul, bleeding procedures, parking-brake adjustment, and trailer air-brake and hydraulic brake service.

The procedures suit experienced tractor technicians familiar with hydraulic gauges, flowmeters, electrical testing, and equipment for supporting separated tractor assemblies.

Engine and Bosch Fuel System Service

Engine coverage extends to crankshaft and camshaft inspection, piston and bearing service, compression testing, water-pump repair, and turbocharger disassembly. The laminated head-gasket update begins at engine serial number 846528; applying its torque-angle procedure to older head bolts can damage the cylinder-block threads.

Injection equipment: Bosch A2000 and P3000 pump documentation distinguishes emissionized and earlier engine timing. Timing-pin kit FNH00536 and injector tester FNH01721 with adapter FNH00041 are identified for the documented checks. The timing notes warn that rotating the engine with the pin installed can destroy the pin.

The manual describes pump removal, installation, timing, and low-idle adjustment. Bosch service limits: Internal injection-pump repairs, sealed high-idle adjustment, and repair of injectors that fail bench tests are assigned to an authorized Bosch Diesel Service Dealer.

Powershift, Axles and PTO

The 16x9 Powershift sections cover separation at both the engine/transmission and transmission/rear-axle joints. Clutch inspection and calibration are supported by the Clutch Apply Pressure Chart, with ports identified for each gear.

Dana and Carraro axle sections include differential adjustment and SuperSteer procedures. PTO clutch assembly drawings and planetary final-reduction views support component identification during overhaul; the PTO chapters distinguish the two-speed 8670/8670A arrangement from the single-speed units on the other models.

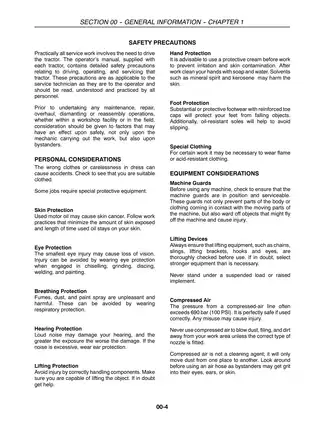

Always stabilize the tractor and use suitable load-bearing equipment before heavy powertrain work.

CCLS Hydraulics and 70A Remote Controls

The low-pressure tandem gear pump is documented separately from the high-pressure CCLS axial piston pumps. Standard flow uses one variable-displacement pump; MegaFlow uses two. Pressure and flow tests identify test connections, while the low-pressure control hydraulic schematic shows the shared supply circuits.

The 70A EHR remote-valve calibration section specifies PDT NH00500, cable 380000199, and an EHR software cartridge. It applies to the remote valves, separately from the EDC hitch system.

Electrical Fault Tracing

Fault-code diagnostics cover the hitch, right-hand controls, Electronic Instrument Cluster (EIC), ETC transmission control, and engine functions, including entries F001 through F422. Chassis Control Module (CCM) connector views accompany circuit checks.

The diagnostic charts distinguish sensor, wiring, and module faults, helping technicians check the circuit before condemning a control module. NASO North American and ISO European schematics include harness identification and a component index.

Brakes, Climate Control and Cab Work

Brake coverage includes rear-axle wet-disc assemblies, power-brake valve repair, and trailer-brake testing. Climate-control chapters add A/C performance diagnosis and component replacement; cab sections cover console work, hood removal, and cab removal and installation.

A Preview of Valve and Fuel-System Specifications

These examples are a small selection of the engine and fuel-system specifications in the manual.

Cold intake valve lash is 0.36–0.46 mm. The fuel-system torque chart specifies 38 N⋅m (28 ft-lbs) for the injection pump drive gear.

For the 8870/8870A and 8970/8970A, the new-nozzle opening-pressure specification is 255 bar (3,700 psi), compared with 227 bar (3,300 psi) for used nozzles. The testing section distinguishes these conditions.

PDF Navigation, Diagram Detail and Page Count

Text search and wiring detail: Main text is searchable; many wiring-diagram labels are not. Embedded bookmarks provide section and topic navigation. Dense wiring diagrams require zooming to read small connector, pin, and wire-code labels.

Supplied as one printable, English-language, 2,106-page PDF: 2,105 manual pages across 14 sections plus one introductory supplemental page. That additional page is already included in the total; original chapter dividers and blank pages are included as well.
