Dodge Dakota 2000–2004 + Ram 2003 Service Manual Set (P/N 81-370-0010)

The service volumes provide mechanical repair information for their respective vehicle families. Within the Dakota compilation, the R1 diagnostic books connect fault testing with the corresponding R1 service procedures; the separate code reference supplies brief definitions rather than diagnostic test charts.

Coverage limits: Dakota coverage is model year 2000. The second service volume covers 2003 Ram, and the set does not contain 2001, 2002, or 2004 Dakota workshop volumes. Many Ram controller, data-bus, SKIM, body, and powertrain fault procedures refer to separate Diagnostic Procedures manuals used with the DRB III.

PDF Search, Bookmarks and Wiring Detail

Text search and diagram access: Both service volumes are partially searchable; many 8W circuit pages lack searchable text. Both have extensive embedded bookmarks, although the Ram Foreword entry points to a separate file outside this ZIP. The code reference is searchable and has no bookmarks. Small wiring and connector labels require zooming for comfortable reading.

The ZIP contains three printable PDFs totaling 6,100 pages. That total includes 47 Dakota blank separator pages, one electronic-manual welcome page, two diagnostic notes pages, 31 Ram blank separator pages, and two Ram service-comment/mailing pages.

Powertrain Repair, Chassis Service and Electrical Diagnosis

These selected content highlights cover the main workshop areas. Other included topics include speed-control testing and wiper/washer diagnosis.

• Engine repair: AN gasoline-engine removal, cylinder-head and valvetrain work, timing-system service, piston and crankshaft inspection, lubrication diagnosis, and oil-pump repair.

• Transmission service: Manual and automatic transmission removal, internal disassembly and assembly, clutch and geartrain inspection, hydraulic diagnosis, adjustment, and operational checks.

• Axles and driveline: C205F, 8-1/4, 9-1/4, and 216 RBI axle service, differential setup, propeller shafts, front driveshafts, clutch components, and transfer-case repair.

• Suspension and brakes: Separate 4x2/4x4 suspension procedures, alignment checks, steering diagnosis, base brakes, rear-wheel ABS, and four-wheel ABS.

• Electrical and body systems: Starting, charging, ignition, HVAC, restraints, power accessories, connector service, and component-level circuit diagnosis.

• R1 powertrain troubleshooting: Dedicated VM diesel and gasoline DTC/no-DTC test charts, DRB III diagnostic routines, connector pinouts, and JTEC system schematics.

Suited to readers with workshop experience and access to electrical test equipment, factory special tools, and a DRB III scan tool for the specified diagnostic routines.

Dakota Transmission, Transfer-Case and Axle Work

The transmission chapters distinguish NV1500 and NV3500 manuals, 42RE, 46RE, and 45RFE automatics, and separate R1 AX15 and NV1500 material. Step-by-step procedures address internal teardown, clutch and geartrain inspection, reassembly, clearance or band adjustment, fill procedures, and final checks.

NV231 and NV242 transfer-case coverage reaches chains, sprockets, bearings, mode forks, shafts, and cases. Illustrated references include NV242 Transfer Case and Clutch Components (VM Diesel).

Differential procedures cover bearing removal and installation, pinion depth, preload, backlash, tooth-contact patterns, seals, axle shafts, and Trac-Lok inspection. These related checks support differential setup after bearing or gear service. Tool callouts include pinion-seal Installer C-3972-A with Handle C-4171.

Axle cautions explain how excessive preload can damage collapsible spacers or bearings, why backing off the pinion nut does not correct the condition, and when spacer replacement is required.

Suspension, Steering and Engine Variants

Front suspension material separates AN 4x2 and 4x4 layouts, with additional R1 alignment and front-suspension sections. It covers control arms, ball joints, torsion bars, coil springs, hubs and bearings, stabilizer bars, and steering knuckles; rear suspension coverage adds leaf springs and shock absorbers.

The Front Suspension - 4x4 illustration shows the corresponding layout. Steering chapters distinguish rack-and-pinion and recirculating-ball systems, and the alignment tables include Dakota RT-specific data.

AN engine chapters cover 2.5L, 3.9L, 4.7L, and 5.9L gasoline engines, including compression and leakage tests and oil-pressure diagnosis. Dedicated R1 material adds the 5.2L gasoline engine and 2.5L VM diesel.

Diesel coverage includes turbocharger and exhaust service, fuel delivery and injection work, bleeding, injection-pump timing, glow-system diagnosis, no-start testing, and maintenance schedules.

The 4.7L Timing Drive System material includes Secondary Chain Holder 8515. Its cautions address intake-valve-to-piston contact from independent camshaft/crankshaft rotation and damage to cylinder-head or block sealing surfaces from metal scrapers.

R1 Wiring and Diagnostic Test Books

The embedded 8W wiring section and dedicated diesel and gasoline diagnostic books are labeled R1. Their schematics should not be treated as universal AN circuit coverage; AN trucks have separate component-level electrical service chapters.

The diesel book uses a six-step troubleshooting framework. The gasoline book covers R1 2.5L, 3.9L, and 5.2L systems, with DTC and symptom-based tests, component locations, connector pinouts, splice and ground locations, and the 2000 Dodge 2.5L JTEC System schematic.

Ram Engine, Drivetrain and Body Coverage

The Ram volume contains sections for 3.7L, 4.7L, 5.7L, and 5.9L gasoline engines, the 5.9L turbo diesel, and the 8.0L engine. Transmission chapters cover NV3500, NV4500, and NV5600 manuals, plus 46RE, 48RE, and 45RFE/545RFE automatics.

The NV5600 Manual Transmission illustration accompanies its service material. Transfer-case chapters address NV241 Gen II, NV271, NV243, and NV273 units, alongside light- and heavy-duty axle families.

Integrated 8W wiring, body-structure dimensions, HVAC, emissions, steering, brakes, restraints, and electrical-system service extend the Ram coverage. Connector-repair instructions identify Mopar crimping tool P/N 05019912AA.

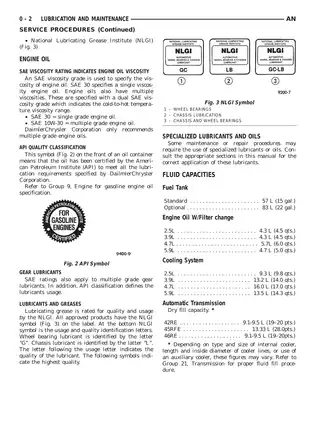

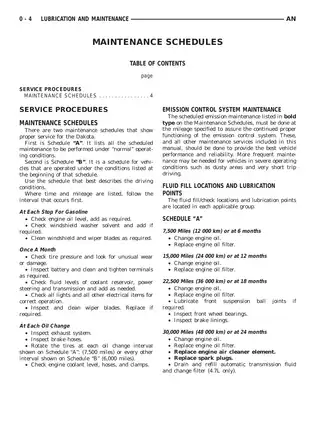

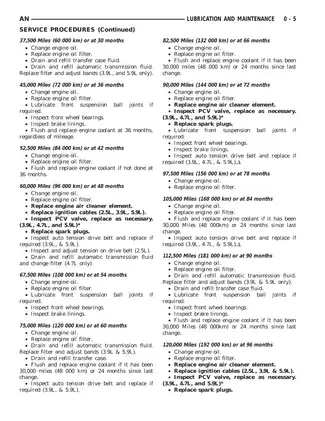

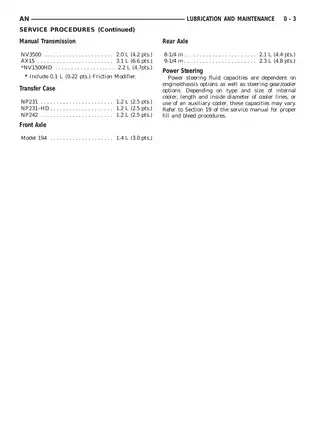

Across the service material, reference tables provide component-specific torque specifications, fluid capacities, approved lubricants, alignment data, engine wear limits, transmission clutch clearances, brake and HVAC test specifications, and electrical pinout information.

Use the manual's vehicle-support, fuel-pressure, airbag, refrigerant, and electrical-isolation precautions, and verify the correct vehicle configuration before high-torque axle, suspension, or drivetrain repair.

Rear-Axle Specification Samples

For the AN 8-1/4-inch and 9-1/4-inch rear axles, the specification tables list ring-gear backlash of 0.12–0.20 mm (0.005–0.008 in.). Ring-gear runout is specified at 0.127 mm (0.005 in.) for both axle types.
