1993 Jeep Cherokee XJ / Grand Cherokee ZJ / Grand Wagoneer ZJ / Wrangler YJ Service Manual

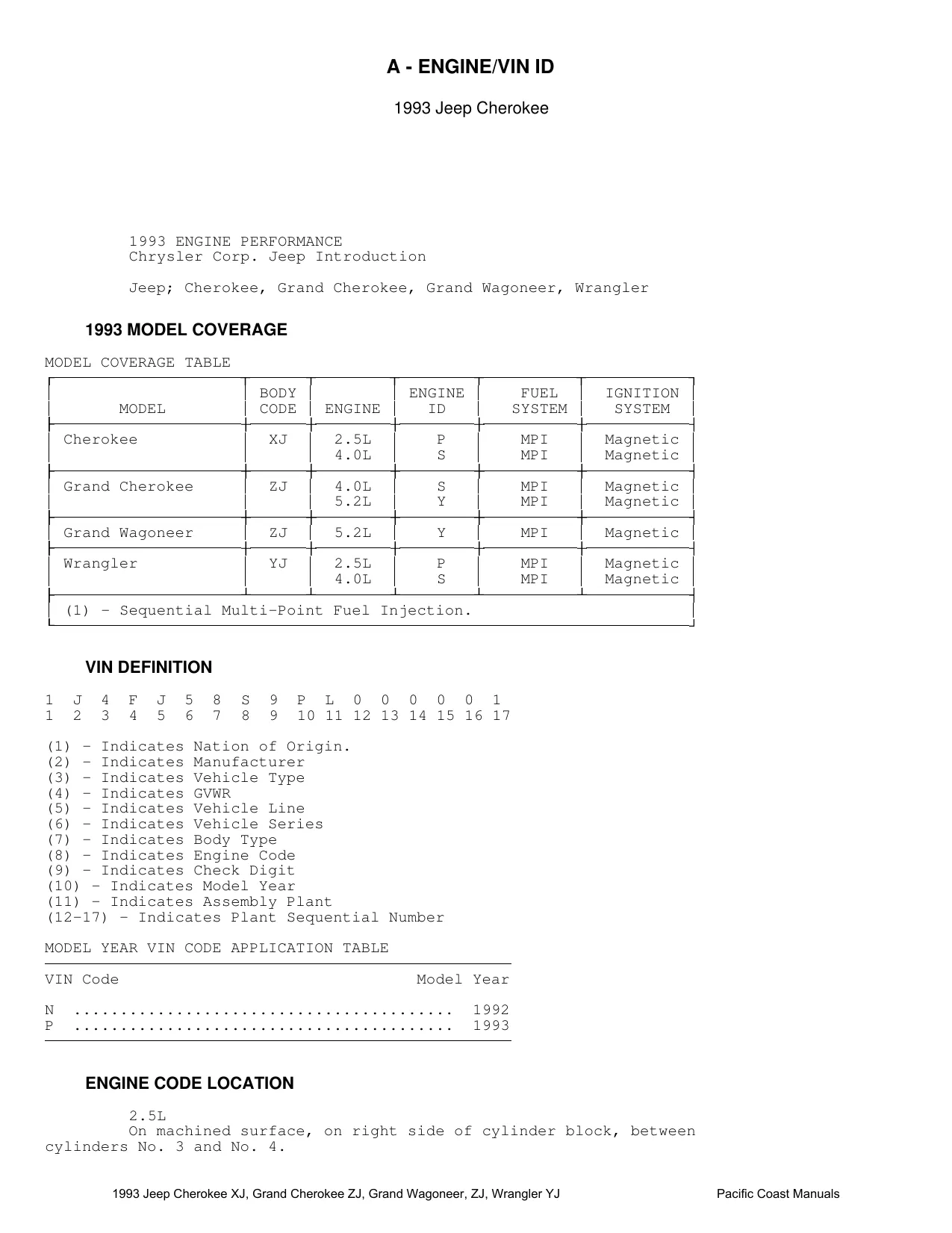

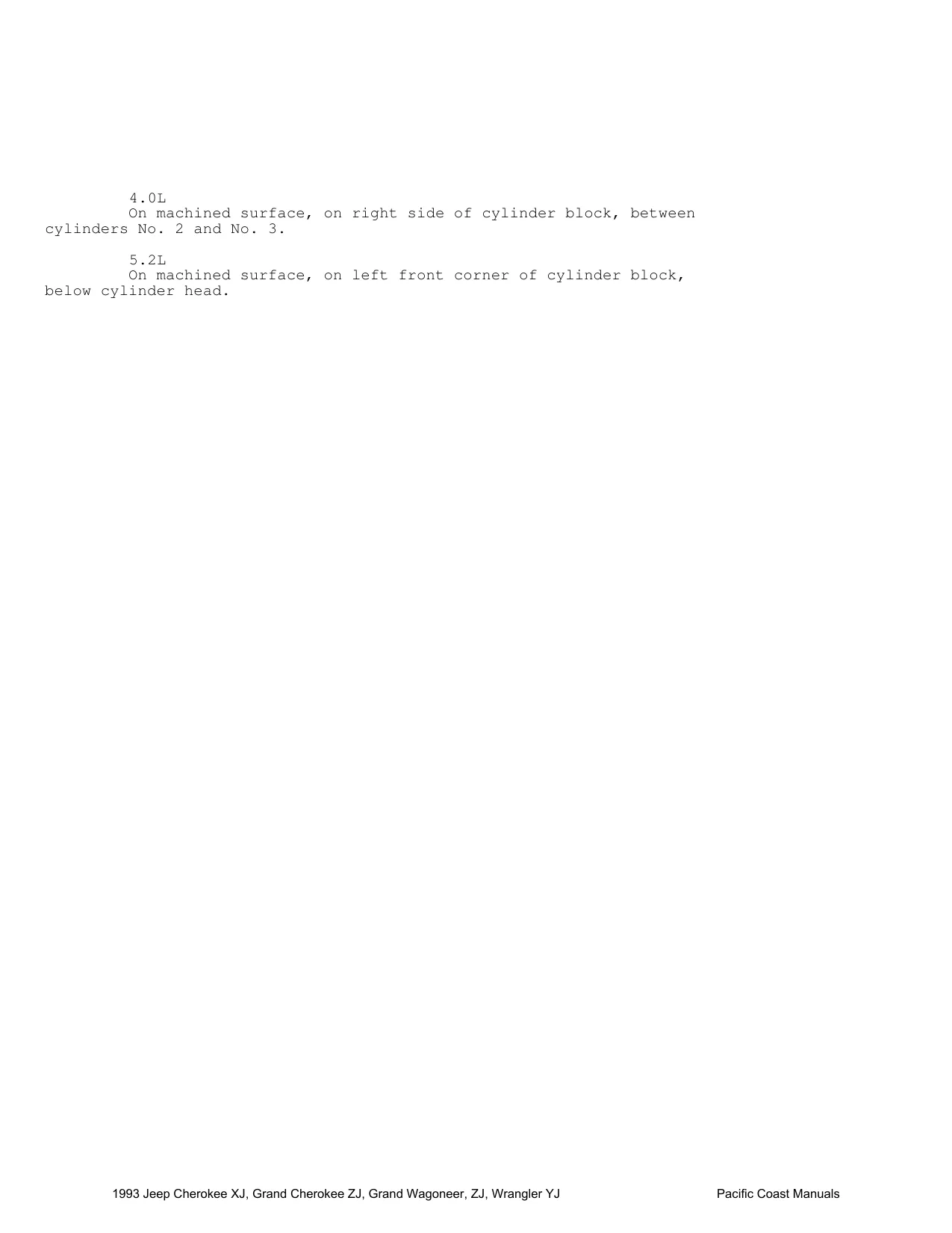

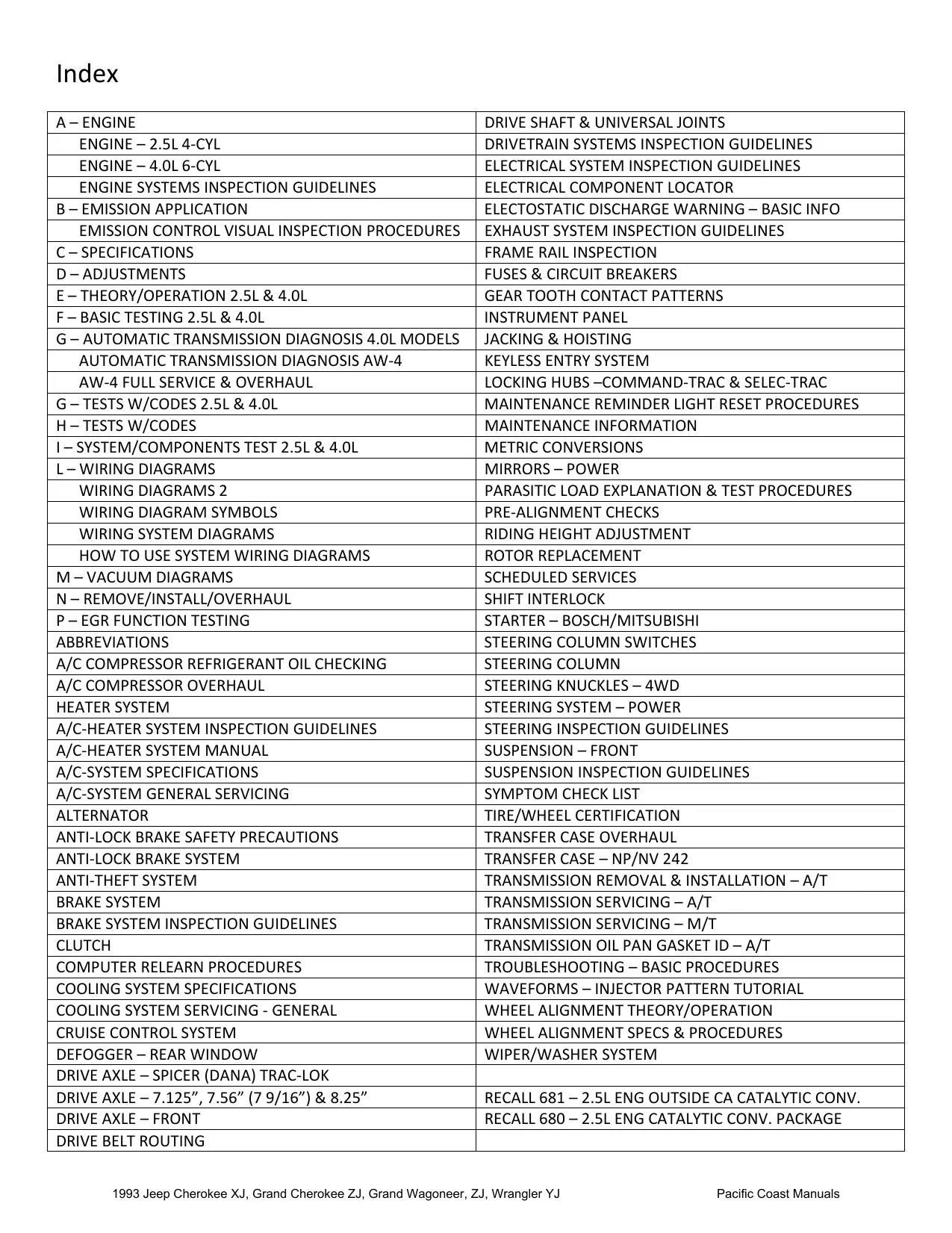

• 1993 model and engine coverage: Cherokee XJ, Grand Cherokee ZJ, Grand Wagoneer ZJ, and Wrangler YJ applications are organized in a compiled 1,492-page PDF. The model table identifies 2.5L VIN P and 4.0L VIN S engines for XJ/YJ vehicles, plus 4.0L VIN S and 5.2L VIN Y combinations for the ZJ models.

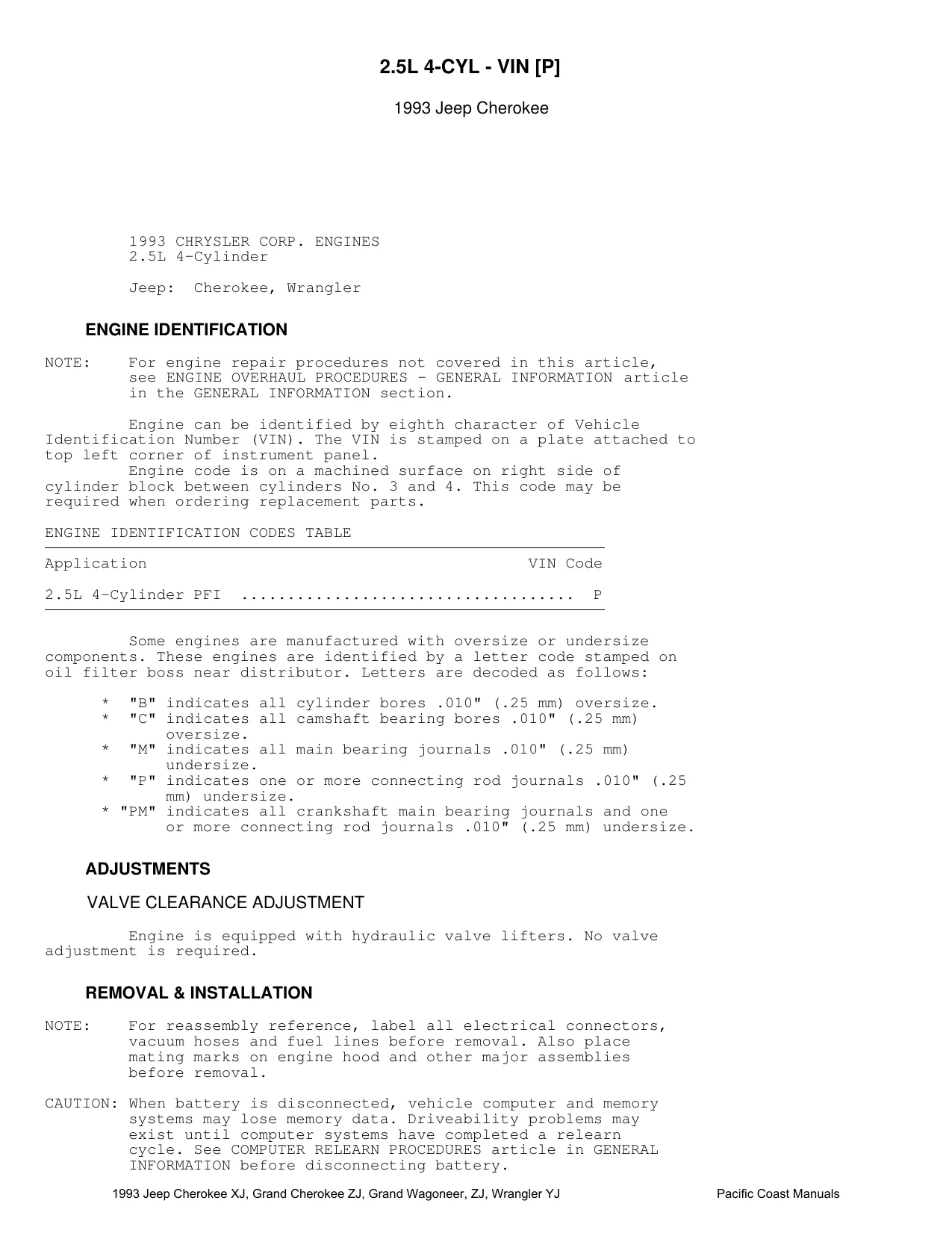

• 2.5L and 4.0L internal engine repair: Dedicated chapters cover removal, installation, inspection, and overhaul work for cylinder heads, valve trains, timing chains and sprockets, camshafts, oil pans and pumps, pistons, connecting rods, crankshafts, bearings, seals, manifolds, and cooling-system components.
• Engine-performance diagnostics: Preliminary checks, no-start testing, DRB-II self-diagnostics, tests with and without fault codes, and system/component testing are documented along with fuel-pressure checks, injector and ignition testing, vacuum routing, EGR function, emissions inspection, PCM inputs and outputs, and computer relearn procedures.
• AW-4 and driveline coverage: A 1993-94 Cherokee electronic-diagnosis section is paired with a separate ATSG AW-4 service and overhaul booklet. The PDF also covers AW-4/32RH service adjustments, AX-5/AX-15 maintenance, NP207/NP231 overhaul, NP242 service, and NP249 reference specifications.
• Chassis, HVAC, and accessory systems: Repair sections address ABS and base brakes, clutch hydraulics, steering gear and linkage, steering columns, front suspension, wheel alignment, drive axles, Trac-Lok differentials, driveshafts, U-joints, heating, air conditioning, cruise control, anti-theft, keyless entry, instruments, and wiper/washer systems.
• Wiring diagrams and reference data: Engine-control schematics for the listed Jeep applications are combined with a separate Cherokee body-system wiring set. Component locators, connector and grid references, troubleshooting charts, torque tables, fluid data, inspection limits, pressure-test specifications, electrical test values, normal/severe maintenance schedules, and emission recall bulletins are included.

Powertrain and Component Documentation

The engine sections are organized around actual shop work rather than a short tune-up summary. Both the 2.5L four-cylinder and 4.0L six-cylinder chapters move from identification and on-vehicle service into cylinder-head and block inspection, valve-train repair, timing-system installation, lubrication-system service, and final assembly specifications. Chrysler-attributed illustrations show cylinder-head bolt sequences, timing-mark alignment, piston and connecting-rod relationships, oil-pump construction, and manifold installation details.

Coverage depth is not identical for every engine and transmission. The 5.2L engine appears in model identification, service and adjustment specifications, firing-order and engine-control wiring material, and selected vehicle-system chapters, but the PDF does not contain a dedicated 5.2L internal engine overhaul section. Likewise, the AW-4 receives full diagnostic and overhaul treatment; equivalent internal overhaul chapters are not supplied for every ZJ automatic transmission. Those limits matter when the planned repair involves a 5.2L long block or a non-AW-4 transmission.

The AW-4 material follows the unit from TCM/TCU operation and DRB-II fault retrieval through solenoid, sensor, stall-speed, and hydraulic-pressure diagnosis. The separate ATSG section then covers transmission and torque-converter removal, unit teardown, oil-pump and gear-train service, clutch and brake assemblies, valve-body teardown, accumulator components, subassembly overhaul, and final transmission assembly. It also identifies overhaul tool kit 6294 (B.Vi.FM.23) and the separately required pressure-test adapter 7554.

Diagnostics, Chassis, and Electrical Systems

Engine-performance chapters explain how to separate mechanical, fuel, ignition, vacuum, wiring, and PCM-related faults before parts are replaced. The manual includes visual inspection routines, basic no-start checks, fault-code paths, no-code diagnostics, fuel delivery tests, sensor and actuator checks, injector waveform interpretation, and vacuum-hose diagrams. ABS coverage adds DRB-II fault-message testing, wheel-speed sensor diagnosis, hydraulic control unit service, relay checks, and brake bleeding procedures.

Beyond the powertrain, the PDF documents brake calipers, rotors, master cylinders, rear brake adjustment, clutch bleeding, power-steering pressure testing and gear overhaul, steering-column service, wheel bearings, ball joints, control arms, springs, track bars, and alignment adjustments. HVAC coverage includes refrigerant-oil checking, compressor clutch and shaft-seal work for the listed Nippondenso and Sanden compressor families, gauge-based system diagnosis, recovery and evacuation procedures, and manual heater/A/C controls. Charging, starting, parasitic-load, fuse, anti-theft, keyless-entry, cruise-control, and instrument-panel sections support electrical repair outside the engine bay.

Engineering Specifications and Reference Data

Useful diagram examples include the 2.5L/4.0L Cherokee PCM grids, the 5.2L Grand Cherokee/Grand Wagoneer engine wiring diagram, the Cherokee ABS pump and controller circuit, AW-4 valve-body and accumulator layouts, the Dana Trac-Lok clutch-pack exploded view, and NP231/NP242 transfer-case assembly views. The Cherokee body-wiring set also traces charging, starting, transmission, cooling-fan, defogger, power-lock, window, mirror, seat, and wiper circuits through grid and component-location references.

Specification coverage is spread through the applicable repair chapters: component-specific torque tables, approved fluids and capacities, bearing and shaft clearances, wear limits, alignment data, pressure-test ranges, coil and injector resistance values, and maintenance intervals. VIN decoding, engine and axle identification, service-point locations, normal and severe maintenance schedules, and the 2.5L catalytic-converter Recall 680 and 681 bulletins provide additional reference material.

Several repair traps are called out directly. Fuel-system pressure must be released before injection components are opened. The 2.5L and 4.0L timing chapters use different chain-index checks, so the references cannot be interchanged without risking incorrect valve timing. During AW-4 repair, check balls, accumulator pistons and springs, and one-way clutch orientation must remain correctly identified because misplaced parts can create hydraulic and shift faults.
