Jeep Cherokee XJ & Wrangler YJ 1995 Repair Manual Set (P/N 81-370-5146)
2,295 Pages • ZIP Download: 2 Printable PDFs • 85.36 MB
Jeep Models Covered & Key Technical Specifications
Models & Model Codes: Cherokee (XJ), Wrangler (YJ)
Sub-models / Variants: 2DR 2WD, 4DR 2WD, 2DR 4WD, 4DR 4WD, Country, Sport, Sahara, SE
Model Year: 1995
-
Engines covered: 2.5L Gas (XJ/YJ; VIN position 8: P), 4.0L Gas (XJ/YJ; VIN position 8: S)
-
Transmission types: AW4 automatic (XJ, 4.0L), 30RH automatic (XJ/YJ, 2.5L), 32RH automatic (YJ, 4.0L), AX4 manual and AX5 manual (2.5L), AX15 manual (XJ/YJ, 4.0L)
-
Transfer cases: Command-Trac 231 (XJ/YJ), Selec-Trac 242 (XJ)
-
Axle types: Model 30 front (XJ/YJ 4WD), Model 35 rear (XJ/YJ), 8 1/4 inch rear (XJ)
-
Differential housing cover torque: Model 30 and Model 35: 41 Nm (30 ft. lbs.); 8 1/4 inch: 47 Nm (35 ft. lbs.)
-
Differential bearing cap torque: Model 30: 61 Nm (45 ft. lbs.); Model 35: 77 Nm (57 ft. lbs.); 8 1/4 inch: 95 Nm (70 ft. lbs.)
-
U-joint clamp bolt torque: 19 Nm (14 ft. lbs.)
-
Pinion yoke nut torque: Model 30: 216–352 Nm (160–260 ft. lbs.)
Jeep Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 1995 Jeep Cherokee XJ & Wrangler YJ factory service manual compilation — P/N 81-370-5146 | 2,183 |
| ATSG Jeep AW-4 service booklet | 112 |
The Jeep volume provides vehicle-specific service information. The separate ATSG booklet provides another reference for AW-4 diagnosis and internal transmission work; it is an ATSG publication, not a second Chrysler factory manual.

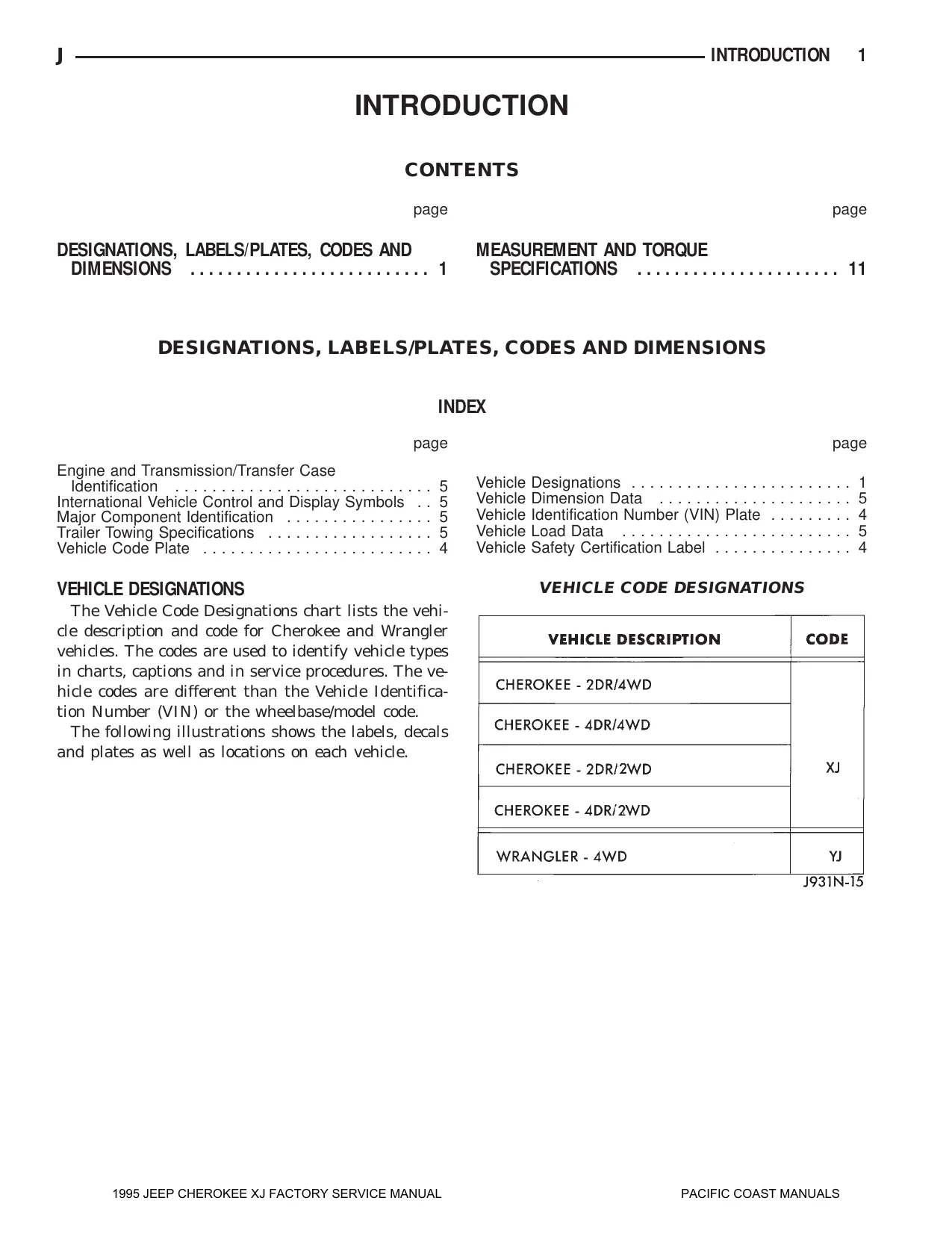

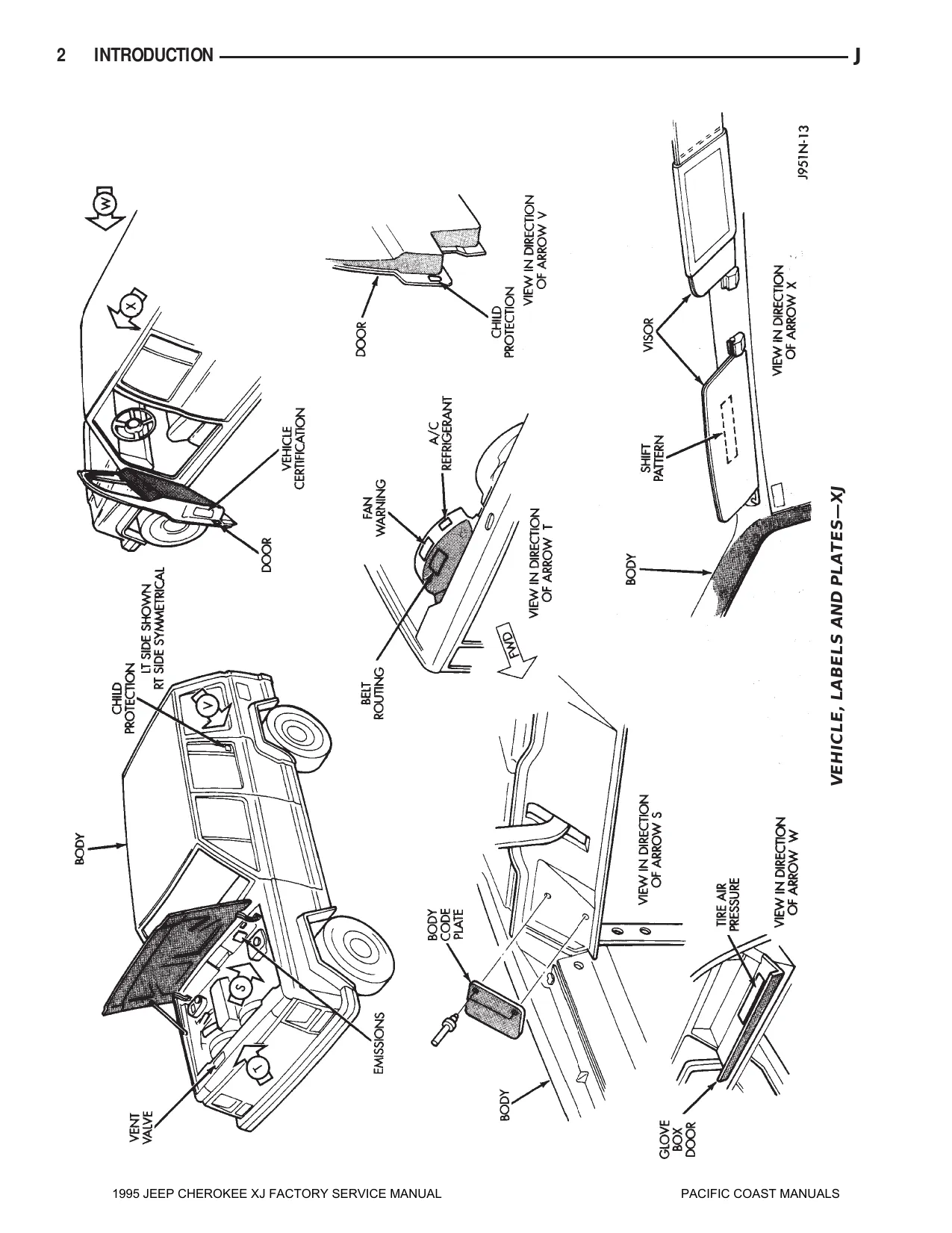

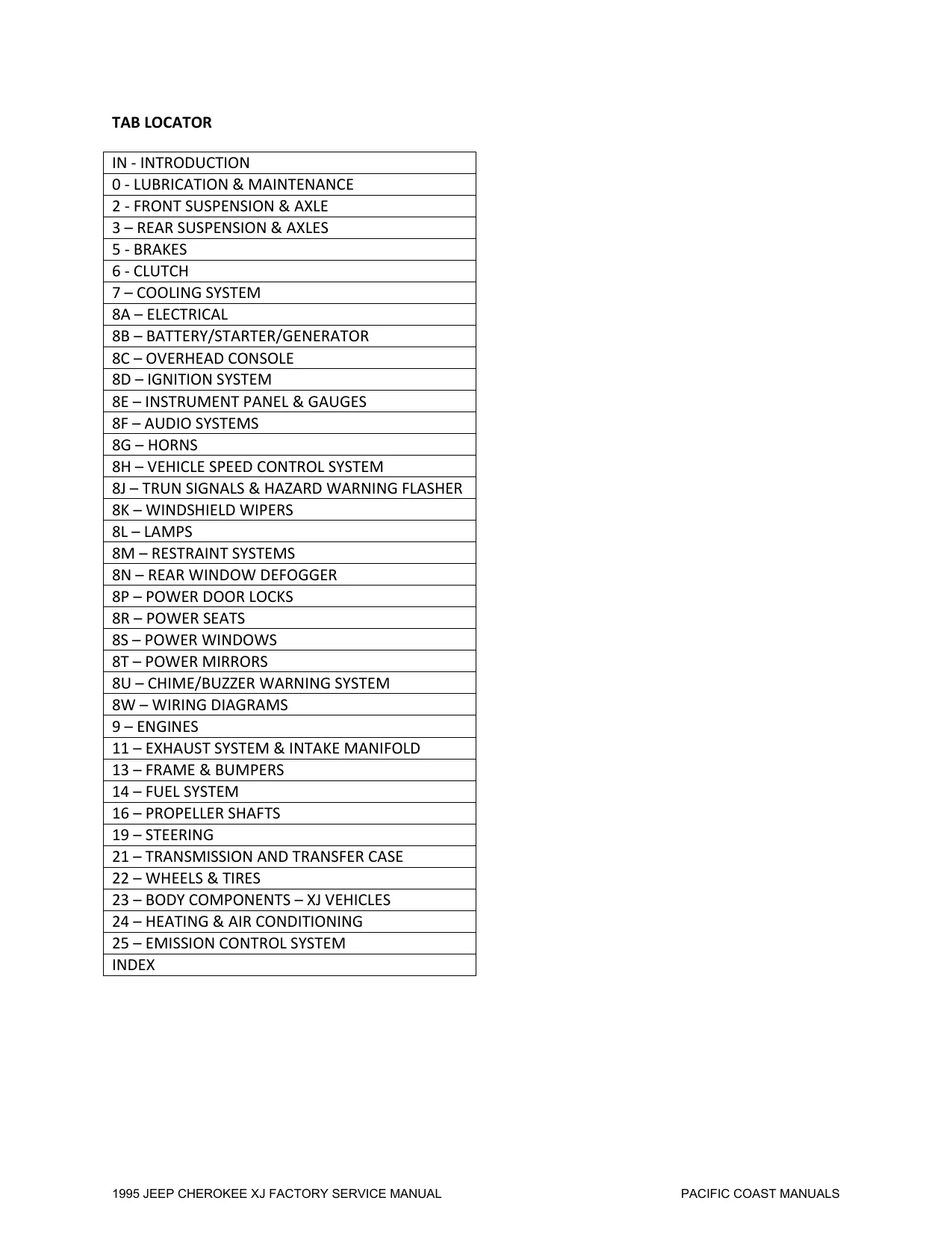

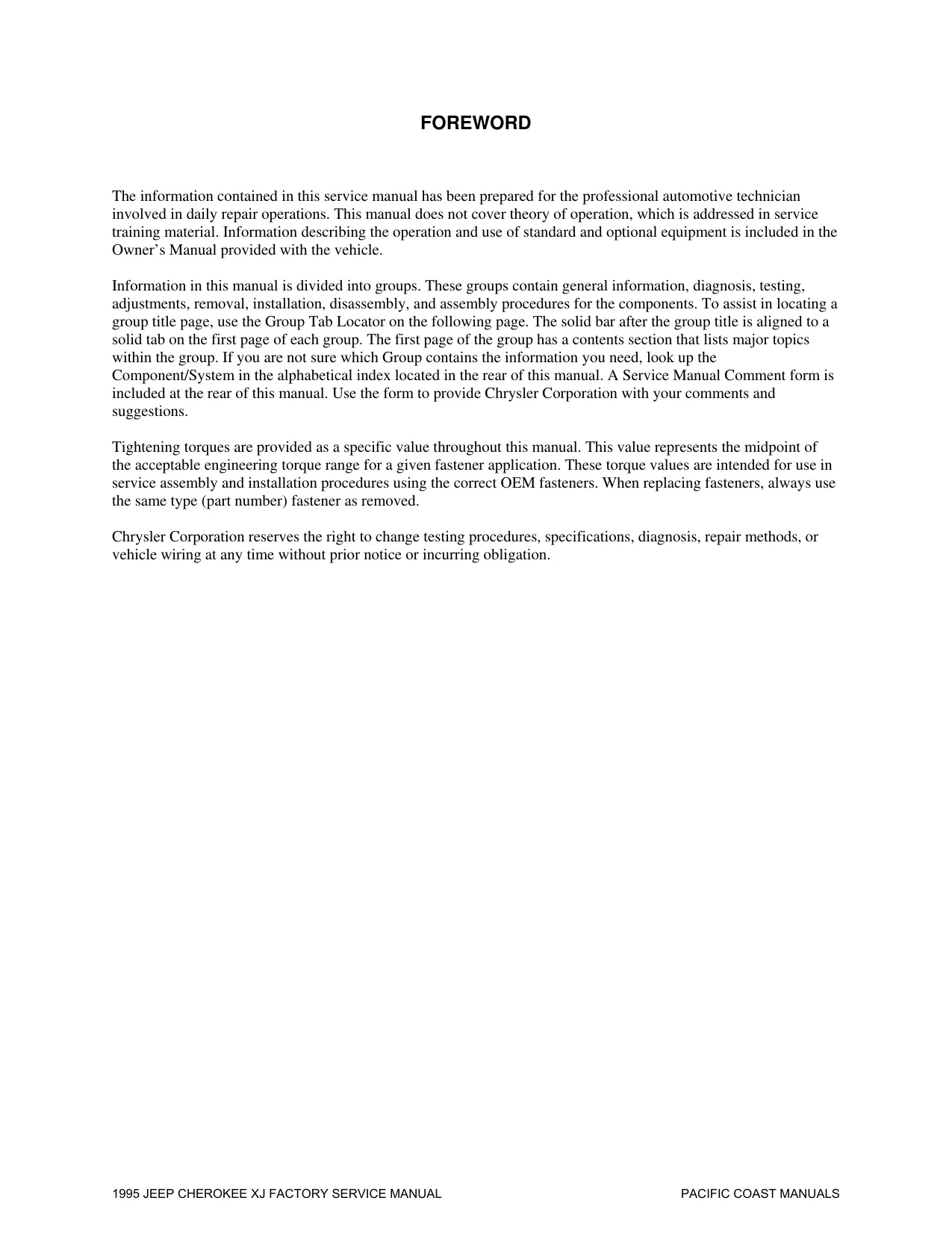

Coverage limits: Engine repair covers the gasoline versions. This set is not a Grand Cherokee ZJ manual. Some DRB-guided tests require separate Powertrain Diagnostic Procedures or chassis/body diagnostic books, which are not included. The factory foreword also refers readers to separate service-training material for theory of operation and to the owner’s manual for equipment use.
PDF Search, Bookmarks, and Diagram Detail
Search and navigation: The Jeep PDF has searchable text and extensive embedded bookmarks, although many wiring drawings and illustrated tables are outside the searchable text layer. The ATSG PDF has no embedded text search or bookmarks. Small wiring and component labels in the inspected diagrams are readable with magnification.
The ZIP contains two printable PDFs with 2,295 pages total. That total includes two added front-matter pages and 13 Chrysler revision pages within the Jeep volume, along with the ATSG introduction and index.
Engine, Drivetrain, and Vehicle-System Repair
These selected coverage highlights summarize major workshop sections rather than reproduce the complete contents. Other topics include exhaust and intake-manifold repair, emissions controls, and wheel and tire vibration diagnosis.
- Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve-train work, timing-chain service, lubrication-system repair, and internal engine inspection.
- Fuel and engine controls: Fuel-pressure, delivery-capacity, and leak-down tests; pump and injector service; MFI/PCM checks; OBD access; and diagnostic trouble-code descriptions.
- Transmission and transfer cases: Manual and automatic transmission diagnosis, removal, overhaul, adjustment, and assembly, plus NP231 and NP242 transfer-case service.
- Axles and suspension: Differential setup, Trac-Lok repair, hub and axle-shaft work, XJ and YJ suspension service, and single- and double-Cardan propeller shafts.
- Brakes and steering: ABS and conventional brake diagnosis, hydraulic bleeding, brake component repair, steering-pump pressure testing, and steering-gear overhaul.
- Electrical fault tracing: Separate XJ and YJ wiring documentation, connector pin-outs, circuit tests, splice locations, and harness and terminal repair.
- Cooling and HVAC: Cooling-system diagnosis and flushing, radiator and fan service, refrigerant recovery and evacuation, A/C performance testing, and heater and compressor repair.
The factory manual was prepared for professional automotive technicians involved in daily repair work; its diagnostic and overhaul procedures assume workshop knowledge and the specified test equipment.
Gasoline Engines and Fuel-System Diagnosis
Mechanical coverage extends to pistons, connecting rods, crankshafts, main and camshaft bearings, rear-main seals, cylinder-block disassembly, bore inspection, and honing. Separate engine sections provide valve timing, timing-cover and sprocket work, cylinder-head service, oil-pressure diagnosis, and oil-pump procedures.
Fuel-system chapters address tanks, lines, pump modules, injectors, sensors, relays, and PCM inputs and outputs. Component tests and DTC descriptions support fault isolation, while the references to companion diagnostic books identify where additional DRB procedures are required.
Transmission Overhaul and Transfer-Case Variants
Manual transmissions: AX-4/AX-5 and AX-15 procedures cover gear trains, shafts, bearings, synchronizers, shift rails, forks, and case assembly. Clutch diagnosis and service are covered separately.
Automatic transmissions: Depending on transmission type, the chapters provide road, hydraulic-pressure, stall, time-lag, and air-pressure tests. Internal work includes valve bodies, clutch and brake assemblies, servos, planetary gears, pumps, governors, and park-lock components. Cable, linkage, and band adjustments are accompanied by cooler-flow testing and reverse-flushing information.
The ATSG booklet adds TCU, sensor, neutral-safety-switch, and solenoid checks, manual-shifting diagnosis, troubleshooting charts, subassembly overhaul, valve-body teardown, and final assembly illustrations. Its preliminary-check chart helps distinguish an electrical control problem from a mechanical transmission fault before teardown.
NP231 coverage distinguishes versions with and without synchronizer components. NP242 material addresses its full-time and part-time operating arrangements, with removal, overhaul, linkage adjustment, and installation procedures.
Axle Setup, Suspension, and Propeller Shafts
Front-axle work includes YJ vacuum-disconnect diagnosis, shift-motor service, hub bearings, axle shafts, Cardan joints, steering knuckles, ball studs, and inner seals. Differential procedures continue through pinion-depth selection, bearing preload, backlash, and tooth-contact evaluation.
Rear-axle sections address bearings, seals, shafts, pinions, differentials, and Trac-Lok components. Suspension information distinguishes XJ coil-spring and YJ leaf-spring front layouts, with suspension arms, track bars, bushings, springs, shocks, ride-height checks, and alignment information as applicable.
The axle cautions address permanent housing distortion from excessive spreading and the replacement requirement for a collapsible spacer after pinion preload has been exceeded. AW-4 assembly warnings explain how forcing the oil pump into place can damage stator-shaft seal rings.
Brakes, Steering, Cooling, and Air Conditioning
Brake procedures cover front discs, rear drums, the master cylinder, booster, parking brakes, and ABS HCU/ECU and wheel-sensor components. Steering sections distinguish manual and power gears, XJ/YJ columns and linkages, and right-hand-drive equipment.
Cooling work includes pumps, thermostats, fans, radiators, and transmission coolers. HVAC procedures extend to leak and pressure diagnosis, charging, compressor clutches, heater cores, evaporators, expansion valves, and controls.
Brake, airbag, refrigerant, and heavy drivetrain work requires the manual’s vehicle-support, isolation, lifting, and pressure-release precautions.
Wiring, Body Repair, and Workshop References
Electrical examples include Power Distribution, Ground Distribution, Fuel/Ignition, Transmission Controls, Anti-Lock Brakes, and Connector Pin-Outs. Voltage, continuity, short-to-ground, and voltage-drop tests are supported by connector and splice locations, wiring repairs, diode replacement, and terminal service.
Body coverage includes frame dimensions and straightening, bumpers, tow hooks, and skid plates. XJ sections address doors, regulators, liftgate components, and stationary glass. YJ material covers hard and soft tops, the sport bar, tailgate, full and half doors, windshield frame, and glass.
Lubrication schedules, component torque tables, fluid data, wear limits, adjustment specifications, and a rear alphabetical index support workshop reference. Tool callouts include differential Spreader W-129-B, axle Gauge Set 6575, AW-4 Tool Kit 6294, and Pressure Test Port Adapter 7554.
Examples of the Specification Detail
For a Model 30 pinion marked zero, the reference depth from the ring-gear centerline to the back face of the pinion is 92.1 mm (3.625 in.). The accompanying discussion explains etched depth variations and shim selection.
The fluid-capacity table lists 11.4 L (12.0 qt.) for the XJ 4.0L cooling system, including the coolant recovery reservoir. Separate entries distinguish other engine and vehicle combinations.
