BMW E34 5-Series Service Manual 1989–1995 — Including Touring
459 Pages • Printable PDF • 61.14 MB • Download
BMW Models Covered & Key Technical Specifications
Models: 525i, 530i, 535i, 540i
Models & Model Codes:
525i — E34; engines: M20, M50, M50TU; manual transmissions: Getrag 260/5, ZF S5D 310 Z, Getrag S5D 250 G; automatic transmissions: 4HP 22/EH, A4S 310 R (THM-R1).
530i — E34; engine: M60, 3.0-liter V8; manual transmission: ZF S5D 310 Z; automatic transmission: A5S 310 Z.
535i — E34; engine: M30; manual transmission: Getrag 260/6; automatic transmission: 4HP 22/EH.
540i — E34; engine: M60, 4.0-liter V8; manual transmission: Getrag S6S 560 G (540i-sport); automatic transmission: A5S 560 Z.
Sub-models / Variants: Touring (525iT), Sedan
Trade Names: E34 5-Series
Model Years: 1989–1995 (1989, 1990, 1991, 1992, 1993, 1994, 1995)
-
Engine oil capacity (with filter change): 6.1 US quarts (525i M50/M50TU, 535i M30); 8.0 US quarts (530i/540i M60)
-
Coolant system capacity: 10.5 liters (525i); 12.0 liters (535i); 12.5 liters (530i/540i)
-
Starter to engine block: 50 Nm
-
Battery voltage (key off): 12.6 volts
BMW Manual Features & Selected Content Preview
This Bentley Publishers service manual (ISBN 0-8376-0319-6) covers U.S.-market BMW E34 5-Series models: the 525i for 1989–1995, 535i for 1989–1993, and 530i and 540i for 1994–1995, including Touring coverage.
Printable PDF and Wiring Detail
Text search, bookmarks and small labels: PDF text search and embedded bookmarks are unavailable. Small wiring labels require zooming; some fine lettering remains faint or soft.

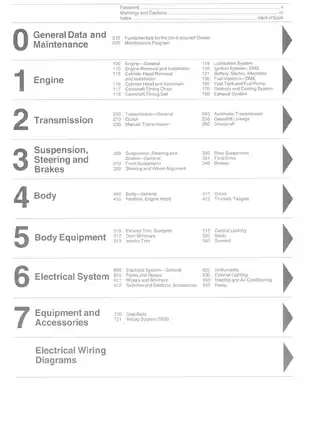

One printable, English-language PDF contains 459 pages: seven introductory pages, including one nontechnical supplementary page; 420 service-section pages; 26 wiring-section pages; and six index pages.
Engine, Drivetrain and Chassis Work
These selected coverage highlights summarize the main repair areas. Other topics include service-interval indicator resetting and HVAC microfilter replacement.
-
Engine repair: Step-by-step engine and cylinder-head removal and installation, head disassembly, reconditioning checks, valve adjustment, camshaft-drive service, VANOS testing, lubrication and cooling-system work.
-
DME diagnosis: Fault-code retrieval, driveability troubleshooting, fuel-pressure and delivery tests, injector and sensor checks, ignition diagnosis, plus battery, starter and alternator testing.
-
Drivetrain service: Clutch hydraulics and mechanical components, transmission removal, ATF service, seal replacement, gearshift linkage, driveshafts, flex-discs, center bearings and final-drive service.
-
Suspension and brakes: Front and rear suspension repair, wheel bearings, power-steering pressure tests, alignment data, LAD self-leveling rear suspension, master cylinders, boosters, ABS inspection and brake bleeding.
-
Body and equipment: Doors, Touring tailgate, windows, central locking, seats, single-panel sunroof, interior trim, wipers, washers, instruments, lighting, heating, air conditioning, radio and seat belts.
-
Workshop references: Electrical troubleshooting, ECM pin assignments, fuse and relay layouts, torque tables, fluid and lubricant data, wear limits, clearances, special-tool callouts, exploded views, section drawings and diagnostic charts.
Written primarily for DIY BMW owners with basic mechanical skills, this manual assumes safe workshop practices and identifies work requiring specialist tools or training.
Engine Families, Timing and Cylinder Heads
Engine-specific chapters help match the repair procedure to the installed engine before work begins. M20 applications have valve-adjustment and timing-belt procedures; M50/M50TU and M30 sections cover timing-chain service. M50TU coverage adds VANOS operation tests and control-unit removal and installation.
M60 material addresses V8 cylinder heads, camshafts, timing checks and adjustment, lubrication, cooling and engine management.
BMW tool references include 11 3 070 for valve adjustment, 11 2 300 for crankshaft TDC locking, and 11 3 390 for timing-chain preload. Timing and camshaft sections warn about piston-to-valve contact from incorrect timing and cylinder-head damage from mishandled valve-spring loads.
Before using any repair or diagnostic procedure, follow the safety cautions in the manual, isolate electrical or fuel systems as directed, and support the vehicle securely.
DME Circuits and Fault Isolation
The DME engine-management schematic, ignition-system circuit schematics and ECM pin-assignment tables distinguish DME 1.3, 3.1, 3.3 and 3.3.1. Together with component tests, they support tracing driveability faults beyond a fault-code description.
Fuel-system coverage includes residual-pressure checks and regulator response to engine load. Cooling-system pressure tests and lubrication warning-system checks are also included. EML/ADS electronic throttle-control repair is outside the manual's scope.
Transmission and Final-Drive Limits
Transmission application tables distinguish the ZF and Getrag gearboxes listed above. The chapters cover external service, seals, stall-speed and main-pressure testing, and complete unit removal and installation. Internal manual-gearbox repair and automatic-transmission teardown or overhaul are excluded.
The clutch hydraulic-system layout supports clutch service. Final-drive coverage includes seals, mounts and unit removal, but excludes internal differential repair and disassembly.
The driveshaft chapter warns that an unsupported shaft can damage the rear universal joint, while incorrect flex-disc orientation or fastener handling can fatigue the rubber coupling.
LAD, ABS and Brake-Service Boundaries
LAD procedures cover ride-height adjustment, bleeding, regulator-valve replacement and fluid-accumulator replacement. Alignment specifications distinguish base, sport and M-Technic suspension configurations.
The ABS system schematic accompanies visual inspection and pulse-sensor replacement. Major ABS and ASC/ASC+T troubleshooting requires specialist test equipment; the standard brake-bleeding procedures do not apply to ASC+T-equipped cars.
Touring Bodywork, HVAC and SRS
Touring-specific work includes tailgate and rear-seat procedures. The sunroof chapter covers the single-panel roof; the Touring dual-panel sunroof is excluded.
The A/C refrigerant-circuit layout accompanies component removal and installation. Refrigerant discharge, evacuation and recharge procedures are excluded.
Airbag I and Airbag II sections cover component removal and installation with SRS precautions. Airbag fault diagnosis, component testing and system repair are excluded.
Partial Power Distribution Appendix
The wiring appendix ends at EWD-26. It contains Power Distribution diagrams for the listed applications from 1989 through 1993, followed by only the first two of five sheets for the 1994–1995 525i and 525i Touring. Later EWD sections listed in its contents are absent, so this PDF does not contain the complete electrical wiring appendix. The index is also incomplete, ending on its sixth page.
Valve-Clearance Specification Preview
For intake and exhaust valve adjustment with coolant below 95°F (35°C), the manual specifies 0.25 mm for the 525i M20 and 0.30 mm for the 535i M30. These values apply to the mechanically adjusted valvetrains; M50/M60 engines use hydraulic cam followers.
