2007–2011 BMW X5 E70 OEM Technical Training Manual

This BMW E70 technical training reference, initially printed in October 2006, covers system design and selected service functions for the X5 3.0i and 4.8i with N52B30O1 and N62B48O1 gasoline engines.

Supplied as one 883-page PDF in English.

• Powertrain: Engine-specific cooling and fuel supply, GA6HP19TU/GA6HP26TU transmission changes, ATC700 transfer-case construction, and electronic gear selector lever (GWS) operation.

• Chassis systems: Active Steering, Dynamic Stability Control, Active Roll Stabilization, Vertical Dynamics Control, and Electronic Height Control, with system-specific schematics.

• Workshop functions: ARS initialization and bleeding, steering-angle calibration, electromechanical parking-brake emergency release, Bowden-cable service, and duo-servo brake-shoe bedding-in.

• Electrical diagnosis: D-CAN, MOST and FlexRay networks, Car Access System 3, power distribution, and battery-discharge diagnosis using energy-history data.

• Body and comfort systems: Power-window and panorama glass sunroof initialization, US-version driver-seat calibration, Comfort Access, lighting, and anti-theft alarm diagnosis.

• Cabin electronics: Head-up Display test functions, rear-view camera architecture, audio and telematics diagnostics, and IHKA/FKA climate-control variants.

Suited to professional technicians and independent repair shops familiar with BMW electrical diagnosis; many service functions require BMW diagnostic equipment.

Powertrain Design and Repair Scope

The engine and transmission modules focus on changes to existing BMW systems and do not provide complete engine or gearbox overhaul instructions. Transmission coverage explains the torque converter, clutch E, mechatronics and electronic-hydraulic controls; the ATC700 section includes a cross-section and coding-resistor operation.

Technical tables identify MSV80 and ME9.2.3 engine management, transmission specifications and engine-specific final-drive ratios. The engine chapters distinguish equipment-dependent 180 A and 220 A alternator configurations.

Cooling and fuel: The N52B30O1 and N62B48O1 cooling-circuit diagrams show their different pump arrangements and transmission-cooler circuits within the modular cooling system. Fuel-system coverage explains the dual-chamber tank, suction jet pumps and DMTL leak detection.

Belt-drive repair notes cover the special tool for the N52 ELAST belt and the N62 linear tensioner, including how incorrect installation can damage the belt, pulley or tensioner.

Chassis Service and Calibration

The ARS hydraulic circuit drawings compare normal and fail-safe operation. The EHC Pneumatic Diagram traces the rear air-suspension system, while VDC service notes explain the calibration required after EDC satellite replacement.

The Electromechanical Parking Brake (EMF) section covers cable removal and refitting, actuator commissioning and component-specific fastener torques. Air-spring repair notes warn that overstretching can dislodge the retaining ring and damage the suspension air bag.

Electrical Networks and Battery Diagnosis

System circuit diagrams and bus overviews show how the Footwell Module, Junction Box and Car Access System 3 communicate with other control units. FlexRay coverage includes wiring checks and the limits of static resistance measurements.

The energy-management chapter explains why a "Sleep blocker CAS" entry can originate in a key-slot Hall sensor. That distinction helps a technician investigate the input circuit before replacing the CAS control unit.

Body Systems, Displays and Climate Control

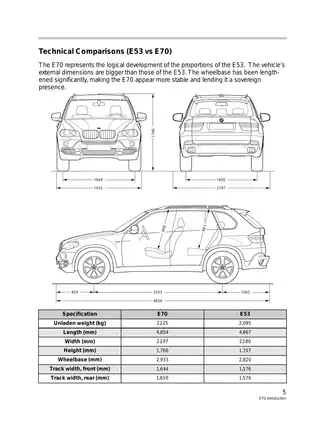

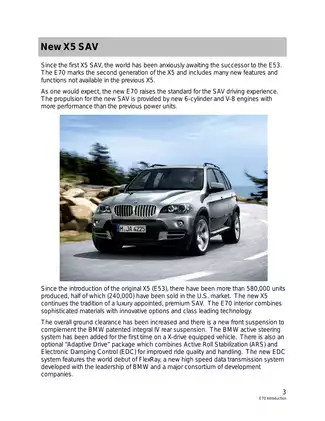

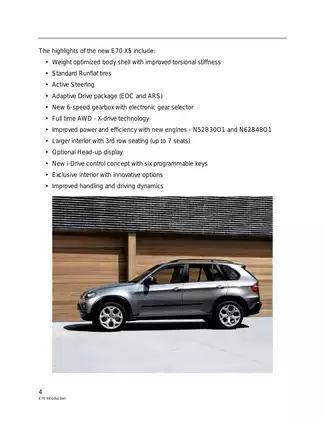

The E53 comparisons and body overview map out body shell reinforcements, pedestrian safety measures and seating configurations. The instrument-cluster section adds test functions and Condition Based Service reset information.

The multimedia chapters cover the Telematics Control Unit and Car Communication Computer (CCC), including the TCU with Professional Radio and Navigation Circuit Diagram. Audio service information distinguishes CCC component replacement from complete-unit replacement of the CHAMP radio.

Climate-control coverage separates two-zone IHKA from four-zone IHKA with rear FKA, with third-row heating and ventilation also covered. Service notes explain air-flap motor addressing and diagnostic reference runs.

Calibration and coverage limits: The rear-view camera section refers its calibration procedure to BMW TIS/GT-1. The Advanced Crash Safety Module (ACSM) section contains only its opening contents page; the chapter text and dedicated ACSM circuit diagram are not included.

Observe BMW workshop safety requirements for heavy chassis components, brake systems, pressurized hydraulics and electrical work.

PDF Contents, Search and Navigation

The file contains 882 pages across 32 E70 modules plus one ACSM contents page; all 24 notes pages and 12 blank pages are already included in the total. Body text is searchable, but labels embedded in diagram images are not; top-level bookmarks open the modules, while many nested entries point to separate PDFs that are not included. Small wiring labels require zooming, and some remain pixelated and difficult to read.
