BMW 5 Series E60/E61 2004–2010 Repair & Owner's Manual Set

2,532 Pages • ZIP Download: 4 Printable PDFs • 641.91 MB

4.3starstarstarstarstar_border(3)
$19.97 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

BMW Models Covered & Key Technical Specifications

Models: 528i (N52KB30), 535i (N54B30), 550i (N62B48TU), 528xi (N52KB30), 535xi (N54B30), 525i (M54B25, N52B30), 525xi (N52B30), 530i (M54B30, N52B30), 530xi (N52B30), 545i (N62B44)

Sub-models / Variants: Sedan (E60), Sports Wagon (E61); 528i xDrive and 535i xDrive designations in the VIII/08 Owner's Manual

VIN vehicle codes — positions 4–7: 525i: NA53, NE53; 528i: NU53; 530i: NA73, NE73; 535i: NW13; 545i: NB33; 550i: NB53, NW53; 525xi: NF33; 528xi: NV13; 530xi Sedan: NF73; 535xi Sedan: NV93; 530xi Sports Wagon: NN73; 535xi Sports Wagon: PT73

Manual transmissions (6-speed): 525i (M54), 530i (M54, N52): GS6-37BZ / DZ; 525i (N52), 528i: GS6-17BG; 525xi, 528xi, 530xi: GS6X37BZ / DZ; 535i: GS6-53BZ / DZ; 545i, 550i: GS6-53BZ

SMG transmissions (6-speed): 525i (M54), 530i (M54, N52): GS6S37BZ; 545i: GS6S53BZ

Automatic transmissions (6-speed): 525i, 525xi, 530i, 530xi: GA6HP19Z; 528i, 528xi, 535i, 535xi: GA6HP19ZTU; 545i: GA6HP26Z; 550i: GA6HP26Z or GA6HP26ZTU, depending on version

Model Years: 2004–2010 (2004, 2005, 2006, 2007, 2008, 2009, 2010)


  • Fuel tank capacity: Approx. 18.5 US gallons / 70 liters

  • Reserve fuel capacity: 2.1 US gallons / 8 liters (550i: 2.6 US gallons / 10 liters)

  • Windshield washer capacity (Sedan): Approx. 3.2 US quarts / 3 liters (with headlamp washer: 5.3 US quarts / 5 liters)

  • Windshield washer capacity (Sports Wagon): Approx. 5.3 US quarts / 5 liters

BMW Manual Features & Selected Content Preview

Publication Pages
Bentley BMW 5 Series E60/E61 repair manual, covering 2004–2010 525i, 525xi, 528i, 528xi, 530i, 530xi, 535i, 535xi, 545i, and 550i applications 1,664
BMW Owner's Manual, US English II/07 — 528i, 535i, 550i, 528xi, and 535xi; P/N 01 41 0 013 308 286
BMW Owner's Manual, US English VIII/07 — 528i, 535i, 550i, 528xi, and 535xi; P/N 01 41 0 014 240 288
BMW Owner's Manual, US English VIII/08 — 528i, 535i, 550i, 528i xDrive, and 535i xDrive; P/N 01 41 2 600 721 294

The Bentley manual supplies workshop procedures and diagnostic information. The BMW owner's manuals explain vehicle controls, operating checks, and equipment settings for their respective editions.

Repair limits: Transmission coverage focuses on service, external components, and removal and installation. Internal transmission, transfer-case, and differential rebuilding is outside the repair manual's scope.

PDF Search, Bookmarks, and File Contents

Finding text and wiring details: The repair PDF is partially searchable; portions of the lighting, climate-control, radio, airbag, and electrical-component-location sections lack searchable text. Its four generic bookmarks do not provide chapter-by-chapter navigation. All three owner's manuals have searchable text and detailed bookmarks. Small wiring labels require zooming, and some diagram lines are faint.

The ZIP download contains four printable, English-language PDFs totaling 2,532 pages. Covers, front matter, section dividers, and indexes are included in these totals; the repair PDF also includes 20 blank pages and one additional compilation-notice page.


Engine Work, Chassis Repairs, and Electrical Fault Tracing

The following highlights are a selection of the included material. Other topics include exhaust-system service and power-window initialization.

  • Engine repairs: Step-by-step instructions for engine and cylinder-head removal and installation, timing-chain replacement, camshaft timing, and VANOS service across the documented engine families.

  • Fuel and ignition diagnosis: Engine-management troubleshooting, ignition-coil testing, injector replacement, N54 injector adjustment, fuel-pressure checks, and high-pressure pump service.

  • Cooling and lubrication: Cooling-system pressure tests, engine-specific bleeding procedures, coolant-pump replacement, oil-pressure testing, and crankshaft-seal replacement.

  • Transmission and driveline: Clutch replacement and hydraulic bleeding, transmission fluid service, gearbox removal, driveshaft repairs, and xDrive transfer-case replacement.

  • Suspension, steering, and brakes: Strut and control-arm replacement, Sports Wagon air-spring service, steering-system bleeding, wheel alignment, brake repairs, and ABS/DSC bleeding.

  • Electrical troubleshooting: Starting and charging tests, battery registration, bus-system explanations, component-location photographs, wiring diagrams, and BMW/OBD II fault-code tables.

  • Body and comfort systems: Door and tailgate repairs, locking-system service, sunroof adjustment, IHKA component replacement, and factory audio/navigation equipment service.

The repair manual is written for BMW owners with basic mechanical skills and independent service professionals; advanced procedures require the specified diagnostic tools and workshop equipment.

Engine-Specific Procedures and Repair Precautions

Separate fuel-injection sections distinguish M54 MS45.1, N52 MSV70/MSV80, N54 MSD80/MSD81, and V8 ME 9.2/ME 9.2.2 systems. Injector work includes N54 sealing and scan-tool adjustment requirements rather than treating all gasoline engines alike.

Cylinder-head and timing procedures identify special tools, including BMW camshaft-locking set 11 4 280 for the N52. Incorrect camshaft handling can allow valve-to-piston contact; contamination of VANOS components with silicone sealant can cause operating faults.

Driveline and Chassis Service Requirements

Clutch coverage distinguishes installation of new and used self-adjusting clutch components. Automatic-transmission sections include troubleshooting, sump service, torque-converter handling, and variant-specific removal procedures.

Sports Wagon rear-suspension coverage explains Electronic Height Control and air-spring replacement. Brake-system bleeding includes a scan-tool-controlled ABS/DSC service function. Follow the manual's support, pressure-release, and electrical-isolation precautions; airbag and refrigerant work require the specified training and equipment.

Wiring Diagrams and Control-Module Diagnosis

Electrical references include alternator/battery/IBS circuits, fuel-injector wiring, EGS transmission-control power supplies, MOST-bus networks, and wiper/washer circuits. Connector identifiers, ground references, fuse tables, and component photographs support tracing a circuit from the schematic to the vehicle.

Battery replacement registration and coding/adaptation requirements are explained alongside the applicable component procedures. The symptoms-and-field-observations section links recurring complaints to the relevant repair groups, helping organize diagnosis before disassembly.

iDrive, Climate Control, and Body Equipment

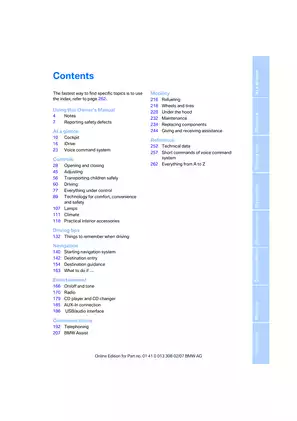

The owner's manuals explain iDrive, voice commands, navigation, audio operation, Bluetooth pairing, BMW Assist functions, and Condition Based Service displays. Their explanations of TPMS, DSC, Hill Descent Control, and Active Steering help distinguish normal system behavior from symptoms requiring diagnosis.

Workshop coverage adds IHKA control-panel, stepper-motor, and blower replacement, plus radio and central-information-display removal. Sunroof procedures cover adjustment, initialization, and motor replacement; roof-cavity assembly repairs are outside the stated scope.

Selected Oil-Pressure and Cooling-Test Specifications

For N52/N54 engines at operating temperature, the oil-pressure table lists 1.5 bar (22 psi) at idle and a maximum regulated pressure of 4.0–6.0 bar (58–87 psi).

The cooling-system test data distinguish a radiator test pressure of 1.5 bar (21.75 psi) from a radiator-cap test pressure of 2 bar (29 psi). These component-specific figures accompany the pressure-testing information.
