1997–2002 BMW 5 Series E39 525i, 528i, 530i, 540i Service Manual – Volume 1, Sedan/Sport Wagon

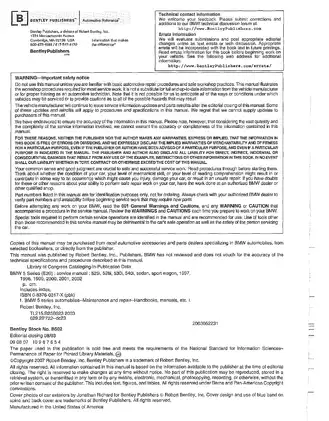

Published by Bentley Publishers, this BMW 5 Series (E39) Service Manual covers the 1997–2002 525i, 528i, 530i, and 540i Sedan/Sport Wagon range. This download contains Volume 1 only, Bentley Stock No. B502, with an editorial closing of August 2003.

PDF Search, Navigation and Page Count

Text search and diagram detail: The PDF has a partial OCR text layer with recognition errors; some tables and diagram labels cannot be searched. Its 32 bookmarks use file names rather than chapter titles. Small labels in the included system diagrams require zooming, and some fine lettering is faint.

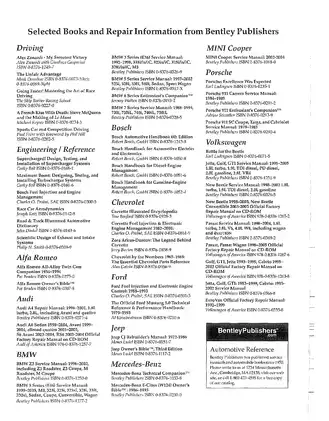

Supplied as one printable 1,002-page PDF in English. The total includes 4 cover/front-matter pages, 1 advertising page, and 16 blank pages.

Engine, Drivetrain and Chassis Work

The selected coverage below highlights major workshop topics. Other examples include sunroof normalization and Sport Wagon tailgate alignment.

• Engine repair: Engine and cylinder-head removal, hydraulic-lifter inspection, and single- and Double-VANOS timing procedures, with engine-specific coverage limits.

• Cooling and lubrication: Cooling-system pressure testing, bleeding, thermostat and water-pump replacement, oil-pressure checks, and oil-pan and pump service.

• Fuel and ignition diagnosis: ECM relay and sensor tests, fuel-pressure checks, ignition waveforms, evaporative-emissions diagrams, and engine-specific diagnostic trouble-code tables.

• Clutch and transmissions: SAC and conventional clutch procedures, hydraulic bleeding, transmission removal, external seal replacement, and automatic-transmission fluid service.

• Suspension and brakes: Front and rear suspension replacement, wheel alignment, EHC air-suspension service, and ABS/ASC/DSC bleeding and component replacement.

• Body equipment: Door and trim removal, window regulators, central locking, EWS immobilizer checks, ZKE III memory functions, and SRS component replacement.

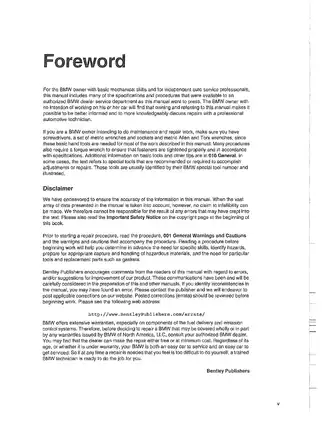

Written for BMW owners with basic mechanical skills and independent auto service professionals, the manual also identifies jobs requiring BMW diagnostic equipment and special tools.

Cylinder Heads, VANOS and Lubrication

Step-by-step instructions cover cylinder-head work and camshaft timing for the M52, M52 TU, and M54 six-cylinder engines and the non-VANOS M62 V-8. The procedures distinguish single VANOS from Double VANOS and illustrate dedicated equipment, including camshaft alignment tool BMW 11 3 240 and secondary-sprocket setup tool BMW 11 6 180. These references help identify tooling requirements before engine disassembly.

M62 TU limits: Cylinder-head and camshaft removal and installation, along with timing-chain/VANOS repair procedures, are excluded.

The camshaft-removal cautions explain how unsupported removal can break camshafts and damage the cylinder head. The V-8 lubrication section also warns that loose oil-pump fasteners, including the sprocket retaining nut, can cause oil starvation and engine failure.

Clutch Service and Drivetrain Repair Limits

The clutch chapter separates new SAC installation from reinstallation of used SAC components and illustrates the spring-tensioning equipment involved.

Manual and automatic transmission coverage includes unit removal, installation, fluid service, and external repairs. Internal transmission overhaul is excluded. Final-drive coverage addresses axle shafts, CV joints, boots, and seals; internal differential repair is also outside the manual’s scope.

ABS/DSC, Steering and EHC

The brake-bleeding procedure requires a BMW service tester and distinguishes traction-control systems with and without a precharge pump. Steering coverage separates the six-cylinder rack-and-pinion layout from the V-8 steering gearbox, while the rear-suspension sections address EHC air springs and compressor components.

Diagnostic References and Body Systems

ECM pin-assignment tables and engine-specific DTC charts support fault isolation by identifying terminal functions and monitored circuits. Battery-drain diagnosis includes closed-circuit current measurement, alongside charging-system and starter troubleshooting.

Illustrations include ignition oscilloscope diagnostic patterns, evaporative-emissions control diagrams, the EHC operational diagram, central-locking input/output schematics, and the ZKE seat/mirror/steering-column memory diagram.

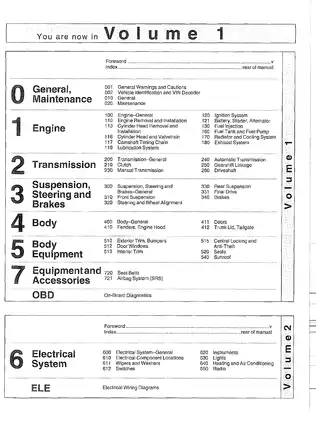

Electrical coverage: IHKA receives a system overview. Volume 2’s general electrical, component-location, instrument, lighting, radio, and heating/air-conditioning service chapters, plus the separate Electrical Wiring Diagrams section, are not included in this download.

SRS coverage: The airbag chapter describes component replacement. Airbag fault diagnosis and system repair are outside its scope and require trained BMW service technicians. Observe the manual’s vehicle-support and MRS safety precautions when planning underbody or restraint-system work.

Coolant Capacity and Clutch Wear Examples

The maintenance tables list an approximate coolant capacity of 11.4 liters (12.0 US qt) for the 1997 V-8 without a latent heater, with separate capacities for other configurations.

For clutch inspection, the manual specifies a minimum lining thickness of 1.0 mm (0.04 in), measured at the shallowest rivet head.
