BMW R 1150 R Repair & Maintenance Manual Set, 2002 - (P/N 01 71 0 141 316)

434 Pages • ZIP Download: 2 Printable PDFs • 72.95 MB

4.5starstarstarstarstar_half(4)
$18.25 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

BMW Models Covered & Key Technical Specifications

Model: R 1150 R

Sub-models / Variants: Integral ABS

Model Year: 2002


  • Engine: Four-stroke flat twin, air-cooled with oil-cooled exhaust ports, 4 valves per cylinder

  • Displacement: 1,130 cc

  • Bore: 101 mm

  • Stroke: 70.5 mm

  • Compression Ratio: 10.3:1

  • Idle Speed: 1,100 ±50 rpm

  • Transmission: 6-speed gearbox with claw-action shift and integral reaction damper for all gears

  • Transmission Oil Capacity (initial): Approx. 1.0 liters (API class GL 5, SAE 90)

  • Valve Clearances (cold): Inlet 0.15 mm, Exhaust 0.30 mm

  • Spark Plug: NGK BKR 7 EKC

BMW Manual Features & Selected Content Preview

Publication Pages
BMW R 1150 R Repair Manual, printed 07/01. Includes maintenance and pre-delivery forms, Order No. 01 71 0 141 316, 05.2001, 1st edition. 339
BMW R 1150 R Maintenance BMW Integral ABS, produced 01/01. 95

The repair manual provides the internal repair and electrical-equipment coverage, while the accompanying maintenance document focuses on service and brake work. Maintenance and brake sections overlap substantially.

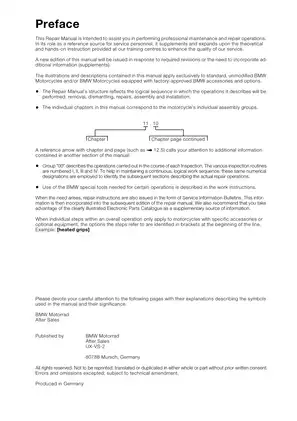

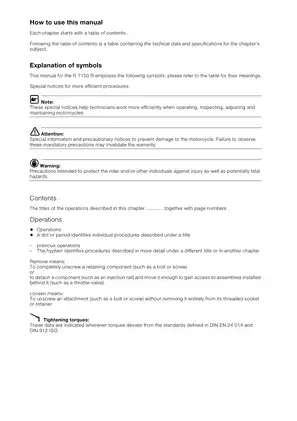

Coverage applies to standard, unmodified R 1150 R machines and factory-approved accessories. Bracketed instructions identify optional equipment, including heated grips.

Searchable PDFs and Included Pages

Text search and bookmarks: Both PDFs provide searchable text and embedded bookmarks for sections and procedures. Details contained only in illustrations are not consistently searchable.

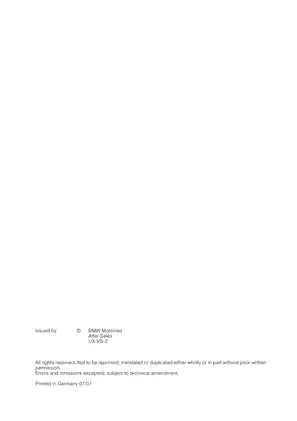

The ZIP contains two printable PDFs totaling 434 pages. This total includes 14 pages of original front matter and service sheets, plus 39 blank separator pages across the two files.


Engine, Driveline, and Integral ABS Work

These selected workshop topics outline the main coverage. Further examples include exhaust-system removal and instrument-cluster replacement.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, crankcase separation, crankshaft inspection, and camshaft timing.

  • Gearbox and clutch: Six-speed gearbox disassembly, bearing replacement, shaft shimming, dry-clutch replacement, and hydraulic clutch service.

  • Final drive: Crown-wheel and pinion bearing work, backlash adjustment, and tooth-contact-pattern checks.

  • Motronic MA 2.4: Throttle-body and injector removal, throttle-valve synchronization, and fuel-pump pressure testing.

  • BMW Integral ABS: Separate wheel- and control-circuit procedures, pressure-modulator replacement, and brake-service instructions for versions without ABS.

  • Telelever and chassis: Fork and ball-joint repair, leading-link inspection, wheel-bearing replacement, and wheel-track-offset measurement.

BMW wrote the repair manual for service personnel to supplement technical training. Integral ABS maintenance and repair require specially trained personnel.

Maintenance Planning and Internal Repairs

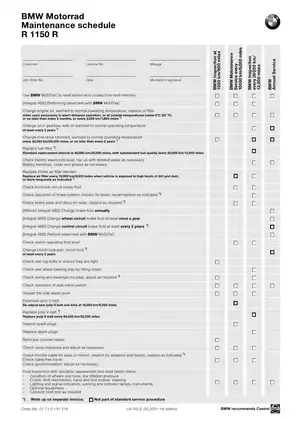

Factory Inspections I, II, III, and IV connect the maintenance schedules with the relevant workshop operations. Pre-delivery checks, valve-clearance adjustment, poly-V belt service, filter changes, and final roadworthiness checks support routine service planning.

Engine internals: Repair coverage extends to valve seats and guides, piston and cylinder measurement, connecting-rod bearings, and crankshaft running clearances. Oil-pump and thermostat work have their own procedures.

The engine section warns that straightening fracture-split connecting rods can cause fractures. During gearbox removal, lowering the unit before the clutch actuating rod is clear can bend the rod.

Transmission and clutch hydraulics: Internal gearbox instructions include selector-shaft shimming and selector-drum length adjustment. Clutch hydraulic coverage reaches the master-cylinder piston, slave-cylinder replacement, and filling and bleeding.

Rear drive and brakes: Driveshaft universal-joint checks and swingarm pivot-bearing work extend beyond the final-drive gears. Brake procedures cover front and rear caliper pistons and seals, disc replacement, and rear master-cylinder pushrod adjustment.

Diagnostic Equipment and Electrical Coverage

The electrical chapters address the Bosch alternator and regulator, starter disassembly and brush replacement, ignition-coil checks, and Hall-effect transmitter replacement.

Equipment requirements: Static ignition timing, fault-memory checks, and ABS bleed tests use BMW MoDiTeC. Throttle synchronization uses BMW Synchro. Throttle-potentiometer basic adjustment refers to separate Motronic diagnostic instructions.

Relay positions and fuse assignments identify components in the central electrical equipment box. Harness illustrations show box connections and routing along the left, right, and front of the machine. These are routing and component-layout views, not a complete electrical circuit-diagram set.

Workshop Drawings and Tool References

Illustrations titled Cutaway drawing of engine, Lubricating-oil circuit, and Gearbox – sectional drawing explain internal construction and oil routing. The views accompanying Checking tooth contact pattern support final-drive assessment.

Torque tables, fluid capacities, bearing clearances, wear limits, fuel-pressure specifications, and electrical test values accompany the relevant work. References such as the BMW 23 4 761 gearbox measuring stand and BMW 34 1 531 brake-piston reset device help identify equipment needed before internal measurement or hydraulic work begins.

Always rely on the complete, step-by-step procedures outlined within the manual before performing any hands-on mechanical work.

A Preview of Fuel-Pressure and Clutch Inspection Data

The fuel-pressure test specifies 3.0 ± 0.2 bar with the engine idling. Its low-pressure checks cover the pump, fuel filter, pressure regulator, and fuel line.

For the dry clutch, the listed wear dimension is 4.8 mm, measured with the caliper tips pressed by hand against the clutch-plate rivets.
