1994-2005 BMW R 850/1100 GS/R/RS/RT Service Manual
Diagnostic procedures and component service for R 1100 RS/RT, R 850/1100 GS, and R 850/1100 R. Complete engine, transmission, brake, and suspension specifications.
Manual Preview

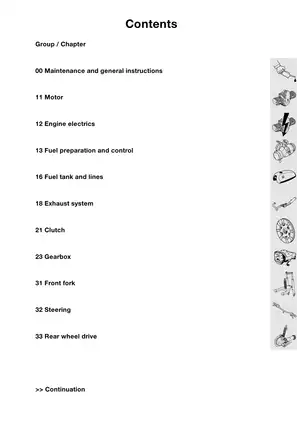

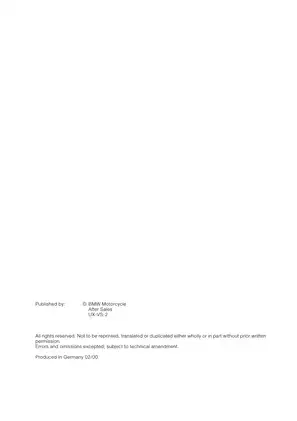

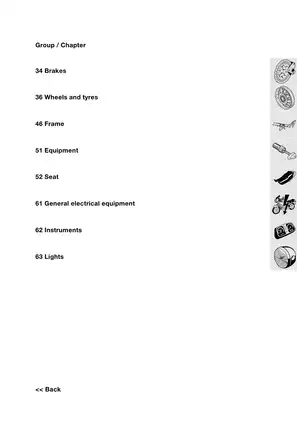

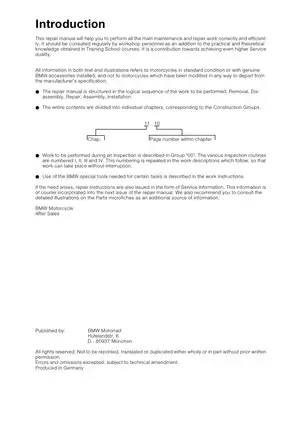

Sample pages from the 1994-2005 BMW R 850/1100 GS/R/RS/RT Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
BMW R 1100 RS, R 1100 RT, R 850/1100 GS, R 850/1100 R — 1993–2000 Documentary Collection Index | BMW Motorcycle Series Repository.
- Calibrated Engine Displacement: 1085 cc (66.2 cu in) is specified as the core cylinder volume Architecture.
- Measured Power Output: For optimal performance, 66 kW (90 bhp) at 7250 rpm represents the maximum rated horsepower Framework.
- Specific Torque Specification: 95 N·m (70 lb-ft) at 5500 rpm establishes the peak crankshaft output Mapping.
- Critical Valve Clearance: The cylinder head requires 0.15 mm (0.0059 in) for inlet and 0.30 mm (0.0118 in) for exhaust cold lash setting Configuration.
- Universal Fuel Capacity: Tank volume reaches 23–26 L (6.1–6.9 US gal) depending on model Parameters.
- Calibrated Idle Speed: Engine idle is set to 1000 ± 150 min⁻¹ (revolutions per minute) Baseline.
Professional Workshop Service Manual & Technical Specifications
Precision Diagnostic Manual: BMW R 1100 RS, R 1100 RT, R 850 GS, R 1100 GS, R 850 R (1993-2000) Workshop-Compendium
Model-Specs: R 1100 RS, R 1100 RT, R 850 GS, R 1100 GS, R 850 R // Design-Core: Flat-twin four-stroke / Electronic fuel injection Logic // Model-Specs: Factory-authorized technical documentation, comprehensive system reference.
| System Category | Documentation Scope | Reference Materials |
|---|---|---|
| Engine Assembly | Four-stroke flat-twin mechanics, displacement variants, fuel injection systems | Complete specifications provided |
| Transmission & Drivetrain | Manual 5-speed gearbox, clutch mechanisms, rear wheel drive components | Documented with adjustment procedures |
| Suspension & Steering | Telelever front suspension, rear monoshock assembly, handling geometry | Detailed technical data included |
Repair procedures are structured around engine and transmission systems, fuel preparation and control logic, electrical equipment distribution, and brake system architecture, creating a methodical progression through motorcycle subsystems and component integration.
Technical Benchmarks
Factory specifications are documented for engine displacement ranging from 848 cc (R 850 models) to 1085 cc (R 1100 models), with compression ratios between 10.3:1 and 10.7:1. The manual provides comprehensive power output data, maximum torque values, and permissible engine speed limits for each variant. Oil system documentation includes filter capacity specifications, pressure relief valve thresholds, and lubrication circuit diagrams depicting cooling oil flow through integrated thermostat systems.
Integrated Nexus
Engine rebuild procedures are documented for cylinder head removal, valve train disassembly, piston and connecting rod inspection, and crankshaft bearing measurement. The document includes timing chain tensioner specifications, camshaft sprocket alignment procedures, and valve clearance adjustment reference data. Technical data tables present valve dimensions, seat angles, guide bore tolerances, and stem clearance measurements across all model variants.
Engineered Benchmarks
Drivetrain specifications are addressed in gearbox assembly sections, covering selector mechanism operation, shift fork geometry, bearing preload requirements, and shaft endplay measurement. Rear wheel drive documentation includes spiral bevel gear ratios (ranging from 2.81:1 to 3.36:1 depending on model), backlash adjustment procedures, and tooth contact pattern verification methods. The manual documents torque specifications for the rear wheel drive assembly to ensure proper fastener retention.
Comprehensive Architecture
The document includes wiring diagrams for electrical systems, detailed ignition timing procedures, alternator belt tension specifications, and starter motor removal sequences. Brake system sections reference DOT 4 fluid specifications, sensor gap documentation (0.45–0.55 mm for ABS systems), and caliper piston sizing data. Suspension strut specifications are provided, including spring preload adjustment ranges and gas pressure parameters for models equipped with electronic damping adjustment.
The manual documents torque specifications for critical fasteners throughout the motorcycle structure to ensure proper assembly and fatigue prevention. Comprehensive maintenance schedules reference service intervals organized by model year and inspection type (1000 km, 10,000 km, 20,000 km checkpoints), with documented fluid capacities, filter replacement specifications, and system bleeding procedures for hydraulic brake and clutch circuits.
