BMW X5 E53 Service & Repair Manual Collection, 2000–2004

The repair articles provide task-level procedures, while the ST036 booklet and AWD/DSC overview explain system operation. Used alongside the wiring and component-location files, they support repair planning and electrical fault tracing.

Coverage centers on 2000–2003 X5 E53 models: 2001–2003 3.0i M54, 2000–2003 4.4i M62, and 2002–2003 4.6L M62 B46. Selected ABS and rear-suspension articles extend through 2004. N62 material is limited to selected ABS, generator, regulator, and drive-belt procedures.

Engine coverage varies: The dedicated 4.4L engine file supplies technical data rather than a complete mechanical repair chapter; additional 4.4L procedures appear in the general repair extract. The separate “Engine - Tightening Torques - X5 4.6L” article referenced throughout the 4.6L procedures is not included.

PDF Search, Bookmarks, and Circuit Detail

Finding text and reading diagrams: The PDFs contain searchable text, but small labels within wiring diagrams and many illustrations are not searchable. The general repair extract has an OCR layer with recognition errors. Small circuit labels require zooming. The ST036 booklet has limited bookmarks, mostly pointing to external files outside this download; the other PDFs have no embedded bookmarks.

The ZIP contains 35 printable PDFs in English, totaling 3,000 pages. This total includes two contents/index pages: one in the general repair extract and one in the ST036 booklet.

Engine, Drivetrain, Chassis, and Electrical Work

The following highlights are a selected content preview, rather than a complete contents list. Other subjects include scheduled maintenance and heater-core replacement.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head work, compression and oil-pressure checks, crankshaft bearings, pistons, camshaft timing, and VANOS service.

• Drivetrain: Transmission and transfer-case removal, propeller-shaft service, flex discs, centering mounts, CV joints, center bearings, axle shafts, and front-differential replacement.

• Suspension: Rear axle-carrier mounts, control arms, traction struts, ball joints, wheel bearings, coil springs, ride-height specifications, and alignment references.

• Brakes and stability control: Disc and caliper repair, parking-brake adjustment, hydraulic bleeding, ABS/ASC+T/DSC component replacement, and diagnostic-equipment requirements.

• Electrical systems: Ignition waveform analysis, DME replacement and coding, starter and alternator service, wiring-harness repairs, component locations, DTC references, and system wiring diagrams.

• Body equipment: Bumpers, door locks and handles, mirrors, interior trim, window regulators, bonded glass, pedal assemblies, and airbag-area precautions.

• Roof mechanisms: Sliding/tilting and panoramic-roof repairs, drive cables, glass panels, seals, headliners, frames, adjustment, and initialization.

This collection suits technicians and experienced owners who can follow workshop procedures and have access to the specified lifting equipment, measuring tools, and BMW diagnostic functions.

M54 and M62 Mechanical Repair

Cylinder heads and bottom ends: The M54 material covers head disassembly, watertightness testing, resurfacing, valve seats and guides, main and connecting-rod bearings, pistons, and rings. The 4.6L procedures distinguish cylinder banks and include crankshaft and flywheel work, upper and lower oil pans, and timing covers.

Timing, lubrication, and cooling: Double VANOS work is documented for the M54; the M62 sections address camshaft-adjustment units and timing-chain replacement. Oil pumps, water pumps, thermostats, coolant manifolds, intake and exhaust manifolds, and oxygen sensors are also treated.

Shared VANOS instructions identify an M62 B46 exception: the multimeter continuity test described for other adjustment units does not apply to that version. The cylinder-head instructions also warn that oil or debris trapped in threaded block bores can crack the block.

Transmission, Shafts, and Axles

Transmission coverage concerns removal and installation, rather than internal gearbox overhaul. The AWD material explains the NV 125 transfer case, while the front-differential article specifies replacement of the assembly instead of an internal rebuild.

The propeller-shaft articles discuss deflection-angle requirements but direct readers to VIN-specific manufacturer information for the actual E53 angles. They also explain that the two-piece shaft is balanced as an assembly; incorrect alignment or allowing it to drop at its joints can damage the CV joint and rubber boot.

Suspension reference tables distinguish steel springs, single-axle air suspension, and two-axle air suspension.

Brake Diagnosis and Electrical Fault Tracing

Brake troubleshooting tables address pulling, overheating, spongy pedal feel, uneven wear, noise, and weak parking-brake operation. ABS diagnosis requires BMW DIS; the ABS article does not provide equivalent testing with generic equipment. DSC replacement work includes coding and steering-angle calibration requirements.

The wiring file contains 109 numbered circuit figures, including automatic A/C, ABS, electronic suspension, M54/M62 engine performance, early- and late-production navigation, and power distribution. Companion location views identify control units, relays, circuit protection, motors, and sensors.

M54 electrical procedures cover crankshaft and camshaft sensors, engine harnesses, the safety battery terminal, and DME/EWS matching. Coding and programming instructions rely on MoDiC or DIS/GT1 prompts. The DTC index includes MS43/M54 and ME7.2/M62 E53 tables alongside other BMW engine families; some entries refer to separate diagnostic charts or tester functions.

Body, Roof, and Workshop References

Roof instructions distinguish conventional and panoramic mechanisms, including normalization and characteristic-curve learning for anti-trap operation. The body articles extend from trim removal to bonded-glass work and door hardware.

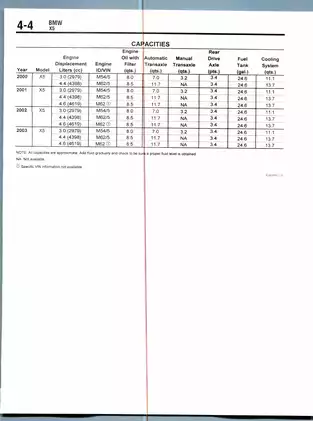

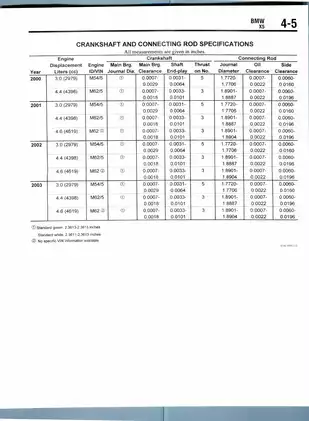

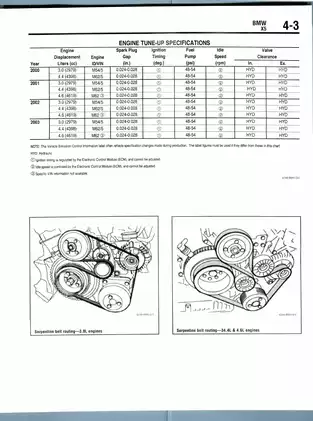

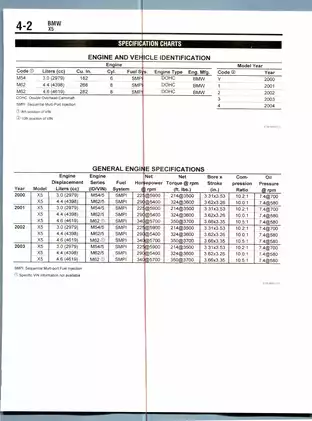

Reference files provide capacity, valve, crankshaft, brake, and alignment charts, plus body, propeller-shaft, and M54 electrical torque tables. Brake tool sheets identify fixtures and tools such as 34 1 050, 34 1 080, 34 1 090, and 34 4 000.

Observe the manual’s fuel-pressure, air-suspension, and airbag precautions when working on those systems.

Examples of M62 Crankshaft Clearance Data

For the M62 B44, the technical-data section lists radial crankshaft bearing clearance of 0.020–0.050 mm and crankshaft axial play of 0.085–0.257 mm. These are separate bearing and end-play specifications, presented alongside journal sizes and repair stages.
