1989 BMW 525i / 535i E34 Electrical Troubleshooting Manual Set (P/N 89 89 1 000 285)

This BMW E34 Electrical Troubleshooting Manual set opens with the 1989 525i/535i publication, P/N 89 89 1 000 285, for 6/88 through 2/89 production. Additional editions cover the KL61-relay configuration and later E34 variants, including Touring models and the M5.

The eight manuals are combined in one 3,643-page English PDF.

• Power distribution: Front and rear power distribution charts, auxiliary relay box layouts, fuse details, and ground distribution diagrams for tracing circuit supplies.

• Engine electronics: DME wiring, Diagnostic Link diagrams, and edition-specific pin-assignment tables with signal types, tester displays, and measurement notes.

• Transmission controls: AEGS, EGS, and AGS schematics covering selector inputs, transmission valve units, and connections to engine and chassis electronics.

• Chassis electronics: Antilock Brake System, ASC, Servotronic, and Supplemental Restraint System diagrams, with EDC III+ coverage for the applicable 540i configuration.

• Body electronics: Central Body Electronics (ZKE) circuits for locking, power windows, sunroof, and interior lights, plus seat and mirror memory wiring.

• Climate control: Integrated Climate Regulation diagrams covering blower control, flap motors, compressor connections, and the auxiliary fan across the included system variants.

• Electrical testing: Voltage-drop, continuity, current, and short-circuit tests, plus BMW SERVICE TESTER analogscope checks in the opening edition.

This set is suited to technicians and experienced owners who can interpret wiring diagrams and use electrical test equipment.

Electrical System Architecture

The original wiring and the KL61-relay configuration are documented separately. Matching the edition and control system before testing helps prevent use of the wrong connector assignments during electrical repair.

Engine and transmission variants: Coverage distinguishes M30 DME M1.3 with and without EML, S38 DME M1.2, M50 DME M3.1/M3.3.1, and M60 DME M3.3. Transmission sections separate EGS 4HP-22 and A4S 310R from AGS GS 9.22/A5S 560Z and GS 7.32/A5S 310Z.

Body and comfort systems: Lamp Monitor (LKM), On-Board Computer (BCIV), and Cruise Control (TEMPOMAT) diagrams show their connections to shared vehicle circuits. Climate-control coverage distinguishes IHKR, IHKR II, and IHKR/F3.

The opening SRS schematic is marked 535i only. Later sections add Touring rear-window wiper and double-panel sunroof circuits, while the EWS II drive-away protection diagram is identified for late production.

Systematic Troubleshooting

The document details voltage-drop and continuity testing, current measurement with an ammeter, and harness short-circuit tracing using an ohmmeter or voltmeter. The opening edition also covers wiring and potentiometer tests with the BMW SERVICE TESTER analogscope, plus vehicle-speed signal simulation using the BMW instrument-cluster simulator.

The troubleshooting chapter warns that an ohmmeter's test voltage can damage solid-state components. Working on high-amperage automotive electrical systems carries the risk of short circuits or component damage if proper battery disconnect procedures and safety protocols are ignored.

These manuals support electrical diagnosis and repair. Mechanical engine and transmission overhaul procedures are outside their scope.

Component and Diagnostic Data

Component Location Charts and detailed Connector Views show physical mounting points and terminal assignments. Splice Location Views identify harness routing and splice positions for wiring repair.

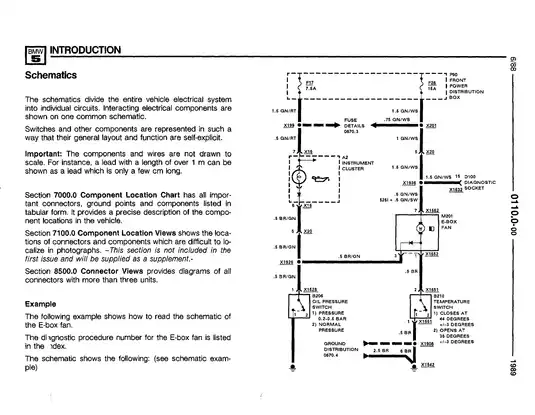

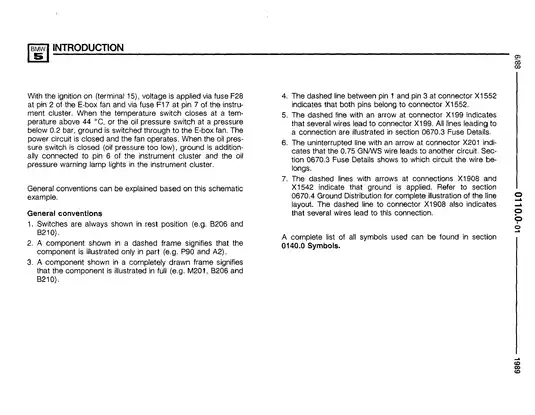

The introductory sections explain standard schematic symbols and terminal naming conventions. Individual system diagrams omit some intermediate connectors and splices; Fuse Details and Ground Distribution provide those connections, allowing the circuit to be followed beyond the simplified system view.

Pin-assignment tables in the applicable editions identify input/output functions, signal types, tester displays, and measurement conditions. Factory wire colors and conductor cross-sections accompany the circuit paths, while fuse charts link protected loads to their supply circuits.

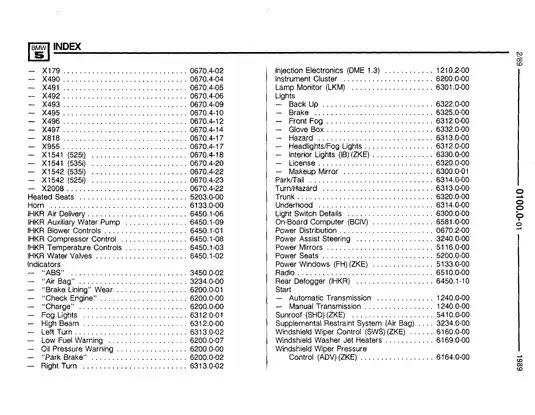

Included Editions and PDF Navigation

These counts already include all eight covers, 176 section-divider or otherwise blank pages, and the Component Location Views supplements in the first three editions: 41, 41, and 53 pages.

Technical pages do not support PDF text search. Chapter bookmarks are included, but legacy "Back to Start Page" links refer to an external file that is not included. Small wiring labels, particularly on wide system overviews, require zooming.
