John Deere 27C ZTS & 35C ZTS Excavator Repair Manual – 2003 (P/N TM2053)
598 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: 27C ZTS, 35C ZTS
Model Year: 2003
-
Track roller oil capacity: 35 mL (1.2 oz) of SAE 30 oil
-
Track carrier roller new tread diameter: 80 mm (3.15 in)
-
Track carrier roller minimum used tread diameter: 74 mm (2.91 in)
-
Track shoe grouser new height: 22.0 mm (0.87 in)
-
Track shoe grouser minimum used height: 16.5 mm (0.65 in)
-
Track chain link new height: 60.0 mm (2.36 in)
-
Track chain link minimum used height: 55.0 mm (2.17 in)
-
Track chain bushing new outer diameter: 32.2 mm (1.27 in)
-
Track chain bushing minimum used outer diameter: 29.2 mm (1.15 in)
-
Track chain new pitch: 406.4 mm (16.0 in)
-
Track chain maximum used pitch: 412.0 mm (16.22 in)
John Deere Manual Features & Selected Content Preview

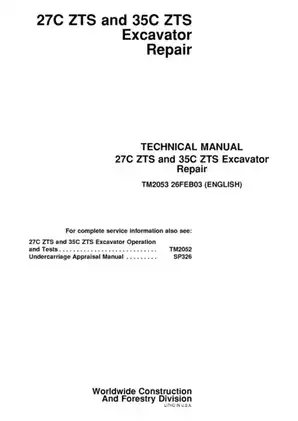

John Deere’s Technical Manual (P/N TM2053), issued February 26, 2003, covers component repair for the 27C ZTS and 35C ZTS excavators.
PDF Search, Bookmarks, and Page Count
Search and navigation: PDF text search is unavailable. Two bookmarks open the cover and foreword. Small callout numbers in dense repair illustrations are easier to read when zoomed in.

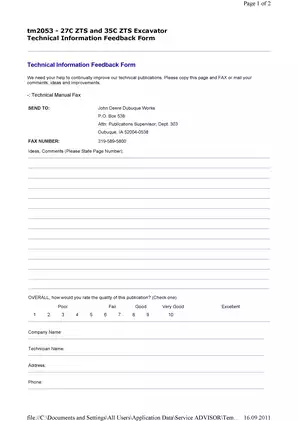

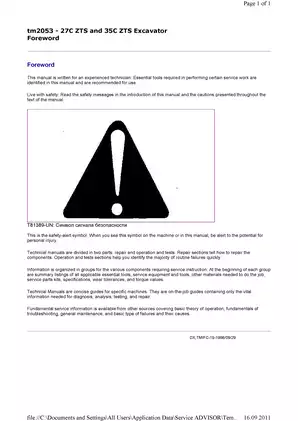

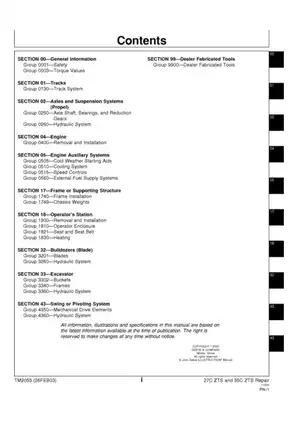

The download is one printable English-language PDF with 598 pages, including the original cover, contents page, and two-page publication feedback form.
Track, Engine, Hydraulic, and Swing Repairs
These are selected repair topics. The manual also covers bonded and sliding cab window repairs, with dimensions for replacement windowpanes.
-
Undercarriage: Inspect rubber and steel tracks, check metal face seals and wear limits, and repair track rollers, carrier rollers, front idlers, and recoil assemblies.
-
Propel drive: Step-by-step procedures cover removal and installation of the propel assembly, model-specific gearbox and motor rebuilds, and rotary manifold repair.
-
Engine and fuel system: Covers engine removal, cylinder head and block inspection, internal engine repair, injection pump removal and installation, and injector nozzle service.
-
Hydraulics and pilot controls: Covers pump disassembly, inspection, assembly, and start-up, plus main control valve repair, pilot controller service, cylinder resealing, and bleeding.
-
Structures and swing: Covers blade and bucket linkage work, boom and arm removal, upperstructure lifting, swing bearing replacement, and swing gearbox and park brake overhaul.
-
Factory references: SAE and metric fastener torque tables, hydraulic fitting specifications, fluid capacities, wear limits, and drawings for shop-fabricated tools.
The manual is written for experienced technicians working with lifting equipment, shop stands, presses, precision measuring tools, and the specified service fixtures.
Track Wear and Propel Drive Variants
The steel-track inspection procedures distinguish the wear limits for grouser rebuilding from the limits for turning chain pins and bushings. The track roller procedure also covers an oil leakage test. The recoil spring remains under load during service, and the manual identifies the ST4920 compression fixture and DFT1087 guard for this work.
The 27C ZTS propel gearbox exploded view and the 35C ZTS propel motor and park brake exploded view show the hardware differences before teardown. The 35C ZTS procedure also covers its flow-control valve. A rotary manifold cross section shows where the seals and backup rings sit.
Engine Rebuild, Fuel, and Electrical Service
Cylinder head repair includes inspection of valves, guides, seats, and springs. A cylinder head cap screw tightening diagram accompanies gasket installation. Internal engine procedures cover rocker arms, camshaft, flywheel, crankshaft and bearings, pistons and connecting rods, and the oil pump.
Cooling and fuel-system work includes the water pump, thermostat, radiator and oil cooler, speed control, fuel shutoff linkage, tank, filters, and bleeding. The manual covers starter and alternator disassembly and glow plug replacement. For internal injection pump repair and testing, Deere directs technicians to a diesel injection repair station.
Hydraulic Pump, Cylinders, and Upperstructure
The hydraulic pump cross section supports internal inspection and reassembly. The start-up procedure addresses a specific repair risk: starting with an unfilled pump can cause cavitation and damage the pump. The manual also covers the solenoid valve manifold, standard, propel, auxiliary, and boom-swing pilot controllers, the pattern-conversion valve, the one-way/two-way valve, and the hydraulic oil tank.
The bucket cylinder cross section accompanies seal and piston work. Separate procedures cover the boom, arm, blade, and boom-swing cylinders. Structural repairs include pin and bushing inspection, bushing and seal replacement, and removal and installation of the cab, canopy, platform, and counterweight. Swing service includes model-specific gearbox work and a swing motor start-up procedure.
Companion Manuals for Testing and Track Appraisal
Deere lists Operation and Tests (TM2052) separately for system diagnostics and electrical documentation, and Undercarriage Appraisal (SP326) for more detailed track wear appraisal. Both are separate purchases from this repair manual.
Propel Drive Specification Preview
For propel motor inspection on both models, the manual gives a piston-to-shoe clearance limit of 0.4 mm (0.0157 in.) and a piston-to-cylinder-block bore clearance limit of 0.04 mm (0.00157 in.).
The sprocket-to-gearbox cap screw torque is model-specific: 108 N·m (80 lb-ft) for the 27C ZTS and 128 N·m (94 lb-ft) for the 35C ZTS.
