2008–2014 Kawasaki KLX140 / KLX140L Service & Repair Manual (P/N 99969-1040)

The Kawasaki service manual covers the 2008–2014 KLX140 and KLX140L off-road motorcycles and their 144cc air-cooled SOHC engine. It details the engine, chassis, electrical, and fuel system specifications for both the A-series and B-series builds.

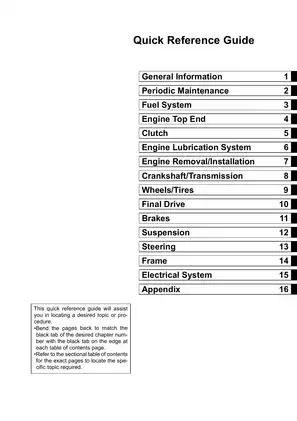

Text search and wiring detail: Body text is searchable, and embedded bookmarks link to chapters and individual procedures. Labels inside wiring-diagram images are not searchable. Small wire-color codes and switch-connection tables in the main wiring diagrams are readable when enlarged.

• Engine repair: Engine removal and installation, compression testing, cylinder-head and valve-seat work, cam-chain timing, piston inspection, and crankcase separation.

• Clutch and transmission: Clutch-hub disassembly, friction and steel plate inspection, transmission reassembly, and shift-fork and shift-drum wear checks.

• Fuel system: Keihin PB20 carburetor overhaul, fuel-level and float-height inspection, throttle and choke cable service, and air cleaner maintenance.

• Engine lubrication: Oil-pump inspection and replacement, oil-pressure measurement, filter and screen service, and the Engine Oil Flow Chart.

• Brakes and wheels: Master cylinder and caliper repair, brake-line bleeding, disc inspection, wheel-bearing replacement, tire removal and installation, and rim runout checks.

• Suspension and steering: Front telescopic fork overhaul, Uni-Trak linkage service, rear shock adjustment, and steering stem bearing replacement.

• Electrical diagnosis: DC-CDI ignition tests, charging-system checks, starter motor repair, relay testing, and wiring diagrams for the different switch configurations.

Written primarily for trained mechanics in an equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanics, tool use, and workshop procedures.

Engine Repair and Build Differences

Cylinder-head procedures extend to valve-guide replacement, clearance measurement by the wobble method, and valve-seat repair. Cylinder and piston coverage includes boring and honing guidance.

Transmission and piston rings: Separate transmission assembly drawings and second-ring service limits distinguish A8F/A9F and B8F/B9F from AAF/ABF and BAF/BBF builds. These references help match the parts arrangement and inspection criteria to the model code before an internal repair.

The cam-chain tensioner section explains how incorrect handling of its non-return mechanism can damage the tensioner and chain or disturb valve timing.

Repair scope: Crankshaft inspection covers runout and connecting-rod clearances; damaged crankshafts are replaced as assemblies. Oil-pump coverage provides inspection and replacement procedures, without internal pump disassembly.

Keihin PB20 Carburetor Service

Fuel-level and float-height checks are inspection procedures, not adjustments: the manual treats both levels as non-adjustable and directs attention to the float and needle valve when readings are incorrect. The pilot air screw is also listed as non-adjustable. Kawasaki Fuel Level Gauge 57001-1017 is specified for testing.

Fork, Uni-Trak, and Brake Service

Fork service includes bushing and oil-seal replacement, with different oil quantities and levels for A- and B-series models. Rear-shock instructions distinguish spring-preload adjustment on both versions from rebound and compression damping adjustment on the B-series.

Brake sections cover master cylinder cup and dust seal replacement, caliper piston seals, and inspections for piston, cylinder, and caliper-holder wear. Follow the full factory procedures and consult a qualified mechanic before undertaking brake-system or other complex repairs.

Ignition, Charging, and Starting Faults

Separate wiring diagrams distinguish the ignition-switch layout of KLX140A8F–AAF/B8F–BAF from the left-handlebar switch layout of KLX140ABF/BBF. Charging System Circuit, Ignition System Circuit, and Electrical Starter System Circuit drawings accompany the component tests. Cable, Wire, and Hose Routing views locate harness connectors and cable paths.

Regulator/rectifier resistance tables distinguish A8F/A9F/B8F/B9F from AAF/ABF/BAF/BBF builds. The test instructions specify Kawasaki Hand Tester 57001-1394 and warn that a megger or meter with a large-capacity battery can damage the regulator.

Ignition diagnosis includes coil and crankshaft-sensor peak-voltage checks using Peak Voltage Adapter 57001-1415. Starter motor inspections address the brushes, commutator, and armature.

Service Tables and Troubleshooting

It features torque tables covering engine cases and suspension pivots. Exploded-view component diagrams detail required assembly lubricants and thread-locking agents. The manual lays out service limits for clutch friction plates, wheel rim runout, and piston-to-cylinder clearances. Fluid capacities, the Periodic Maintenance Chart, and unit conversion tables support scheduled service.

The Troubleshooting Guide groups common starting, running, clutch, shifting, braking, and handling symptoms. It is a guide to common faults rather than an exhaustive list of every possible cause.

English PDF and Included Pages

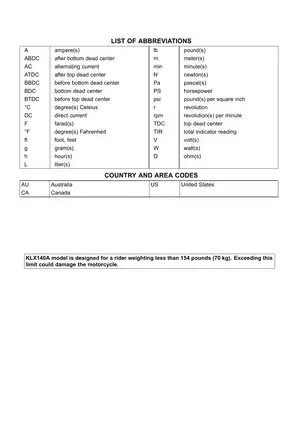

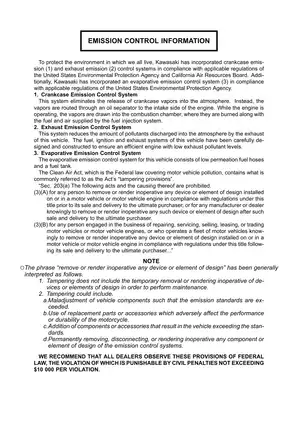

Supplied as one printable English PDF. The 332-page file includes 314 pages of chapter and appendix content, 8 pages of front matter, 9 blank separator pages, and the 1-page Model Application table. All are included in the total.
