Ford Models Covered & Key Technical Specifications

Model: Mustang

Sub-models / Variants: Coupe, Convertible, 4.0L SOHC, 4.6L 3V

Model Years: 2005–2010 (2005, 2006, 2007, 2008, 2009, 2010)

VIN variant identification (2005): Positions 5–7: T80 = base coupe, T82 = GT coupe, T84 = base convertible, T85 = GT convertible. Position 8: N = 4.0L SOHC V6, H = 4.6L V8.

Manual transmissions (2005 identification): Base: 5-speed T5OD/TR3150 (VC code F); GT: 5-speed TR3650 (VC code K).

Automatic transmission: 5R55S with 4.0L or 4.6L engine (2006 fluid-leak repair covered by TSB 06-10-5).


  • Engine cooling pump bolt torque: 4.0L SOHC: 10 Nm (89 lb-in); 4.6L 3V: 25 Nm (18 lb-ft)

  • Camshaft bearing cap assembly sequence: 4.0L SOHC: 6 Nm (53 lb-in) Stage 1, 16 Nm (12 lb-ft) Stage 2; 4.6L 3V: 10 Nm (89 lb-in)

  • Engine oil pan drain plug torque: 26 Nm (19 lb-ft)

  • Clutch pressure plate bolt torque: 4.0L SOHC: 35 Nm (26 lb-ft); 4.6L: 45 Nm (33 lb-ft) Stage 1, plus 60 degrees Stage 2

  • Valve cover bolt torque: 10 Nm (89 lb-in)

  • Subwoofer amplifier rack bolt torque: 15 Nm (11 lb-ft)

Ford Manual Features & Selected Content Preview

Publication Pages
2005 Mustang Workshop Manual excerpts, 12/2004 footer — 134 files 354
2006 Mustang Workshop Manual excerpts, 9/2005 footer — 17 files 67
Selected 2005 Mustang wiring, connector, component-location and fuse pages — 10 files 14
2006 Mustang C253 message-center connector reference — two copies 2
TSB 07-18-1 — 2005 front-suspension popping while turning 2
TSB 07-18-2 — 2005–2007 coupe front-end noise over bumps 1
TSB 06-9-9 — 2005–2006 hesitation after a long cruise 1
TSB 06-10-1 — 2005–2006 4.6L A/C compressor-clutch revision 1
TSB 06-10-5 — 2006 Mustang 5R55S transmission-fluid leak 2
TSB 08-3-4 — 2005–2008 transmission cross-member exhaust-mount vibration 2
TSB 08-1-9 — 5.4L 3V spark-plug removal for listed truck/SUV applications, not Mustang 4
Mobile-Ease hands-free system installation guide — 2005 Mustang Coupe 10
Compass & HomeLink rearview-mirror installation guide 13
Electronic Compass Mirror installation guide 12

The workshop excerpts provide component procedures, while the wiring pages and fault-specific bulletins add circuit references and selected service updates. The accessory guides cover installation of add-on equipment.

Coverage limits: These are targeted factory excerpts rather than a complete Mustang Workshop Manual. Workshop material is for 2005 and 2006; later Mustang coverage is confined to individual bulletins. There is no 2009 or 2010 model-specific workshop material. The included 5.4L spark-plug bulletin does not establish Mustang repair coverage.

PDF Search, Wiring Detail and File Breakdown

Search and diagram detail: Workshop text and TSBs support text search. The Electronic Compass Mirror guide and most wiring/connector drawing labels are not searchable. None of the PDFs has embedded bookmarks. Small audio-schematic and C290 labels require zooming and page rotation; lettering in the checked audio diagrams remains somewhat soft.

The ZIP contains 173 printable PDFs totaling 485 pages, including 37 byte-for-byte duplicate copies accounting for 73 pages. Excluding only those duplicates leaves 136 distinct files totaling 412 pages; three accessory closing pages are already included in these totals. Workshop material and TSBs are in English; the three accessory guides also include Spanish and French.


Engine Work, Driveline Service and Circuit Diagnosis

The following highlights are a selection of the included material, rather than a complete contents list. Other excerpts include exterior-light removal and wheel/tire symptom charts.

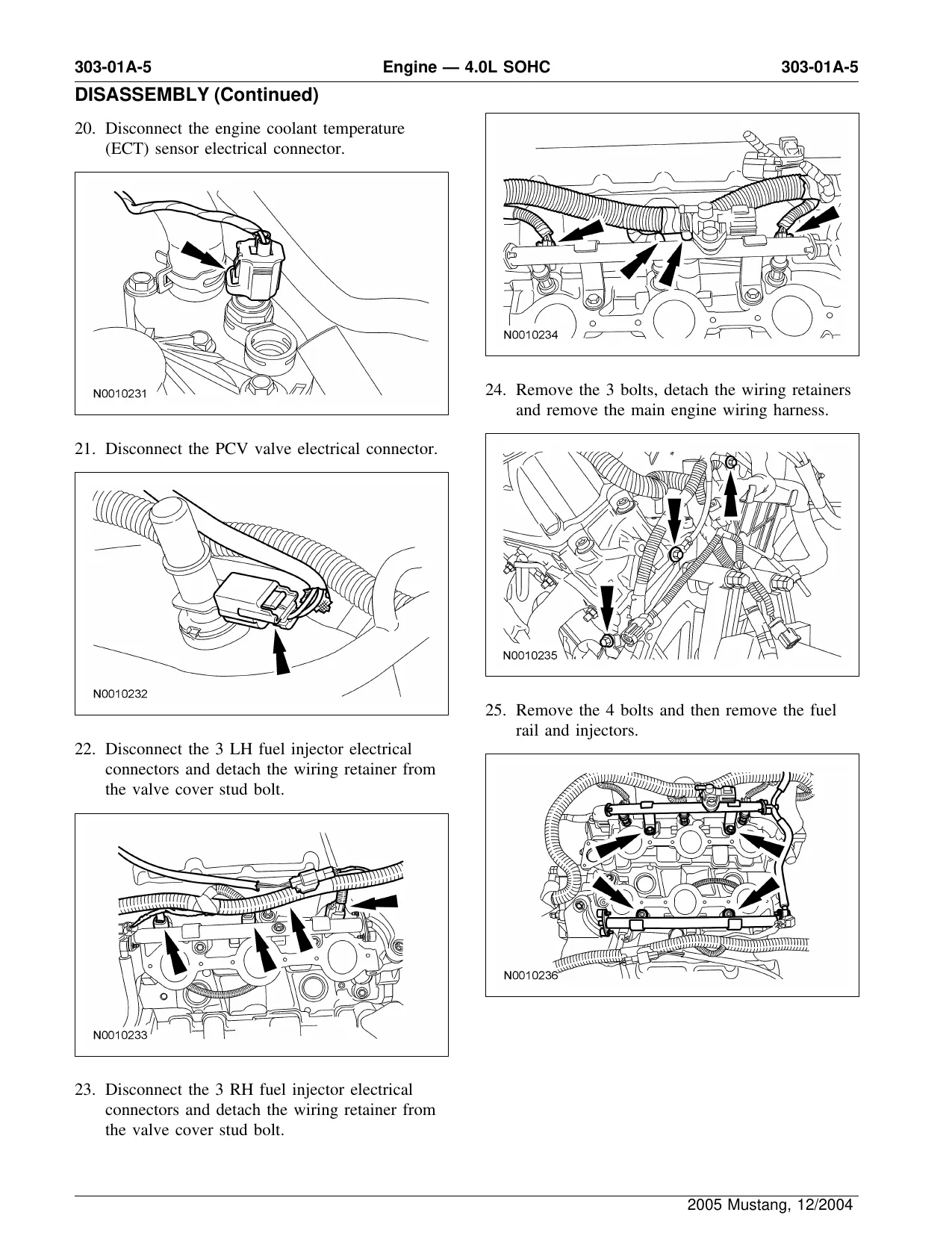

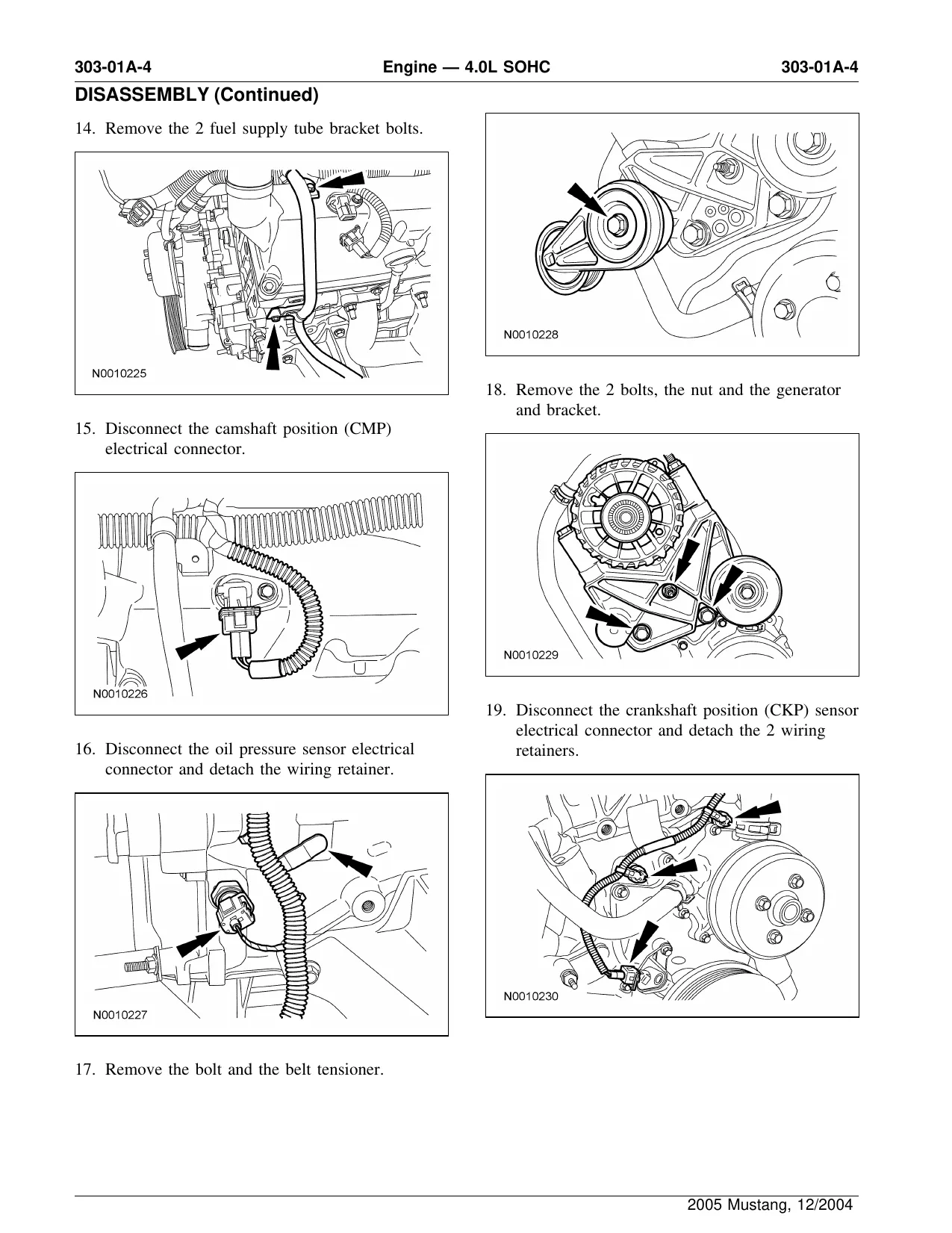

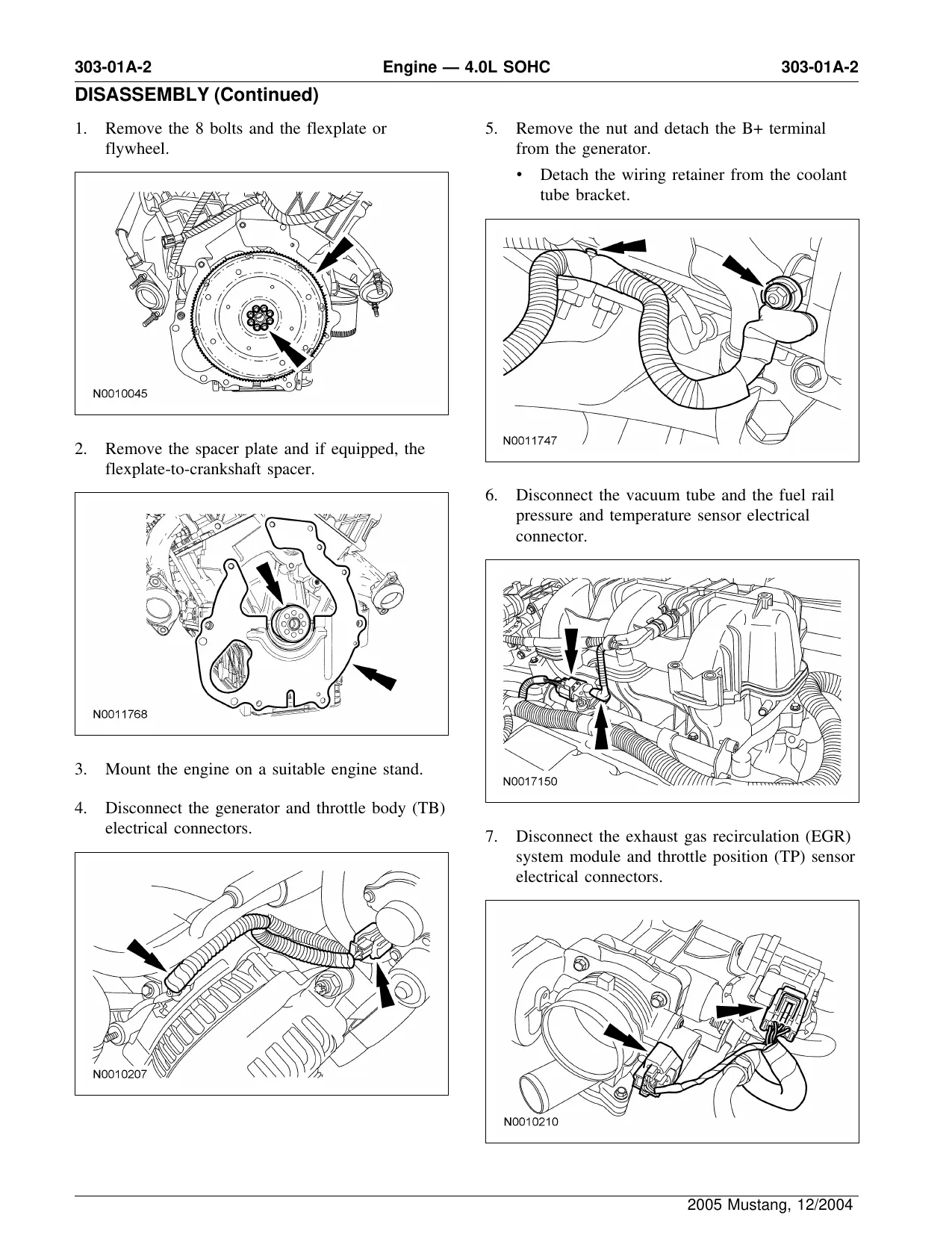

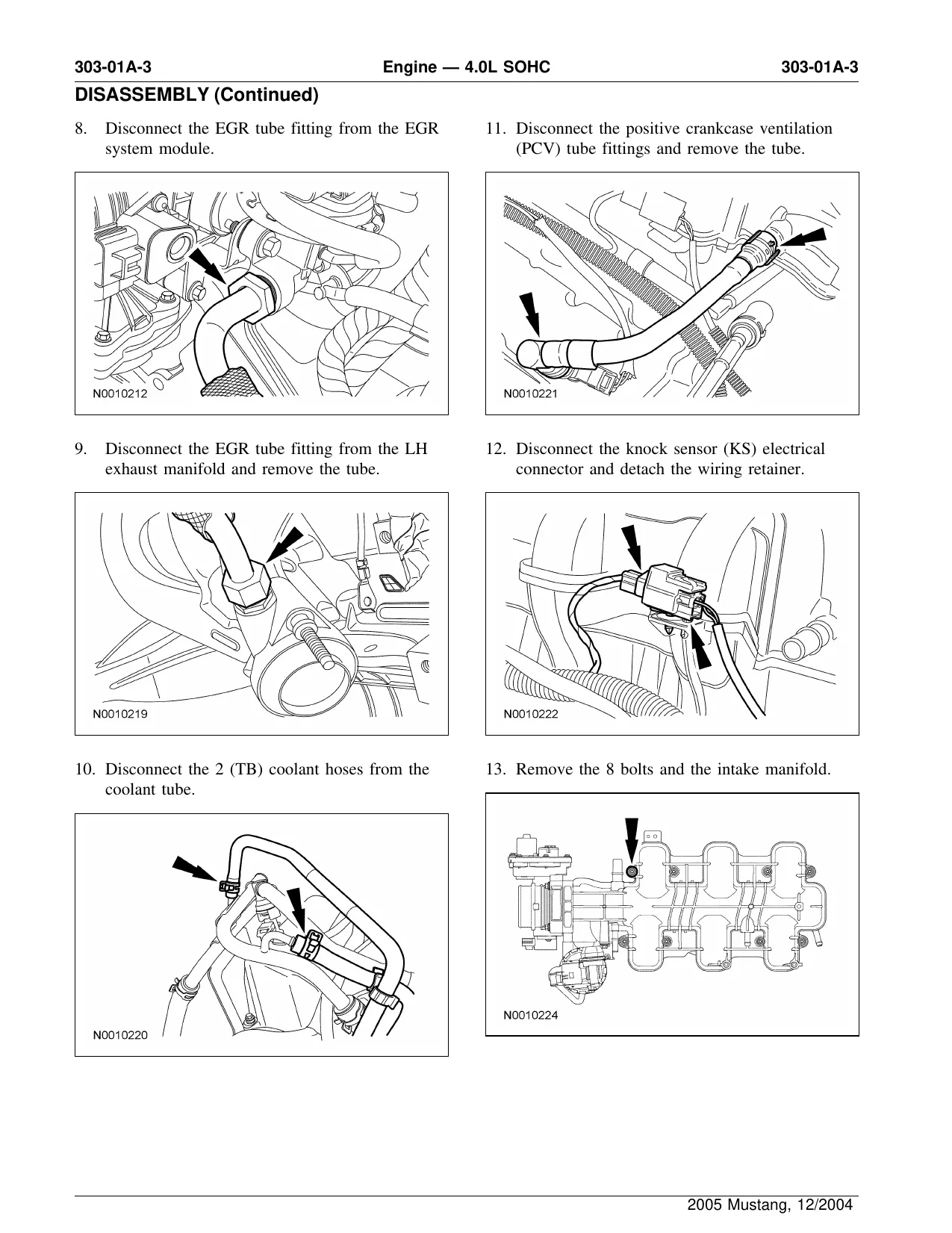

  • 4.0L SOHC repair: Engine removal and stand disassembly, camshaft timing, cylinder-head disassembly and reassembly, valve/lash-adjuster work, and piston/connecting-rod subassembly procedures.

  • 4.6L 3V procedures: Engine removal and support, valve-cover service, and step-by-step in-vehicle camshaft replacement with phaser handling, bearing-cap sequences, and timing-chain retention.

  • Transmission and driveline: Clutch replacement and bleeding, driveshaft removal, snap-ring universal-joint overhaul, T5OD construction drawings, and automatic-transmission fluid and cooler service.

  • Brakes and chassis: Warning-lamp and vibration pinpoint tests, brake-pad replacement, parking-brake adjustment, front camber correction, lower-arm replacement, and inner tie-rod service.

  • Electrical and audio: DTC charts, speaker walk-around and audio-unit self-tests, speaker/subwoofer circuit checks, loud-pop fault isolation, Cell 130 schematics, and C290 connector views.

  • Cooling and fuel: Water-pump, fan/shroud, degas-bottle and coolant-crossover procedures, EVAP component replacement, and fuel-tank and fuel-line exploded views.

  • Body and cabin: SRS depowering, front-seat/OCS work, HVAC actuator replacement, cluster/PCM removal, coupe/convertible trim, front-door glass adjustment, and window-motor initialization.

The workshop excerpts suit professional technicians and highly experienced owners with the required scan tools, lifting equipment, and timing fixtures. Ford specifically reserves the TSB procedures for trained professional technicians.

Engine Repair Depth and Timing Tools

The 4.0L stand-disassembly material does not include a matching, continuous full-engine assembly chapter. Separate subassembly pages extend to piston rings and piston-pin work. The 4.6L coverage stops short of a full internal teardown.

Named tools include the 4.0L camshaft holding/timing tools 303-564, 303-571, 303-573, 303-577, and 303-578. The 4.6L pages call out timing-chain wedge 303-1175 and valve-spring compressor 303-1039; engine support work uses kit 303-F072.

The 4.6L camshaft pages warn that a displaced timing-chain wedge requires front-cover removal and complete retiming. Losing the chain-to-phaser index can damage valves and pistons.

Transmission References and Brake Fault Isolation

The T5OD files describe internal components, shift components, and identification rather than provide a complete transmission-overhaul sequence. The Ford 7.5-inch and 8.8-inch axle files likewise provide assembly breakdowns and operating descriptions.

Automatic-transmission service pages specify MERCON V and identify fluid-handling tools 307-D465 and 307-437. The directional in-line filter must follow cooler return flow; reversed installation can cause internal transmission damage.

Brake diagnosis connects pedal feel, warning-lamp behavior, and vibration symptoms to component checks, including booster, check-valve, and master-cylinder bypass tests. These checks help separate hydraulic or mechanical concerns from indicator-circuit faults before the next test is selected.

Audio Diagnosis and Assembly Drawings

The 36-page entertainment-system section pairs connector-level voltage/resistance references with pinpoint tests. This lets a technician check supply, ground, and speaker circuits before condemning an audio unit or amplifier.

Drawing coverage includes 4.0L engine and cylinder-head breakdowns, T5OD internal/shift-component views, front/rear suspension exploded views, 7.5-/8.8-inch axle assemblies, dash-panel component locations, and audio Cell 130/C290 pages.

Cooling, Fuel and Interior Variants

Cooling excerpts distinguish both water-pump designs and show thermostat/housing assemblies. Fuel-tank, filler-pipe, and fuel-line files are exploded views; EVAP purge-valve and fuel-vapor-control-tube files include removal and installation procedures.

Front-seat material distinguishes production OCS components from service kits and covers cushion/backrest disassembly and re-zeroing. Door-glass adjustment addresses initial/final alignment and convertible glass relationships; window-motor initialization covers one-touch operation and bounce-back behavior.

HVAC material explains blower-resistor and EMTC actuator-feedback operation and covers air-inlet, defrost, panel/floor, and temperature-blend actuators. Cluster and audio-unit replacement pages require configuration transfer with a diagnostic tool and refer programming details to a separate section.

Service Bulletin Applicability

TSB 07-18-1 addresses 2005 vehicles built before April 8, 2005, with an additional spring-isolator check for builds before February 2005. TSB 07-18-2 covers specified 2005–2007 4.0L/4.6L coupes and excludes GT500 and convertibles.

The 5R55S leak bulletin applies to specified 2006 Mustangs built August 1–December 7, 2005. TSB 08-3-4 addresses specified 2005–2008 vehicles built before December 3, 2007. The A/C bulletin links revised clutch components with an orifice-tube change and revised refrigerant charge; the hesitation bulletin addresses fuel-pump-related symptoms after extended cruising.

Use the support and lifting equipment specified for engine work, and follow the applicable system-specific safety procedures before SRS, brake, refrigerant, or live-circuit repair.

Selected Brake Inspection Limits and Fluid-Level Conditions

The 2005 front-disc-brake specification page lists a minimum brake-pad thickness of 3.0 mm (0.118 in) and maximum pad-to-pad thickness variation of 2.0 mm (0.079 in).

The automatic-transmission level-check procedure specifies a fluid-temperature window of 27–49°C (80–120°F), with the engine running and the vehicle level. These conditions distinguish the level check from a general fluid-capacity figure.
