John Deere Series 300 Diesel Engine Repair Manual, 1983–1995 (P/N CTM4)

547 Pages • ZIP Download: 1 Printable PDF (English)

4.5starstarstarstarstar_half(2)
$14.29 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Models: 3179, 4239, 6359, 4276, 6414

Models & Model Codes:

3179 — 3179D, 3179T, 3179DF, 3179TF, 3179DCE01, 3179DL-01, 3179DL-11, 3179DL001, 3179DL017, 3179DL-12, 3179TL003, CD3179TL002, CD3179DT001

4239 — 4239D, 4239T, 4239A, 4239DF, 4239TF, 4239AF, 4239DN-03, 4239DJ-02, 4239DJ-01, 4239DCE02, 4239DL-01, CD4239TL02, 4239DL-07, CD4239DL007, 4239DL010, 4239DL-08, 4239DL008, CD4239TL006, 4239TL-04, 4239TL-05, CD4239TL005, 4239TL009, 4239TL008, 4239DP-02, 4239DP-01, CD4239DE002, CD4239DW-01, CD4239DW001, CD4239DE-01, CD4239DE001, T04239DE001, CD4239TE-01, CD4239TE001, T04239TE001, T04239DT002, T04239DT006, T04239DT003, T04239TT004, CD4239DCD03, CD4239TCD02, T04239DT005, CD4239DCD01, CD4239DCD02, T04239DT004, T04239DT007, CD4239TT003

6359 — 6359D, 6359T, 6359A, 6359DF, 6359TF, 6359AF, CD6359DH-01, T06359TH001, T06359AH001, CD6359DZ004, CD6359DN-01, CD6359TN002, CD6359TN-02, T06359TN002, CD6359TN-01, 6359DCE01, 6359DL-03US, 6359DL-04, CD6359DL009, CD6359DL011, 6359TL-02, 6359DL-07, CD6359DL010, CD6359TL007, 6359DL011, CD6359TR001, T06359TT001, T06359TT002, CD6359DCD01, CD6359TCD02, CD6359DCD02, T06359DDW01, T06359TDW01, CD6359TCD01, CD6359TCD03, T06359TDW04, T06359TDW05, T06359DDW02, T06359TDW02

4276 — 4276D, 4276T, 4276DF, 4276TF, 4276DR-01, 4276DR-04, T04276DT003, T04276TT005, T04276TT010, T04276TT014, T04276DT005, T04276TT011, T04276DT006, T04276TT013, T04276TT015, T04276TT001, T04276TT006, T04276TT016, T04276TT017, T04276DT008, T04276TT021, T04276TT012, T04276DT010, T04276TT018, T04276DT004, T04276DDW04, T04276TT002, T04276TT007, T04276TDW07, T04276TT004, T04276TT008, T04276TDW08

6414 — 6414D, 6414T, 6414DF, 6414TF, T06414TT007, T06414TT009, T06414TT004, T06414TT006, T06414TT010, T06414TT016, T06414TDW14, T06414TT002, T06414TT-05, T06414TDW11, T06414TDW12, T06414TDW15, T06414TDW16, T06414TT003, T06414TDW03, T06414TDW13, T06414TT001, T06414TT008, T06414TDW08, T06414TT015

Model Years: 1983–1995 (1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994)

Serial Numbers: Saran-built 3179, 4239, and 6359 engines: CD394145–. Dubuque-built 4239, 6359, 4276, and 6414 engines: T0100001–300000. The covered Dubuque-built 4276 and 6414 engines have raised-character serial number plates.

Application Serial Breaks: 2150: 3179DL-11 through CD571078; 3179DL-01 from CD571079. 2255: 3179DL-01 through CD581072; 3179DL-12 from CD581073. Mannheim-built 3055 with CD6359DL011: 931422–.


  • Engine configuration: 3, 4, and 6-cylinder diesel engines

  • Engine displacement: 179 cu. in. (2.9 L), 239 cu. in. (3.9 L), 276 cu. in. (4.5 L), 359 cu. in. (5.9 L), 414 cu. in. (6.8 L)

  • Rotation: Counterclockwise (viewed from flywheel looking toward water pump)

  • Crankshaft Seal: Two-piece (separable) and unitized (non-separable) rear oil seal and wear sleeve assemblies

John Deere Manual Features & Selected Content Preview

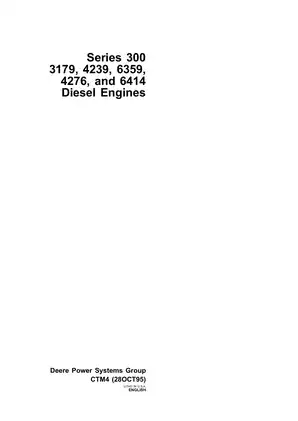

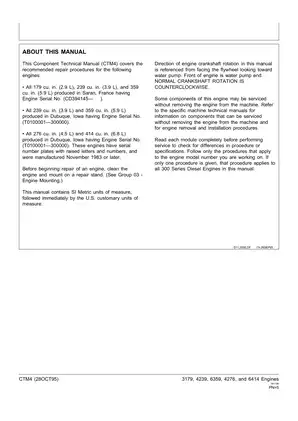

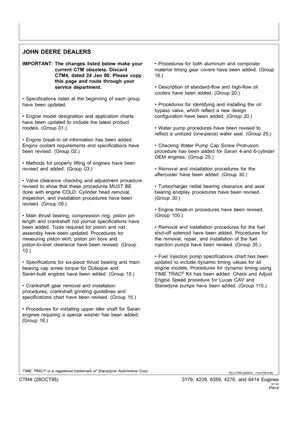

Deere Power Systems Group Component Technical Manual P/N CTM4, issued 28OCT95, covers factory repair, overhaul, and testing for the Series 300 3179, 4239, 6359, 4276, and 6414 diesel engines. This issue supersedes CTM4 dated 24JAN90.

PDF Bookmarks, Text Search, and Page Count

Navigation and diagram detail: Embedded bookmarks provide access to the repair groups, testing sections, contents, and index. Normal word searches are not usable because of the PDF’s character encoding. Small callout numbers in detailed injection-pump illustrations benefit from zooming.

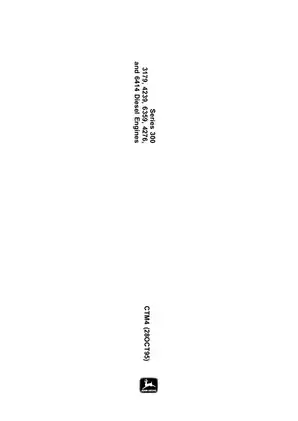

The ZIP download contains one printable, 547-page PDF in English, including the original covers, introductory material, contents, and index.


Engine Overhaul, Fuel Systems, and Diagnostic Tests

The following selected highlights outline the workshop coverage. Further topics include sealant application guidelines and generator-set speed adjustments.

  • Cylinder head and engine block: Step-by-step procedures cover valve adjustment, head removal and installation, valve-seat repair, liner replacement, and piston and connecting-rod inspection.

  • Crankshaft and timing gears: Main-bearing service, flywheel checks, crankshaft seals, camshaft inspection, balancer-shaft timing, and auxiliary-drive repair include measurements and assembly checks.

  • Lubrication and cooling: Standard- and high-flow oil coolers, standard- and high-capacity oil pumps, bypass valves, water-pump overhaul, thermostats, and coolant heaters receive separate treatment.

  • Turbochargers and aftercooler: K.K.K. and AiResearch/Garrett coverage includes failure analysis, bearing checks, housing disassembly, center-assembly replacement, prelubrication, installation, and break-in; 6359A aftercooler repair is also covered.

  • Fuel-system service: Sofabex, AC, and Corona supply pumps; Roto Diesel/Lucas CAV and Stanadyne JDB, DB2, DB4, and DM4 injection pumps; timing, bleeding, and nozzle bench testing are covered.

  • Engine diagnosis and specifications: Dynamometer testing, compression, oil pressure, crankcase blow-by, cooling-system pressure, and turbo boost checks accompany symptom charts, wear limits, and component-specific torque data.

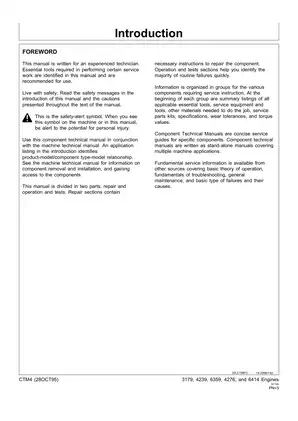

Deere states that this manual is written for an experienced technician; the work assumes suitable measuring equipment, safe engine-handling gear, and the specified service tools.

Engine Identification and Machine Applications

The identification section explains D/T/A aspiration codes, user-factory and application codes, and the engine serial-number system. It also cross-references John Deere builds to Detroit Diesel Allison designations. Application charts connect engine configurations to agricultural, industrial, and OEM installations.

Coverage includes the specified Saran and Dubuque production ranges. The Dubuque-built 4276 and 6414 coverage applies to engines manufactured November 1983 or later with raised-character serial plates.

Machine access: CTM4 is a component manual. Deere directs the technician to the applicable machine technical manual for in-chassis access, components serviceable without engine removal, and engine removal and installation. Electrical coverage consists of engine tune-up checks and an air-filter restriction-indicator switch test rather than machine-level wiring diagrams.

Injection-Pump Service and Turbocharger Limits

Pump configurations: The fuel chapters distinguish retained and non-retained injection-pump drive shafts, including both DB2 arrangements. These differences help technicians select the removal and installation procedure that matches the fitted pump.

Pump work includes drive-shaft and drive-gear inspection, static and dynamic timing, and external adjustments. Internal injection-pump overhaul is assigned to an authorized diesel injection repair station. Nozzle coverage goes further, documenting disassembly, cleaning, inspection, bench testing, adjustment, sealing, and installation.

Turbocharger repair: The documented repair approach uses a replacement center housing and rotating assembly with inspection of the existing housings. Complete disassembly of the center assembly requires specialized tooling and highly trained personnel and is not recommended in the manual.

Workshop Tools and System Views

Specified tooling includes the JT07158 TIME TRAC kit for dynamic timing and the JDG670A drive-gear puller. Group 199 provides fabrication drawings for the DFRG2 injection-pump front-plate timing-mark transfer tool and DFRG3 cylinder-liner holding fixture, allowing equipped shops to make these fixtures.

Technical views show the engine sectional arrangement, 4239T lubrication flow, standard-flow and high-flow cooling circuits, the crankshaft gear-driven auxiliary drive, and operating layouts for the covered injection-pump families. Measurements are presented in SI units followed by U.S. customary units.

Rebuild Details and Handling Precautions

Oil-bypass valve: Installing the revised short valve in the older deep block bore leaves the bypass open and allows unfiltered oil through the engine; the earlier long valve in the later shallow bore prevents bypass flow.

Idler-gear bushings: Upper and lower bushings use different lubrication designs. Interchanging them causes bushing failure.

Engine handling requires rated lifting and repair-stand equipment. Fuel-system pressure must be relieved before lines are disconnected, and the nozzle-test cautions address high-pressure diesel spray penetrating skin.

A Preview of Valve Adjustment and Inspection Data

For the covered engines, cold rocker-arm-to-valve-tip clearance is specified at 0.35 mm (0.014 in.) for intake valves and 0.45 mm (0.018 in.) for exhaust valves. The adjustment section separates the applicable engine configurations.

Cylinder-head inspection data distinguish normal clearance from wear limits: valve stem-to-guide clearance is 0.05–0.10 mm (0.002–0.004 in.), with a wear limit of 0.15 mm (0.006 in.).
