1997–2005 Landini Legend 105, 115, 130, 145 & 165 Tractor Workshop Training Manual (P/N 3549054 M2)

This Landini Workshop Manual, P/N 3549054 M2, dated December 1998, covers 1997–2005 Landini Legend 105, 115, 130, 145, and 165 tractors in Top and Techno configurations. It documents the 4WD versions and includes selected 2WD specifications; the edition notes that the 2WD version was not available at the time of printing.

Text search and diagram detail: Body text is searchable, with 12 section bookmarks. Some diagram labels cannot be searched. Power-lift and ECC wiring details require zooming; some fine labels in the general tractor wiring diagram remain difficult to read even enlarged.

• Engine repair data: Perkins 1006 specifications, troubleshooting charts, cylinder-head service data, piston and liner notes, and component-specific torque tables.

• Clutch and transmission: Single- and double-plate clutch inspection, Speed-Six gearing, Power-Six operation, gearbox shimming, and rear differential and final-drive adjustments.

• Axles and brakes: Dana and Carraro 4WD axle adjustments, bearing preload, gear backlash, and Integral Braking System (IBS) disc inspection and bleeding.

• Hydraulic systems: Top and Techno circuit layouts, Orbitrol pressure and leakage tests, trailer brake valves, and auxiliary control-valve configurations.

• Power lift and electrical diagnosis: Mechanical lift bench tests, Landtronic Check Control fault codes, sensor checks, connector pin-outs, and wiring diagrams.

• Cab air conditioning: A/C and ECC controls, refrigerant recovery and charging procedures, performance tests, and automatic climate-control fault codes.

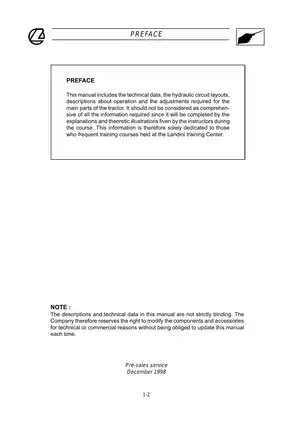

Written for participants in Landini Training Center courses, this manual is intended to be supplemented by instructor explanations and theoretical instruction. It is not a complete standalone repair reference.

Perkins 1006 Engine Specifications and Service

Technical data specifically covers the Perkins 1006 series engine. The 105 and 115 use naturally aspirated 1006.6HR4 and 1006.6HR3 engines with Lucas-CAV injection pumps. The 130, 145, and 165 use turbocharged 1006.6TLR2, 1006.6THR2, and 1006.6TMR4 engines with Stanadyne DB2 pumps.

The engine section explains Quadram combustion and provides cylinder-head gasket and angular bolt-tightening data, piston and liner service differences, and crankshaft regrinding requirements. Lubrication and cooling circuit descriptions accompany troubleshooting charts for starting problems, power loss, exhaust smoke, oil pressure, and overheating.

Drivetrain Repair and Axle Applications

Top and Techno versions differ in clutch construction, PTO engagement, and differential and 4WD controls. Section drawings show the transmission with and without the Power-Six electrohydraulic reduction unit; exploded views identify its internal parts. Speed-Six configurations include optional creeper gearing.

Rear differential repair covers pinion positioning, shim calculations, bearing preload, and ring-gear backlash, with tools R392, CR375, R387, and R390 identified. The instructions distinguish new-bearing preload from settings for reused bearings.

Front axle variants: Dana specifications identify AG 125 for the 105/115/130, AG 155 for the 145, and AG 155 CDH for the 165. The Carraro 20 25 FR section lists CA 136790 for the 105/115/130 and CA 137637 for the 145.

IBS Brakes, Orbitrol Steering, and Hydraulics

The brake section explains the compensating circuit and covers front and rear brake bleeding, including the trailer-brake pilot line. Twin-Lock documentation shows how the front and rear differentials lock together.

Hydraulic circuit layouts distinguish Top and Techno systems, tandem-pump supply priorities, and Italian-market versus export trailer brake valves. Auxiliary control-valve coverage includes floating, kick-out, and hydraulic-motor versions.

Orbitrol section views accompany pressure, leakage, and bleeding tests. The assembly notes warn that incorrectly matched parts can cause leaks or seizure and identify MS62 and MS63 fitting tools.

Mechanical Lift Adjustment and Landtronic Diagnostics

Mechanical power-lift procedures cover valve bench tests with CR-342 and linkage adjustments with R-388, including position, draft, Intermix, and sensitivity settings.

For electronic lift faults, the rapid functional test helps distinguish hydraulic problems from electronic-control failures before further repair work. Check Control tables connect fault codes with affected pins and possible circuit faults, supported by the EHR-D wiring diagram and sensor checks.

Front, chassis, and cab harness layouts, fuse and relay charts, and tire-dependent instrument-panel settings support electrical troubleshooting.

A/C and ECC Testing

The ECC cab wiring diagram and self-diagnosis table cover temperature sensors, the pressure switch, compressor, and air-mixing controls. A/C procedures address recovery, dehydration, vacuum leak testing, recharging, and performance checks against pressure and temperature charts.

The charging notes explain how liquid refrigerant entering the compressor can damage it.

Workshop Reference Data

You get equipment identification, dashboard layouts for both Top and Techno versions, and maintenance intervals. Fluid-capacity tables, dimensional and weight specifications, Loctite applications, and bolting torques provide assembly and service reference data.

High-pressure hydraulics and heavy engine blocks require proper lifting equipment and secure tractor support during service.

Printable PDF and Included Pages

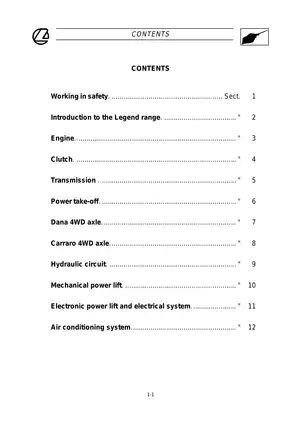

This English-language manual is supplied as one printable 380-page PDF: 350 section pages, 2 contents/preface pages, 27 ruled Notes pages, and 1 cover. All are included in the total.
