1985–1997 Honda XR80R & XR100R Service & Repair Manual (P/N 61GN112)

• Covers 1985–1997 Honda XR80R and XR100R air-cooled single-cylinder motorcycles in a 168-page PDF of the Honda factory service manual.
• Details engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and piston-ring installation.
• Includes five-speed transmission repair, crankcase separation, crankshaft inspection, kick-starter service, and wet multi-plate clutch inspection.
• Explains carburetor disassembly, float-level adjustment, XR80R air-screw and XR100R pilot-screw adjustment, plus high-altitude jetting.
• Chassis procedures cover front-fork overhaul, wheel-bearing replacement, drum-brake repair, steering-stem service, and rear suspension linkage inspection.
• Provides contact-point ignition testing and XR100R CDI diagnosis, with separate wiring diagrams and model-specific troubleshooting charts.

This repair manual is suited to mechanics with established workshop skills and the tools for precision inspection. Standard workshop techniques are assumed, and the maintenance schedule identifies jobs Honda recommends reserving for an authorized dealer.

Service and Maintenance Overview

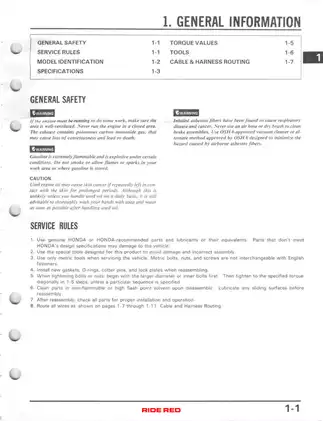

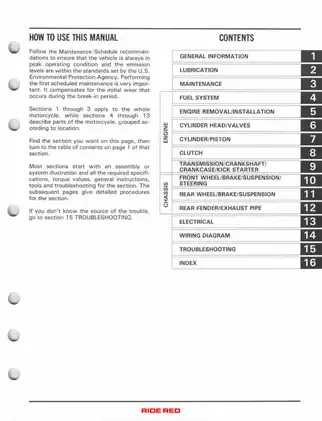

The sixteen sections start with model identification, service rules, and maintenance schedules. VIN, engine-number, and carburetor-number locations support identification. Cable & Harness Routing drawings distinguish later cable layouts and the XR100R CDI installation.

Routine work includes valve-clearance and cam-chain adjustment, cylinder compression testing, drive-chain inspection, and U.S.-model spark-arrester service. A quick-reference index points to the relevant procedures.

Carburetor Variants and Adjustment

The fuel-system tables distinguish the carburetors by model and year:

Fuel-tank removal, strainer cleaning, and air-cleaner service accompany the carburetor repair procedures. The XR80R section includes an idle-drop procedure; separate guidance covers the XR100R pilot screw.

The cautions explain how overtightening can damage the air-screw or pilot-screw seat. High-altitude guidance also warns that using the altitude-specific jetting at lower elevations can overheat and damage the engine.

Engine and Component Specifications

The manual distinguishes work possible with the engine installed from jobs requiring removal. The camshaft, clutch, primary drive gear, and gearshift linkage can be serviced in the frame. Cylinder-head, cylinder/piston, and internal transmission work require engine removal.

The lubrication section details oil-pump disassembly, rotor-clearance checks, filter-screen cleaning, and the cylinder-head oil-flow check. Its lubrication diagram shows the oil supply path. Transmission assembly drawings identify XR100R-only parts, including the low-gear collar.

Factory reference tables provide component-specific torque values and fuel, engine-oil, and fork-oil capacities. Inspection data cover piston-to-cylinder clearance, clutch-spring free length, crankshaft runout, and gearbox wear limits. Listed tools include valve spring compressor 07757-0010000 and float level gauge 07401-0010000.

Chassis Service and Suspension Limits

Post-1987 fork-boot and front-brake wear-indicator details are identified separately. Rear suspension work includes swingarm-bushing replacement and inspection of shock-linkage collars and seals. The rear shock section covers spring removal and damper inspection and replacement, without an internal damper rebuild procedure.

Brake-service warnings address airborne lining dust and reduced stopping power from contaminated linings.

Electrical Diagnosis and Wiring

The electrical sections distinguish the contact-point XR80R and 1985–1991 XR100R systems from 1992-on XR100R CDI. The two wiring diagrams follow that same division; CDI coverage is specific to the XR100R.

Component tests cover the condenser and ignition coil, with separate checks for the later pulse generator and alternator exciter coil. Spark-advancer service and engine-stop-switch continuity testing are also included.

CDI fault isolation uses a connector test chart and elimination of other components; it does not directly test the CDI unit’s advance circuitry. The “Engine Will Not Start or Is Hard to Start” chart links fuel, spark, and compression checks. Further charts address power loss, poor running, and handling faults.
