Honda XR80R & XR100R Service Manual 1998–2003

This Honda service manual covers the 1998–2003 XR80R and XR100R. The printed issue date is May 1999, with model-year differences identified throughout the service sections.

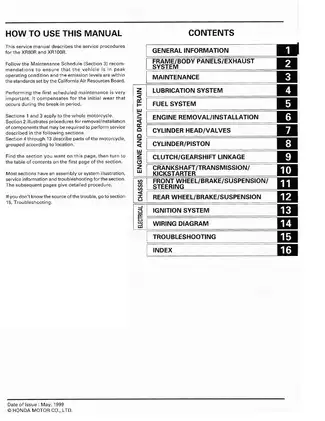

Chapter Bookmarks and PDF Contents

Text search and wiring detail: Text search is limited to the appended links page; the service-manual pages are not searchable. Embedded bookmarks provide chapter navigation, and small wiring labels are legible when enlarged.

A single printable, English-language 228-page PDF, including 227 pages from the service-manual cover through the index and one appended parts-reference links page. A parts catalog is not included.

Engine Overhaul, Chassis Service, and Ignition Diagnosis

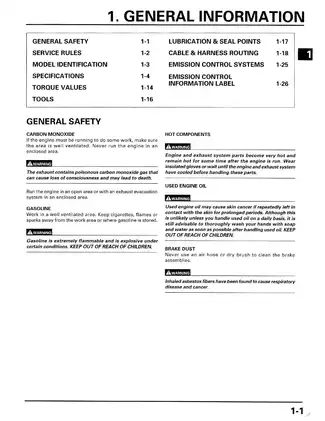

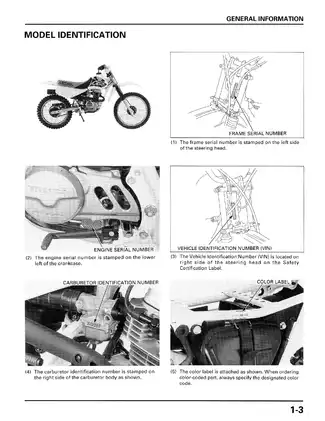

These selected repair topics are part of a 16-section manual that also includes model-identification references and lubrication/seal-point charts.

• Routine maintenance: Model-specific schedules, engine-oil and strainer service, air-cleaner maintenance, valve-clearance checks, and spark-arrester cleaning.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head overhaul, valve-guide replacement, valve-seat refacing, and cylinder/piston service.

• Clutch and transmission: Right-crankcase service, clutch-pack inspection, primary-drive work, gearshift linkage, crankcase separation, transmission disassembly and reassembly, and kickstarter repair.

• Fuel and lubrication: Carburetor removal, disassembly, and assembly; float-level inspection, pilot/air-screw adjustment, high-altitude setup, oil-pump removal and inspection, and breather routing.

• Wheels and brakes: Front and rear wheel-bearing replacement, wheel assembly, drum-brake service, drive-chain maintenance, and brake-pedal work.

• Suspension and steering: Fork disassembly and oil-level setup, steering-stem bearings and races, shock-spring removal, linkage inspection, and swingarm-bushing replacement.

• Ignition diagnosis: Peak-voltage testing, ignition-coil and pulse-generator checks, alternator-exciter testing, ignition timing, flywheel/stator service, and wiring diagrams.

Suited to mechanically experienced users with the specified tools; Honda recommends dealer service for certain maintenance tasks.

Engine Access and Internal Inspection

The engine-removal section distinguishes work possible with the engine installed from jobs requiring removal, helping plan access before disassembly.

Top end: Compression diagnosis and camshaft/rocker-arm inspection support cylinder-head repair. Bore taper, out-of-round, piston-ring, pin, and connecting-rod checks are backed by wear limits and oversize-piston information for both models.

Cam-chain timing, piston-ring installation, and final valve adjustment have dedicated procedures. The manual cautions against dropping the cam chain or sprocket bolts into the crankcase.

Bottom end: Gear and bushing measurements, shift-fork and shift-drum checks, crankshaft runout, and bearing inspection support internal repair decisions. Gearshift-spindle service and crankcase reassembly are also documented.

Illustrations include the lubrication-system flow diagram, carburetor exploded views, engine-removal layout, cylinder-head/valve-train assembly, and crankshaft/transmission layout.

Carburetor Settings and Production Differences

Idle adjustment: The XR100R uses a pilot-screw idle-drop procedure. For the XR80R air screw, ’98–’99 models use best-idle adjustment; after-’99 models use idle drop. Overtightening either screw can damage its seat.

Carburetor identification, jetting, throttle-valve assembly, and high-altitude settings distinguish production changes and the California specification. The XR80R carburetor tables separate ’98–’99, 2000, and after-2000 units.

Crankcase-emission diagrams cover the ’98–2000 XR100R California type, after-2000 XR100R, and after-’99 XR80R. Model-specific cable/harness routing, breather arrangements, and engine-hanger details help match parts and procedures to the machine.

Suspension, Wheels, and Workshop Support

Fork and rear-shock specifications distinguish earlier and later XR100R production. Front and rear wheel/brake assembly views accompany the service procedures; rear-shock work covers spring removal/refitting and external damper-unit inspection, without an internal damper rebuild procedure.

Engine and suspension work require secure support. Fuel and running-engine work require ventilation and separation from flames, with appropriate eye and hand protection.

Wiring and Symptom-Based Troubleshooting

Separate ’98–2000 and after-2000 wiring diagrams show the later ignition switch. Diagnostic charts address no-start/hard-start conditions, low power, poor idle/low-speed running, poor high-speed performance, and handling complaints.

Comparing readings at the ignition control module and source components helps distinguish wiring faults from pulse-generator or exciter-coil problems.

Service Data and Special Tools

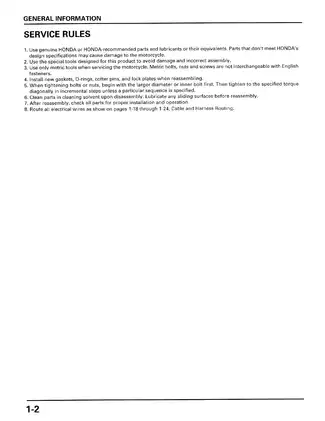

Service rules and reference tables supply fastener torques, fluid capacities, maintenance intervals, clearances, wear limits, and electrical test values.

Tool references include float-level gauge 07401-0010000, gear holder 07724-0010100, valve-spring compressor 07757-0010000, and flywheel puller 07733-0010000. Ignition testing lists peak-voltage adapter 07HGJ-0020100 with a digital multimeter, or the U.S. peak-voltage-tester option.

Selected Valve Clearances and Clutch Wear Limits

For both models, intake and exhaust valve clearance is specified as 0.05 mm (0.002 in), with the engine cold below 35°C/95°F and the piston at compression-stroke TDC.

Clutch friction-disc thickness service limits are 2.7 mm (0.11 in) for the XR100R and 2.5 mm (0.10 in) for the XR80R. These are wear limits, distinct from the standard new-disc dimensions.
