1978–1981 John Deere 317 Hydrostatic Tractor Technical Manual (P/N TM-1208)

452 Pages • 110.29 MB • Instant, Printable PDF

4.5starstarstarstarstar_half(2)
visibility Preview Available
$21.99 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Models: 317

Model Years: 1978–1981 (1978, 1979, 1980, 1981)

Serial Numbers: -156,000, 156,001–160,062, 160,063-


  • Engine Model: Kohler KT17QS

  • Engine Type: Two-cylinder, four-cycle, air-cooled (opposed design)

  • Displacement: 42.18 cu. in. (691.4 cc)

  • Horsepower: 17 HP (12.58 kW)

  • Idle Speed: 1200 rpm

  • High Idle Speed: 3400–3600 rpm

  • Intake Valve Clearance: 0.008–0.011 in. (0.203–0.274 mm)

  • Spark Plug Gap: 0.025 in. (0.64 mm)

  • Breaker Point Gap: 0.020 in. (0.508 mm)

  • Transmission: Sundstrand 15 Series (U-Type)

  • Fuel Tank Capacity: 4-1/2 U.S. gal. (17.034 L)

  • Curb Weight: 760 lbs. (344.5 kg)

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29936 / Carol Taylor
File Size:
110.29 MB
File Type:
PDF
Language:
English
Pages:
452
Printable:
Yes
Category:
Lawn and Garden Tractor
Last updated / verified
Sep 5, 2026

John Deere Manual Features & Content Preview

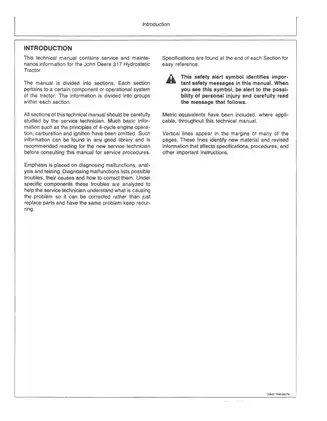

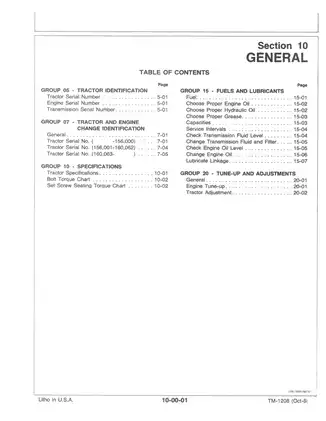

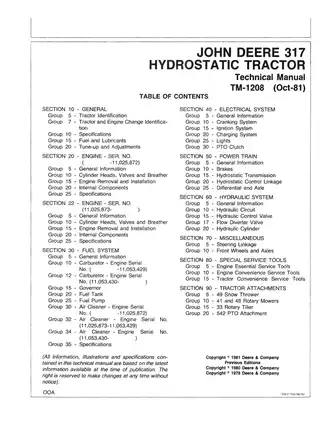

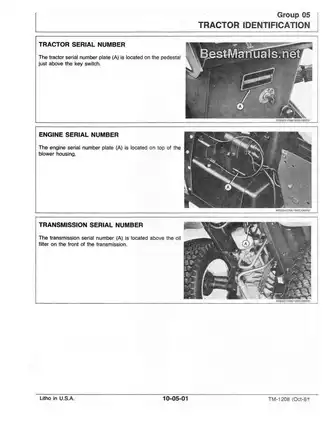

  • A 452-page PDF reproduction of John Deere technical manual TM-1208 (October 1981) for the 317 Hydrostatic Tractor, including tractor and engine change identification.
  • Kohler KT17QS engine repair covers removal and installation, cylinder-head inspection, valve reconditioning, crankcase separation, and internal-component inspection and assembly.
  • Sundstrand 15 Series (U-Type) hydrostatic transmission diagnosis and overhaul include charge- and implement-pressure testing, pump and motor inspection, and hydrostatic control-linkage adjustment.
  • Dana differential and rear axle service covers bearing and seal replacement, pinion-depth setup, ring-gear backlash and contact-pattern adjustment, plus individual rear drum-brake repair.
  • Electrical fault tracing addresses starting, battery-coil ignition, charging, and safety-switch circuits. Ogura and Warner PTO clutches have separate disassembly and assembly procedures.
  • Hydraulic service covers the open-center, two-spool control valve, optional flow diverter valve, couplers, and rockshaft-cylinder leakage testing and replacement.

Serial-Number and Configuration Coverage

The change-identification group separates tractors through 156,000, 156,001–160,062, and 160,063 and up. It identifies replacement engines and modified early machines by their air-intake hose, flywheel screen or bottom screen, and carburetor adapter arrangement. The illustrations distinguish integral adapters, separate gasketed adapters, and later one-piece elbows with O-ring sealing—useful when the installed engine or intake system has changed.

Differential assembly instructions distinguish gasket-sealed housings through tractor serial 155,047 from silicone-sealed housings starting at 155,048. The two PTO clutch designs interchange only as complete assemblies, not as individual parts. Their repair procedures warn that incorrect pulley support during bearing installation can damage the armature and springs.

Operational Systems and Maintenance

This factory manual outlines service cycles for fuel, lubrication, and electrical systems. Engine diagnostics include compression testing, crankcase-vacuum testing, and the Engine Trouble Shooting Guide. Fuel-system coverage extends to carburetor teardown and float inspection, fuel-pump pressure testing, and governor sensitivity and high-speed adjustment.

The engine chapters distinguish valve, cylinder, and piston work that can be done in the tractor from crankshaft, camshaft, and oil-pump service that requires engine removal. Chassis procedures cover steering-gear teardown, steering backlash, front-axle pivot adjustment, wheel toe-in, and turning-radius adjustment.

Starter-armature tests, coil output and insulation checks, condenser tests, and static or timing-light ignition timing support electrical diagnosis. The Wiring Diagram shows wire colors and switch connections; dedicated checks cover the transmission neutral-start switch, seat switch, and PTO-switch circuits. Charging diagnosis separates alternator-stator testing from rectifier-regulator testing.

Hydrostatic and Hydraulic Diagnosis

The transmission’s Diagnose Malfunctions flowcharts address jerky starts, one-direction-only operation, overheating, and loss of drive. Internal repair covers swashplates, valve plates, matched piston-and-cylinder-block assemblies, and trunnion shafts. The disassembly cautions explain how overdriving a trunnion pin can damage the transmission housing.

Illustrations titled Rear Mounted Hydraulic Couplers and Flow Diverter Valve show the optional circuit arrangements. Hydraulic troubleshooting addresses weak lift, load drop, leakage, and sticking spools. The welded rockshaft cylinder is replaced as an assembly; coverage is testing, removal, and installation rather than an internal rebuild.

Since hydrostatic systems operate under pressure, always review the manual's safety protocols before opening or testing any hydraulic lines.

Attachment Repair

The 49 Snow Thrower section covers rotor-bearing replacement and gear-case service. For the 41 and 48 Rotary Mowers, the manual covers belts, blade balancing, and spindle service. The 33 Rotary Tiller section includes slip-clutch repair, bearing replacement, and gear- and chain-case overhaul. The 542 PTO attachment has its own teardown, inspection, assembly, and lubrication coverage.

Earlier gear-case housings are identified for 49 Snow Throwers below serial 9,276 and 33 Rotary Tillers below serial 8,930.

Specification and Data Preview

Technical data is organized into section and group references, including component-specific torque tables, a set-screw seating torque chart, fluid capacities, wear limits, clearances, and electrical test specifications. Tool references identify the JDM-68 flywheel puller, JDG-160 cylinder adapter, and JDST-10 and JDST-10A pinion-depth gauges. The related procedures explain torque-adapter correction and pinion-depth measurement for engine and final-drive repair.
