2003 Yamaha F150A & FL150A Outboard Motor Service Manual (P/N 63P-28197-3F-11)

This Yamaha service manual covers the 2003 F150A and counter-rotation FL150A outboard motors, including F150AET (63P) and FL150AET (64P). The first edition, July 2003, carries document number 63P-28197-3F-11.

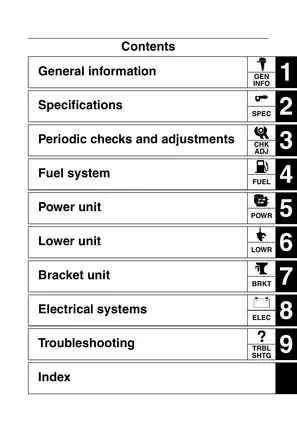

Text search and wiring detail: Searchable PDF text and embedded bookmarks provide access to the main chapters and final color wiring diagram. Small connector-pin numbers and wire-color codes in the wiring diagrams are readable when enlarged.

• Powerhead repair: Engine removal and installation, cylinder-head and cylinder-block overhaul, valve-clearance adjustment, timing-belt replacement, and balancer shaft assembly inspection.

• Electronic fuel injection: Vapor separator tank (VST) inspection and filter cleaning, high-pressure fuel-pump checks, pressure-regulator testing, throttle-valve synchronization, and throttle position sensor (TPS) adjustment.

• Lower-unit service: Separate repair procedures for regular- and counter-rotation gearcases, including water-pump overhaul, propeller-shaft service, gear shimming, and backlash checks.

• Trim, tilt, and brackets: Power trim and tilt (PTT) hydraulic pressure tests, pump and cylinder overhaul, bleeding, steering-arm service, and trim-sensor adjustment.

• Electrical diagnosis: ECM output testing, sensor resistance checks, injector tests, starter-motor inspection, and charging-system tests for the stator and water-cooled rectifier regulator.

• Troubleshooting references: Symptom-based flowcharts, diagnostic trouble-code charts, wiring-harness drawings, and ECM connector pinouts for tracing starting, acceleration, and idle problems.

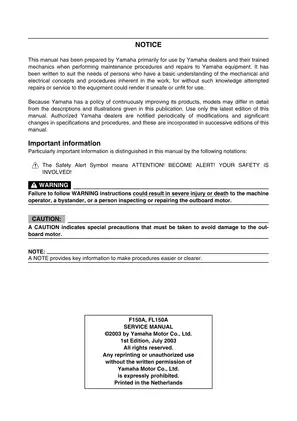

Yamaha prepared this manual primarily for its dealers and trained mechanics who already understand the mechanical and electrical principles involved in outboard service.

Powerhead, Cooling, and Lubrication

The powerhead chapters cover valve-guide replacement, valve-seat refacing, camshaft inspection, and color-coded selection tables for connecting-rod and crankshaft main bearings. Exploded views, illustrated tightening sequences, torque specifications, and wear limits support engine inspection and reassembly.

Timing-belt handling cautions explain how twisting or excessive bending can damage the belt. The balancer section covers gear inspection and alignment during installation.

Cooling-water and lubrication-flow diagrams show the passages through the powerhead and associated components. Maintenance covers thermostat testing, pressure-control-valve inspection, and both methods of the dual-oil-drain system, with separate oil capacities for oil-only changes and changes that include the filter.

EFI and Fault Diagnosis

Fuel-system repair coverage includes the vapor separator's float and needle valve, pressure regulator, fuel cooler, and high-pressure electric pump. Fuel and blowby hose-routing drawings identify their connections.

Fuel-pressure tests distinguish key-on readings from readings taken with the engine warmed up. Together with the no-start and poor-acceleration flowcharts, these checks help separate fuel-delivery faults from ignition faults before components are replaced.

The Yamaha Diagnostic System section explains live engine monitoring, stored fault records, data logging, and stationary tests for ignition, injectors, the electric pump, and idle speed control (ISC) valve.

Software operating instructions are in the separate Yamaha Diagnostic System Instruction Manual; the diagnostic software and connection hardware are separate service tools. Flash-code diagnosis is also covered, using diagnostic flash indicator B (90890-06865).

Regular- and Counter-Rotation Gearcases

The two rotation types have separate gear-shimming layouts and backlash specifications. Counter-rotation coverage adds propeller-shaft shim selection and end-play measurement, helping match the repair procedure to the gearcase.

Pinion height gauge 90890-06710 and backlash indicator 90890-06706 are identified in the tool lists and measurement procedures. Gearcase sections also include seal installation, bearing replacement, and dog-clutch inspection.

64E Power Trim and Tilt Repair

The 64E unit's YF identification mark distinguishes its impact-absorber valve specification from other 64E applications. Procedures cover the gear pump, relief valves, trim and tilt pistons, and motor, with bleeding procedures for the removed unit and the installed assembly.

Bracket coverage extends to the upper case, steering arm, swivel bracket, and clamp brackets. The electrical section supplies a dedicated PTT circuit diagram and relay, switch, and trim-sensor tests.

Marine fuel systems and high-voltage ignition circuits carry inherent risks; follow the manual's fuel-pressure relief, battery-disconnection, and raised-motor support precautions.

English PDF and Color Wiring Diagram

The manual is supplied as one printable English 313-page PDF. The total includes three opening pages, four memo pages, a four-page index, one blank page, the rear cover, and two wiring pages: the legend and large-format color diagram.
