Yamaha 1996 C40U/C40V, 40V/40U & 50H/50U Outboard Service Manual Set with Jetdrive (P/N LIT-18616-01-50)
410 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models: C40U, C40V, 40V, 40U, 50H, 50U, Jetdrive
Models & Model Codes:
C40U — 6R6; worldwide variants: 40QM, 40QE, 40QEP; USA/Canada variants: C40MHU, C40ERU, C40PRU.
C40V — 6R6; worldwide variants: 40QM, 40QEM, 40QE, 40QEP; USA/Canada variants: C40MHV, C40EHV, C40ERV, C40PRV.
40V — 6H4; 40VMH, 40VMHO, 40VRO, 40VE, 40VEO, 40VEHTO, 40VETO.
40U — 6H4; USA/Canada designations: 40MH (40VMHO), 40ER (40VEO), 40TH (40VEHTO), 40TR (40VETO).
50H — 6H5; 50HMHO, 50HMHD, 50HRO, 50HRDO, 50HEMHD, 50HEDO, 50HEHTO, 50HETO.
50U — 6H5; USA/Canada designations: 50ER (50HEDO), 50TH (50HEHTO), P50TR (50HETO).
Jetdrive — 40MJH/EJR (28), 50EJR (35), 90TJR (65), V4-115TJR (80), V6-200TJR (140); jet-unit operation and service coverage. V6-150TJR (105) is also included in the specification tables.
Sub-models / Variants: Short, Long, Extra Long shaft (C40U/C40V: S, L, LL), S/L/UL shaft variants (40V/40U/50H/50U), Manual tilt, Power tilt, Tiller control, Remote control, World-wide, USA/Canada market variants; Hydro tilt and Power trim/tilt configurations in the 40V/40U/50H/50U manual; propeller-drive F-N-R dog-clutch units and Jetdrive direct-drive units.
Model Years: 1996
Serial Numbers: C40U — 40QM/C40MHU (S: 011633~, L: 381505~), 40QE/C40ERU (S: 180524~, L: 556180~), 40QEP/C40PRU (L: 336776~, LL: 700201~); C40V — 40QM/C40MHV (S: 011803~, L: 381956~), 40QEM/C40EHV (S: 110325~, L: 482431~, LL: 681336~), 40QE/C40ERV (S: 180575~, L: 556824~), 40QEP/C40PRV (L: 338274~, LL: 700266~); 40V/40U — 40VMH (S: 010139~, L: 310434~), 40VMHO (S: 190591~, L: 490565~), 40VRO (S: 290141~, L: 860181~), 40VE (S: 060143~, L: 360130~), 40VEO (S: 110318~, L: 840949~, UL: 740146~), 40VEHTO (L: 430101~), 40VETO (S: 880161~, L: 541747~, UL: 900146~); 50H/50U — 50HMHO (S: 190351~), 50HMHD (S: 010132~, L: 310228~), 50HRO (S: 260121~), 50HRDO (L: 560141~), 50HEMHD (L: 850151~), 50HEDO (S: 090166~, L: 520616~), 50HEHTO (L: 590191~), 50HETO (S: 210106~, L: 441175~, UL: 750166~)
Technical Data (C40U/C40V):
-
Engine displacement: 592 cc (36.1 cu. in)
-
Configuration: 2-cylinder, 2-stroke-L
-
Output: 29.4 kW (40 HP) at 5,000 rpm
-
Cooling system: Water-cooled
-
Fuel system: 2-carburetor, reed valve
-
Ignition system: CDI, mechanical advance
-
Gear ratio: 2.00 (26/13)
-
Lower unit fluid capacity: 315 cm³ (10.7 US oz)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

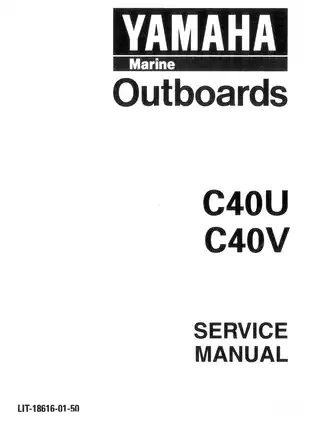

| C40U/C40V Service Manual — P/N LIT-18616-01-50 (First Edition, June 1996) | 163 |
| 40V/40U/50H/50U Service Manual — P/N 63B-28197-Z5-11, cover ID LIT-18616-01-38 (First Edition, July 1995) | 217 |
| Jetdrive Operation and Service Manual — P/N LIT-18619-00-97 | 30 |
The two outboard manuals provide separate service procedures and specifications for their respective engine families. The Jetdrive publication covers operation, maintenance, and overhaul of the jet unit. For general outboard operation or engine repair on a Jetdrive, use the owner’s or engine service manual that matches the motor.
Chapter Bookmarks and Wiring Detail
Search and navigation: PDF text search is unavailable. Bookmarks open the individual publications and service chapters. Two “Return to main index” bookmarks require a separate index file. Small wire-color and connector labels in dense schematics are legible when enlarged.
The download is one printable, 410-page English PDF, including the covers, front matter, a C40 end-label page, and the Jetdrive warranty and notes pages.
Powerhead, Gearcase, and Jetdrive Service
These are selected workshop topics. The manuals also include periodic maintenance charts and trim-tab and anode inspection points.
- Fuel and controls: Carburetor and diaphragm-pump inspection, carburetor synchronization, ignition timing, throttle-link adjustment, start-in-gear protection, and neutral-opening-limit adjustment.
- Powerhead repair: Engine removal, crankcase disassembly, crankshaft and piston inspection, reed-valve service, and recoil-starter and starter-motor repair.
- Propeller lower unit: Water-pump and impeller service, propeller-shaft and gear inspection, shim selection, gear-backlash measurement, and gearcase leakage testing.
- Brackets and tilt: Tiller, clamp, steering, and swivel-bracket disassembly, plus power-tilt cylinder and pump-housing service, motor checks, and air bleeding.
- Electrical diagnosis: Model-specific wiring layouts, CDI and coil tests, charging and warning-system checks, switch-continuity tables, and symptom-based troubleshooting.
- Jetdrive service: Engine mounting height, reverse-gate and shift-linkage adjustment, impeller clearance, bearing-housing overhaul, and liner replacement.

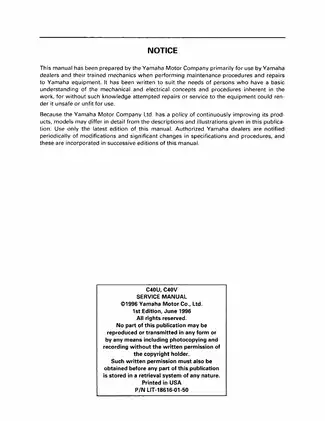

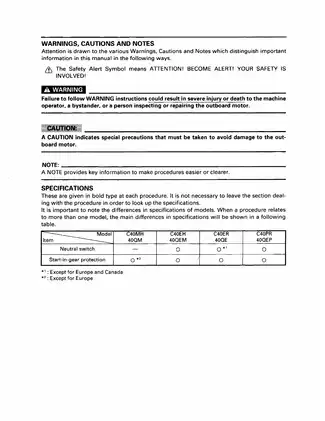

Yamaha wrote the two outboard service manuals primarily for dealers and trained mechanics with a working knowledge of mechanical and electrical systems. The Jetdrive manual includes operating guidance for owners and recommends an authorized Yamaha outboard dealer for overhaul.
Fuel Delivery and Engine Inspection

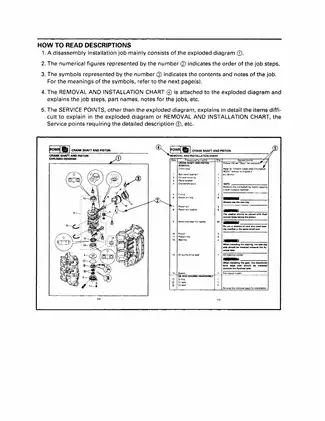

Fuel-system chapters pair exploded carburetor and diaphragm-pump views with fuel-line layouts and component inspection criteria. The powerhead chapters cover thermostat and cylinder-head inspection, piston rings, crankshaft bearings, and reassembly. Removal and installation charts identify lubrication points and tightening specifications.
The bearing instructions warn against mixing new and used needles in the same connecting-rod small end. They also warn that spinning a bearing with compressed air can damage it.
Gearcase Shimming and Tilt Assemblies
The C40 manual distinguishes the Canadian shimming procedure from the procedure for other markets. Its shim-selection guide shows when measurements are needed if you reuse the original case and internals, replace the case, or replace internal components. The non-Canadian procedure identifies pinion-height gauge 90890-06702. Shim tables accompany checks for forward- and reverse-gear backlash.
Bracket coverage includes rubber mounts, the upper case, and the exhaust manifold. The power-tilt sections cover the free piston, relief valves, pump housing, and bleeding. Disassembly notes address the risk of pressurized fluid escaping from the tilt unit.
Wiring Tests and Variant-Specific Systems
Ignition, starting, and power-tilt diagrams identify couplers and wire colors. Related procedures cover charge- and pulser-coil output, rectifiers, relays, and starter armature and brush inspection. Troubleshooting charts link hard starting, rough idle, overheating, hard shifting, poor charging, and tilt faults to the relevant checks.
The 40V/40U/50H/50U manual covers oil-injection and Prime Start variants, including tank strainers, check valves, oil-pump linkage, and the fuel-enrichment valve. It also documents hydro tilt and power trim and tilt.
Jetdrive Fit and Overhaul
Assembly drawings distinguish the 40/50 jet units from the 90, V4, and V6 configurations. The manual shows separate shift-handle setups for early and later 40MJH units and identifies bolted and flange-retained liner designs. Incorrect shim placement on a new impeller can leave too little clearance and score the liner or damage the impeller.
Examples of Engine, Gearcase, and Impeller Specifications
For the C40U/C40V, the cylinder-head warpage limit is 0.1 mm (0.004 in), and standard piston-to-cylinder clearance is 0.050–0.055 mm (0.0020–0.0022 in).
The C40 gearcase leakage test specifies a 100 kPa pressure hold for 10 seconds and identifies tester YB-03595/90890-06762. For the Jetdrive models listed in the specification tables, minimum impeller-to-liner clearance is 0.790 mm (0.031 in).
