Ford Expedition 2004 Repair Manual Collection

11,190 Pages • ZIP Download: 125 Printable PDFs • 401.41 MB

4.5starstarstarstarstar_half(2)
$19.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Ford Models Covered & Key Technical Specifications

Models: Expedition; Lincoln Navigator (model-specific sections)

Model Years: 2004–2006 (2004, 2005, 2006)


  • Audio system: AM/FM stereo with cassette and single CD, CDX6 in-dash six-disc CD, Audiophile AM/FM stereo with in-dash six-disc CD (Navigator), CD-based navigation (Expedition), DVD-based navigation (Navigator)

  • Navigation features: Voice-activated command interface and touch-screen destination entry (Navigator navigation), route preference customization

  • Entertainment options: Rear-seat radio controls, rear-seat DVD entertainment system, infrared wireless headphones

  • Connectivity: Auxiliary input jacks (A/V for video games), RDS (Radio Data System) broadcast reception

  • Engine variants: Expedition: 4.6L and 5.4L (2V) in selected shared-system procedures, 5.4L (3V); Navigator: 5.4L (4V), 5.4L (3V)

  • Automatic transmissions: Expedition: 4R70W (external controls), 4R70E/4R75E (diagnosis and overhaul); Navigator: 4R100 (in-vehicle repair and removal), 6HP26 six-speed automatic (certification-label code G; external-control procedures)

Ford Manual Features & Selected Content Preview

Publication Pages
2004 Expedition/Navigator workshop extracts, including selected 2003–04 shared-system sections — 61 PDFs 4,558
2004 Ford engine-performance pinpoint tests — cross-model CNG, flex-fuel, and gasoline reference 851
2004 Lincoln Navigator wiring diagrams 135
2004 Lincoln Navigator Owner’s Guide 384
2006 Expedition/Navigator workshop extracts — 56 PDFs 4,577
2005 Lincoln Navigator wiring diagrams 127
2006 Ford Expedition wiring diagrams 127
2006 Lincoln Navigator Owner’s Guide 392

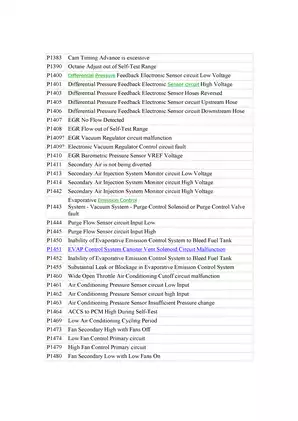

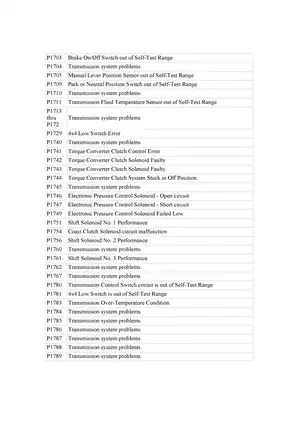

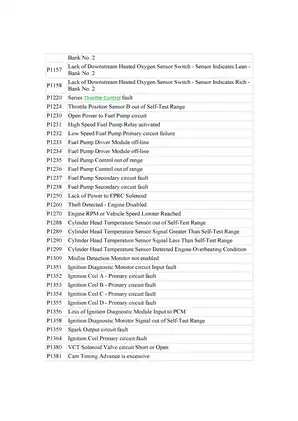

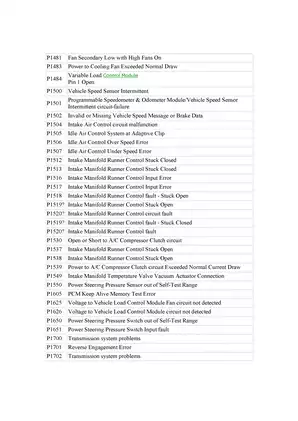

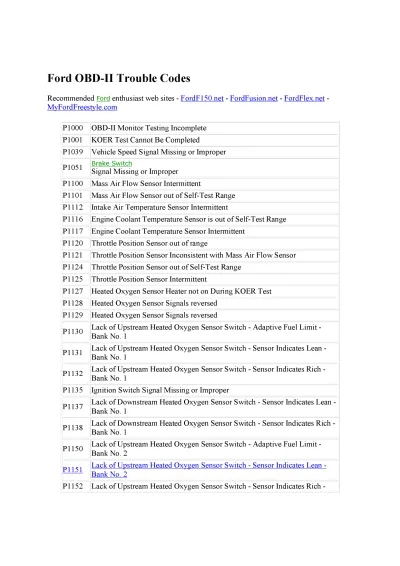

Ford OBD-II trouble-code list 6
Generic OBD-II trouble-code list 33

The workshop extracts provide diagnosis and repair procedures; the Owner’s Guides explain vehicle operation and equipment settings that support baseline checks before troubleshooting.

Coverage limits: Match each chapter to the vehicle and powertrain. The 2004 engine volume covers the Navigator four-valve engine, not an Expedition two-valve engine overhaul. The 2004 4R100 files cover in-vehicle repair and transmission removal. The later transmission overhaul chapter is Expedition-specific; Navigator 6HP26 material addresses external controls.

PDF Search, Wiring Detail, and File Contents

Text search and diagram detail: Service text and both Owner’s Guides support text search, but labels within embedded illustrations are not consistently searchable. Neither trouble-code list supports text search. Embedded bookmarks are limited to the 2006 Navigator Owner’s Guide. Small labels in the wiring diagrams require zooming.

The ZIP contains 125 printable PDFs totaling 11,190 pages, including overlapping reference material, both separate trouble-code lists, and two blank end pages in the 2004 Owner’s Guide.


Engine Overhaul, System Diagnostics, and Electrical References

The following selected contents outline the main repair areas rather than reproduce the full contents. Further topics include power-folding mirror synchronization and remote-transmitter programming.

  • Engine repair: Engine removal, cylinder-head service, timing-drive repair, and step-by-step teardown and reassembly for the covered Navigator four-valve and later three-valve configurations.

  • Automatic transmission: 4R70E/4R75E diagnosis and overhaul, including line-pressure and clutch-pressure testing, valve-body service, clutch-pack inspection, and transmission range sensor adjustment.

  • Axles and transfer case: Ring-and-pinion setup, backlash, bearing preload, Traction-Lok limited-slip components, and transfer-case removal and internal service.

  • Brakes and suspension: Brake diagnosis and bleeding, ABS and traction/stability-control testing, separate 4x2/4x4 suspension procedures, and air-suspension pneumatic tests and ride-height calibration.

  • Climate control: Manual and automatic HVAC diagnosis, with compressor, evaporator, heater-core, blend-door actuator, and auxiliary rear HVAC service.

  • Electrical troubleshooting: Vehicle wiring diagrams, component locators, engine-performance pinpoint tests, starter-circuit checks, and charging-system tests.

  • Audio and navigation: Speaker walk-around tests, self-diagnostics, connector-pin references, GPS input checks, and component removal and replacement.

The repair material is suited to technicians and experienced DIY owners familiar with scan-tool diagnosis; internal overhauls also require the specialist tools identified in the relevant chapters.

Engine, Driveline, and Diagnostic Reference

The engine chapters provide component-specific torque specifications, bearing and piston clearances, valve-train inspection limits, and lubrication data. Later engine material includes variable camshaft timing (VCT) phaser and sprocket service. It warns that using the phaser assembly as a lifting or leverage point can damage the assembly.

Special-tool references include crankshaft holding tool 303-448 and transmission range sensor alignment gauge 307-351. Axle material distinguishes Ford 8.8-inch front and rear assemblies from the 9.75-inch rear differential, with shim-selection and gear-contact information.

The cross-model Ford pinpoint-test reference covers no-start diagnosis, fuel-pump control, ignition, EVAP, and sensor circuits. Its test paths and connector references support fault isolation before components are selected for replacement.

Electrical Diagrams and Body-System Service

Named electrical references include Computer Data Lines, Power Distribution, Electronic Suspension, and Radio Circuit, W/ Navigation. Separate electrical component locators support circuit tracing. Transmission Connector Layouts and Band and Clutch Application Tables add powertrain diagnostic detail.

Body-system material covers power-window motor initialization, sunroof motor initialization and alignment, memory-seat diagnostics, and climate-controlled seat troubleshooting. Air-suspension chapters explain the ride-height calibration and pneumatic-test requirements following control-module replacement.

Audio Systems and Navigation Differences

The entertainment material distinguishes DM100/DM100i, CDX6, Audiophile, and Vehicle Navigation Radio (VNR) systems. Rear-seat controls, steering-wheel switches, subwoofer amplifiers, DVD players, and GPS antennas have diagnostic or replacement coverage.

Expedition and Navigator navigation diagnostics are treated separately. The Expedition material describes CD-based navigation and an audio-unit software-update procedure; Navigator material addresses its DVD-based navigation module and voice-recognition interface. Navigation map discs and update media are not included.

The Navigator Owner’s Guides explain Audiophile and THX-equipped systems, including AM/FM tuning, memory presets, and in-dash six-disc CD operation. Speed-compensated volume (SCV), digital signal processing (DSP), occupancy settings, rear-seat entertainment, and wireless headphone operation are also covered.

Navigation topics include map-display interaction, destination entry, voice-guidance volume, route preferences, avoid-area lists, and detour calculations. Service diagnostics address calibration after battery disconnection or towing; the operating guides explain distance calibration after tire replacement. These operating references support baseline checks before audio repair.

Preview of Valve-Train Inspection Clearances

For the 2006 5.4L (3V) engine, the cylinder-head specifications list intake valve stem-to-guide clearance at 0.020–0.045 mm. The camshaft inspection table gives journal-to-bearing clearance as 0.024–0.075 mm. These are examples of the component-specific dimensional references accompanying the engine repair procedures.

Always observe standard shop safety protocols when accessing electrical components and follow the documented SRS, air-suspension, and refrigerant-system precautions.

Customer Reviews

Read what our customers say about this Ford SUV manual and share your own experience.

Checkout
Ford Expedition 2004 Repair Manual Collection $19.35
