1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual

Get your Nissan Pathfinder R51 running smoothly with this Accelerator Control System Service Manual. Covers 1997-2007 models with detailed procedures for removal, installation, and adjustments. Includes diagrams and specifications.

4.5starstarstarstarstar_half(2)
visibility Preview Available
Nissan 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual page preview - page 1 of

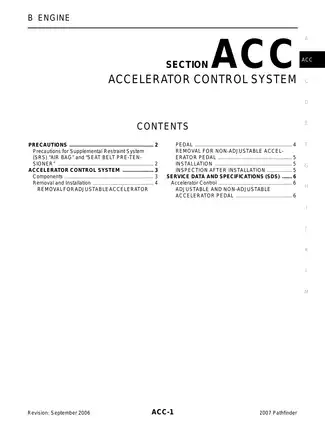

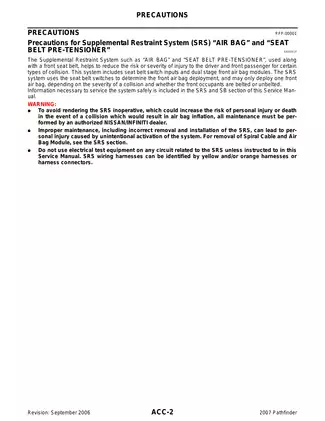

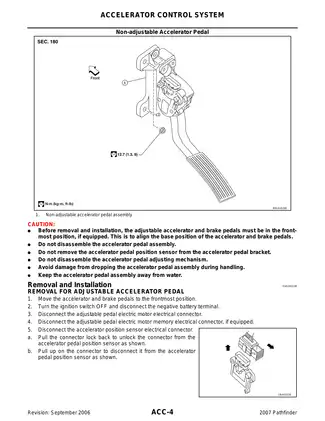

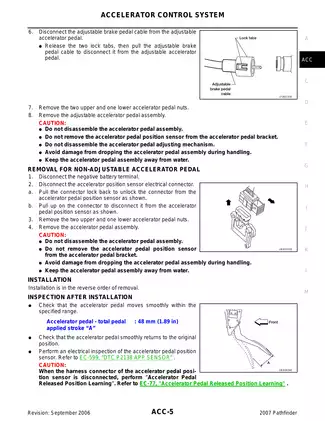

Sample pages from the 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual

Nissan 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual preview page 1 - thumbnail
Nissan 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual preview page 3 - thumbnail
Nissan 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual preview page 4 - thumbnail
Nissan 1997-2007 Nissan Pathfinder R51 Accelerator Control System Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$8.75 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Nissan Models Covered & Key Technical Specifications

Models: Nissan Pathfinder R51
Sub-models / Variants: 2WD, 4WD
Build Years: 1997–2007
Technical Data:

  • Accelerator pedal applied stroke: 48 mm (1.89 in)
  • Stall speed: 2,200–2,500 rpm
  • Line pressure (Idle - R position): 425–465 kPa (62–67 psi)
  • Line pressure (Idle - D position): 379–428 kPa (55–62 psi)
  • Line pressure (Stall - R position): 1,605–1,905 kPa (233–283 psi)
  • Line pressure (Stall - D position): 1,310–1,500 kPa (190–218 psi)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30104 / Rebecca Henry
File Size:
59.96 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
SUV
Last updated / verified
Jul 24, 2025

Nissan Manual Features & Content Preview

2007 Nissan Pathfinder R51 Accelerator Control and Automatic Transmission Documentation

  • Covers 1997–2007 Nissan Pathfinder R51 series, specifically detailing the Accelerator Control System and Automatic Transmission (AT) diagnostic procedures
  • Official Nissan publication, revision date September 2006
  • Contains 68 technical pages with internal assembly diagrams, wiring schematics, and comprehensive diagnostic troubleshooting charts
  • Files are accessible from your device as soon as the order is placed
  • Layout supports printing individual sections for shop-floor use
  • This specific edition is the technical reference for the 2007 Pathfinder AT-section maintenance, diagnostic troubleshooting, and system repair specifications.

System Coverage

The 2007 Nissan Pathfinder R51 service publication provides detailed information regarding the transmission control system, including cross-sectional views for both 2WD and 4WD model configurations. It outlines the function of major components such as the torque converter, planetary gear systems, and the shift mechanism, detailing the interaction between the Transmission Control Module (TCM) and the engine management system.

Technical Specifications and Diagnostics

This manual includes precise hydraulic pressure values and stall speed ranges essential for validating transmission health. The specification section provides torque values and clearance measurements for components including the oil pump and rear oil seal, along with standardized test procedures for diagnostic checks. The full-text search capability allows technicians to locate component values and pinout references within the 100+ diagnostic trouble code (DTC) descriptions. Note: All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. An official 99-page Nissan OEM service manual covering the 1997–2007 Nissan Pathfinder R51, documenting accelerator control, transmission diagnostics, electrical wiring, and technical specification data for the drivetrain systems.

Manual FAQ, Purchase & Download Details

Are total pedal applied stroke specification tables included in the document? keyboard_arrow_down

Service data and specifications section includes the total pedal applied stroke value for both adjustable and non-adjustable accelerator pedal types.

Does the manual contain wiring diagrams for the accelerator pedal position sensor harness connectors? keyboard_arrow_down

Yes, the manual references the harness and connector configuration for the accelerator pedal position sensor. It also provides information regarding the secure connection of these components to prevent system-related diagnostic codes.

Can you preview if the document includes exploded views for the accelerator pedal assembly components? keyboard_arrow_down

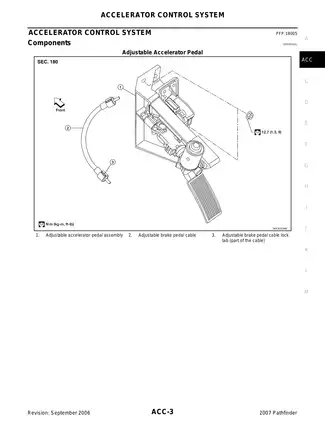

Manual contains exploded view diagrams for both adjustable and non-adjustable accelerator pedal assemblies. These illustrations show the individual components such as the pedal assembly, brake cable, and lock tabs. They are intended to provide a clear overview of the assembly structure.
