Honda BF200A/BF225A Outboard Service Manual Set, 2001 (P/N 66ZY200)

The supplements describe model-specific differences and refer back to the base manual for unchanged service information. The later supplement applies to the frame serial numbers listed above; the Shop Manual News updates water relief tube routing.

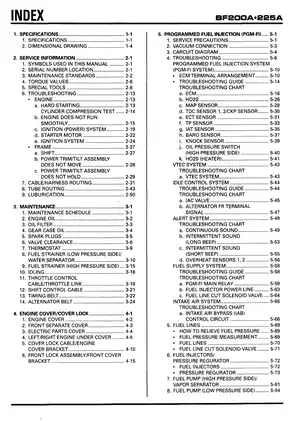

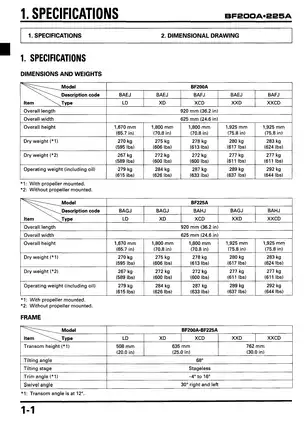

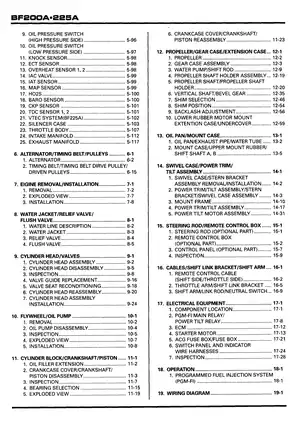

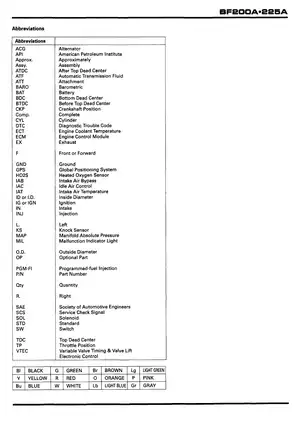

PDF Navigation and File Contents

Chapter and supplement bookmarks provide navigation within the document. Text search works on many main-manual pages, but some diagnostic pages, wiring sheets and supplements lack searchable text. Small wiring labels require zooming. The Setup Manual and Service Bulletins bookmarks point to separate files outside this PDF.

The download contains one printable PDF with 534 pages, including the publications listed above and one additional print-index page.

Outboard Repair and Diagnostic Coverage

These selected content highlights cover major service areas. Further topics include engine cover locks and water separator maintenance.

• PGM-FI diagnostics: MIL blink-code interpretation, ECM reset procedures, sensor troubleshooting, fuel pressure checks and injector service.
• Engine overhaul: Cylinder head removal, valve guide and seat work, crankshaft and piston inspection, flywheel service, oil pump inspection and bearing selection.
• Timing and charging: Timing belt replacement and tensioning, pulley alignment, alternator disassembly and electrical component checks.
• Gearcase service: Water pump work, propeller shaft and bevel gear assemblies, shim selection, backlash measurement and extension case procedures.
• Trim, mounting and controls: Power trim/tilt service, oil pan and mounting case work, steering rod, remote control box, cables and shift link bracket procedures.
• Electrical reference: Starter motor overhaul, relay and fuse checks, ECM connector diagrams, and separate wiring diagrams for top/panel-mount and side-mount controls.

The diagnostic and overhaul sections are suited to technicians and experienced outboard repairers familiar with electrical testing, precision measurement and specialized bearing, shim and hydraulic test equipment.

Tracing Fuel and Electrical Faults

PGM-FI troubleshooting combines symptom charts with circuit diagrams and connector views for the ECM’s 26P, 34P and 12P connections. The fuse load list identifies the circuits served by the seven numbered fuses, supporting checks of the relevant power supply before component replacement.

Fuel-system coverage extends through the vapor separator, high- and low-pressure pumps, fuel line cut solenoid valve, throttle body and intake manifold. The operation chapter explains fuel injection, ignition timing, fail-safe and alert logic. Injector installation notes identify O-ring damage caused by forcing an injector into place or inserting it at an angle.

Matching Procedures to the Assembly

Separate clockwise and counterclockwise gearcase sections keep exploded views, shim positions and backlash procedures tied to the correct assembly. The distinction matters because the shim corrections differ between the two gearcase types.

For internal engine work, bearing selection tables relate replacement choices to crankshaft and cylinder-block identification marks. BF225A VTEC coverage includes rocker-arm checks using dedicated air-test tools.

The cooling chapter includes a water-line diagram alongside water jacket, relief valve and flush valve procedures. Numbered, step-by-step removal, inspection and installation procedures accompany the relevant assembly illustrations.

Trim/Tilt Service and Supplement Changes

Power trim/tilt coverage includes motor and seal work, bleeding and pressure testing. The hydraulic pump assembly is treated as a replacement unit rather than an internally rebuildable component. The reassembly section warns that overfilling the reservoir can damage the motor oil seal when the rods retract.

The BF175A supplement adds its specifications and throttle-position sensor diagnostic differences. The later supplement documents changes to the mount case, shift shafts, neutral switch and detent mechanism, with illustrations comparing the revised and earlier arrangements.

Note that interacting with marine electrical components and pressurized fuel lines poses inherent risks; always verify that outboard systems are properly secured and depressurized prior to conducting any component tests or bench diagnostics.

Selected Valve-Clearance Data

For the BF200A/BF225A, the maintenance chapter specifies intake valve clearance of 0.20–0.24 mm and exhaust valve clearance of 0.28–0.32 mm with the engine cold. These are adjustment specifications rather than wear limits. The accompanying illustrations identify crankshaft and timing-belt pulley alignment marks and show the feeler-gauge measurement location, placing the values within the documented valve-clearance inspection and adjustment procedure.
