Mooney M20C/D/E/F 1962–1978 Service & Parts Manual Set (P/N MAN 104)
563 Pages • ZIP Download: 6 Printable PDFs • 40.87 MB
Mooney Models Covered & Key Technical Specifications
Models: M20B, M20C, M20D, M20E, M20F, M20G, M20J, M20K (231, 252, Encore — inspection-guide references), M20L, M20M, M20R, M20S, M22
Sub-models / Variants: Mark 21, Super 21, Executive 21
Model Years: 1962–1978 (1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978)
Coverage: Main service and parts manuals cover the listed M20C, M20D, M20E, and M20F configurations. Other models appear in the inspection guide and/or selected service information only.
Serial Numbers: Service & Maintenance Manual — M20C: 1852; 1940 thru 2207; 2209 thru 2255; 2257 thru 2296; 2208; 2256; 2297 thru 2622; 2623 thru 2741; 2743 thru 2806; 2742; 2807 thru 3184; 3185 thru 3466; 670001 thru 670149.
Service & Maintenance Manual — M20D: 1; 101 thru 200; 201 thru 251; 252 thru 259; 260 only. M20E: 101 thru 399; 401 thru 469; 400; 470 thru 831; 832 thru 1308; 670001 thru 670062. M20F: 660003, 660004; 670001 thru 670539.
Illustrated Parts Catalog — M20C: 2742; 2807 thru 3184; 3185 thru 3466; 670001 thru 670149. M20D: 252 thru 259; 260 only. M20E: 400; 470 thru 831; 832 thru 1308; 670001 thru 670062. M20F: 660003, 660004; 670001 thru 670539.
Selected supplemental applicability — S.B. M20-157: M20C 2321 thru 670134; M20E 101–680001. FAA AD 85-24-03, fuel-cap inspection: M20C 2623 thru 20-1258; M20D 201 thru 260.
S.B. M20-230A, fuel-tank sealant inspection — M20J: 24-0001 thru 24-1498; M20K: 25-0001 thru 25-0854. M20J 24-1499 & ON and M20K 25-0855 & ON apply only if a fuel tank has been resealed by field personnel.
S.I. M20-40, baggage tie-down replacement — M20F: 680001 thru 22-1362, 22-1364, 22-1365, 22-1367, 22-1368, 22-1369, 22-1371 thru 22-1376, 22-1378 thru 22-1381, 22-1385, 22-1386, 22-1388 thru 22-1394, 22-1396, 22-1399 thru 22-1407. M20G and M22: 680001 thru 700006.
-
Engine: Lycoming O-360-A1D (M20C; 1963 M20D; optional on 1964–1966 M20D), O-360-A2D (1964–1966 M20D), IO-360-A1A (M20E and M20F)
-
Engine power: 180 HP at 2700 RPM (M20C and M20D); 200 HP at 2700 RPM (M20E and M20F)
-
Propeller diameter: 74 inches (1966 M20C Mark 21)
-
Fuel type: 91/98 octane (1966 M20C Mark 21 Owner's Manual); 100/130 octane (M20E and M20F)
-
Electrical system: 12 volt, 50 amp generator (M20C, M20D, M20E, and M20F)
-
Battery capacity: 35 amp-hour (1966 M20C Mark 21)
-
Tire pressure: 30 PSI (main and nose tires on M20C, M20D, and M20E; main tires on M20F); 49 PSI (M20F nose tire)
-
Oil capacity: 8 quarts (6 quarts minimum for flight; 1966 M20C Mark 21)
Mooney Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Service & Maintenance Manual — P/N MAN 104, revised July 1980. M20C (1962-1967), M20D (1963-1966), M20E (1964-1967), and M20F (1967), subject to the listed serial groups. | 213 |
| Illustrated Parts Catalog — P/N MAN203, revised July 1976. M20C (1965-1967), M20D (1965-1966), M20E (1965-1967), and M20F (1967), subject to catalog effectivity. | 278 |
| Mark 21 Owner's Manual — P/N POH-001185, 1966 M20C edition, revised November 1965. | 47 |
| Selected Mooney Service Bulletins, Service Instructions, and FAA AD 85-24-03. M20/M22 applicability varies by document. | 20 |
| Electrical System Schematics — 1965 and 1966 M20C sheets, plus the 1967 M20C/M20E sheet. | 3 |
| 100 Hour–Annual Inspection Guide — Form 0100, revised July 2005. Checklist for M20B/C/D/E/F/G/J/K/L/M/R/S. | 2 |
The service procedures can be used alongside the parts catalog's assembly illustrations and effectivity notes to connect a maintenance task with the applicable components. The owner's manual adds operating context, while the wiring sheets and inspection guide support circuit reference and inspection planning.
Coverage limits: The main service manual and parts catalog cover the editions listed above; the supplemental references do not extend that coverage to full M20J, M20K, or M22 service or parts manuals. Powerplant material distinguishes the Lycoming O-360-A1D, O-360-A2D, and IO-360-A1A installations, but refers internal engine overhaul, detailed propeller work, and engine-control adjustments such as idle mixture to separate manufacturer manuals that are not included.
PDF Search, Navigation, and Included Pages
Finding text and wiring details: The service manual, parts catalog, owner's manual, and service-information file have searchable text layers and embedded bookmarks, although recognition errors can prevent some searches from finding a term. The inspection guide has searchable text but no bookmarks. The separate schematic file has neither text search nor bookmarks. Small wiring labels require zooming; some parts-catalog wiring lines and labels remain faint or uneven.
The ZIP contains six printable PDFs totaling 563 pages, including all covers, introductory material, and supplemental documents listed above. Included within that total are 20 front-matter pages across the three manuals, 11 service-manual section dividers, nine Shop Notes pages, one report form, and a four-page sample inspection checklist. The service manual's 13-page appendix and the parts catalog's 18-page appendix are also included.
Powerplant Service, Gear Rigging, and System Troubleshooting
The following selected contents show the main workshop areas rather than a complete contents list. Further topics include weight-and-balance computations and corrosion detection and prevention.
- Powerplant service: Step-by-step engine and constant-speed propeller removal procedures, reinstallation guidance, induction-air-filter care, and model-specific cowl-flap opening adjustments.
- Wing and structure: Wing removal and installation, wing-to-fuselage attachment references, mating torque information, and wing, tail, and fuselage skin charts.
- Landing gear and brakes: Gear removal and installation, shock-disc service, preload inspection and adjustment, electric-gear rigging, brake-lining replacement, wheel inspection, and brake bleeding.
- Flight controls: Aileron, rudder, elevator, and flap removal and installation; control-surface balancing; trim and control rigging; trailing-edge trimming; and hydraulic flap bleeding.
- Positive Control: Ground and flight tests, cutoff- and pilot-valve checks, vacuum-system diagnosis, servo-leak checks, maintenance, and symptom-based troubleshooting.
- Fuel-system repair: Electric boost-pump and selector-valve removal and installation, integral-tank field repair, sealant handling and application, leak classification, leak detection, and repair.
- Electrical and instruments: Switch and circuit-breaker checks, battery and charging-system diagnosis, voltage-regulator testing, starter fault tracing, instrument troubleshooting, and model-specific wiring diagrams.
The factory service manual specifies qualified personnel for maintenance and repair procedures; the Mark 21 owner's manual provides operating and routine-servicing information.
Parts Identification and Assembly Effectivity
Illustrated assemblies: The catalog's group index runs from Figure 1 through Figure 61, with lettered variants where configurations differ. Listings provide manufacturer part numbers, units per assembly, and model or serial effectivity.
Coverage includes wing and fuselage structure, empennage, landing gear and retraction components, flight controls, engine installation and systems, cabin furnishings, electrical equipment, hydraulic brake/flap controls, vacuum/manifold/static systems, ventilation, heating/cooling, retractable step components, placards, and paint identification.
Finding the applicable part: A numerical index and a cross-reference between four- and six-digit Mooney part numbers support identification. Effectivity letters and serial-number footnotes distinguish configuration changes within an assembly.
The catalog lists standard replaceable parts; its stated scope excludes optional-equipment listings and much of the common hardware used for tube and wire routing. Illustrations may intentionally distort dimensions and routing, so they are identification aids rather than reassembly or installation instructions.
Landing-Gear and Control-Rigging References
Tools and diagrams: Shop references include gear-retraction spring tool 8186, shock-disc replacement tools ME120 and ME121, and Mooney control travel boards. The Gear Rigging Diagram and Control Surface Balancing Diagram accompany the relevant adjustment and balance material.
Repair cautions: The service manual links incorrect landing-gear overcenter adjustment to possible down-lock disengagement and gear collapse during landing or taxi. It also warns that using the emergency handcrank to retract the electric gear can damage the flexible drive shaft.
Positive Control Tests and Configuration Differences
Roll and yaw diagnosis: The Positive Control System Installation drawings support checks of vacuum plumbing, valves, and servos. The text distinguishes the remote-gyro arrangements used in 1965 and 1966 from the 1967 turn-coordinator configuration and lists the Brittain TS-100 test kit.
The procedures address the roll/yaw system. Dynertial Pitch Control, Magnetic Heading Lock, and certain component adjustments are referred to separate manuals.
Integral Fuel-Tank Repair and Leak Tracing
Locating and classifying leaks: The Fuel Tank Leak Detection Diagram supports the distinction between external leakage and its internal source. Related material covers sealant preparation, application and curing, removable access panels, and field repairs.
Electric boost-pump and selector-valve procedures are included. Engine-driven fuel-pump removal and assembly are referred to the applicable Lycoming instructions.
Charging Circuits, Starting Faults, and Instruments
Electrical diagnosis: The Voltage Regulator Setting Chart accompanies charging-system checks, while troubleshooting tables connect battery, generator, regulator, and starter symptoms with possible causes and corrective actions. Instrument tables address indications involving the compass, tachometer, altimeter, airspeed, pitot system, rate of climb, manifold pressure, and gyroscopic instruments.
The separate schematic sheets provide convenient references for the 1965, 1966, and 1967 configurations. Additional model-specific diagrams and electrical equipment lists remain within the service manual and parts catalog.
Mark 21 Operation and Supplemental Service Information
Owner's reference: The operating manual covers component operation, preflight checks, starting, takeoff, cruise, landing, routine servicing, performance charts, and operating limitations.

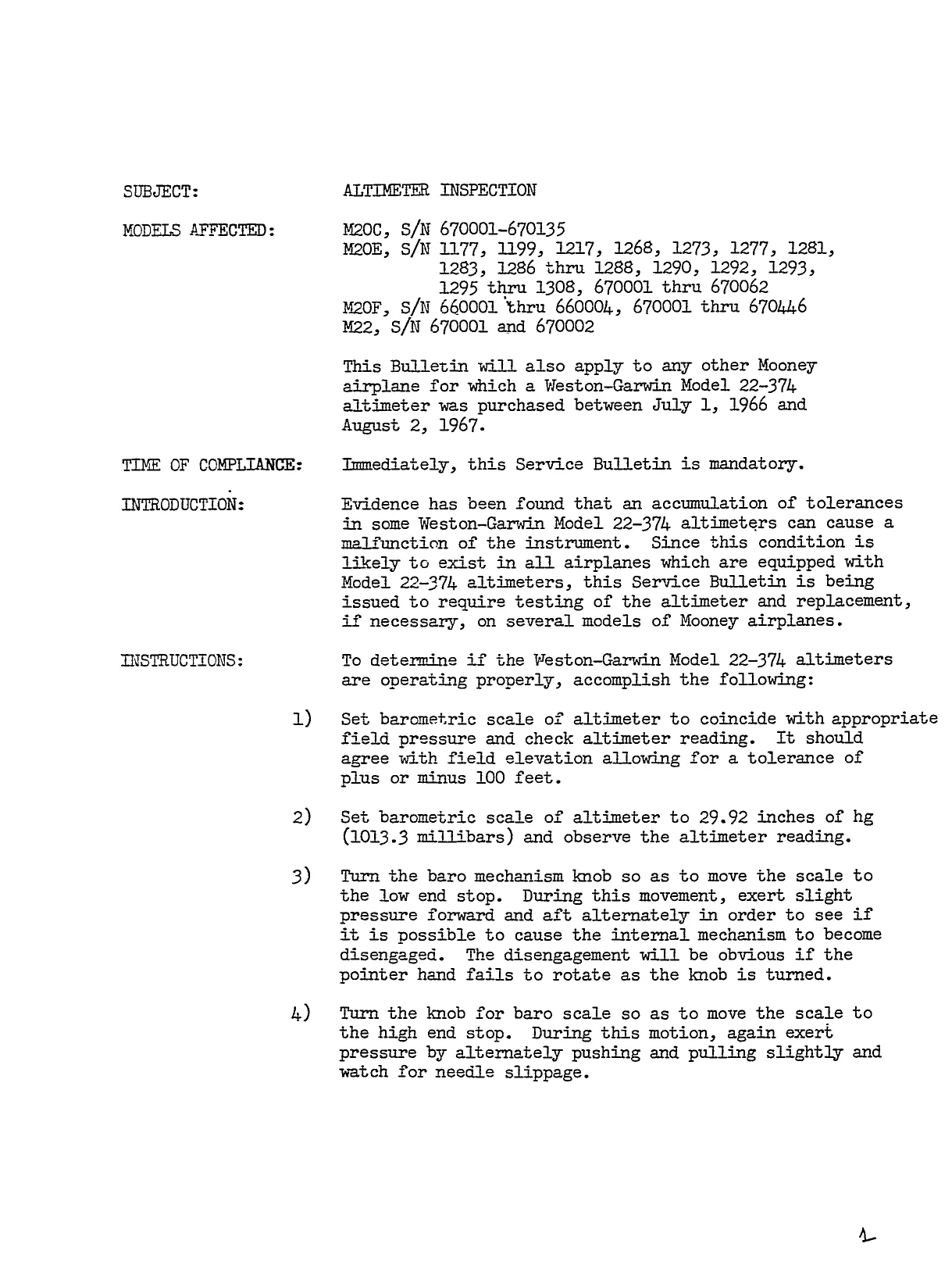

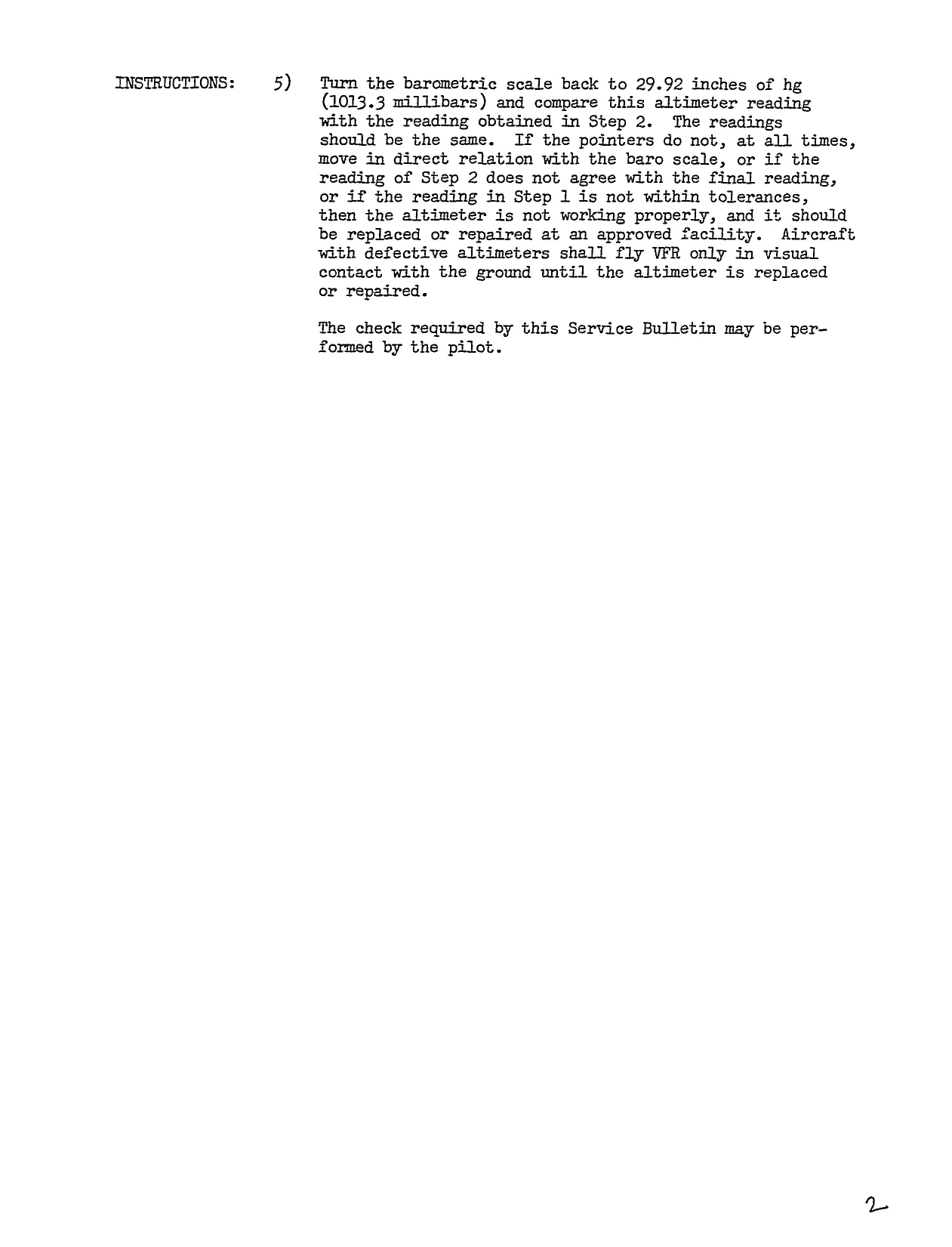

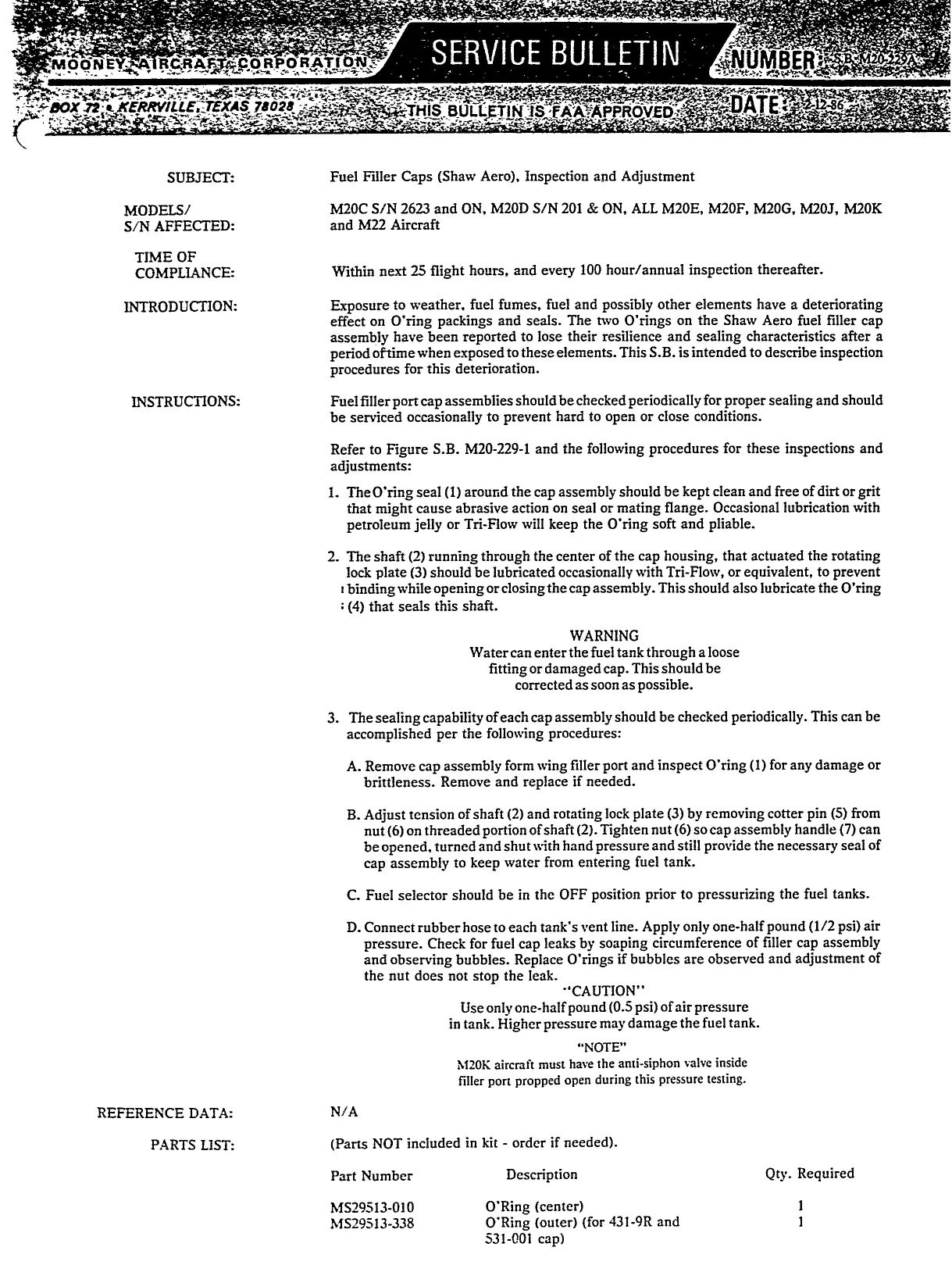

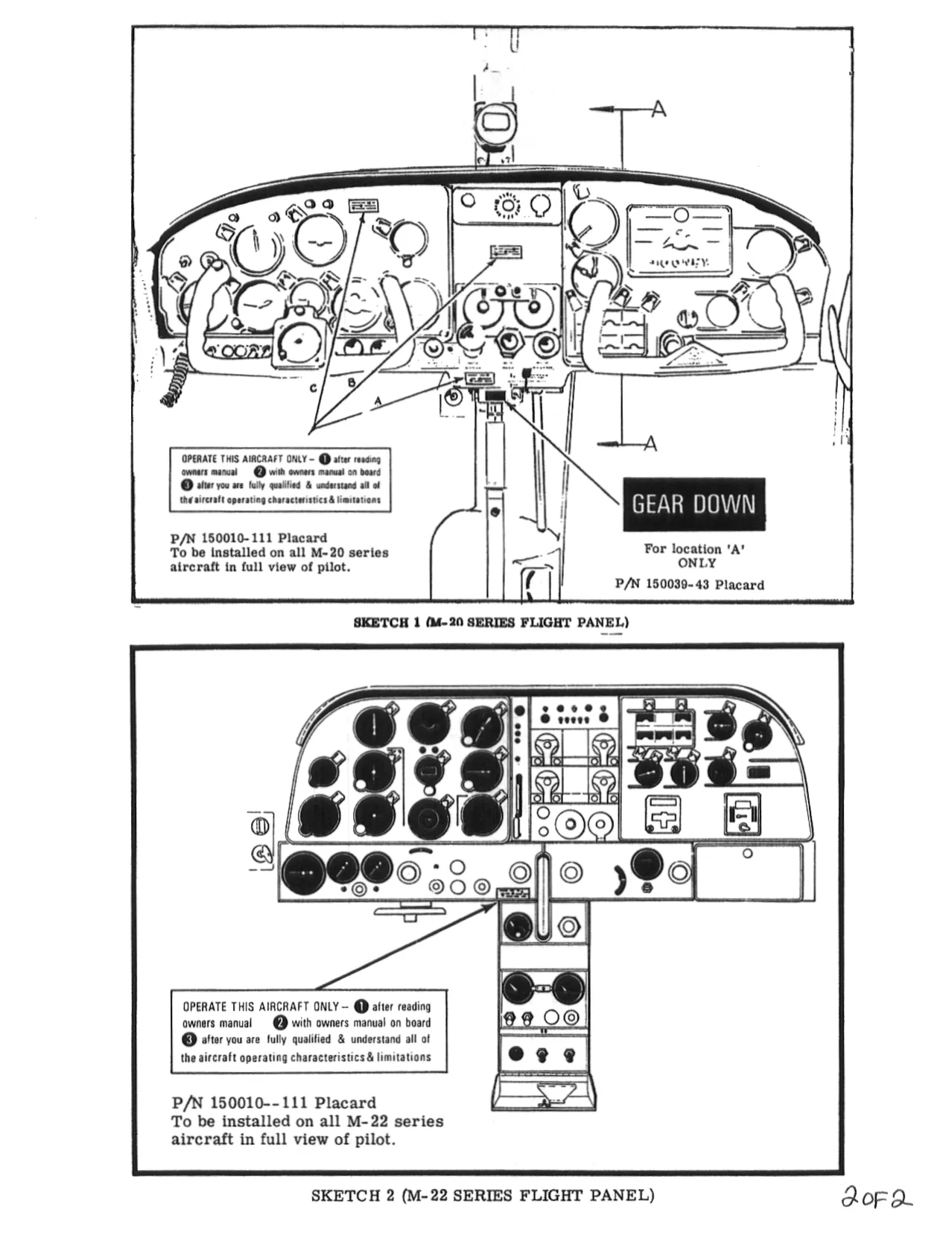

Selected service documents: Topics include fuel-filler-cap inspection, fuel-tank sealant and rib-drain inspection, field fuel-tank repair, baggage tie-down replacement, starter-solenoid replacement, operation placards, and altimeter inspection. The file also contains notices concerning the KT76A transponder and landing-gear actuator torsion springs, together with the archived FAA directive identified in the publication table.
Inspection checklist: The separate annual/100-hour guide organizes engine, airframe, landing-gear, and operational checks. It directs the user to the applicable model service manual and engine or propeller documentation for the underlying inspection work.
Examples of Model-Specific Cowl-Flap Settings
Left cowl-flap opening: With the flap fully extended, the service manual specifies 1.1 ± 0.1 inches for the M20C and 2.4 ± 0.1 inches for the M20D, measured at the trailing edge. These examples illustrate the model-specific adjustment data accompanying the cowl-flap procedure.
