Case IH 956, 1056, 956XL & 1056XL Tractor Workshop Manual Set, 1987 (P/N Don 8-59030)

886 Pages • Printable PDF • 151.64 MB • Download

4.8starstarstarstarstar_half(4)
$24.98 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

International Models Covered & Key Technical Specifications

Models: IH 956, IH 1056, IH 956XL, IH 1056XL

Sub-models / Variants: 956 / 956XL (D-358), 1056 / 1056XL (D-358); C-family tractors.

Transmission variants: C-family synchronized four-speed gearbox with shifter-collar or synchronized range transmission; optional synchronized or non-synchronized speed reducer.

MFWD transfer gearbox: C-family heavy-duty version 2002 105 089 (30/40 km/h, APL-345 axle).

MFWD axle / differential: APL-345 for C-family tractors; DZ-400 self-locking or conventional differential.

Engine serial breaks — injection-pump specifications: 956 / 956XL: up to 134701; 134 702 up with automatic excess fuel. 1056 / 1056XL: up to 152 309; 152 310 up with automatic excess fuel.

Shared engine-section coverage: 3-cylinder, 4-cylinder, 6-cylinder, naturally aspirated, turbocharged, D-155, D-179, D-206, D-239, D-246, D-268, D-310, D-358, DT-239, DT-358, DT-402. The engine specifications below describe these shared publications, rather than alternative engines fitted to every listed tractor.

Model Year: 1987


  • Engine types: 3, 4, and 6-cylinder 4-cycle diesel

  • Cylinder bore range: 98.4 mm to 100.0 mm

  • Stroke range: 111.1 mm to 139.7 mm

  • Piston displacement: 2536 cc to 6587 cc

  • Compression ratio: 16:1 (except D-268 and DT-402 at 15:1)

  • Thermostat opening temperature: 78–82 °C or 80–84 °C depending on unit

  • Valve clearance (hot): 0.30 mm (0.012 inch)

International Manual Features & Selected Content Preview

Publication Pages

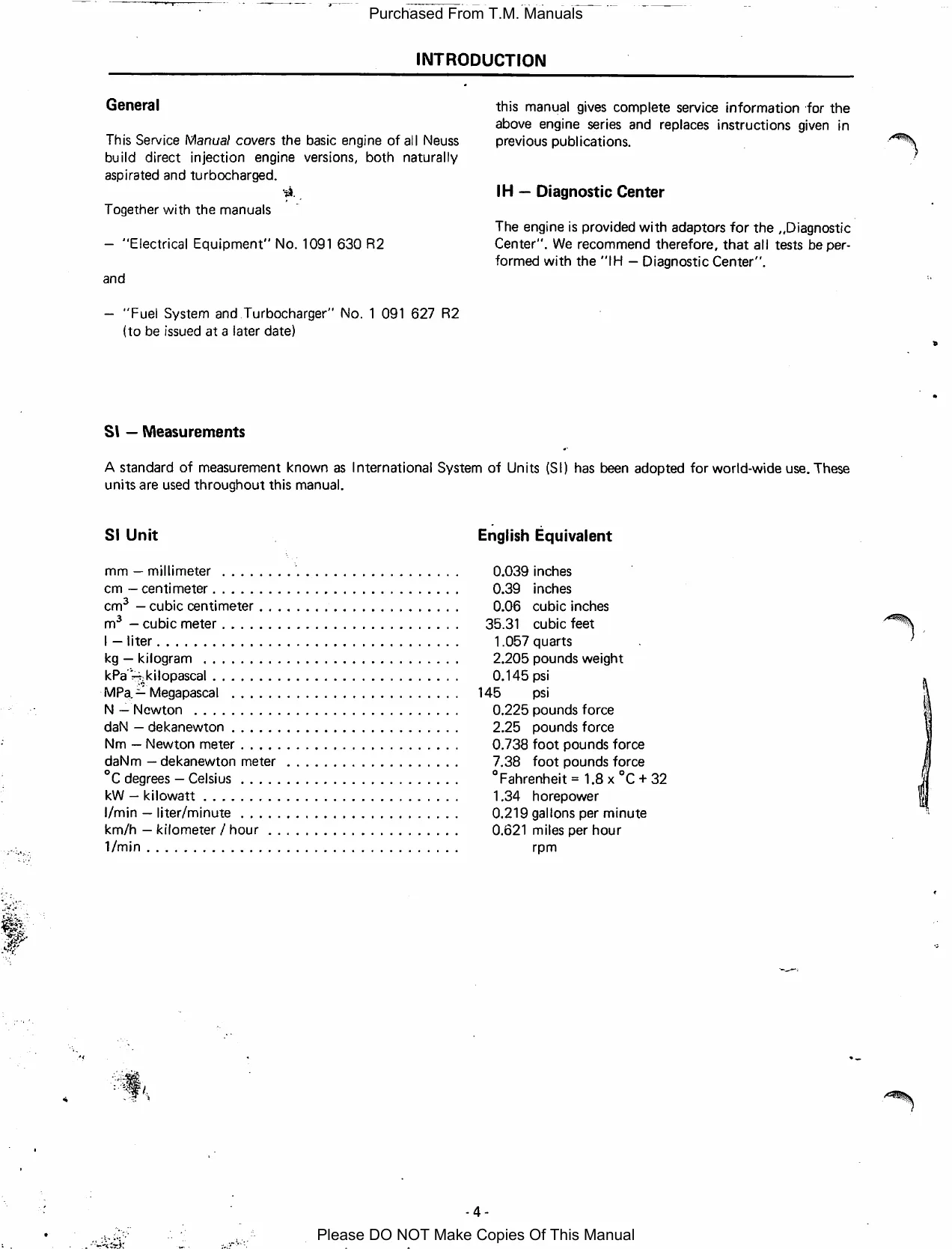

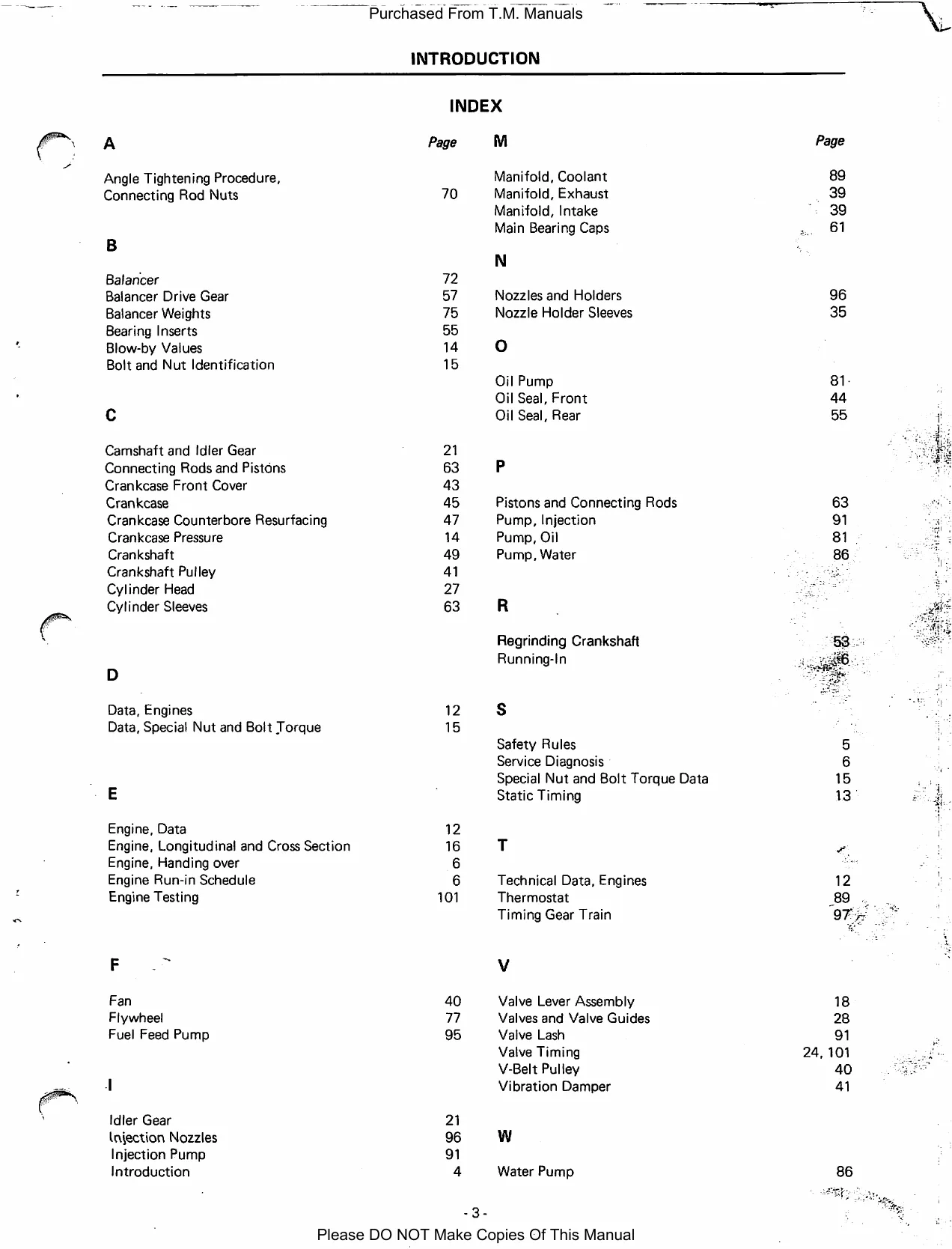

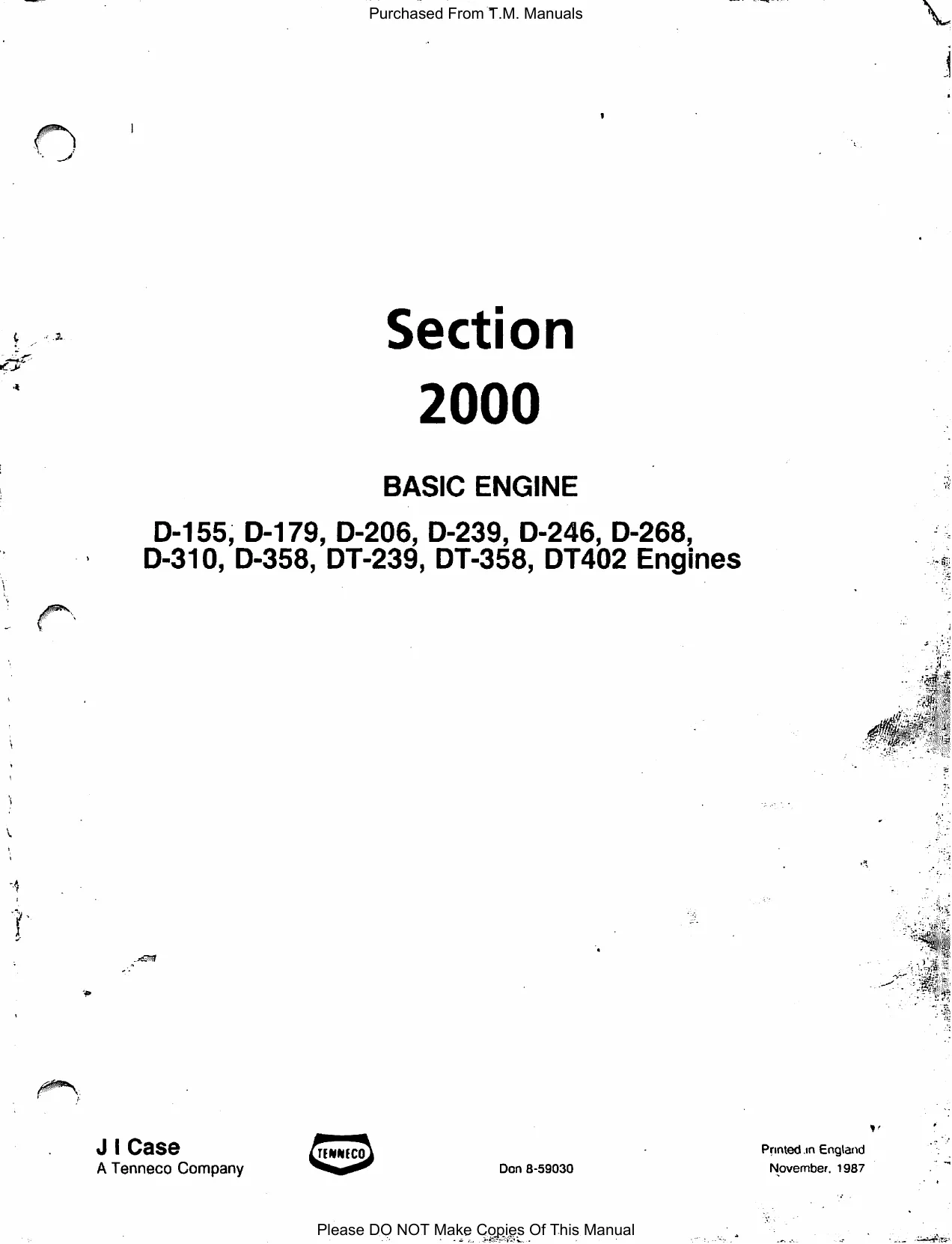

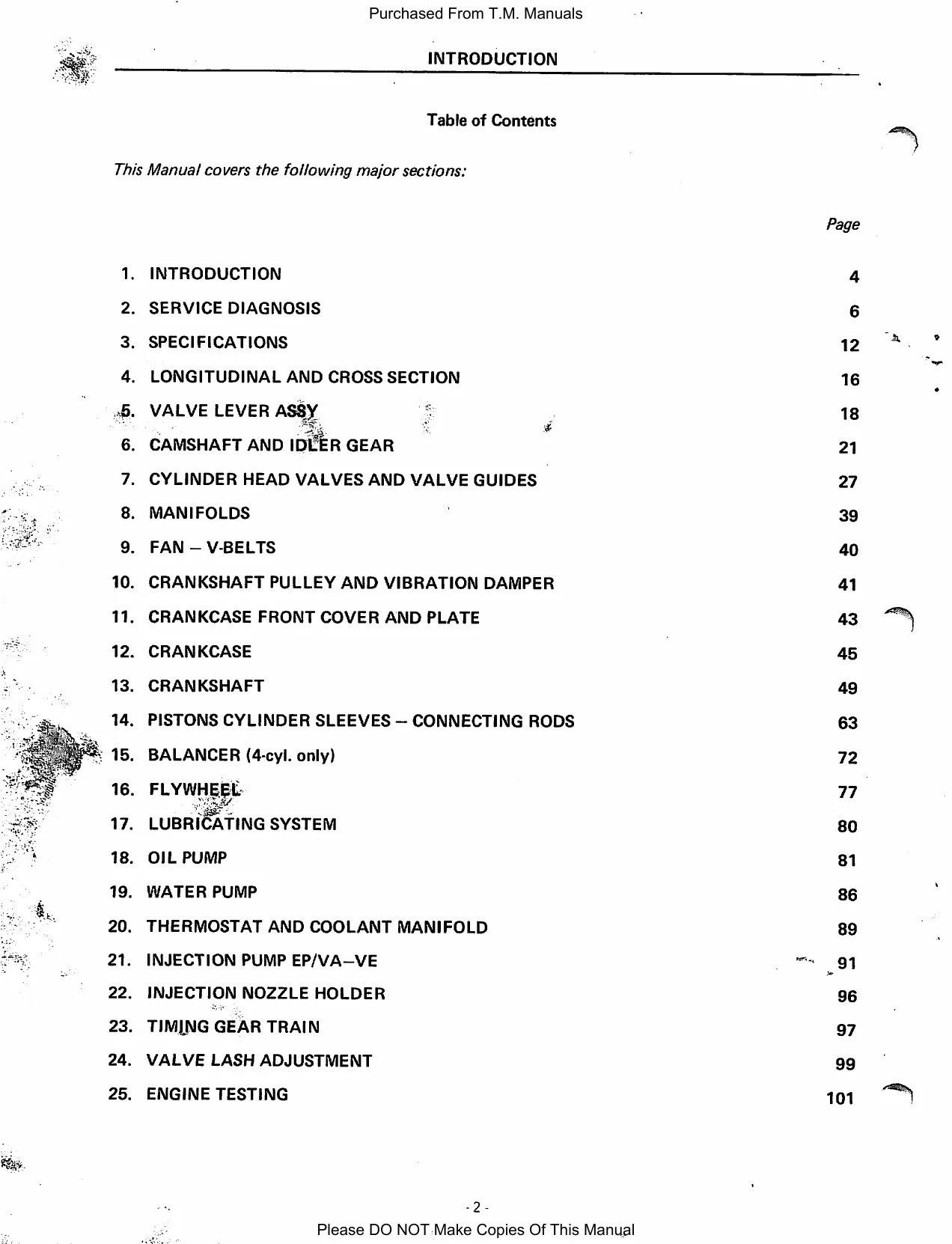

Basic Engine, Section 2000 — Neuss D-155, D-179, D-206, D-239, D-246, D-268, D-310, D-358, DT-239, DT-358 and DT-402; P/N Don 8-59030; IH reference 1 091 624 R2 105
Fuel System and Turbochargers, Section 3000 — shared Neuss D/DT engine coverage; P/N Don 8-59040; IH reference 1 091 627 R2 328
Electric Equipment, Section 4000 — Bosch equipment for the shared Neuss engine series; P/N Don 8-59050; IH reference 1 091 630 R2 48
MFWD Electrical Controls, Section 4005 — B- and C-family tractors; P/N Don 8-58340 11
Steering Cylinder, Section 5005 — APL 335/345 MFWD axles; P/N Don 8-58650 15
Transmission, Section 6610 — 956, 1056, 956XL and 1056XL, with shared 955/1055 coverage; P/N Don 8-59070 79
MFWD Axle Removal and Installation, Section 6625 — B- and C-family tractors; P/N Don 8-57300 9
Front Wheel Drive Shaft, Section 6630 — B- and C-family tractors; P/N Don 8-57310 11
MFWD Transfer Gearbox, Section 6635 — B- and C-family configurations; P/N Don 8-57320 22
MFWD Accumulator, Section 6640 — 40 km/h versions with hydraulic brakes, including 956XL/1056XL; P/N Don 8-57330 13
MFWD Filter and Shift Solenoid, Section 6645 — B- and C-family tractors; P/N Don 8-57340 11
Differential and Drive Pinion, Section 6670 — APL 335/345 MFWD axles; P/N Don 8-58200 35
Final Drives, Section 6671 — APL 335/345 MFWD axles; P/N Don 8-58210 19
Hydraulics, Section 8410 — C-family tractors, including the listed XL and non-XL models; P/N Don 8-59090 63
XL Control Centre, Section 9905 — XL cab service, including 956XL/1056XL; P/N Don 8-59110 58
Air Conditioning, Section 9920 — 956XL/1056XL, with shared 1255XL/1455XL coverage; P/N Don 8-56730 58

The three shared engine publications work together for mechanical, fuel-system and electrical service. The tractor sections add C-family drivetrain and hydraulic work, with separate instructions for XL cab and air-conditioning service.

Coverage limits: The tractor-specific fuel data identify the D-358 engine; the other engine types belong to the shared engine publications. Front-axle repair covers mechanical front-drive APL units. Dedicated full overhauls of the service brakes, 2WD front axle, rear final drives and hydrostatic power steering are outside this selection; hydraulic-pump overhaul is referred to a separate steering publication.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Technical content does not support PDF text search. Sixteen embedded bookmarks open the main service sections. Small wiring codes, circuit labels and dense hydraulic callouts in the checked diagrams are readable when enlarged.

Supplied as one printable, English-language 886-page PDF, including all publications listed above and one additional cover page.


Engine, Drivetrain and XL Systems Repair

These selected coverage highlights summarize the main workshop areas. Other documented topics include engine run-in schedules and cab floor-mat and seal installation.

  • Engine overhaul: Step-by-step disassembly, inspection and reassembly of the cylinder block, head, crankshaft, pistons, sleeves and connecting rods, with lubrication, cooling and performance checks.

  • Fuel injection and turbochargers: Bosch VA/CR and VE/F pump overhaul, bench testing, aneroid adjustment, nozzle service, and AiResearch and KKK/Schwitzer turbocharger repair.

  • Electrical diagnosis: DC generator and alternator testing, mechanical and transistorized regulators, JD/JF starter repair, MFWD relays and switches, and brake-light switch adjustment.

  • Transmission service: Gearbox removal, shifter mechanisms, gearshift and range units, speed reducers, rear countershaft, reverse idler, differential lock, PTO and pressure-feed lubrication.

  • Mechanical front drive: Steering-cylinder repair, axle removal, driveshaft alignment, transfer-gearbox and clutch service, accumulator work, filter and solenoid service, differential setup and final-drive repair.

  • Hydraulic lift: Draft and position control, pump-capacity and pressure tests, troubleshooting charts, lift disassembly, control-valve inspection, rockshaft and piston service, and lower-link sensing adjustment.

  • XL cab and A/C: Cab tilting, removal and installation, tractor splitting, glass service, linkage adjustments, electrical diagnosis, leak testing, discharging, purging, evacuation, charging and flushing.

This set suits experienced tractor mechanics equipped for splitting and precision measurement; injection-pump overhaul requires skilled personnel and suitable test equipment, while A/C service requires specific training.

Engine Inspection and Injection-Pump Matching

Internal engine coverage extends to valve gear, camshaft and idler gear, crankcase inspection, balance gear, flywheel and timing-gear train work. Oil- and water-pump repair, thermostat testing and valve-lash adjustment accompany the overhaul procedures.

Reference material includes component torque tables, static injection-timing charts, compression and oil-pressure tests, crankcase-pressure and blow-by limits, wear tolerances and inspection clearances. DT-358 longitudinal and cross sections show the internal component layout.

The fuel publication separates on-engine checks from Fuel Rator and flow-bench specifications. Pump-specific tables distinguish earlier configurations from automatic excess-fuel versions at the engine serial breaks, helping match test data to the installed pump.

Bosch VA/CR and VE/F cutaways explain pump operation. Flange- and crab-mounted nozzle holders receive separate treatment, and the turbocharger chapters address air-induction contamination after compressor-wheel failure.

Transmission Configurations and MFWD Setup

Transmission instructions distinguish central-shift controls from the 956XL/1056XL side-shift arrangement. Shifter-collar and synchronized range boxes, both speed-reducer designs, independent PTO and optional ground-speed PTO configurations have their own service details.

Transfer-gearbox tables separate standard and heavy-duty units, 30/40 km/h versions and APL-330/335/345 axle pairings. Configuration cross sections and clutch-stack layouts help select the matching disc and spacer data before assembly.

The axle publication distinguishes APL 345/DZ-400 and conventional differentials from the shared APL 335/DZ-150 design. Bearing-preload, pinion-setting, tooth-contact and backlash procedures accompany the overhaul instructions.

The transfer-gearbox disassembly instructions identify a spur-gear bearing that is damaged during removal and must then be replaced.

Hydraulic Fault Isolation and Repair Limits

Neutral, lift and lowering circuit views explain the relationship between the pump, flow divider and draft-control valve. Pressure, pilot-stream, relief-valve and lift-capacity tests support fault isolation before internal lift repairs.

Lower-link sensing, rockshaft, piston and control-linkage work includes inspection and adjustment procedures. Auxiliary control-valve repairs are limited to seals and gaskets; faults that cannot be corrected within that scope require valve-unit replacement.

XL Cab Adjustments and Original R-12 A/C

Cab-position service guides organize work by whether the cab remains installed, is tilted or must be removed. Adjustment drawings distinguish wet- and dry-brake differential-lock linkages and also cover shift, PTO, powershift and hydraulic-control linkages.

The A/C instructions address the original R-12 system. The wiring diagram, pressure-temperature charts and failure-analysis chart connect electrical checks with gauge readings, sight-glass observations and line temperatures.

Compressor-failure service addresses contamination removal, flushing and evacuation. The manual also explains how liquid refrigerant entering the compressor can damage its internal valves and pistons.

Workshop Tools and Test Equipment

Tool coverage includes Bosch KDEP/FES pump fixtures and timing-indicator extension 1329 159C1. Axle pullers, bearing tools and drawings for locally fabricated transfer-gearbox fixtures support the drivetrain work.

Hydraulic test gauges and IH Diagnostic Center connections are described, along with alternative hydraulic test procedures. A/C service calls for manifold gauges, vacuum equipment and leak-detection tools.

Tractor splitting, suspended assemblies, pressurized hydraulic oil, rotating driveline parts and refrigerant require suitable supports, pressure relief, electrical isolation and the manual’s work-safety precautions.

Examples of MFWD Clutch and Axle Clearances

The transfer-gearbox specifications give clutch-disc clearance of 0.80–1.80 mm and clutch-assembly end play of 0.3–0.5 mm. These checks accompany the assembly and spacer-selection procedures, including the C-family heavy-duty configuration.

For the C-family APL 345 front axle, bevel-gear and pinion backlash is specified at 0.13–0.18 mm. The differential section explains the related measurement and adjustment work.
