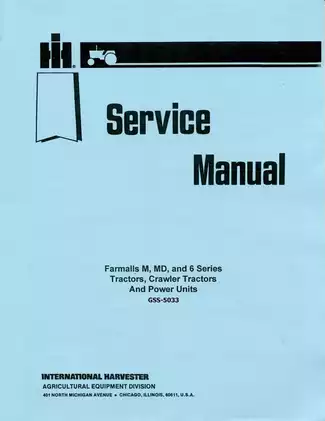

1950–1958 International Farmall M, MD & 6 Series Tractor Service Manual (P/N GSS-5033)

This International Harvester GSS-5033 Service Manual covers Farmall M, MD, and 6 Series tractors and power units, including T-6/TD-6 crawlers, O-6/OS-6/ODS-6 orchard and grove tractors, and U-6/UD-6 power units.

• Engine repair: Cylinder-head and valve service, piston and dry-sleeve replacement, crankshaft and camshaft bearing work, and timing-gear alignment.

• Fuel and starting systems: E-12 carburetor rebuilding, Diesel starting-control adjustment, fuel-system venting, IH injection-pump timing, and injection-nozzle testing.

• Transmission and final drive: Wheel-tractor and crawler transmission disassembly, differential service, drive bevel-gear adjustment, rear-axle repair, and sprocket-drive removal.

• Clutches, brakes, and tracks: Engine-clutch adjustment, crawler steering-clutch removal and assembly, brake-band replacement, and track-frame, roller, and idler service.

• Cooling and lubrication: Water-pump repair, bypass-thermostat operation, oil-pump inspection, and lubrication diagrams covering the crawler auxiliary-pump arrangements.

• Electrical diagnosis: H-4 magneto maintenance and timing, generator-output checks, starting-motor fault tracing, and ignition, charging, and lighting diagrams.

This manual is suited to mechanics familiar with precision engine measurements, presses, and the supported removal of heavy drivetrain assemblies.

Engine Internals and Lubrication

Separate carbureted and Diesel chapters provide cylinder-liner dimensions, piston ring gaps, valve-lever clearances, and camshaft bearing specifications. More than 90 illustrations include engine cross sections, exploded oil-pump views, and lubrication schematics showing the crawler auxiliary-pump arrangements.

The bearing-installation notes explain how dirt trapped behind a bearing shell can reduce local clearance, create hot spots, and cause bearing failure.

For the U-6 and UD-6, standard net power curves and part-throttle fuel-consumption charts document power-unit performance.

E-12 Carburetion and Diesel Starting

The Model E-12 jet-identification table separates wheel-tractor carburetors from fuel-pump-fed crawler and power-unit versions. An exploded view accompanies the inspection and rebuilding instructions.

The Diesel starting section explains the relationship between the starting valves, dual intake manifold, magneto grounding switch, and carburetor shutoff. Fuel-system instructions distinguish IH single-plunger and Bosch pump installations and their venting arrangements.

A Diesel fuel-system schematic accompanies IH pump removal, replacement, and timing coverage. Nozzle inspection includes hydraulic testing using SE 905A. Complete injection-pump and governor servicing is referred to a separate Diesel Fuel Injection Pump Service Manual, which is not included.

The pump-removal section warns that running the engine with the injection pump removed can damage the pump drive gear.

Transmission, Clutches, and Crawler Final Drives

Bevel-gear setup combines shim adjustment, backlash measurement, and tooth-contact illustrations. These references help assess gear mesh before closing up the transmission.

The high-clearance Farmall MV/MDV chain final drives have separate service coverage. T-6 sprocket gearing changes at TBK-8541 for standard tread and TBK-8547 for wide tread; gears from the two tooth-pressure-angle designs cannot be mixed.

Engine-clutch adjustments distinguish spring-loaded and over-center designs. The crawler steering clutches are spring-loaded, with section views, disassembly and reassembly information in the final-drive charts, and compressor bolts 48389-D identified for the work. Complete engine- and steering-clutch servicing is referred to CHS-62, which is not included.

Chassis coverage extends to steering gear, track-frame pivot shafts, and equalizer springs. Attachment sections provide belt-pulley and PTO service information, while the reference tables list tire tread widths, gear speeds, and PTO speeds.

Water-Pump Service and Electrical Fault Checks

Water-pump repair covers the impeller, packing, bearings, and seals. The cooling-system schematic explains bypass circulation, and the radiator section distinguishes pressure and nonpressure systems.

The charging-circuit schematic and starter/lighting circuit support checks of the cutout relay, wiring connections, brushes, and Bendix starter drive. Complete H-4 magneto servicing is referred to CHS-27, which is not included.

Working on high-pressure fuel lines and heavy engine internals carries inherent physical risks. Follow appropriate shop safety practices and support heavy assemblies securely.

Examples of Valve, Oil-Pressure, and Nozzle Data

These engine and fuel-system values are a small sample of the manual's service specifications.

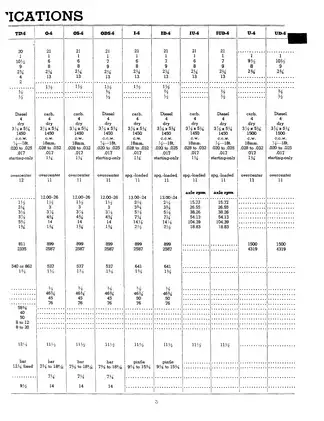

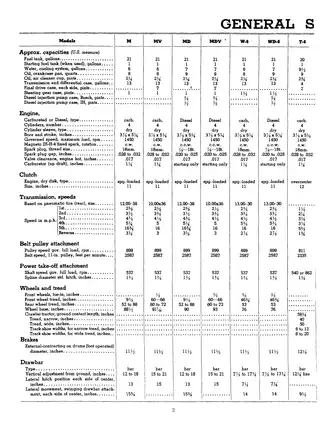

For carbureted and Diesel engines, intake and exhaust valve-lever clearance is 0.017 in. with the engine hot. The T-6 lubrication data specify 60–70 psi at 1,450 rpm.

The IH Diesel injection-nozzle opening-pressure specification is 700 psi, accompanied by nozzle inspection and leakage-test information.

PDF Navigation, Diagram Detail, and Page Count

Text access and diagram detail: The manual's technical content is not searchable, and there are no embedded PDF bookmarks. Small labels in the charging and starter/lighting diagrams are legible when enlarged.

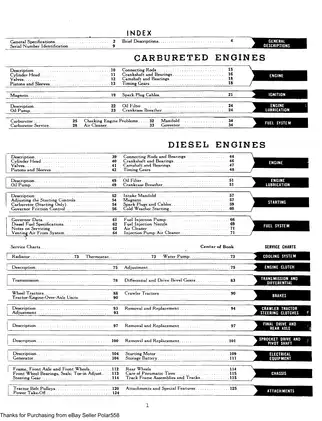

Supplied as one printable 138-page PDF: 130 numbered pages, including three memorandum pages; the manual cover; five service charts and their separate index page; and one additional introductory page. All are included in the 138-page total.
