Farmall-M and MV Service Manual

Technical reference for Farmall-M and MV tractors, covering engine operations, chassis lubrication, and attachment procedures. Publication 66413 D.

4.5starstarstarstarstar_half(4)
visibility Preview Available

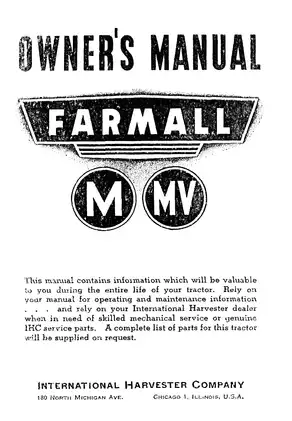

Farmall Farmall-M and MV Service Manual manual page preview - page 1 of 109

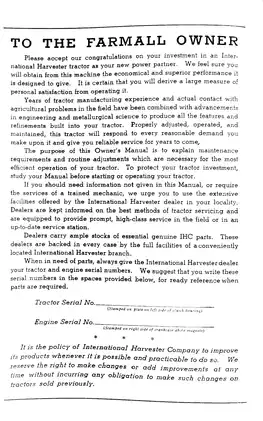

Sample pages from the Farmall-M and MV Service Manual manual

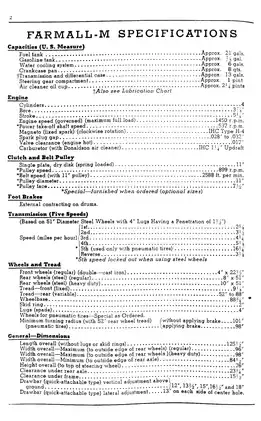

Farmall Farmall-M and MV Service Manual manual preview page 2 - thumbnail

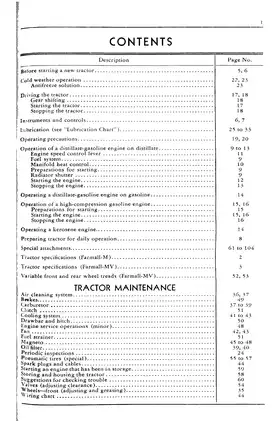

Farmall Farmall-M and MV Service Manual manual preview page 4 - thumbnail
Farmall Farmall-M and MV Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$14.85 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Farmall Models Covered & Key Technical Specifications

Models: Farmall-M, Farmall-MV
Sub-models / Variants: Distillate-gasoline, High-compression gasoline, Kerosene engine, Steel wheels, Pneumatic tires
Build Years: 1940s–1950s (Production era reference)
Technical Data:

  • Engine: 4-cylinder, governed maximum full load 1450 rpm, maximum idle 1595 rpm
  • Transmission: 5 speeds forward, 1 reverse
  • Fuel Tank Capacity: Approx. 21 gallons (gasoline), approx. 7/8 gallon (auxiliary)
  • Cooling System: Approx. 6 gallons capacity
  • Spark Plug Gap: 0.028 to 0.032 inch
  • Valve Clearance (Engine Hot): 0.017 inch
  • Clutch: Single plate, dry disk, 11-inch diameter
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
27429 / Donna Bell
File Size:
8.08 MB
File Type:
PDF
Language:
English
Pages:
109
Printable:
Yes
Category:
Tractor
Last updated / verified
Oct 24, 2025

Farmall Manual Features & Content Preview

Farmall-M and MV Operations and Maintenance Documentation

  • Covers 1940s–1950s International Harvester Farmall-M and Farmall-MV tractors, including distillate, kerosene, and high-compression gasoline variants
  • Original OEM publication from International Harvester Company, Chicago, Illinois
  • Contains 81 illustrated figures detailing component identification, lubrication points, electrical attachments, and wheel adjustment configurations
  • Page count spans 109 sections of technical maintenance data for the 4-cylinder Farmall-M engine line
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Stored against your account so you can retrieve it after a hard-drive loss
  • This 109-page document is the primary reference manual provided by International Harvester for the Farmall-M, essential for documenting the maintenance requirements of the classic 1450 rpm engine setup

Operational Framework and Maintenance Guidelines

This 109-page International Harvester Farmall-M service publication provides information for the operation and maintenance of the Farmall-M and Farmall-MV. The chapters outline starting procedures for various engine configurations, cold weather operations, and lubrication requirements. The text describes handle daily operations, adjustments for the carburetion system, and the cooling system maintenance intervals.

Additional chapters detail the operation and maintenance of optional equipment, including power take-off attachments, belt pulleys, and electrical systems. The document provides clear guidance on the use of the gearshift lever, the clutch, and the manifold heat control for distillate fuel usage. The final sections include detailed wiring diagrams and electrical system specifications for Delco-Remy and Bosch attachments, ensuring the proper maintenance of battery-equipped units.

Technical Specification Highlights

The manual documents engine specifications such as the 1450 rpm governed speed and the 0.017 inch hot valve clearance requirement. Coolant system capacity for the Farmall-M and Farmall-MV is documented at 6 gallons. Transmission capacity for the tractor is specified at 13 U.S. gallons. For those seeking additional information on how factory workshop documentation is structured, this volume includes detailed service tables, lubrication charts, and adjustment parameters for the front and rear wheel treads. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. This original 109-page International Harvester manual is the definitive guide for the 1940s–1950s Farmall-M and Farmall-MV tractors, providing comprehensive specifications and maintenance data for the entire tractor and engine assembly.

Document Reference: 109 pages, International Harvester Company, Chicago 1, Illinois, U.S.A.

Manual FAQ, Purchase & Download Details

Does this owner manual provide comprehensive information regarding the starting and operating requirements for the various engine configurations available for the Farmall-M and MV tractors? keyboard_arrow_down

Document includes extensive chapters detailing the operation of high-compression gasoline, distillate, and kerosene engines, including specific guidance for starting, warming, and stopping the power plant.

What technical specifications and dimension categories are listed in the specification tables for the Farmall-M and Farmall-MV models? keyboard_arrow_down

Specification tables contain technical data such as fuel tank capacities, bore and stroke dimensions, maximum governed engine speeds, and electrical settings like spark plug gaps. These tables also provide general dimensions for the tractor, including wheelbase, clearance, and overall width configurations.

Which formats and access options are provided for this owner manual? keyboard_arrow_down

Document is delivered in a high-quality PDF format compatible with most digital devices for instant viewing. It is written in English and provides lifetime access to the owner and maintenance information contained within the 109 pages. The digital file is optimized for quick reference and can be viewed on screens or printed as needed for personal convenience.

Can I view detailed internal component breakdowns through the included illustrations and cut-away diagrams? keyboard_arrow_down

Manual contains various illustrative figures and a comprehensive cut-away view of the tractor that displays internal working parts and the arrangement of major systems.

Is there a specific section provided to help reference instruments and control operations? keyboard_arrow_down

Document includes dedicated sections that identify the various instruments and controls, such as the engine speed control lever, manifold heat control, and radiator shutter crank. These sections explain the purpose and intended function of each control interface found on the operator station.

Customer Reviews

Read what our customers say about this Farmall Tractor manual and share your own experience.
