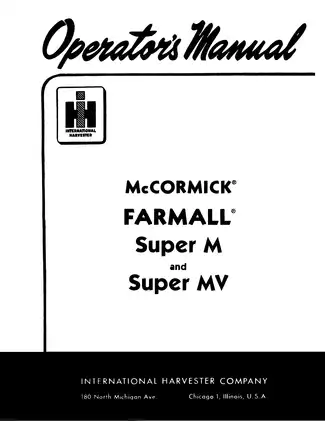

1952–1954 International Farmall Super M & Super MV Tractor Operator's Manual (P/N 1 004 245 R1)

This International Harvester operator's manual, publication 1 004 245 R1, covers the 1952–1954 Farmall Super M and Super MV tractors with gasoline, distillate, or kerosene engines.

• Engine and fuel system: Carburetor removal, installation, idle and main-fuel adjustment, valve-clearance adjustment, fuel-strainer cleaning, and oil-bath air-cleaner service.

• Ignition and electrical equipment: Battery ignition and IH Type H-4 magneto timing, breaker-point service, generator polarization, starting-motor removal, storage-battery checks, and wiring diagrams.

• Clutch, brakes, and running gear: Engine clutch clearance, brake-pedal travel and equalization, front-wheel bearing service, wheel-tread changes, and adjustable wide-front-axle toe-in.

• Lubrication and cooling: Illustrated lubrication guide, periodic inspections, oil-filter replacement, steering gear housing lubrication, cooling-system cleaning, fan-belt replacement, and water-pump packing service.

• Hydraulics and implements: Farmall Hydraulic Lift-All operation, remote-control cylinder setup, drawbar adjustments, and belt-pulley and power take-off operation.

• Troubleshooting and storage: Cause-and-remedy charts for starting, power, overheating, oil-pressure, electrical, brake, and transmission complaints, plus storage and return-to-service procedures.

Written for tractor owners and operators, the manual combines operating guidance with maintenance checks that use tools such as a feeler gauge.

Fuel Operation and Engine Maintenance

The operating sections cover gear selection and distinguish gasoline starting from distillate and kerosene use, including radiator-shutter and manifold-heat settings. Cold-weather precautions cover lubricant selection, cooling-system protection, and the magneto impulse coupling.

Fuel-system layouts and carburetor views support the adjustment instructions. The exploded air-cleaner view, oil-filter cutaway, and engine cutaway show the assemblies discussed in the maintenance sections.

Engine repair scope: Minor service includes valve adjustment and cylinder-head gasket tightening guidance. Replacement of connecting-rod and crankshaft bearings, pistons and rings, and valve grinding is referred to an IH dealer; this is not an internal engine overhaul manual.

Battery Ignition, Magneto, and Starting Circuits

The starting and lighting wiring includes correction sheet 1 008 269 R1, replacing printed page 50, plus a magneto-specific diagram and reference table. Terminal connections and wire-tracer descriptions help owners follow the correct circuit when diagnosing a starting or lighting fault.

Storage-battery testing explains electrolyte specific gravity and temperature correction. Generator service includes a warning that incorrect field-terminal connections during polarization can damage the voltage regulator.

Wheel Settings, Drawbar, and PTO

Wheel-tread instructions distinguish Super M steel or pneumatic wheels from Super MV pneumatic equipment. The adjustable wide front axle and its short- and long-wheelbase arrangements apply to the Super M; Super MV rear-rim configurations have separate instructions.

The tire-pressure chart distinguishes operating and transport pressures. PTO dimensions also identify a compatibility limitation: the high-clearance Super MV uses a standard PTO shaft but does not fully conform to the A.S.A.E. arrangement described in the manual.

Follow the manual's battery-isolation, PTO-shielding, and secure-support precautions during service and operation.

Lift-All and Remote-Control Equipment

Hydraulic coverage explains single-acting Lift-All cylinders and regular, delayed, and selective lift arrangements for cultivators and plows. Remote-control instructions cover the stop collar and break-away couplings.

The maintenance guidance warns that contaminated used engine oil can damage hydraulic hoses.

Printed page 72 is missing, leaving a gap in the Hydraulic Lift-All maintenance section. Printed page 73, the Lift-All operating instructions, and remote-control coverage are included.

Sample Tune-Up and Lubrication Specifications

These examples are a small selection of the maintenance specifications in the manual.

For the covered tractors, spark plug gap is 0.023 inch, and valve clearance is 0.017 inch with the engine warm and the valves closed.

Transmission and differential capacity is 13 U.S. gallons with the tractor standing level. Each separate Super MV rear axle drive housing holds 3 U.S. quarts.

PDF Search, Diagram Detail, and Page Count

Text search and diagram labels: The OCR text is partially searchable, with recognition errors and incomplete coverage of drawing labels. There are no embedded PDF bookmarks. Small wiring reference numbers and terminal labels require magnification.

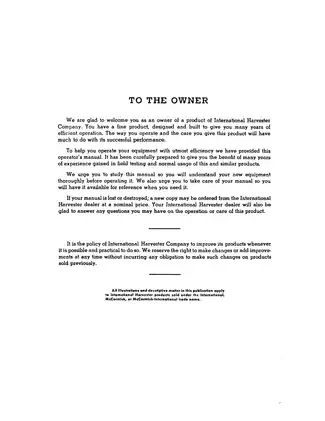

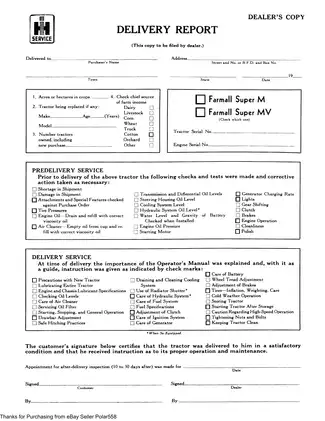

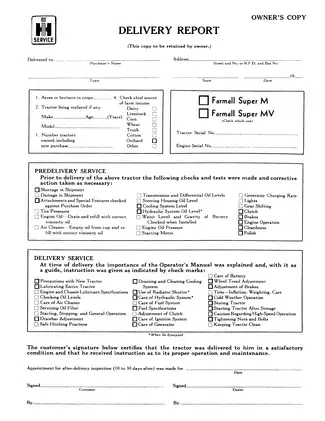

One printable 107-page PDF contains 97 pages from the manual's numbered sequence, including the replacement wiring sheet; nine original unnumbered pages (covers, owner information, delivery/service records, and safety notices); and one added introductory page. All are already included in the total.
