Farmall A, AV, B, BN Parts Catalog TC-26 Manual IH Tractor

Price: 15.85 USD

Instant Access

File specifications
File size: 15.28 MB
File ending in: pdf
Estimated download time: 0.31 Minutes
Recognized
Relevant for farmall, a av b bn, parts catalog

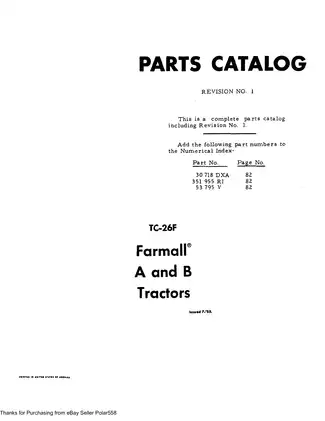

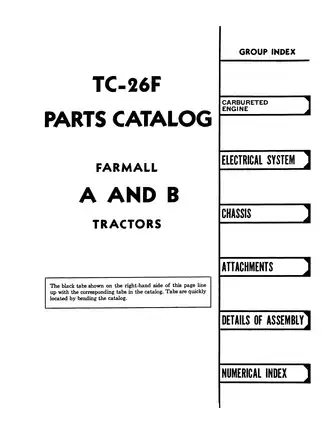

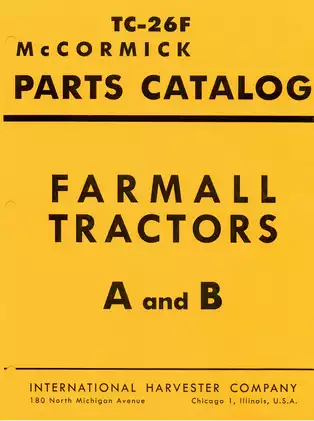

Farmall A, AV and B, BN Tractor Parts Catalog TC-26F. This Parts Catalog offers a complete listing on every part on the tractor it contains exploded drawings for correct assembly and identification, part numbers, part names, descriptions and dimensions necessary for proper identification of parts, part quantities used per vehicle, model application, and the year a part was used.

* INSTANT DOWNLOAD NO WAITING
* PDF FORMAT
Related:
Farmall Parts Super M, MV, MD, MDV, M-TA Catalog Manual TC-46 IH
MV, Super MD, Super MDV Super M-TA Tractor Parts Catalog TC-46. This Parts Catalog offers a complete listing on every part on the tractor it
15.85 USD


---
Farmall A Specifications

Model history
Model introduced 1939
Model discontinued 1947
Related:
Farmall Super A, AV Parts Catalog TC-39 Tractor Manual IH
AV Tractor Parts Catalog TC-39c. This Parts Catalog offers a complete listing on every part on the tractor it contains exploded drawings for correct assembly
19.99 USD

Model status Discontinued
No. produced 128,246 (includes Farmall A-AV, International A)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall Super A

Engine Specification
Engine make International
Related:
Farmall Super M, MV Owners Manual Operators IH Tractor
MV Tractor Owners/Operators Manual the Owners Manual is the same exact manual received when the tractor was new, it covers all aspects of your tractor.
15.85 USD

Engine model C-113
Fuel type distillate
Power hp 16 belt, 15 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD

General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 9-24 4-ply (8-24 standard)

Tractor Dimensions
Length (inches/metres) 106 in
Width (inches/meters) 56 in
Height (inches/meters) 63 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 18 ft
Wheelbase 71 in

More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-14"
Nebraska Tests No. 330
Approximate Cost new in (year) $542 (1941), $1295 (1947)

---
Farmall AV Tractor Specs

Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall Super AV

Engine Specifications
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-19 4-ply
Rear 8-36 4-ply

Tractor Dimensions
Length (inches/metres) 115 in
Width (inches/meters) 63 in
Height (inches/meters) 69 in
Weight (nominal) lb/kg 2280 lb
Turning circle (nominal) inches/meters 17.5 ft
Wheelbase 72 in

More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 329 (Farmall A)
Approximate Cost new in (year) $660 (1941)

---
Farmall B Tractor Specs

Model history
Model introduced 1940
Model discontinued 1948
Model status Discontinued
No. produced 93,156 (includes BN)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall C

Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-12 4-ply single
Rear 8-24 4-ply

Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 79 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1870 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in

More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
Approximate Cost new in (year) $605 (1940)

---

Farmall BN Tractor Specifications

Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall C

Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA

Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 8-24 4-ply

Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 71 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in

Other info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
