1988 Case IH 956/956XL/1056/1056XL Diesel Tractor Parts Book (P/N Don 8-3761)

This parts catalog covers Case IH 956, 956XL, 1056, and 1056XL diesel tractors. The base publication is Don. 8-3761, issued February 1988 and printed in England; selected transmission sheets carry Don. 8-3761R1, dated July 1988.

Supplied as one 1,143-page PDF. Some catalog pages are missing, particularly in the clutch and transmission sections; the coverage limits below identify the affected areas.

• D358 engine: Exploded views and parts tables cover complete service engines, cylinder head and valve gear, crankcase, crankshaft and flywheel, pistons, sleeves, and lubrication components.

• Fuel and cooling systems: VA and VE injection-pump listings, nozzle holders, filters, lines, fuel tanks, radiators, water pumps, fans, and air-conditioning compressor components.

• Power train and steering: Synchronized and non-synchronized range gearing, speed-reducer variants, engine and ground-speed PTOs, transfer gearbox, 4WD differential, hub planetary drive, and ZF steering.

• Hydraulics: Sensodraulic draft and position-sensing equipment, tandem-pump and Combi-filter arrangements, Bosch SB23 auxiliary valves, rockshaft assemblies, and lift components.

• Brakes: Parts identification for hand brakes, Westinghouse and other hydraulic trailer-brake layouts, and one- or two-circuit pneumatic trailer brakes.

• Electrical and cab equipment: Starting and charging components, instruments, relays, lighting, washer/wiper parts, heaters, and air-conditioning hardware appear in dedicated illustrations and parts tables.

• Chassis and hitches: Cab frames, doors, roofs, Grammer and Sable seats, automatic and French-version trailer hitches, drawbar and piton-fix arrangements, three-point linkages, and quick couplers.

The illustration-to-part-number layout is suited to mechanics, restorers, parts departments, and experienced owners who can identify tractor assemblies when planning a repair.

D358 Engine, Injection Pumps, and Cooling

The complete-service-engine listings distinguish 956/956XL applications from engine number 140883 and 1056/1056XL applications from 156183. VA injection-pump entries have earlier/later breaks at 134701/134702 and 152309/152310 respectively; separate VE entries are assigned by model.

These engine-number distinctions help match the pump and injection-line configuration before ordering repair parts. The radiator tables identify Windhoff and Chausson units, including separate Germany-only and France-only entries.

Power Train Coverage and Missing Pages

The July revision sheets distinguish speed-reducer and 40 km/h gearing from other range arrangements. They also identify ZF and Graziano synchronizer components. PTO, transfer-gearbox, differential, and final-drive parts remain covered.

Clutch and shift controls: Printed pages 6-383 through 6-440 are missing. Only the initial double-clutch illustration at 6-382 remains; the Fichtel and Sachs and LUK double-clutch sections, clutch housings, clutch-release parts, and much of the gearshift-control coverage are absent. Speed-reducer linkage pages 6-445 and 6-446 are also missing.

Transmission lubrication: The illustration at 6-496 remains, but pages 6-497 through 6-538 are missing. This affects the 2WD, 4WD, and 40 km/h lubrication sections, the center 4WD valve, and the 40 km/h brake-regulating system. The regulating-valve parts table at 6-539 is included.

Other gaps are pages 1-39 and 1-40 in the lubricants section, and 9-1038 through 9-1042 in the Grammer seat listings.

Exploded Views, Parts Lookup, and Shop Tools

Illustration groups include Complete Service Engines, Condenser and Radiator - Air Conditioning, Synchronized Range Gears, Pneumatic Trailer Brake (One and Two Circuit), and Sensodraulic Pipes and Valves. English, French, and German descriptions accompany part numbers, applicable dimensions, and quantities by model. Country restrictions and optional-equipment notes distinguish the applications.

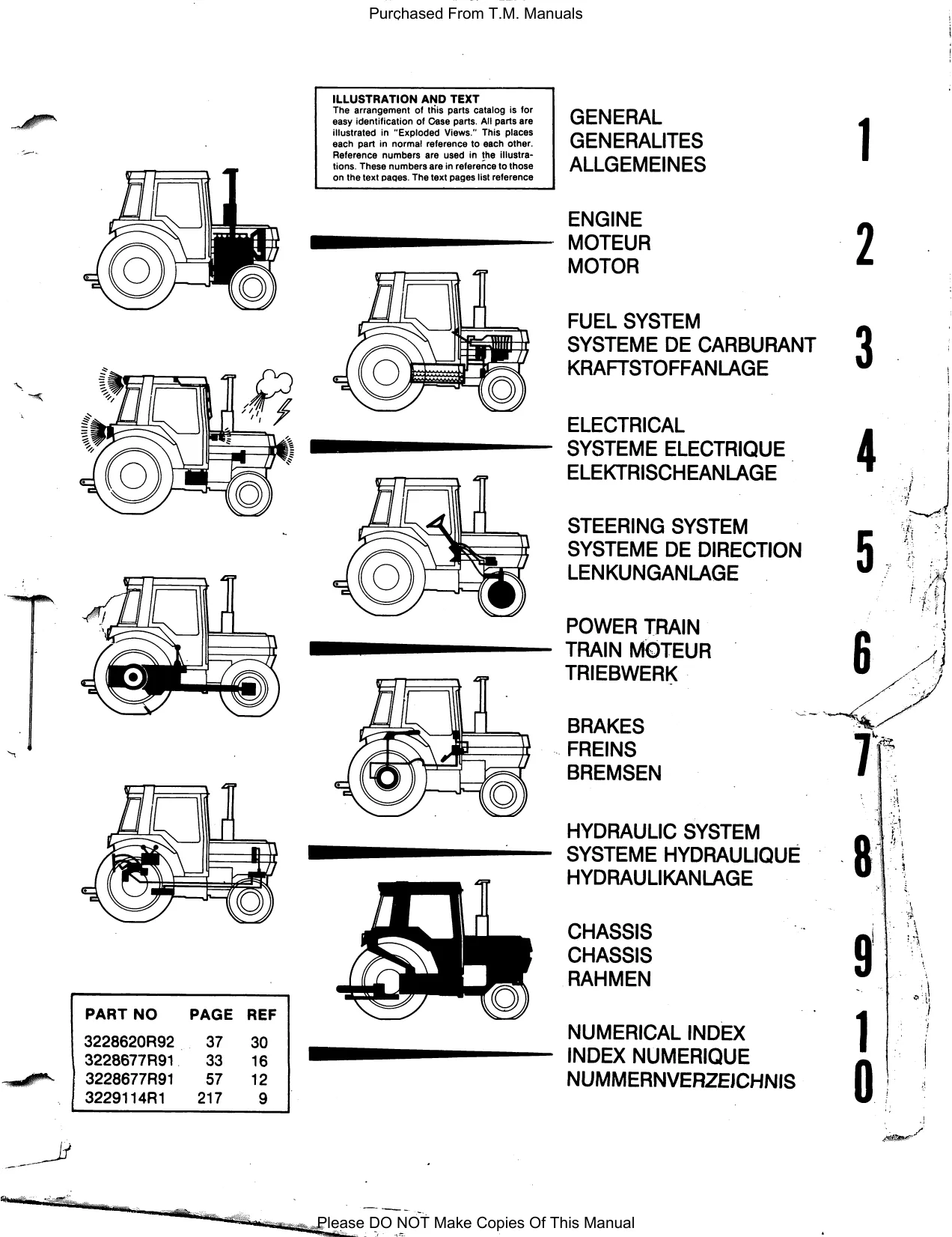

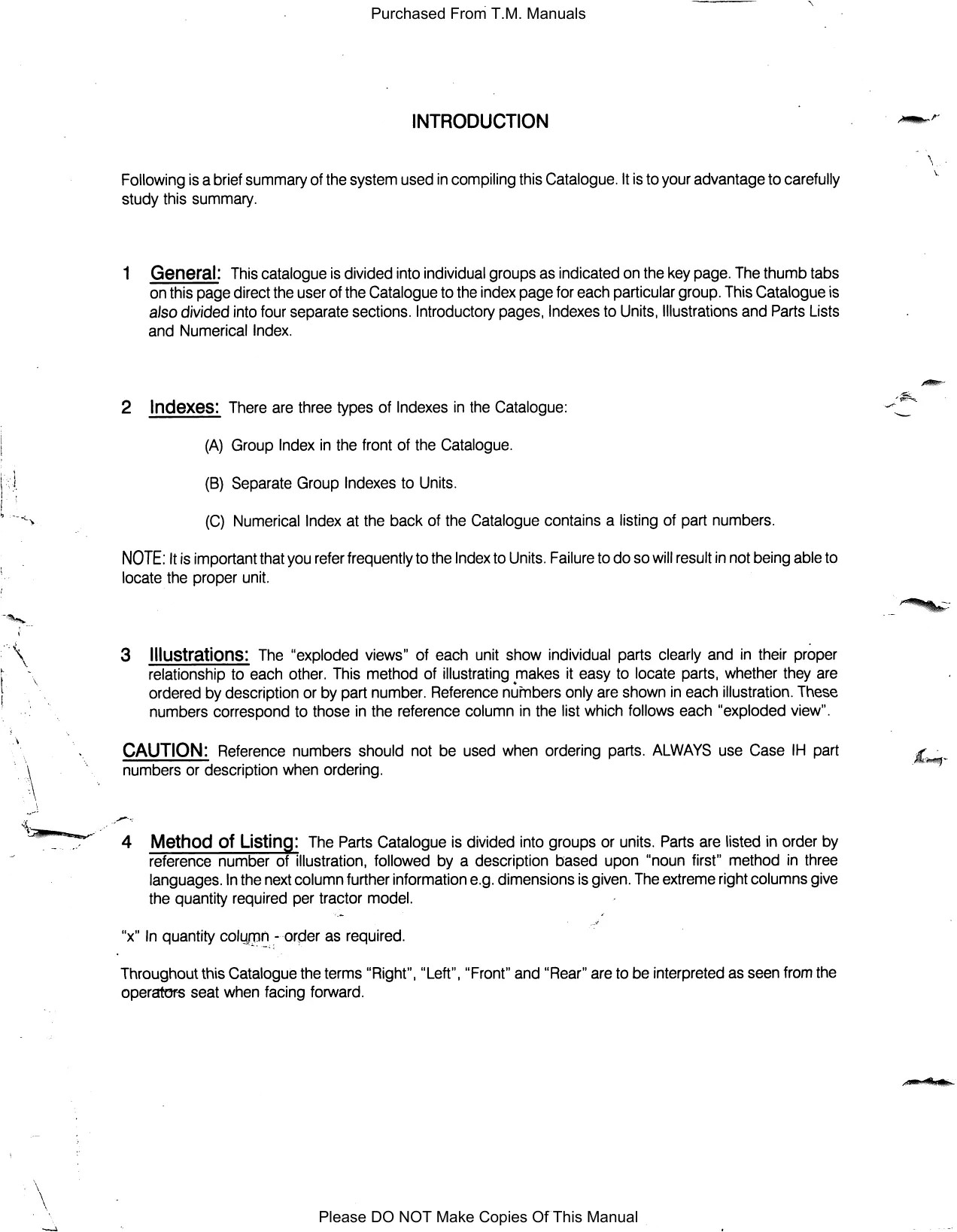

Group and unit indexes and the rear numerical index support parts lookup. Illustration callouts are reference numbers, not order numbers. The introduction explains the "up to/from" serial notation and when later R suffixes supersede earlier part numbers.

Tool listings cover transmission pullers, engine fixtures, hydraulic repair-kit tools, test-pump connections, and gauges. Specific entries include steering pressure-check tool 3223677R1 and Case-IH Test Centre connector package 3221908R91. These listings identify equipment; they do not provide test procedures.

The catalog warns against replacing location-specific attaching parts with ordinary standard hardware. Use the listed Case IH part numbers when identifying these fasteners.

Parts-Catalog Scope

This is a parts catalog, not a service or repair manual. It does not provide step-by-step removal, overhaul, adjustment, or repair procedures; diagnostic fault charts; torque or clearance tables; hydraulic test instructions; electrical wiring diagrams; or refrigerant-service procedures.

For hydraulic, brake, driveline, or air-conditioning work, isolate the tractor, support heavy components, and follow the applicable service procedure for stored-pressure or refrigerant hazards before disassembly.

File Format and Readability

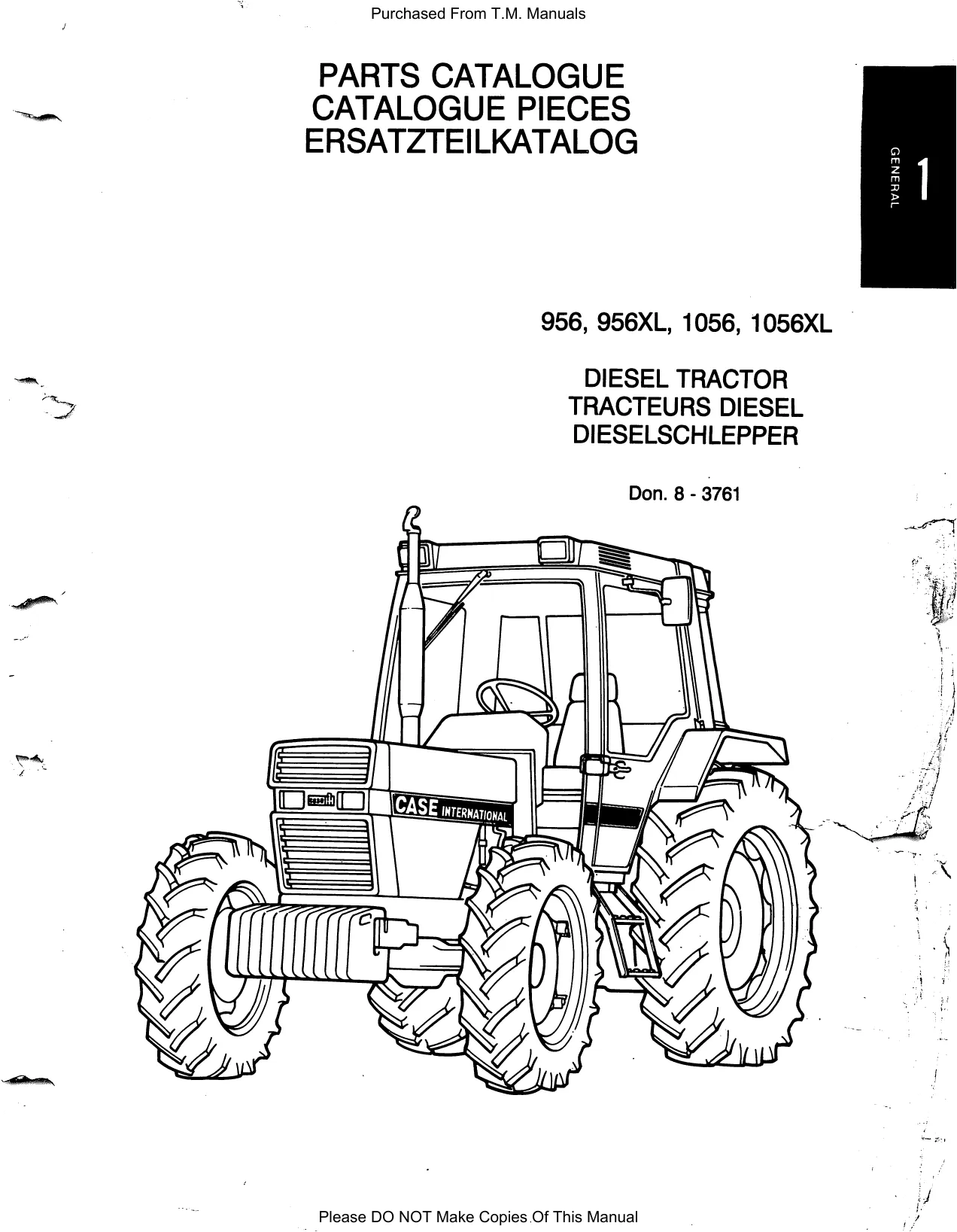

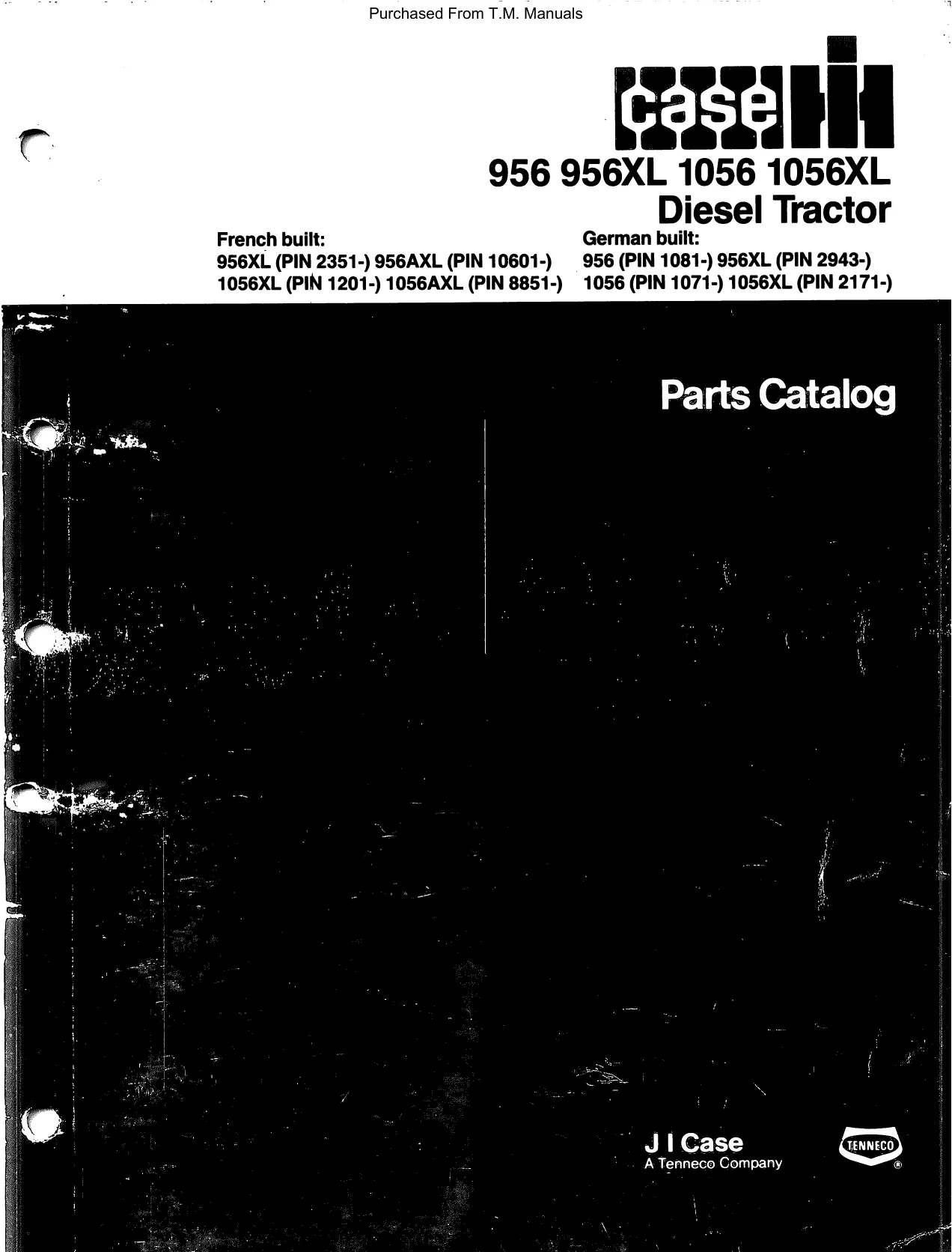

The total includes one added title sheet and two original outer-cover pages. The remaining 1,140 pages include the internal title, introductions, indexes, one blank page, six lettered transmission supplements, and one repeated steering-cylinder page; these are all already counted.

Text search: The catalog content is not searchable. Selectable text is limited to the added title sheet and recurring page notices.

Navigation: There are 19 embedded PDF bookmarks for major groups and tool sections. The Chassis bookmark opens a parts table rather than the chassis index. Some electrical and chassis pages are out of sequence. Printed page references differ from PDF page positions.

Readability: Small illustration callouts benefit from zooming. Some pages are rotated, and portions of the transmission-lubrication illustration at 6-496 are faint.
