1996–2004 Toyota Hino 15B-FTE DUTRO WU300/WU340/WU410 OEM Manual

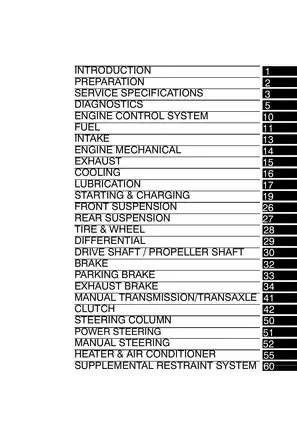

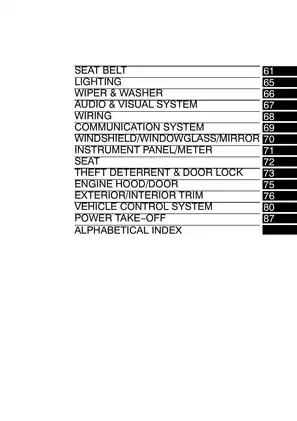

This Hino DUTRO repair manual PDF, identified as S1-YXZE05A, contains 1,899 pages for the WU300, WU340, WU410, XZU404, XZU412, XZU414, XZU422, XZU424, and XZU434 series. First printed in December 2002, the manual is divided into 41 sections with a thumb index at the page edge.

• Engine and fuel repair: Covers engine removal and installation, engine adjustment and valve-clearance work, cylinder-head-gasket and camshaft service on applicable engines, injection-pump and nozzle repair, fuel filters and tanks, S05C-TB supply-pump/common-rail service, and turbocharger inspection or overhaul.
• Cooling, lubrication, and starting/charging: Includes cooling-system leak tests, coolant replacement and air bleeding, thermostat and water-pump service, radiator overhaul, oil-pressure inspection, oil filter/cooler/pump work, and starter and generator inspection.
• Driveline, axle, and clutch work: Details transmission-unit removal, rear oil-seal replacement, floor-shift adjustment and overhaul, shift/select cable replacement, clutch bleeding and hydraulic-cylinder overhaul, clutch-unit repair, B-type and LE-type propeller shafts, axle hubs, steering knuckles, and B265/B305/SH13 differential overhaul.
• Brake, steering, and suspension service: Covers brake bleeding, pedal adjustment, master-cylinder and booster repair, engine-specific vacuum pumps, front disc and drum brakes, rear drum brakes, ABS actuator and speed sensors, load-sensing proportioning valve checks, exhaust-retarder overhaul, wheel alignment, metal- and rubber-bush leaf springs, power-steering pressure testing, and steering-gear overhaul.
• ECU and electrical diagnosis: Provides DTC charts, ECU/ECM terminal tables, circuit-specific wiring diagrams, connector views, problem-symptom tables, and fault-isolation procedures for the S05C-TB ECD system, ABS & BA, Easy & Smooth Start/Brake Lock, driver-airbag SRS, and audio system.
• Cab, HVAC, and body systems: Includes refrigerant checks and replacement, compressor and condenser service, heater/blower repair, lighting and wiper diagnosis, power-window and door-lock inspection, combination-meter overhaul, regular- and wide-cab instrument panels, tilt-cab hardware, doors, glass, mirrors, seats, trim, ignition/starter switch, horn, and power take-off.

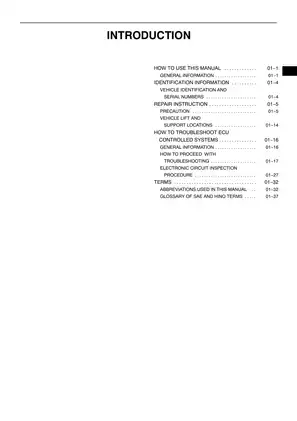

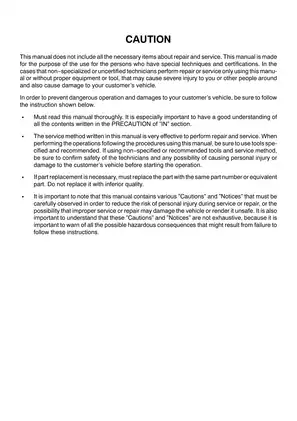

Commercial truck repair requires proper lifting, electrical isolation, and system-specific safety procedures. Review the Introduction's vehicle lift and support locations and the precautions for brake, steering, refrigerant, and SRS work before beginning. The publication is written for trained technicians using the specified equipment, SSTs, and service materials.

Engine and Transmission Coverage

The vehicle identification section shows the VIN on the right frame, the engine serial stamp on the cylinder block, and the transmission serial stamp on the housing. Check these marks before choosing an engine- or transmission-specific procedure.

Diagnostic and Electrical Depth

The diagnostics material goes beyond a code list. It includes customer-problem analysis sheets, pre-checks, DTC and freeze-frame workflows where applicable, ECU location and terminal data, symptom tables, individual circuit descriptions, and sensor, actuator, harness, and power-source checks. Hand-held tester instructions specifically call for the 24V VIM. The electronic-circuit section also explains connector inspection and the alphabetical wire-color system, including base-color and stripe notation such as B, L, R, BR, and two-color combinations.

Representative visual references include S05C-TB ECM terminal maps and ECD sensor/actuator circuits, ABS & BA wheel-speed-sensor and warning-light circuits, Easy & Smooth Start/Brake Lock ECU test charts, SRS connector-location views and DTC flowcharts, differential carrier exploded views with ring-and-pinion tooth-contact patterns, and power-steering pressure-test layouts. These are circuit- or system-specific diagrams; the full vehicle Electrical Wiring Diagram is a separate companion publication.

Repair Detail, Specifications, and Scope

Component drawings and procedures identify non-reusable parts, sealant and grease application areas, and component-specific torque points. The Preparation and Service Specifications sections collect SST/SSM applications, standard-bolt data, torque tables, service limits, clearances, fluid information, pressure-test specifications, and electrical test values for the covered systems. Specifications are presented in SI primary units with metric and English equivalents.

Several cautions address repair mistakes that can cause expensive damage. During 15B-FTE injection-pump work, the manual warns that turning the crankshaft in the locked timing position can allow valve-to-piston contact. Turbocharger reassembly requires the bearing housing to enter straight; installing it at an angle can bend the shaft and create irregular noise. Differential overhaul requires inner and outer bearing races to be replaced as a set and seal-contact surfaces to remain undamaged, protecting bearing life and oil sealing.

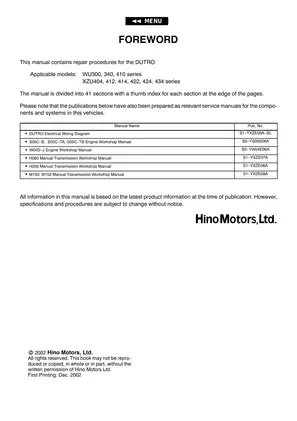

This volume covers diagnosis, removal/installation, replacement, disassembly/reassembly, inspection, and adjustment, but it explicitly omits the final-inspection process. The foreword references the separate DUTRO Electrical Wiring Diagram S1-YXZE05A-SL, S05C-B/S05C-TA/S05C-TB Engine Workshop Manual S5-YS05E06A, W04D-J Engine Workshop Manual S5-YW04E06A, H260 Manual Transmission Workshop Manual S1-YXZE07A, H350 Manual Transmission Workshop Manual S1-YXZE06A, and M150/M153 Manual Transmission Workshop Manual S1-YXZE08A for work beyond this main chassis and systems volume.
