Mercedes-Benz 300D Service & Repair Manual Set (1987)
1,081 Pages • ZIP Download: 72 Printable PDFs • 58.34 MB
Mercedes Models Covered & Key Technical Specifications
Models: 190D, 300D, 300SDL, 300TD, 260E, 420SEL, 560 Series. Selected system articles also cover 190E and 300E. The 300CD appears in identification, maintenance, and selected system references.
Sub-models / Variants: Non-Turbo (190D: engine 602.911, engine code HMB2.5D6JA14), Turbo Diesel (190D: engine 602.961, engine code HMB2.5D9JF14, listed as 190TD in the tune-up article; 300D/300TD: engine 603.960, engine code HMB3.0D9KA18; 300SDL: engine 603.961, engine code HMB3.0D9KA18), 300D Turbo 4-Door Sedan, 300CD Turbo 2-Door Coupe, 300TD Turbo 4-Door Wagon, 300E
Model Years: 1983–1987 (1983, 1984, 1985, 1986, 1987)
VIN model series: 300D/300TD: position 4 identifies the model series — A = 123 Series; E = 124 Series. Positions 6–7 identify the vehicle line — 33 = 300D Turbo 4-Door Sedan; 93 = 300TD Turbo 4-Door Wagon; 53 = 300CD Turbo 2-Door Coupe. For the applications listed in the airbag article, B or D in position 8 identifies an airbag-equipped vehicle.
-
Engine displacement: 2.5L (152.4 cu. in.) and 3.0L (183.0 cu. in.)
-
Horsepower: 93 HP to 148 HP @ 4600 RPM (148 HP applies to the Federal 300SDL)
-
Torque: 122 ft-lbs to 201 ft-lbs (201 ft-lbs applies to the Federal 300SDL)
-
Compression ratio: 22:1
-
Transmission: W4A020 / W4A040 4-speed automatic. 1987 applications — W4A020: 190D Non-Turbo (722.414), 190D Turbo (722.413), 190E 2.3L (722.408), 190E 2.6L (722.409), 260E (722.409); W4A040: 300D/300TD Turbo (722.317), 300SDL (722.321), 300E (722.320), 420SEL (722.324), 560SL (722.313), 560SEC/560SEL (722.323).
-
Refrigerant capacity: 38.7 oz.
-
Oil capacity (total): 8.5 to 9.7 quarts
Mercedes Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Diesel Engine Service — 1987 190D, 300D, 300SDL and 300TD | 19 |
| Engine/VIN Identification — 240D, 300D, 300CD and 300TD | 2 |
| Automatic A/C-Heater System — 1987 Mercedes-Benz 260E, 420SEL, 300 and 560 Series | 32 |
| A/C-Heater System Uniform Inspection Guidelines — all makes | 47 |
| A/C System General Diagnostic Procedures — all import makes and models | 5 |
| A/C System Precautions | 4 |
| Abbreviations | 12 |
| Supplemental Restraint System — 190 Series, 300SDL, 420SEL and 500 Series | 11 |
| Air Bag Restraint System — selected 1985–87 Mercedes-Benz applications | 19 |
| Alternator and Regulator — 1987 Bosch units with integral regulators | 4 |
| Anti-Lock Brake Safety Precautions | 2 |
| Anti-Lock Brake System — selected Mercedes-Benz applications | 14 |
| Automatic Transmission Diagnosis — W4A020 and W4A040 | 10 |
| Brake System Uniform Inspection Guidelines — all makes | 39 |
| Brake System — Mercedes-Benz 190, 260, 300, 420 and 560 Series | 10 |
| Computer Relearn Procedures — general reference | 2 |
| Cruise Control System — Mercedes-Benz | 7 |
| Rear Window Defogger — general import-car reference | 2 |
| Drive Axle — Mercedes-Benz 300, 420 and 560 Series | 14 |
| Serpentine Drive Belt Routing — 1985–88 Mercedes-Benz | 10 |
| Drivetrain Systems Uniform Inspection Guidelines — all makes | 48 |
| EGR System — 190D, 190TD, 300D, 300TD and 300SDL | 8 |
| Electrical Component Locator — 300D and 300TD | 13 |
| Electrical System Uniform Inspection Guidelines — all makes | 61 |
| Electrostatic Discharge Warning — Basic Information | 2 |
| Emission Control Applications — Mercedes-Benz 190, 260, 300, 420 and 560 Series | 1 |
| Emission Control Visual Inspection Procedures — general reference | 15 |
| Engine Cooling System — 1987 Mercedes-Benz | 9 |
| Engine Overhaul Procedures — general information for piston engines | 34 |
| Engine Systems Uniform Inspection Guidelines — all makes | 124 |
| Exhaust System Uniform Inspection Guidelines — all makes | 10 |
| Fuel Evaporation System — Mercedes-Benz | 2 |
| Diesel Fuel Injection System — 300D, 300TD and 300SDL Turbo Diesel | 18 |
| Electric Fuel Pump — Bosch | 2 |
| Fuses and Circuit Breakers — selected 300D, 300CD and 300TD applications | 2 |
| Gear Tooth Contact Patterns — general reference | 3 |
| General Cooling System Servicing | 3 |
| How to Use System Wiring Diagrams | 9 |
| Inspect and Replace Airbag Unit — Recall 87V073000 | 1 |
| Standard Instrument Panel — Mercedes-Benz | 6 |
| Jacking and Hoisting — Mercedes-Benz | 2 |
| Maintenance Information, Fluid Specifications and Capacities — selected 300D, 300CD and 300TD applications | 9 |
| Metric Conversions | 4 |
| PCV System — Mercedes-Benz | 2 |
| Passive Restraint System Inspection — European imports | 18 |
| Pre-Alignment Checks | 1 |
| Replace Airbag Units — Recall 87V132000 | 1 |
| Scheduled Services — selected 300D, 300CD and 300TD applications | 26 |
| Service Indicator and Warning Lights — selected 240D, 300D, 300CD and 300TD applications | 2 |
| Bosch Starter — 1988 reference article | 3 |
| Steering Column — Mercedes-Benz | 3 |
| Power Steering — Mercedes-Benz 190, 260, 300, 420 and 560 applications | 6 |
| Steering, Suspension, Wheel Alignment, Wheels and Tires Uniform Inspection Guidelines — same publication in two files | 75 + 75 |
| Steering Wheel and Column Switches — Mercedes-Benz | 3 |
| Front Strut Suspension — 190D, 190E, 260E, 300D Turbo, 300E and 300TD Turbo | 7 |
| Rear Five-Link Suspension — 190D, 190E, 260E, 300D, 300E and 300TD | 5 |
| Symptom Checklist Worksheets — general reference | 14 |
| System Wiring Diagrams — 1987 Mercedes-Benz 300D | 25 |
| Throttle Bushing — Recall 93V095000 | 1 |
| Automatic Transmission Removal and Installation — Mercedes-Benz except 190 Series | 2 |
| Automatic Transmission Servicing — 1987 Mercedes-Benz | 7 |
| Troubleshooting — basic procedures, general reference | 76 |
| Diesel Tune-Up — 190D, 190TD, 300D, 300TD and 300SDL | 6 |
| Turbocharger — 190D and 300 Series diesel applications | 5 |
| Vacuum Diagrams — selected Mercedes-Benz applications | 2 |
| Injector Waveform Interpretation Tutorial — general reference | 35 |
| Wheel Alignment Specifications and Procedures — Mercedes-Benz | 4 |
| Wheel Alignment Theory and Operation — general reference | 4 |
| Wiper-Washer System — Mercedes-Benz | 4 |
| Wiring Diagram Symbols and Reading Guide | 5 |
| Wiring Diagrams — 260E, 300, 300E and 300TD | 13 |
Mitchell Repair Information Company service articles pair model-specific repair procedures with general workshop references and Motorist Assurance Program inspection guidelines. The component locators and wiring diagrams work together when tracing a circuit from a test point to a relay, connector, or ground.
Coverage limits: Each article has its own application list. Earlier and later references cover individual systems or service tasks. This independent service compilation does not provide full 1983–1987 factory manual coverage. The W4A020/W4A040 diagnosis article refers to a separate overhaul article for full internal overhaul and its vacuum-circuit, hydraulic-pressure, and road-test procedures. That separate article is not included.
PDF Search, Wiring Detail, and ZIP Contents
Finding text and reading diagrams: Article text is searchable. Many labels inside wiring diagrams, illustrations, and test charts are embedded as images. The PDFs have no embedded bookmarks. Small pin numbers and wire codes often require zooming, and footer text overlaps some climate-control pages and captions.
The ZIP contains 72 printable English-language PDFs totaling 1,081 pages. That total includes 479 pages across eight all-makes inspection-guideline files and three one-page historical recall bulletins. The Steering and Suspension guideline files each contain the same 75-page publication.
Diesel Repair, Drivetrain Service, and Circuit Diagnosis
These are selected areas of coverage. Other articles include cruise-control troubleshooting and instrument-panel testing, and the set also supplies symptom checklist worksheets.

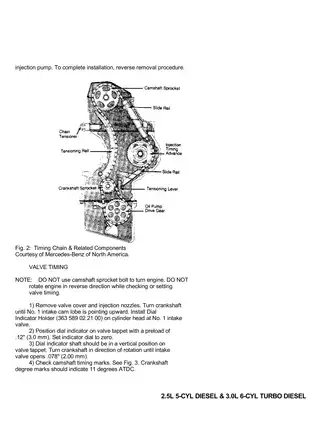

- Diesel engine repair: Step-by-step cylinder-head service and timing-chain replacement, plus camshaft and hydraulic tappet inspection, prechamber work, piston installation, bearing checks, and oil-system service.
- Fuel injection and turbocharging: Injection-pump removal and timing, glow-plug diagnosis, injector spray-pattern and opening-pressure checks, Electronic Diesel System tests, EGR diagnosis, and turbocharger boost testing.
- Automatic transmission service: Shift-complaint diagnosis, removal on non-190 models, fluid and filter service, linkage and control-pressure cable adjustments, and applicable vacuum-control adjustments.
- Drive axle repair: Axle-shaft and CV-joint service, differential disassembly, limited-slip components, pinion-depth setup, bearing preload, backlash, and pinion-seal replacement.
- Brakes and chassis: Disc-brake repair, Bosch ABS tester diagnosis, hydraulic-unit and wheel-speed-sensor service, power-steering overhaul, front strut work, and five-link rear suspension repair.
- Automatic climate control: Pushbutton controls, Bosch and Kammerer panel operation, heater valves, auxiliary coolant pumps, vacuum actuators, temperature sensors, and compressor protective cut-out diagnosis.
- Electrical documentation: Component locations, vehicle wiring grids, and system drawings for starting and charging, cooling fans, diesel controls, ABS, SRS, accessories, and wipers.
The set suits technicians, independent repair shops, and experienced owners who can use electrical test equipment and select procedures by model, system, and equipment.
Diesel Engine, Injection, and Cooling Work

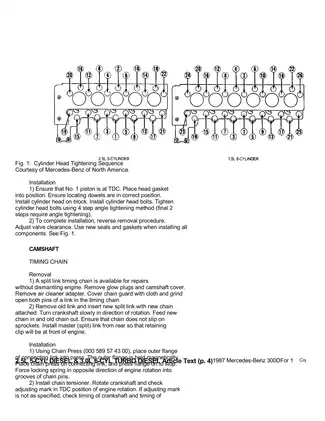

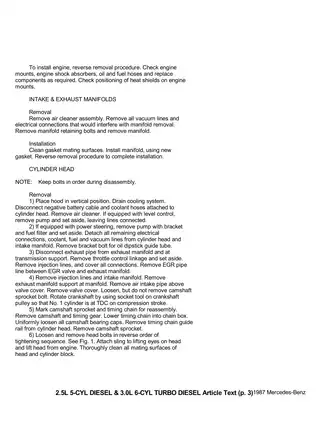

The engine article separates 190D non-turbo and turbo work from the 300D, 300TD, and 300SDL turbo diesel applications. The cylinder-head procedure includes the tightening sequence and staged angle tightening. Drawings show the timing-chain layout and camshaft timing marks.
Internal work extends to valve springs and guides, combustion prechambers, cylinder liners, piston and connecting-rod installation, crankshaft and rod-bearing checks, and front and rear oil seals. Oil-pump and water-pump replacement are also covered.

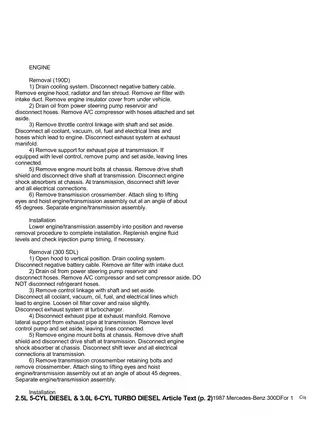

Engine and transmission assembly removal is shown for the 190D and 300SDL. The general piston-engine overhaul reference covers cleaning, inspection, machining, and reconditioning. The diesel engine article identifies Chain Press 000 589 57 43 00 and Dial Indicator Holder 363 589 02 21 00.
Injection diagnosis: Injection-pump timing, glow-plug checks, and Electronic Diesel System tests help distinguish preheating, sensor, and fuel-control faults before planning injection-pump work on a hard-start complaint. The injector article also covers leakage checks and shim adjustment for nozzle opening pressure.
Cooling references cover thermostat and pressure testing, coolant service, and cooling-fan checks. Normal and severe service schedules, fluid specifications, and selected service labor times help plan maintenance and estimate shop time.
Shift Complaints and Differential Setup
The W4A020/W4A040 diagnosis article links shift symptoms to hydraulic controls, vacuum supply, control cables, kickdown components, and friction elements. The servicing article covers modulating-pressure adjustment and the 190D vacuum-control valve adjustment.
Exploded axle and axle-shaft views accompany differential reassembly, shim selection, pinion-depth measurement, side-bearing preload, and ring-gear backlash adjustment. The pinion setup procedure explains when excess preload requires a new collapsible spacer.
Climate-Control Tests by Model
The automatic A/C-heater article distinguishes 300E pushbutton operation and Bosch and Kammerer control behavior. Vacuum checks address air doors, reservoirs, and switchover valves. The article also describes temperature sensors and auxiliary fan control.
The 300E control test charts specify Adapter Cable 124 589 16 63 00 and Socket Test Box 124 589 00 21 00. Drawings include the shared 300E/300D/300TD automatic A/C-heater circuit and a separate 300SDL circuit.
Diesel A/C coverage: The model-specific test sequence for the 300D, 300TD, and 300SDL covers compressor cut-out. Detailed 260E system information is absent. The removal and installation section excludes the 260E and 300 Series and gives component procedures for the specified 420SEL and 560 Series applications.
ABS, SRS, and Electrical Fault Tracing
The Bosch ABS tests use Test Adapter 126 589 09 21 00 to check the power supply, relays, sensors, and hydraulic unit. The 300/260 Series ABS diagram supports circuit tracing. The article explains how striking a speed ring can demagnetize it and affect the wheel-speed signal.
SRS articles cover warning-light diagnosis, component testing, and post-collision inspection. They specify SRS Tester 126 589 10 21 00 and describe accidental-deployment risks from self-powered test equipment or static discharge at slip-ring contacts.
The 300D/300TD component locator works alongside engine-compartment, fuse-block, underdash, instrument-cluster, passenger-compartment, and rear-compartment wiring grids. The set also includes the Electronic Diesel System schematic, early- and late-production front seat-heater circuits, and the 300D/300TD/300SDL vacuum-hose diagram.
ABS and Diesel Sensor Test Values
In the Bosch ABS internal-resistance test, the front wheel-speed sensors are specified at 1.1–2.3 kΩ and the rear differential speed sensor at 0.6–1.6 kΩ. The article gives separate insulation and signal-output tests.
For the 300D, 300TD, and 300SDL turbo diesels, the Electronic Diesel System coolant-temperature sensor is checked to ground with the engine off. Specified resistance is 2,200–2,800 ohms at 68°F (20°C) and 290–370 ohms at 176°F (80°C).
