1993-2001 Lotus Esprit S4, V-8, Turbo, S4s & Sport 300 Service & Parts Manual (1899 P.)
Comprehensive factory documentation for Esprit S4, S4S, V8, and Sport 300 models covering engine specifications, transmission details, electrical systems, suspension components, and complete parts diagrams with torque specifications.

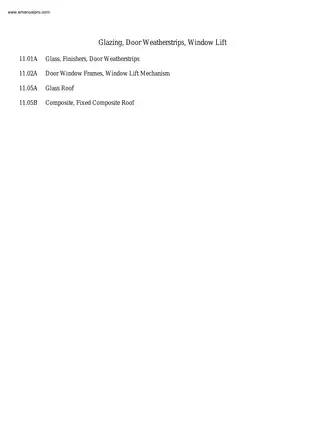

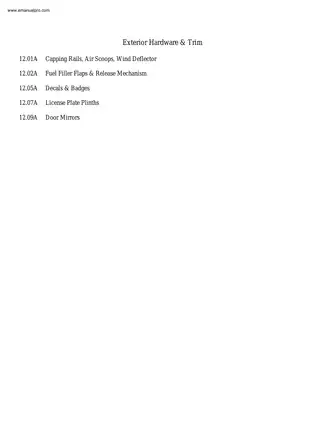

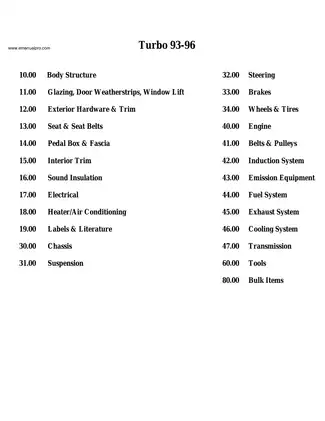

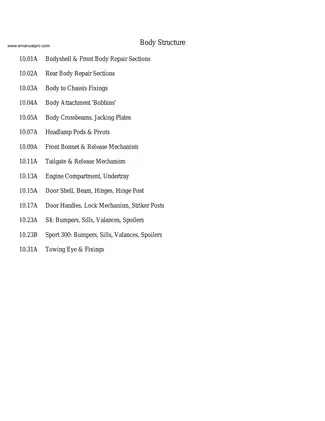

Manual Preview
Sample pages from the 1993-2001 Lotus Esprit S4, V-8, Turbo, S4s & Sport 300 Service & Parts Manual (1899 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Lotus Esprit S4, V-8, Turbo, S4S & Sport 300 — 1993-2001 Operational Documentation for Specification | Esprit Series Segment
- Calibrated Displacement Data is established at 2173 cm³ (132.6 in³) for 910 series and 1973 cm³ (120.4 in³) for 920 series Architecture
- Rated Power Framework for S4 delivers 197 kW (264 bhp) @ 6,500 rpm, S4S produces 212 kW (285 bhp) @ 6,400 rpm, Sport 300 achieves 225 kW (302 bhp) @ 6,500 rpm benchmark Benchmarks
- Critical Torque Output dictates 354 Nm (261 lb-ft) minimum extending to 377 Nm (278 lb-ft) maximum across model Range
- Universal Compression Ratio requires 8.0:1 for turbocharged engine configurations Logic
- Maximum Boost Pressure specifies 0.97 bar (14.1 psi) to 1.00 bar (14.5 psi) operating Matrix
- Documented Fuel Capacity represents 82.8 L (21.9 US gal) tank volume with 9.2 L (9.7 US qt) oil sump Standards
Professional Workshop Service Manual & Technical Specifications
Professional Service & Parts Manual: 1993-2001 Lotus Esprit S4, V8, Turbo, S4s & Sport 300
Component-Focus: Full-Coverage Performance Manual | Specification-Class: Engine-Compendium | Engine-Type: Multi-Configuration
Following OEM groupings, the manual includes: 10.00 Body Structure & Fittings, 11.00 Glazing & Sunroof Assemblies, 12.00 Exterior Trim Components, 13.00 Seat Mechanisms & Upholstery, 14.00 Pedal Box & Hand Controls, 15.00 Interior Trim & Fascia, 16.00 Exterior Body Panels, 17.00 Electrical Systems & Wiring, 18.00 Climate Control & HVAC, 19.00 Supplementary Inflatable Restraints, 26.00 Transmission Assembly & Driveshafts, 30.00 Steering Geometry & Components, 34.00 ABS & Hydraulic Brake Systems, 40.00 Engine Mechanical Assembly, 41.00 Fuel Delivery & Turbocharger Systems, 42.00 Cooling & Thermal Management, 44.00 Exhaust & Emission Control, 46.00 Engine Management & Ignition, 47.00 Clutch Assembly & Release Mechanism, 60.00 Front Suspension & Geometry, 64.00 Rear Suspension & Geometry, 76.00 Wheels, Tyres & Hub Bearings, 77.00 Final Drive & Differential, 80.00 Chassis Frame & Substructures, 82.00 Accessories & Optional Equipment, 84.00 Service Procedures & Maintenance Intervals.
The factory service manual documents valve timing specifications for both inlet and exhaust camshafts across the 910-series turbocharged inline-four and 918-series twin-turbocharged V8 powerplants. Clearance parameters appear in tabular format within Section 40.00, referencing measurement protocols for both cold and operating temperature conditions. The GM Delco engine management calibration data correlates with specific VIN ranges, distinguishing pre-1998 and post-1998 control strategies.
Section 40.00 provides exploded-view diagrams showing piston-to-liner dimensional relationships for both 2.2-litre (910 engine code) and 3.5-litre (918 engine code) configurations. The documentation includes bearing shell identification by colour-coding and thickness grade, with corresponding crankshaft journal diameter specifications presented in dedicated reference tables. Cylinder head gasket torque sequences appear as numbered diagrams rather than procedural text, preserving OEM assembly methodology without instructional narrative.
The twin-turbocharged induction system receives comprehensive coverage in Section 41.00, documenting Garrett T3/T4 turbocharger mounting arrangements, wastegate actuation mechanisms, and intercooler plumbing configurations. The manual catalogs boost pressure relief valve specifications, fuel injector flow rates by engine variant, and fuel pressure regulator settings across the model range. Detailed parts explosions show throttle body linkage geometry for both cable-actuated and later electronic throttle configurations.
Engine rebuild procedures are referenced through torque specification tables and assembly sequence diagrams spanning pages 1247-1389. The documentation covers crankshaft endplay measurement points, piston ring gap positioning, and camshaft bearing cap identification schemes. Oil pump clearance specifications appear alongside gallery pressure test procedures, with relief valve spring rates tabulated by engine code and model year.
Brake system configurations evolve across VIN R1443, transitioning from Bendix/Delco Moraine four-channel ABS to Brembo four-piston fixed caliper arrangements. Section 34.00 documents master cylinder bore dimensions, servo boost ratios, and hydraulic circuit splitting between front and rear axles. The manual includes pedal ratio specifications, brake disc thickness limits, and pad friction material codes cross-referenced to specific model applications.
Drivetrain specifications in Section 26.00 detail the Renault UN1-026 transaxle assembly, documenting gear ratios, differential preload settings, and driveshaft CV joint angular limits. The clutch release mechanism receives dedicated coverage showing hydraulic actuation geometry, slave cylinder bore dimensions, and friction disc facing specifications by engine torque rating.
| Assessment-Parameter | Value | Architecture |
|---|---|---|
| Manual Scope | 1993-2001 Model Years | S4, S4S, Sport 300, V8, GT3 Variants |
| Page Coverage | 1899 pages | Function Code 10.00-84.00 |
| Engine Configurations | 910 (2173cc), 920 (1973cc), 918 (3500cc) | Inline-4 Turbo / V8 Twin-Turbo |
| Power Output Range | 197-225 kW (264-302 bhp) | Variant-dependent calibration |
| Valve Clearances | Cold measurement protocol | Inlet & Exhaust specifications tabulated |
| Torque Specifications | Cylinder head, main bearing, conrod | Sequential tightening patterns documented |
