1996-2002 Lotus M111 Elise / 111S / Exige / 340R Service Manual
Addresses M111 Elise systems including K16 engine management, VVC timing control, suspension geometry, chassis alignment, and integrated body repair procedures. Ref: A111T0327J

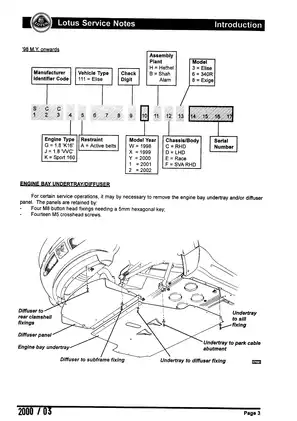

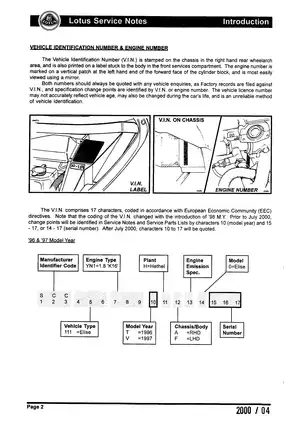

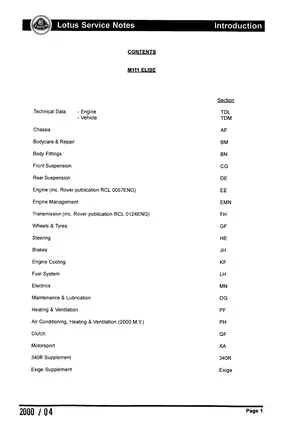

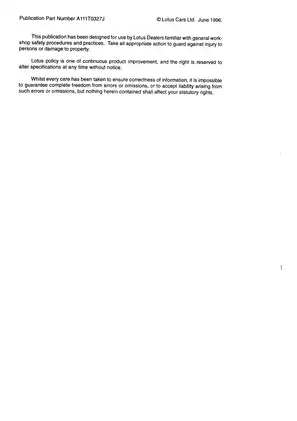

Manual Preview
Sample pages from the 1996-2002 Lotus M111 Elise / 111S / Exige / 340R Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Lotus M111 Elise, 111S, Exige & 340R (A111T0327J) — 1996–2002 Specialized Technical Library | Elise Series Volume.
- Engineered Moment Values: 165 Nm (122 lbf.ft) @ 3,000 rpm represents the maximum rated torque output Sequences.
- Design System Volume: For hydraulic operation, 2.4 litre (4.2 imp.pt) dry capacity defines the transmission reservoir Baseline.
- Documented Alignment Specs: 0.2 mm toe-out overall specification achieves precise wheel geometry Parameters Requirements.
- Principal Thermal Limits: The coolant thermostat reaches 85–91°C nominal setting to regulate engine temperature Threshold.
- Advanced Linear Velocity: Maximum engine speed is standardized to 7000 rpm for optimal performance Mapping.
- Primary Assembly Torques: 45 Nm is specified for front suspension wishbone pivot bolts to maintain structural Configuration.
Professional Workshop Service Manual & Technical Specifications
Specialized Assembly Manual: Car Lotus M111 Elise, Elise 111S, Exige & 340R Service Notes (1996-2002) - Comprehensive Maintenance & Repair Sports Car Manual Diagnostic-Reference
Performance-Values: Elise (1996-2002), Sport 135 (1998-1999), 50th Anniversary Elise (1999), Elise 111S (1999-2002), Elise 'JPS' (1999), Elise 'Type 49' (1999), Elise 'Millennium' (1999), Elise 340R (2000), Sport 160 (2000), Exige (2000-2002) // Coverage-Scope: Engine, transmission, suspension and brake system logic // Serial-Range: VIN structure from 1996-2002 model years with specification change points.
| Identifier | Rating | Validation-Data |
|---|---|---|
| Engine Management | MEMS 1.9 to MEMS 2J | Sequential fuel injection specifications documented |
| Suspension Assembly | Independent double-wishbone | Geometry and adjustment reference data included |
| Transmission | Manual 5-speed transaxle | Gear ratios and final drive specifications provided |
| Cooling System | Horizontal-mount radiator | Thermostat and flow characteristics referenced |
| Electrical | 12V negative earth | Alternator and battery specifications documented |
Systematizing the service groups into the major areas covered by this manual, the document addresses chassis assembly and rigidity (aluminum extrusion construction with epoxy adhesive bonding), body panels and composite repair procedures, front and rear suspension systems (including wishbone articulation, damper units, and wheel alignment), the K-series engine and engine management system (covered extensively with cross-references to Rover technical publications), transmission component data, brake system specifications (ventilated front and rear disc configuration), steering rack and pinion mechanics, wheel and tire specifications, fuel system pressurization details, heating and ventilation distribution, air conditioning (for 2000 M.Y.), clutch assembly, electrics and battery management, and motorsport suspension settings.
Technical content addresses the physical construction of the chassis frame, which utilizes primarily aluminum alloy extrusions bonded together with elastomeric adhesive and secondary fasteners. The document includes structural integrity checks, jacking and lifting point locations, and guidance on partial body assembly replacement when significant collision damage occurs. Drivetrain specifications are addressed in sections covering the K16 engine block (1.8 litre, in-line 4-cylinder configuration), with technical data for both standard and VVC (variable valve control) cylinder head variants. Reassembly procedures are specified for suspension components, including pivot bush renewal, ball joint replacement, and spring/damper unit assembly. Service intervals are documented for engine oil, air filter, alternator belt, and spark plug maintenance. Component locations are identified for the front and rear suspension pivots, with geometry check ride height measurements provided at 140 mm below chassis reference points. The manual documents torque specifications for the suspension fasteners to ensure proper cyclic stress resistance.
Logically establishing the relationship between systems, the manual provides comprehensive wiring diagrams integrated into the body fittings section, detailed interior trim panel removal and refitting procedures, door glass adjustment and channel positioning, weatherstrip bonding materials and application methods, soft top roof erection and stowage sequences (with cant rail and rear window fastening details), and complete dashboard disassembly guidance. The engine management control unit interfaces with transmission shift logic and fuel delivery sequencing. Specifications span from 1.8-liter engine displacement and 118-143 bhp power output (standard and 111S variants), through 1.6 bar front tire pressure and 225/45 ZR16 rear tire sizing for the 111S specification, to 210 Nm rear hub bearing preload torque and 80-85 Nm front wheel nut tightening values (all reference only—actual torque settings for specific fasteners documented separately).
The publication comprises 624 pages organized into 31 distinct sections, with detailed technical data spanning engine specifications (compression ratio 10.5:1, firing order 1-3-4-2), chassis dimensions (wheelbase 2300 mm, ground clearance 160 mm), electrical system schematics, and complete body panel bonding material requirements (Betaseal and Betamate adhesive systems with substrate-specific primer and cleaner products). Historical specification changes from 1996 through 2002 model year production are documented by Vehicle Identification Number (VIN) sequence, including uprated starter motor introduction (February '97), revised main fusebox implementation (October '97), soft top roof cant rail latching improvements (May '98), cast iron brake disc conversion (June '98), barrel-shaped road spring design changes (June '98), integral stud toe-link ball joint design (December '98), and Exige model introduction (July '00).
