1997 Acura 1.6EL Service Manual D16Y8 Engine (173 P.)
Technical reference for 1.6EL sedan including D16Y8 engine specifications. Documents throttle linkage, valve adjustment, and timing belt procedures. 173 pages
Manual Preview

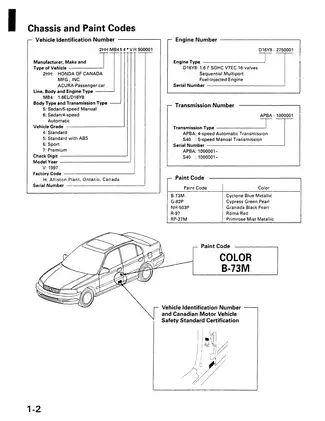

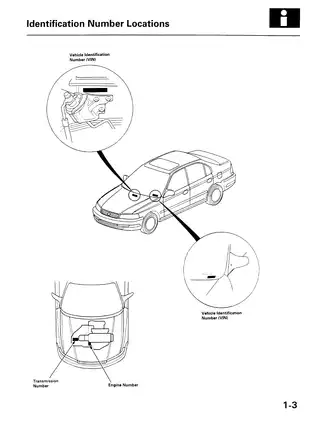

Sample pages from the 1997 Acura 1.6EL Service Manual D16Y8 Engine (173 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Acura 1.6EL Sedan (D16Y8) — 1997 Certified Blueprint Diagnostic | 1.6EL Series Kit.
- Verified Imaging Specs: 1,590 cm³ (97.0 cu-in) is established at the engine cylinder volume Architecture.
- Key Coupling Torques: For optimal combustion, 9.6:1 is standardized to the peak ignition chamber pressure Norms.
- Principal Fill Levels: The fuel tank reaches 45 L (11.9 US gal, 9.9 Imp gal) at maximum fill Bounds.
- Advanced Assembly Gap: The engine oil capacity dictates 3.6 L (3.8 US qt, 3.2 Imp qt) for standard service Topology.
- Defined Ambient Limits: Cooling system volume specifies 4.2 L (4.4 US qt, 3.7 Imp qt) for complete overhaul Matrix.
- General Precision Specs: Intake valve gap represents 0.18-0.22 mm (0.007-0.009 in) cold lash setting Standards.
Professional Workshop Service Manual & Technical Specifications
Applied Service Manual: Acura 1.6EL Operations-Manual
System-Identifier: Acura 1.6EL Sedan (D16Y8) — 1997 // System-Identifier: 1.6L SOHC VTEC 16-valve Sequential Multiport Fuel-injected Engine / Passenger Vehicle Logic // Service-Level: Factory service manual covering complete mechanical and electrical systems.
| Document Section | Coverage Scope | Documentation Status |
|---|---|---|
| Document Overview | Complete service procedures for 1997 Acura 1.6EL (D16Y8 engine) | 173 pages documented |
| Technical Specifications | Engine displacement 1,590 cm³, compression ratio 9.6:1, fuel capacity 45L | Complete specifications provided |
| System Categories | Engine, transmission, electrical, fuel/emissions, cooling, brakes, suspension | See Chapter Index |
Outlining the operational framework across General Information identifies chassis codes and identification numbers, describes Maintenance Schedules for normal and severe conditions, documents Engine Electrical components including starting and charging systems, encompasses Cylinder Head/Valve Train service with VTEC system troubleshooting, and details Engine Block procedures for pistons and crankshaft.
Fundamentally demanding comprehensive technical knowledge, the manual documents complete service specifications for the D16Y8 1.6-liter SOHC VTEC engine architecture. The document includes coverage of the engine's 1,590 cm³ displacement cylinder volume architecture with measured compression ratio specifications providing peak ignition chamber pressure standards at 9.6:1. Critical fuel capacity documentation supports 45 liters at maximum fill protocol, while universal oil requirement specifications reach 3.6 liters for standard service margin. Maximum coolant volume calibration establishes 4.2–4.3 liter norms for the cooling system. Documented starter rating motor output is specified as 1.0 kW or 1.2 kW at 12V nominal voltage matrix.
Brake system specifications are included for front ventilated disc and rear solid disc assemblies with power-assisted self-adjusting mechanisms. Safety procedures are documented for supplemental restraint system (SRS) components including driver and passenger airbag service protocols. Fluid capacities are listed for engine oil (3.6L with filter), manual transmission fluid (1.8L), and automatic transmission fluid (2.7L at change). Tool requirements are listed for specialized service equipment including belt tension gauges, valve guide drivers, and pressure testing adapters.
The manual documents torque specifications for the cylinder head mounting sequence to ensure proper joint separation prevention. Rigorous diagram documentation provides electrical wiring schematics for the PGM-FI engine control system, starting circuit configurations, charging system voltage regulation, and cruise control actuator operations. Valve clearance reference data is included with intake specifications of 0.18–0.22 mm and exhaust specifications of 0.23–0.27 mm measured when cold. Bolt torque specifications are documented throughout chassis mounting points, suspension components, and engine assembly procedures.
Fuel system data included encompasses pressure regulator testing at 260–310 kPa, injector replacement procedures, filter service intervals, and pump performance verification. Timing belt replacement intervals are documented at 168,000 km for normal conditions or 100,000 km when regularly driven in extreme temperatures. The cooling system provides reference to thermostat opening temperatures of 169–176°F with full-open specifications at 194°F. Transmission specifications cover both 5-speed manual (S40) and 4-speed automatic (APBA) assemblies with complete overhaul procedures, bearing clearances, and shift mechanism adjustments.
