Epson WorkForce 635/620/60 Series Service Manual - Comprehensive Repair Guide
$4.99
(incl. VAT) - Instant Download
File Specifications
- File Size: 23.13 MB
- File Type: PDF
- Language: English
- Pages: Total pages: 58 ,
- Printable: Yes
- Estimated Download Time: 0.47 Minutes
verified_user
Lifetime Guarantee
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal & Bitcoin
Models Covered in this Manual
Product Information

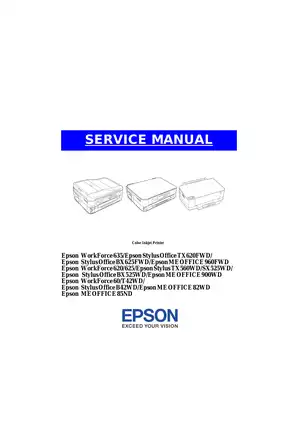

Epson WorkForce 635/620/60 Series Service Manual

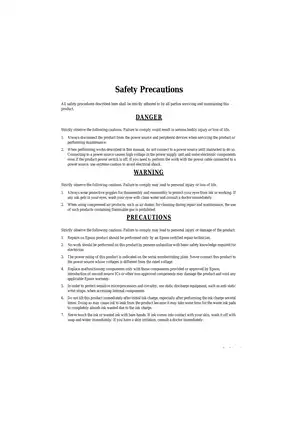

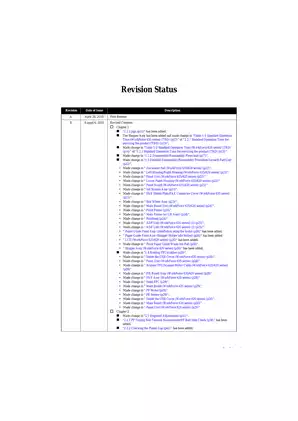

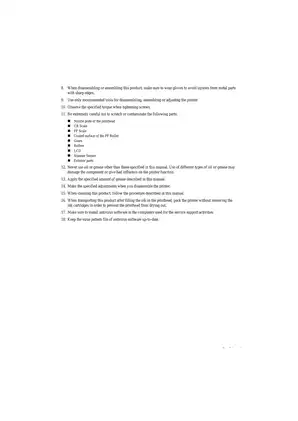

The Epson WorkForce 635/620/60 Series Service Manual is an essential resource for technicians and service personnel. This manual provides in-depth instructions for disassembly, reassembly, adjustment, and maintenance of the Epson printers from these series. With a focus on safety and efficiency, this guide covers critical sections including disassembly procedures, maintenance requirements, and troubleshooting workflows.
What's Inside

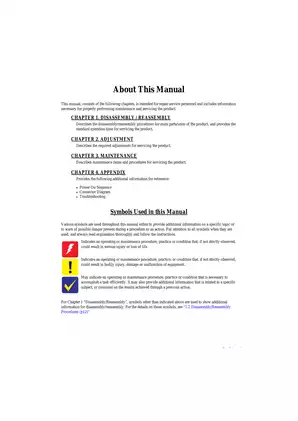

Disassembly/Reassembly Procedures
- Detailed steps for disassembling and reassembling the main parts of the printer, including the Printhead, ADF Unit, Rail Guide, and Ink System Assy.
Adjustments
- Guidelines on necessary adjustments required after maintenance, including PF Timing Belt Tension Measurement, Platen Gap Checking, and MAC Address Setting.
Maintenance
- Insights into regular maintenance tasks, including cleaning methods for internal components and lubricating specific parts to ensure optimal performance.
Appendix
- Additional resources, including a comprehensive connector diagram, power-on sequences, and troubleshooting guides for common errors.
This manual not only serves as a quick reference for service technicians but also as an educational tool for understanding the intricacies of the printer models, ensuring they can perform repairs and maintenance efficiently.
Ideal for: Service technicians, repair shops, and DIY enthusiasts looking to maintain or repair their Epson WorkForce series printers. Ordering this manual is a step towards ensuring the longevity and efficiency of your printing equipment.
