Epson Stylus Photo R800 Printer Service Manual (P/N SEIJ03012)

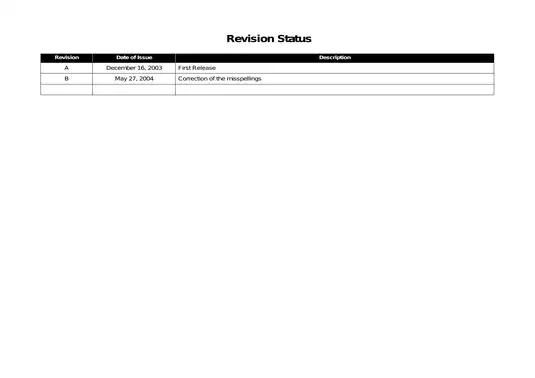

Epson’s OEM service manual for the Stylus Photo R800, P/N SEIJ03012, Revision B, dated May 27, 2004. The revision record identifies the December 16, 2003 first release and lists spelling corrections for Revision B.

PDF Search, Bookmarks, and Schematic Detail

Text navigation and circuit drawings: The manual has searchable text and embedded bookmarks for its chapters and service sections. The five final schematic sheets are not text-searchable. Small schematic labels require zooming; fine lines and lettering are pale, particularly on the MAIN board drawings.

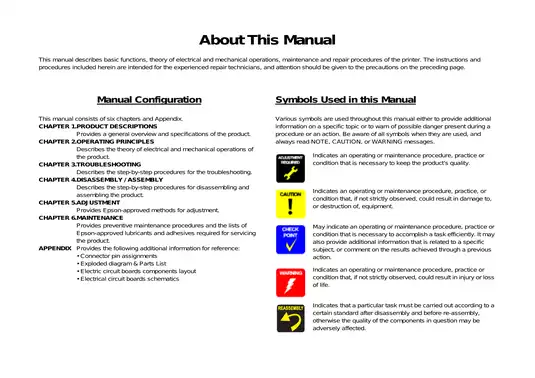

The ZIP contains one printable 179-page PDF: seven front-matter pages, 167 chapter and appendix pages, and five final schematic sheets. All are included in the total.

Printer Mechanisms, Fault Diagnosis, and Post-Repair Setup

The following selected service topics show the manual’s coverage rather than its complete contents. Additional topics include control-panel switch functions and printer accessory identification.

• Printer mechanisms: Carriage, Auto PG (APG), ASF, manual and roll-paper feeding, CD-R/DVD-R tray operation, cutter mechanisms, and ink-system control.

• Fault diagnosis: LED and EPW3 error interpretation, with 15 checkpoint tables covering communication, paper handling, cartridge/CSIC faults, cutter errors, print quality, and abnormal noise.

• Mechanical repair: Step-by-step disassembly and reassembly procedures for housings, boards, print head, carriage, APG assembly, ink system, rollers, motors, and sensors.

• Post-repair adjustments: Replacement-part adjustment priorities, EEPROM data transfer, Head ID input, head-angle and Bi-D alignment, sensor calibration, and paper-feed correction.

• Service maintenance: Head cleaning, waste-ink-pad replacement and counter reset, ROM replacement, and component-specific lubrication instructions.

• Circuit and parts references: Connector pin assignments, C550 board layouts, five circuit-board schematics, six exploded diagrams, and the Stylus Photo R800 parts list.

Written for experienced repair technicians; Epson specifies that repairs should be performed by an Epson-certified repair technician.

Mechanical Systems and Circuit Operation

The operating-principles chapter explains the F-Mach print head and its eight nozzle lines, carriage home detection, CR load and heat-control logic, PF encoder feedback, and CSIC communication. Cap, pump, wiper, ink-filling, cleaning, and power-on sequences are documented at system level.

Media handling: PW sensor coverage explains off-paper protection and borderless-printing control, together with board-paper and roll-paper edge detection. Roll-paper operation is traced with the cutter fitted or removed, including auto-cut modes, tear-off handling, initialization, and cutter-cleaning logic.

For CD-R/DVD-R printing, the manual explains how the front-fed tray, APG setting, carriage, PW sensor, reference marks, and disc-edge detection work together. Named drawings include APG Mechanism, CD-R Printing Mechanism, and Paper Cutter Mechanism.

Electrical operation: Circuit explanations cover the C550 MAIN, C550 PSB/PSE, and C550 PNL boards, including motor and head drives, sensor inputs, EEPROM, and reset functions. The Electrical Circuitry Block Diagram and C550 MAIN Control Board Block Diagram connect these functions to the printer’s assemblies. The appendix adds component layouts and schematics for both MAIN circuit sheets, both power-board variants, and the panel board.

Troubleshooting and Mechanical Repair

Fault isolation is at unit level. Symptom tables connect LED and EPW3 error states to checks and remedies for cables, sensors, motors, encoders, boards, the paper path, ink system, cutter, and print head.

Print-quality diagnosis distinguishes missing dots, mixed colors, density errors, banding, ink contamination, image graininess, and borderless-printing faults. For example, the missing-dot checks distinguish ink-system suction problems from head, cable, and board faults, supporting diagnosis before replacement parts are selected.

The Disassembling Procedure Flowchart maps access to individual assemblies. The chapter contains 161 numbered illustrations, with screw identification, cable routing, spring and gear positions, lubrication references, and pre-shipment checks.

Repair coverage extends to the CR Scale, Carriage Shaft and Unit, CSIC Board, FLAG Release assembly, upper and front paper guides, paper-eject assemblies, PF Roller, CR/PF motors, and the major paper, carriage, and platen-gap sensors. APG reassembly notes specify gear phasing and the relationship between the FLAG Release assembly and upper paper guides.

The CR Scale can be broken during handling; incorrect encoder routing or contamination can cause carriage faults and print defects. During PG adjustment, residual ink can false-trigger the continuity gauge, while prolonged contact can allow ink to stick and damage the print head.

Adjustment Priorities, Maintenance, and Included Software

Replacement-part tables link repair work to the required adjustments, helping plan post-repair setup before components are changed. Main Board replacement distinguishes whether EEPROM data can be recovered from the old board; PF deterioration and CR motor settings also distinguish new components from retained parts.

The archive includes Stylus Photo R800 Adjustment Program Version 1.3, a legacy 32-bit Windows utility with WinHelp documentation, Windows 98/XP communication DLLs, and model-specific pattern files. Its functions include market initialization, USB/IEEE1394 IDs, first-dot position, bottom-margin feed correction, CR motor drive dispersion, ink charge, shipping-liquid refurbishment, CL3 cleaning, waste-ink counters, final check patterns, EEPROM readout, and printer operation information. EPW3 is referenced in the manual but is not included.

Mechanical adjustment procedures cover PF belt tension and PG adjustment. Named tools include PG Adjustment Gauge 1276333 and PF Tension Measuring Tool 1231678. Maintenance instructions identify G-26, G-45, and G-70 greases and their application points; waste-ink servicing pairs pad replacement with counter reset.

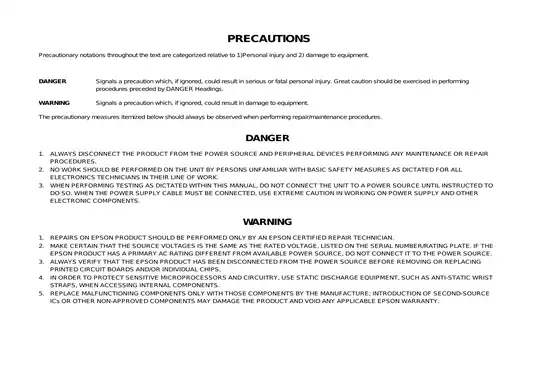

Disconnect AC power before board removal, use ESD protection around the control and power boards, and perform powered tests only where the service procedure calls for them.

Examples of Motor Test Data and Belt Tension

The carriage-motor specification table gives a winding resistance of 24.4 Ω ±15%; the PF motor table specifies 22.3 Ω ±25%. These component-specific values accompany the motor-control explanations and fault checks.

For PF belt adjustment after PF Motor or PF Roller removal or replacement, the manual specifies a standard tension of 9.0 ±2 N. The procedure uses the dedicated tension-measuring tool to relate belt load to motor loading and paper-feed accuracy.
