Epson Stylus CX4900/CX4905/CX5000/DX5000/DX5050/ CX5900/CX6000/DX6000/DX6050 Printer Service Manual (P/N SEMF06-006)

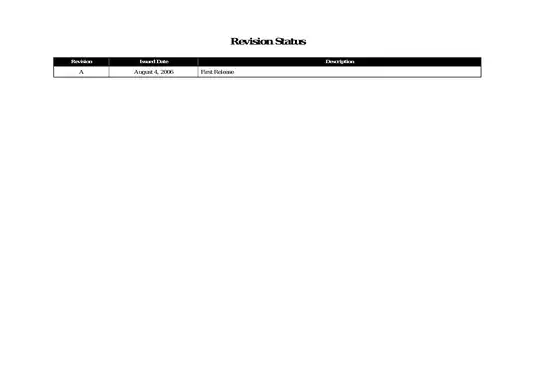

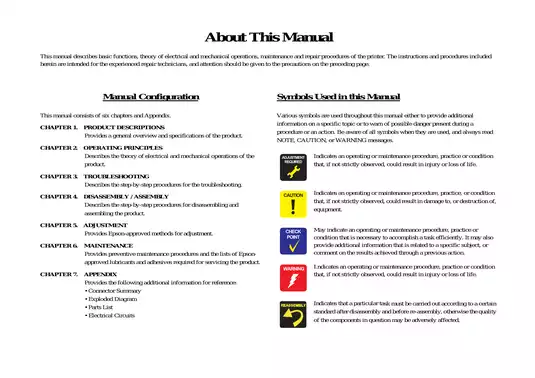

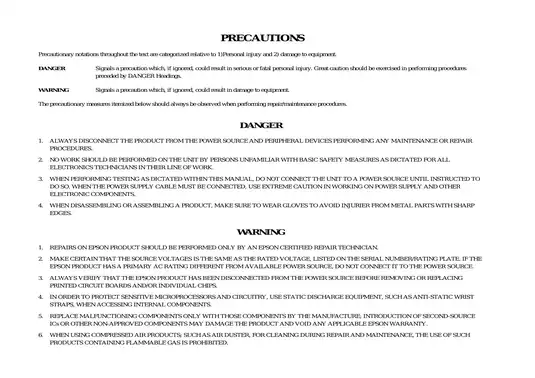

This 217-page PDF is Epson's factory service manual for the Stylus CX4900, CX4905, CX5000, DX5000, DX5050, CX5900, CX6000, DX6000, and DX6050. These 4-in-1 platforms combine computer printing and scanning with stand-alone copying and memory-card printing. The manual carries Epson document code SEMF06-006, Revision A, first issued August 4, 2006. Epson states that the procedures are intended for experienced repair technicians and that repairs should be performed by Epson-certified personnel, so this is shop-level material rather than a beginner owner's guide. Disconnect the printer from AC power and all peripheral devices before internal repair; powered testing is used only where the manual specifically calls for it, with ESD protection required around the electronic assemblies.

• Exact model coverage: Separates the CX4900/CX4905/CX5000/DX5000/DX5050 LED-panel group from the CX5900/CX6000/DX6000/DX6050 LCD-panel group, including their different panel and upper-housing removal procedures.
• Fault isolation: Matches panel indications and Status Monitor 3 messages to communication, paper-feed, CSIC/cartridge, waste-ink, CR/PF, and scanner faults, then adds symptom-based checks for abnormal noise and poor print or scan quality.
• Mechanical and scanner repair: Covers removal and reassembly of the printhead, power and main boards, waste-ink pads, ASF, carriage, paper-feed, eject, and ink-system units. Scanner work includes the housing, carriage, motor, home-position sensor, timing belt, and driven pulley.
• Adjustment and calibration: Maps replaced parts to priority-ordered Epson Adjustment Program operations, including EEPROM data transfer, initial settings, USB and Head ID entry, ink charge, waste-ink counter service, margins, PW sensing, head angle, Bi-D, CR offset, and PF feed/banding corrections, plus manual PG, PF-scale, and scanner-original adjustments.
• Electrical documentation: Supplies full schematics for the C657 MAIN, C610 PSB and PSE, C571 and C657 PNL, C610 I/F, and C654 HEAD boards, supported by connector pinouts and circuit-operating descriptions.
• Maintenance reference: Details head-cleaning and maintenance-request service, work-completion checks, approved grease locations, and Epson lubricant and applicator codes used during repair.

Model-Specific Hardware and Operating Theory

The operating-principles chapter shows how the D4-CHIPS PZT printhead, encoder-controlled carriage, PF drive, rear ASF, clutch and change-lever paper-loading system, cap/wiper/pump assembly, and CIS scanner carriage work together. It explains the initial ink-charge and cleaning sequences and identifies the calibration and counter data held in EEPROM, including the 13-digit Head ID that must be written after relevant component replacement.

Model differences go beyond the control-panel appearance. The LED group uses the C571 PNL board at CN12, while the LCD group uses the C657 PNL board at CN18; Photo Mode is limited to the LCD models. Electrical coverage also separates the C610 PSB for 100-120 VAC machines from the C610 PSE for 220-240 VAC machines, an important distinction when diagnosing or replacing the power-supply board.

Diagrams, Test Data, and Service Equipment

The PDF contains 151 numbered figures and 107 numbered tables. Useful examples include the Printer Mechanism Block Diagram, ASF Paper Loading Sequence, Scanner Carriage Unit Mechanism, C657 Main Board Block Diagram, Print Head Driver Circuit, and Sensor Circuit Diagram. Eight full-page circuit sheets cover the main board, both voltage-specific power boards, both panel variants, the interface board, and the head board. The connector appendix maps CN1 through CN18 to the printhead, motors, sensors, scanner, panel, memory-card, and USB-host circuits.

Product data tables cover printer and scanner specifications, supported media and interfaces, power-input requirements, environmental operating and storage limits, motor specifications, and sensor check points.

Standard teardown uses the listed hand tools, while critical repair work depends on Epson service software. Scanner-original adjustment specifically requires the FT program and an exclusive adjustment jig. The maintenance section identifies G-26, G-45, G-71, and G-74 greases by Epson code and specifies flux dispenser 1049533 for controlled application.

Repair Cautions and Appendix Limits

One factory caution warns that separating the Printer Mechanism from the Housing Lower before removing units such as the Ink System can deform the Main Frame and cause print or operating failures; Epson generally recommends replacing those assemblies together. Reassembly notes flag two other damage risks: a misplaced waste-ink tube can leak, while direct carriage pressure during platen-gap adjustment can damage the printhead surface.

The PDF finishes with five exploded sheets for the LED-panel models: C650-CASE-001, C650-CASE-002, C650-ELEC-001, C650-MECH-001, and C650-MECH-002. It does not include the corresponding service-parts list; Epson directs technicians to Service Parts Information (SPI) for that material. Buyers who need part-number lookup data will require that separate source.
