2007 Epson Stylus CX7300, CX7400, DX7400, CX8300, CX8400, and DX8400 Service Manual (P/N SEMF07-001)

• Coverage and document identity: Covers the Epson Stylus CX7300, CX7400, DX7400, CX8300, CX8400, and DX8400 in the 172-page Epson service manual SEMF07-001, Revision A, first issued August 9, 2007.

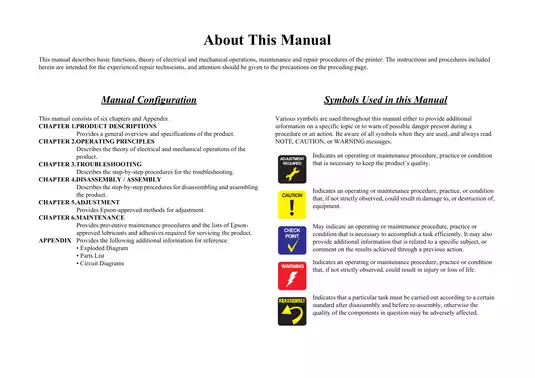

• Operating-principle coverage: Explains the D4-CHIPS Turbo2 printhead, carriage and CR encoder, ASF paper-loading and PF encoder systems, paper-feed and eject mechanisms, ink pump/capping/wiping system, and CIS scanner drive.
• Diagnostic workflow: Uses LCD, LED, and Status Monitor 3 indications plus symptom-based checks to isolate printer and scanner fatal errors, paper-feed faults, cartridge/CSIC problems, memory-card and Index Sheet errors, abnormal noise, communication faults, and print or scan defects.
• Printer repair procedures: Provides illustrated removal and reassembly coverage for the housings, main/panel/power boards, printhead, CR and PF motors, encoder scales, ASF unit, ink system, carriage assembly, paper guides, feed/eject rollers, and waste-ink pads.
• Scanner and completion work: Details scanner-housing removal, CIS/scanner carriage and scanner-motor service, followed by work-completion checks, cleaning, printhead maintenance, waste-ink service, and specified lubrication points.
• Post-repair setup: Documents EEPROM data transfer, market initialization, USB and Head ID entry, motor heat-protection settings, ink charging, waste-ink counter reset, and margin, head-angle, bidirectional, paper-feed, and band adjustments through the Epson Adjustment Program.
• Schematics and scope: Supplies eight electrical schematic sheets for the C690 MAIN, C689 PNL, C690 PNL, C687 PSB, C687 PSE, and C610 I/F boards. Exploded diagrams and a parts list are not included; Epson directs those requests to SPI (Service Parts Information).

Model and Regional Differences

The Device ID table maps the CX7400/CX8400 names to North America, the DX7400/DX8400 names to Europe, and the CX7300/CX8300 names to Asia/Pacific. The manual then divides the six printers into two service configurations. CX7300/CX7400/DX7400 units use a non-LCD control panel and C689 PNL board, while CX8300/CX8400/DX8400 units use a color LCD, a different panel-removal procedure, and the C690 PNL board. The LCD-equipped group also receives photo reprint/restore functions and LCD-guided setup features; the non-LCD group communicates through LEDs and a seven-segment display. The full circuit sheets carry the corresponding PX-A640 and PX-A740 platform labels alongside the CX/DX model names.

Written for experienced repair technicians, this factory manual assumes electronics-service safety knowledge and access to the Epson Adjustment Program for repairs that require stored-data work or calibration. The mechanical chapters explain how the carriage, paper path, ink system, and scanner interact before the repair sections trace access paths down to individual units.

Troubleshooting and Repair Depth

Twenty-two numbered troubleshooting tables tie each fault to its occurrence timing, carriage position, likely unit, inspection point, and remedy. Coverage extends from scanner initialization and carriage collisions to PF encoder faults, paper jams, multiple-sheet pickup, waste-ink maintenance requests, and defective scan or print quality. Component views identify connector locations and cable paths, while the Printer Mechanism Block Diagram, C690 Main Board Block Diagram, Printhead Driver Circuit Block Diagram, Motor Driver Circuit Block Diagram, Sensor Circuit Block Diagram, and Disassembling Flowchart clarify system relationships. No Epson-specific tool is prescribed for troubleshooting; the teardown tool list is based on ordinary shop hand tools.

Adjustment and Maintenance

After a major repair, the required-adjustment matrix identifies which data operations and print calibrations follow replacement of the main board, printhead, power supply, motors, ASF, carriage, frame, paper guides, rollers, or waste-ink pads. If the old main board remains readable, its EEPROM values can be copied to the replacement. If they cannot be recovered, the manual calls for a broader initialization and calibration set and links that condition to waste-ink pad replacement. The PDF explains the purpose of each Adjustment Program function and how to judge its printed patterns; program operation itself is left to the software's on-screen instructions.

Maintenance data names the factory lubricants and their application points: G-45 (1033657), G-71 (1304682), and G-74 (1409257). The repair notes warn against grease contamination on both timing belts; contamination of the CR belt can cause drive malfunction. Laying the Main Frame Assembly on the upper paper-guide rollers can damage those rollers or the printhead nozzle surface, while incorrect seating of the waste-ink tube can lead to ink leakage.

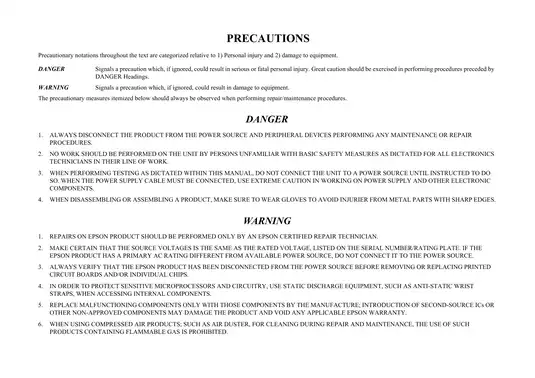

Live checks around the C690 main board and C687 power board carry shock risk. The manual requires power isolation except when a prescribed test calls for power, along with ESD protection when handling sensitive boards and circuitry.
