EPSON Stylus Pro 4800/4400 Service & Repair Manual (P/N SEIJ04008)

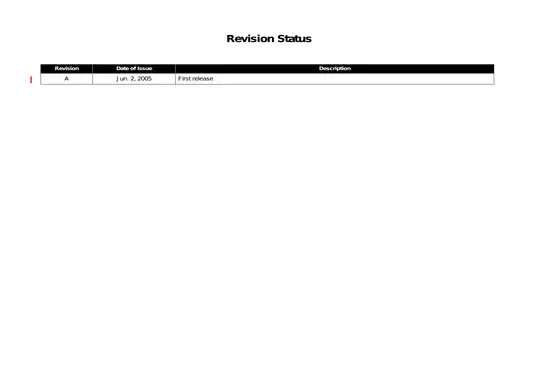

This OEM service and repair manual covers the Epson Stylus Pro 4800 and 4400 large-format inkjet printers, including the 4800’s 8-color and 4400’s 4-color configurations. Manual code SEIJ04008, Revision A, was issued June 2, 2005.

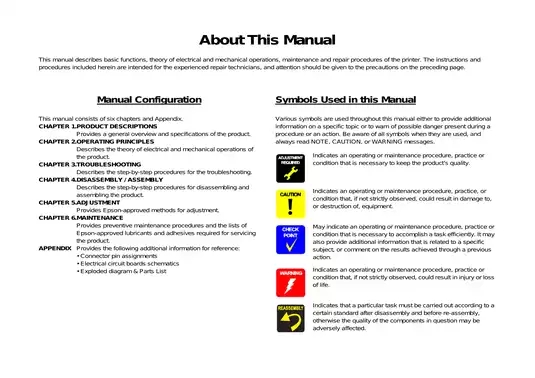

The 490-page PDF contains six primary chapters plus an appendix, combining selectable text with illustrated procedures and large-format circuit drawings.

• Printhead and carriage: Printhead replacement, CR motor removal, encoder positioning, timing-belt tension, platen-gap adjustment, and printhead slant adjustment in PF and CR directions.

• Paper feed: Automatic Sheet Feeder (ASF) disassembly, pickup and LD roller mechanisms, paper-thickness sensing, and paper-feed motor replacement.

• Ink supply and cleaning: Ink-holder and damper service, pump unit removal, tube routing, maintenance tank monitoring, and cleaning-mechanism operation.

• Diagnostics: Panel messages and service-request codes, print-quality troubleshooting, sensor tests, and CR/PF encoder checks in Maintenance Mode 2.

• Calibration and memory: Multi sensor adjustment, NVRAM backup and write, Head Rank ID entry, Colorimetric Calibration (Color ID), and firmware updating.

• Electrical reference: Wiring diagrams, connector pin assignments, board-level circuit diagrams, exploded views, and parts lists keyed to drawing callouts.

Written for experienced repair technicians, the manual assumes electronics safety knowledge and specifies Epson-certified technicians for repairs to these printers.

Model Differences and Disassembly Limits

Disassembly procedures are based on the 8-color model, with a dedicated differences table for the 4-color model. The 4400 lacks the right ink holder; its ink tubes route to the left I/H unit, and several C511_SUB-B connectors are unused.

The tool list identifies the Head Exchange Support Tool (1294672) and ASF Exchange Support Tool (1401458). Carriage-shaft fastening screws are excluded from field disassembly because loosening them disturbs factory alignment. Other precision assemblies outside the listed repair procedures require factory service.

Fault Diagnosis and Operating Principles

The troubleshooting chapter separates panel-message faults from symptoms in the printout. It distinguishes nozzle loss affecting all colors from a single-color problem, with checks directed to the ink path, cleaning mechanism, printhead connections, and control board.

Reference tables cover motor specifications, sensor diagnostic thresholds, print performance, and electrical ratings. Illustrated panel menus include firmware version identification. Operating diagrams explain the ink route and how the ASF/pump motor drives the cleaning mechanism.

Adjustments After Component Replacement

The Required Adjustment Items/Execution Order table links replaced or removed components to their follow-up adjustments. Separate main-board replacement entries for successful and failed parameter backup help technicians identify the calibration work required for that repair.

Head Rank ID entry establishes printhead-specific driving voltage after replacement. Nozzle check patterns and PF/CR slant patterns support the documented alignment procedures; multi sensor coverage extends to position, level, and automatic nozzle-check adjustment.

Color ID calibration specifies a GretagMacbeth eye-one (i1) with a UV filter and covers both on-site and separate measurement workflows. The procedures rely on separate Epson adjustment, NVRAM, and firmware utilities and describe Windows 98, Me, 2000, and XP environments.

Preventive Maintenance and Service Precautions

Preventive maintenance addresses the platen, carriage scale, guide rail, and paper-path sensors. Service-life data and replacement-related counter resets accompany G-26/G-74 lubrication maps. Counter guidance warns that improper clearing of maintenance-tank waste-ink data can lead to ink leakage.

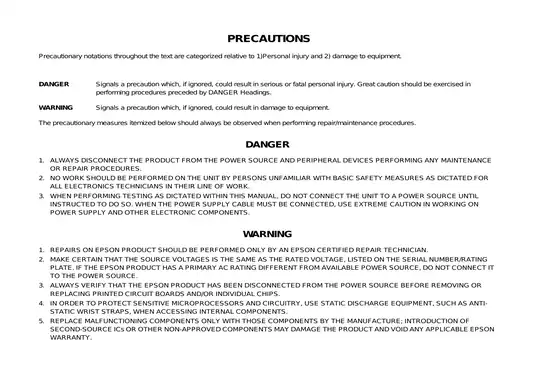

The safety sections cover power isolation, stored electrical charge, and protection of electronic components during service.

Wiring and Circuit Diagrams

Figure 7-1 maps board-to-board connections, motors, sensors, and flat flexible cables. The C593 MAIN circuit block diagram explains control-board architecture, while detailed schematics provide component and pin references.

File Format and Readability

The total comprises 8 preliminary pages, 437 pages across the six main chapters, and 45 appendix pages. The cover, contents, circuit drawings, exploded views, and parts lists are already included in the 490-page total.

The main text is searchable, and 295 embedded bookmarks provide chapter and subsection navigation. Small schematic lettering is not consistently searchable; dense pin and component labels require zooming, and fine, pale lines reduce contrast.
