Komatsu SAA6D125E-5 Engine Shop Manual, 2008 (P/N SEN00177-09)

Komatsu’s 125E-5 Series shop manual, P/N SEN00177-09, covers the SAA6D125E-5 diesel engine in the machine applications listed above. This December 2008 revision provides engine repair, testing and troubleshooting information.

PDF Search, Bookmarks and Diagram Detail

Text search and circuit labels: Main text is searchable, and 240 embedded PDF bookmarks provide navigation through the technical sections. Some labels inside circuit diagrams are not searchable. Small connector and pin labels require zooming.

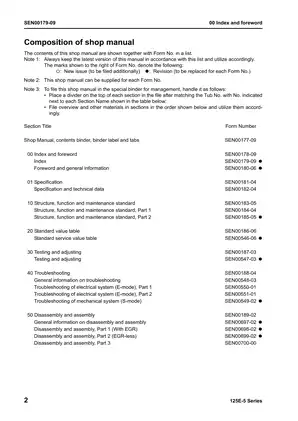

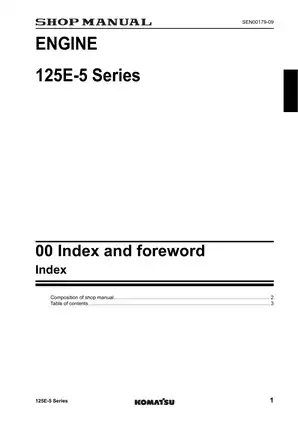

Supplied as a single printable, 589-page PDF in English (31.27 MB), including the original cover and 34 blank or header/footer-only pages.

Engine Overhaul, Common Rail Testing and Fault Diagnosis

The following selected coverage outlines the main workshop topics. Further examples include electrical intake-air heater construction and alternator belt-tension checks.

• Engine overhaul: Separate step-by-step disassembly and assembly instructions for engines with cooled EGR and EGR-less builds.

• CRI fuel system: Low-pressure fuel tests, pressure-limiter leakage checks, injector return-rate tests, fuel supply pump removal and air bleeding.

• Mechanical diagnosis: S-mode troubleshooting charts for starting problems, loss of power, exhaust smoke, excessive oil consumption and overheating.

• Electrical diagnosis: E-mode fault-code tables, controller and sensor testing, injector-circuit checks and related wiring diagrams.

• Air handling and EGR: KTR90 turbocharger inspection standards, cooled-EGR operation and EGR/bypass-valve drive-pressure testing.

• Cooling and lubrication: Water-pump, thermostat, oil-pump and oil-cooler removal and installation, supported by system diagrams and component maintenance standards.

Suited to diesel-engine technicians familiar with common rail diagnosis and equipped for pressure testing, electrical measurement and engine lifting.

Internal Engine Repair and Inspection

Internal repair coverage extends through cylinder-head and valve work, liner replacement, piston and connecting-rod assembly, crankshaft installation, and timing-gear alignment. Assembly instructions include torque-angle fastening, bolt-reuse checks and sealing-material requirements.

Application-specific performance curves, running-in standards and service-value tables support post-repair assessment against the correct installation data. Oil quantities, refill capacities and operating speeds are identified by application rather than treated as universal engine specifications.

The liner assembly notes warn that oil can swell the clevis seal and O-rings, while excess gasket sealant can deform the grommet in the head gasket.

The special-tools list identifies equipment such as liner puller 795-220-1000 and liner driver 795-225-1520. Rear crankshaft oil-seal replacement is covered with the engine installed; access work through flywheel removal is referred to the applicable machine shop manual.

CRI Fuel Delivery and E-Mode Troubleshooting

Fault tables connect INSITE error codes with machine failure codes, controller responses, normal electrical test values and related circuit diagrams. Technicians can match a fault readout to the corresponding harness or component checks.

For CA559 low rail pressure, a dedicated no-pressure-feed check sheet brings together low-pressure supply checks, filter restrictions, pump-control faults, pressure-limiter leakage and injector return measurements. EGR servo codes CA1228 and CA1625 are addressed through drive-pressure, oil-supply, valve and controller checks for EGR-equipped engines.

Reduced-cylinder operation and no-injection cranking are explained, with their operating methods referred to the applicable machine manual or INSITE bench-test documentation. Machine-specific test conditions and monitor controls require the corresponding supporting documentation.

Fuel-system handling notes address contamination sensitivity. Follow the manual’s precautions for residual fuel pressure, hot engine parts and high voltage at the injector circuits.

Fluid Circuits and Wiring References

Lubrication system diagrams distinguish the EGR oil circuit from the engine’s main lubrication circuit. CRI system diagrams and cooling system diagrams show the layouts for EGR and EGR-less engines.

Controller power-supply, charge-pressure-sensor and injector circuit diagrams provide electrical relationships and connector or pin references alongside the diagnostic tables.

Selected Valve-Clearance and Liner-Projection Data

For both engine builds, the valve-clearance procedures specify 0.33 mm for the intake valves and 0.71 mm for the exhaust valves, measured between the rocker arm and crosshead.

Cylinder-liner inspection specifies a permissible projection of 0.07–0.15 mm above the block. The assembly instructions connect this measurement with liner seating and sealing checks.
