Komatsu CK30-1 2006 Compact Track Loader Shop Manual (P/N CEBM017100)

302 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$28.95 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Komatsu Models Covered & Key Technical Specifications

Models: CK30-1 (engine: S4D98E-2NFE)

Sub-models / Variants: Standard, High-Flow, Super High-Flow, Float, Float + Pattern Change, Super High-Flow / Pattern Change

Model Year: 2006

Serial Numbers: A30001 and up


  • Engine speed: High idle, no load: 2700±50 rpm

  • Hydraulic pressure: Control valve: 206 bar standard value (permissible range: 196–211 bar)

  • Charge pump displacement: 32 cm³/rev

  • Accumulator nominal volume: 0.35 liters

  • Accumulator pre-loading: 8 bar

  • Accumulator working pressure: 25–27 bar

  • Maximum HST pump swash plate angle: ±17.7°

Komatsu Manual Features & Selected Content Preview

Komatsu shop manual P/N CEBM017100, published in June 2006, covers the CK30-1 Compact Track Loader, serial numbers A30001 and up.

Text Search, Bookmarks and Schematic Detail

Search and diagram navigation: Service text is searchable, although some schematic labels are not searchable because of their text encoding. Embedded bookmarks cover the main chapters and many individual procedures; the legacy “MAIN MENU” entry points outside the PDF. Small hydraulic and wiring labels require zooming.

One printable English PDF contains 302 pages, including the original cover, one publication-feedback form, and ten blank or intentionally blank pages.


Engine Checks, HST Calibration and Component Repair

These selected workshop topics highlight the manual’s contents. Additional sections include heating-system blower removal and installation.

  • Engine checks: S4D98E-2NFE engine-speed checks, valve-clearance adjustment, compression testing, fan-belt tension, injection timing, oil-pressure checks, and accelerator-cable adjustment.

  • Hydraulic diagnosis: Hydraulic pressure testing, pump diagnosis, HST and anti-engine-stall valve calibration, and travel-deviation measurement and correction.

  • Pilot controls: PPC drive-pressure and lever-clearance adjustment, servo-control supply checks, safety-sensor positioning, parking-brake pressure testing, and hydraulic-circuit bleeding.

  • Internal component repair: Step-by-step work-equipment cylinder disassembly and assembly, plus final-drive teardown and rebuilding covering the planetary gears, hydraulic motor, and brake pack.

  • Undercarriage service: Track removal and installation, idler and drive-wheel replacement, track-tensioner cylinder removal, and track-tension testing and adjustment.

  • Schematics: Standard, Float + Pattern Change, and Super High-Flow/Pattern Change hydraulic circuits; Engine Line and Cabin Line Optional diagrams; and Standard and Optional full-machine electrical diagrams.

Its pressure-testing routines, lifting requirements, and component-service tooling make this publication best suited to professional technicians and experienced heavy-equipment mechanics.

Hydraulic Configurations and CLSS Operation

Configurations and pumps: Hydraulic coverage distinguishes Standard, Float, Float + Pattern Change, High-Flow, Super High-Flow, and Super High-Flow/Pattern Change arrangements. Pump illustrations use LPV40+45 and LPV45+45 designations for standard-flow and high-flow arrangements; control-valve views distinguish 3-spool and 4-spool assemblies.

CLSS operation: The structure-and-function section explains the Closed Center Load Sensing System, including pressure compensation, proportional flow division, self-leveling, and lift/bucket series operation. It also describes automatic series-to-parallel switching under load and high-flow priority during combined operation.

Pump and pilot components: Cross-sections explain the variable-swash-plate tandem HST pumps, charge pump, work-equipment gear pump, anti-engine-stall valve, shuttle valves, travel synchronization valve, and suction and charge safety valves.

Separate operating descriptions cover the accumulator, solenoid groups, standard and pattern-change PPC valves, equipment-control foot valve, and lift and bucket cylinders. That level of functional detail supports fault isolation before a repair begins.

Engine and Machine Repair Depth

Engine and auxiliaries: Removal and installation procedures cover the starting motor, alternator, injectors, injection pump, cylinder head, turbocharger, coolant pump, radiator group, and fuel tank. The engine content is specific to the S4D98E-2NFE; full internal engine overhaul is outside this publication’s scope.

Machine assemblies: Procedures also cover the cab, complete engine-pump group, hydraulic and gear pumps, engine-pump coupling, control valve, PPC valves, lift and bucket cylinders, and working equipment. Hoisting points, component weights, tightening references, fluid recovery, and post-installation checks accompany the jobs.

Cylinder assembly includes seal installation and piston-seal sizing with dedicated tooling. Final-drive assembly addresses bearing and valve-plate orientation as well as brake-pack reassembly.

Some installation torque entries are blank, including valve-cover screws, injection-pump clamping nuts, and pump half-sleeve clamping screws.

Inspection Standards and Workshop Tools

Normal and standard data tables provide acceptance ranges for engine condition, hydraulic and pilot pressures, control travel and operating effort, hydraulic drift, work-equipment cycle times, travel performance, and track adjustment.

The maintenance-standard section adds component-specific torques, shaft and bushing clearances, wear criteria, and repair limits for the undercarriage, pumps, valves, cylinders, and working equipment.

The special-tools table lists tachometers, feeler gauges, compression-test equipment, hydraulic pressure gauges, adapters, and a differential-pressure Sensocontrol kit. The Yanmar compression-test kit is identified as TOL-97190080.

Introductory references include standard tightening tables, coating materials, wire-code conventions, hoisting guidance, component weights, oil and coolant quantities, and metric/U.S. conversion tables.

Repair Cautions and Machine Support

The final-drive procedure warns that the brake piston can be ejected and damaged during air-assisted removal unless restrained. Injection-pump service requires preserving the drive-gear index and preventing the key or retaining hardware from falling into the gear housing.

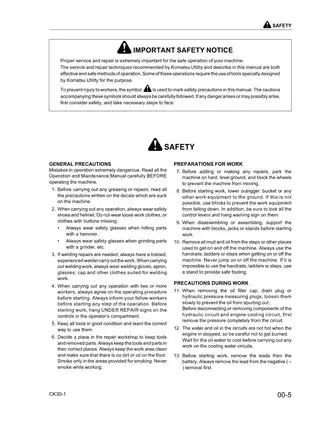

This shop manual does not replace the separate Operation and Maintenance Manual it references. Follow its machine-support, cab-tilting, battery-isolation, hydraulic-pressure-release, track-tension, and heavy-lifting precautions before beginning service.

A Preview of Valve and PPC Adjustment Data

For the S4D98E-2NFE engine, the standard intake and exhaust valve clearance is 0.20 mm at 20°C. The valve-adjustment section covers both the preliminary zero setting and the clearance adjustment.

PPC drive-pressure calibration relates 0.3 mm of shim thickness to approximately 0.6 bar of pressure change, alongside component disassembly and reassembly instructions.
